Product Details | BEARING UNIT HOUSING

3130-01-096-9920 A single or multiple piece item without ball, plain or roller bearing(s). It is designed to meet various or specific conditions of mounting. For items with bearings, see BEARING UNIT, BALL; BEARING UNIT, PLAIN; and BEARING UNIT, ROLLER.

Part Alternates: 160602, 3130-01-096-9920, 01-096-9920, 3130010969920, 010969920

Bearings | Bearings, Mounted

Supply Group (FSG) NSN Assign. NIIN
31 02 JUL 1980 01-096-9920

Drawings & Photos | NSN 3130-01-096-9920


Cross Reference | NSN 3130-01-096-9920

Part Number Cage Code Manufacturer
160602 15434 CUMMINS INC.

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 3130-01-096-9920

Technical Data | NSN 3130-01-096-9920

Characteristic Specifications
BORE DIAMETER 1.2500 INCHES NOMINAL
MATERIAL IRON CAST OVERALL

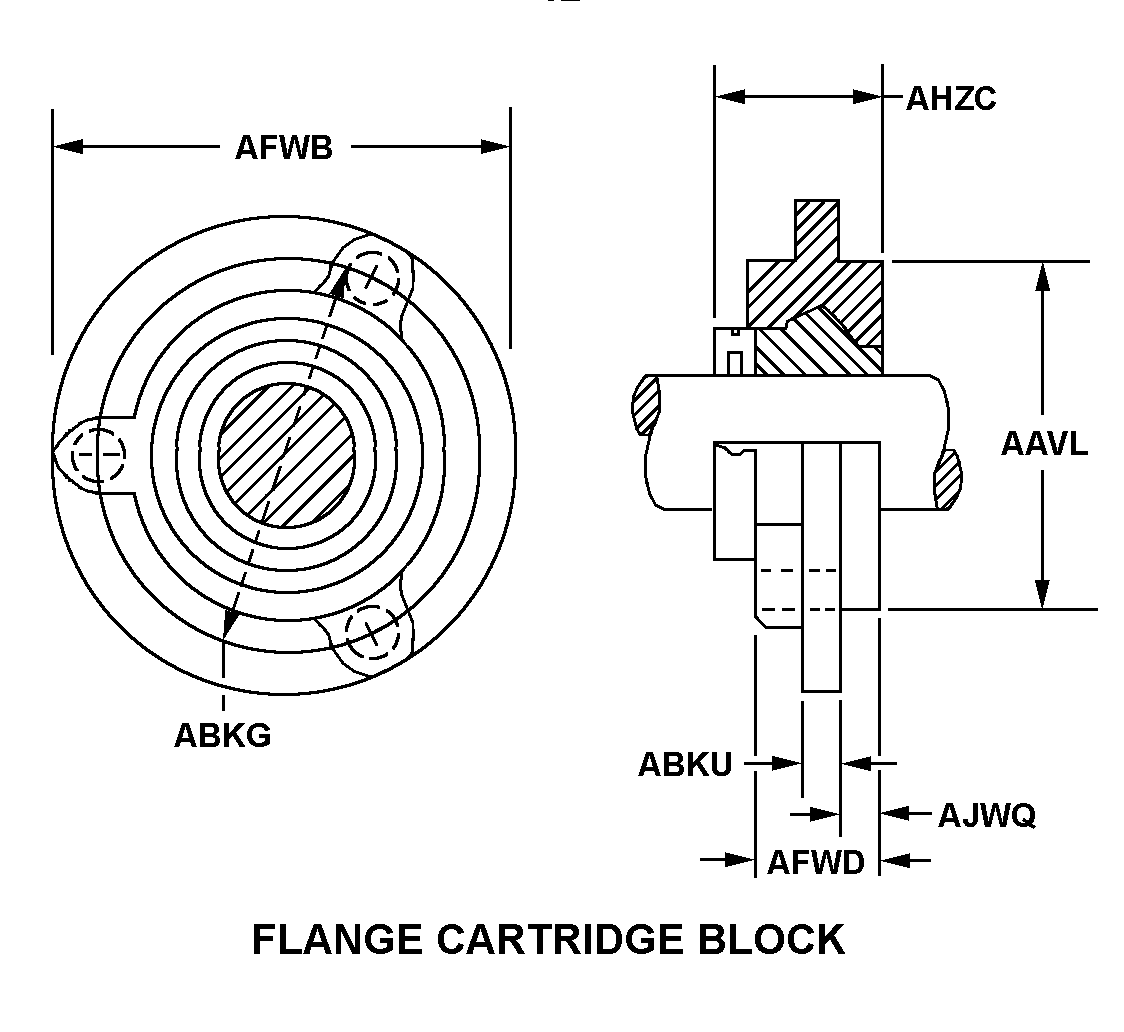

STYLE DESIGNATOR A42 FLANGE CARTRIDGE BLOCK
PILOT DIAMETER 5.250 INCHES NOMINAL
FLANGE THICKNESS 0.250 INCHES NOMINAL
HOUSING DIAMETER 5.625 INCHES NOMINAL
HOUSING LENGTH 0.968 INCHES NOMINAL
PILOT LENGTH 0.656 INCHES NOMINAL
COUNTERBORE DEPTH 0.500 INCHES NOMINAL
COUNTERBORE DIAMETER 1.437 INCHES NOMINAL
SHAFT END TYPE OPEN
SPECIAL FEATURES O/A LENGTH 1.156 IN. NOM.
III END ITEM IDENTIFICATION FRESH WATER PUMP,NSN 4320-01-088-9367,USED ON MAIN PROPULSION DIESEL ENGINES,CUMMINS MODEL VT-903M ONBOARD 41 FT UTB COAST GUARD VESSELS
MANUFACTURERS CODE 15434
DESIGN CONTROL REFERENCE 160602

Restrictions/Controls & Freight Information | NSN 3130-01-096-9920

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
No Freight Information

Management | NSN 3130-01-096-9920

Category Code Description
Inventory Account CodesS Stock Fund item managed for the Coast Guard by the respective Inventory Control Point. A funded requisition is required
Inventory Account Codes0 Item not controlled by serial number.
Special Material Content Codes9 Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of SupplyZNCCommanding Officer
USCG Surface Force Logistics Center
Code 028, Mil Stop 25
2401 Hawkins Point Road
Baltimore, MD 21226-5000
AgencyGPU.S. Coast Guard
Service OrganizationCU.S. Coast Guard
ReparabilityC
Acquisition Advice CodesCSERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
