NSN 3130-00-891-9080 DRN1516, DRN15-16, DRNR 15/16
Product Details | BALL BEARING UNIT
3130-00-891-9080 An assembled unit, composed of a housing incorporating a single or multiple row ball bearing(s), designed to meet various or specific conditions of mounting.
Part Alternates: DRN1516, DRN15-16, DRNR 15/16, DRNR1516, 134131, 14PP1, 3130-00-891-9080, 00-891-9080, 3130008919080, 008919080
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 25 JAN 1967 | 00-891-9080 | 30556 ( BEARING UNIT, BALL ) |

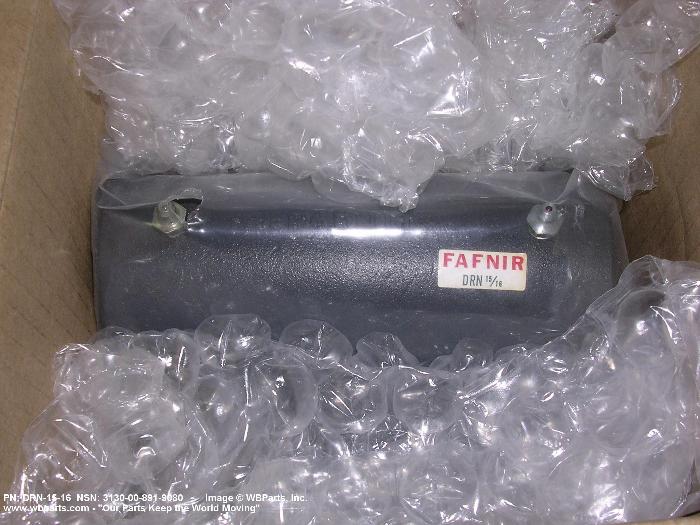

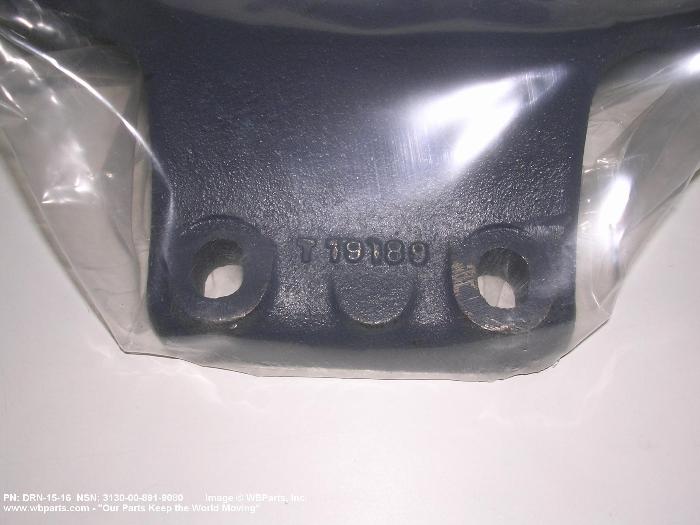

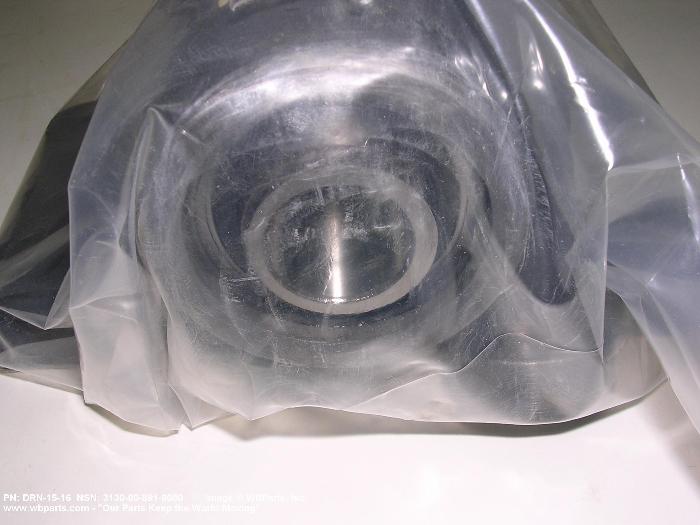

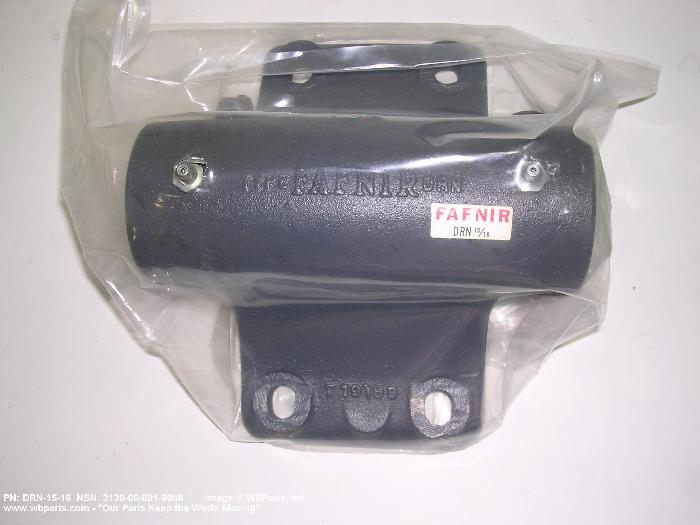

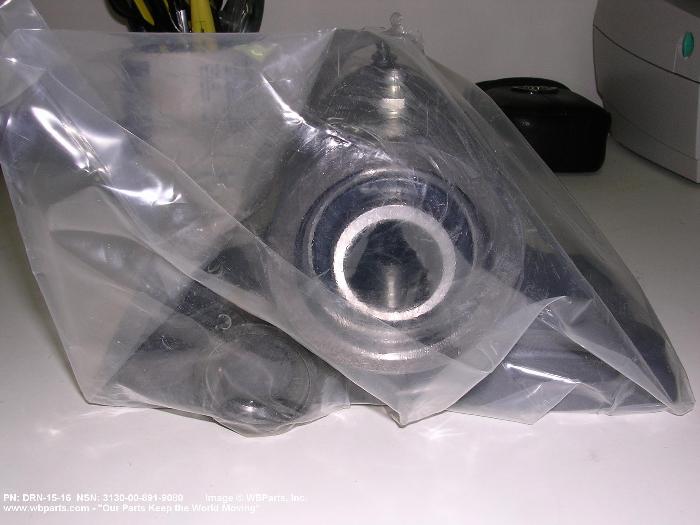

Drawings & Photos | NSN 3130-00-891-9080
Demand History | NSN 3130-00-891-9080
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3130-00-891-9080 | 2009-08-240 | 1 | US |
| 3130-00-891-9080 | 2007-09-256 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3130-00-891-9080
Related Products | NSN 3130-00-891-9080
Technical Data | NSN 3130-00-891-9080
| Characteristic | Specifications |
|---|---|
| BORE DIAMETER | 0.9375 INCHES NOMINAL |
| MATERIAL | IRON CAST HOUSING STEEL SEAL |
| STYLE DESIGNATOR | A45 BLOWER BOX |
| BASE THICKNESS | 0.7500 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG WIDTH | 6.2500 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 2.7500 INCHES NOMINAL |
| HOUSING HEIGHT | 3.9062 INCHES NOMINAL |
| HOUSING LENGTH | 6.8125 INCHES NOMINAL |
| HOUSING WIDTH | 7.7500 INCHES NOMINAL |
| BASE LENGTH | 4.2500 INCHES NOMINAL |
| ASSEMBLY OVERALL LENGTH | 7.8750 INCHES NOMINAL |
| HEIGHT FROM BOTTOM OF BASE TO BORE CENTERLINE | 2.5000 INCHES NOMINAL |
| MOUNTING HOLE TYPE | SLOTTED |
| MOUNTING SLOT WIDTH | 0.5000 INCHES NOMINAL |
| MOUNTING SLOT LENGTH | 0.6250 INCHES NOMINAL |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION FITTING TYPE | HYDRAULIC |
| LUBRICATION FITTING ANGLE FROM HORIZONTAL CENTERLINE | 90.0 DEGREES NOMINAL |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
| ROLLING ELEMENT GROOVE QUANTITY | 1 |
| ALIGNMENT TYPE | RIGID |
| BLOCK TYPE | FIXED |
| SHAFT END TYPE | OPEN |
| SEAL TYPE | LABYRINTH |
| SEAL LOCATION | BOTH ENDS |
| ROTATING ELEMENT LOCKING METHOD | SETSCREW LOCKING COLLAR |
| COLLAR LOCATION | BOTH ENDS |
| LOAD CAPABILITY TYPE | RADIAL AND THRUST |
| FEATURES PROVIDED | GROUND ROLLING ELEMENT GROOVE |
| SPECIAL FEATURES | BEARING UNITS AND LUBRICATION FITTINGS LOCATED EACH END OF THE HOUSING |
Restrictions/Controls & Freight Information | NSN 3130-00-891-9080
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3130-00-891-9080
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
