NSN 3130-00-892-3974 S614CHH5L01, SR168SS4011 , SS614CHHP25L01
Product Details | BALL BEARING UNIT
3130-00-892-3974 An assembled unit, composed of a housing incorporating a single or multiple row ball bearing(s), designed to meet various or specific conditions of mounting.
Part Alternates: S614CHH5L01, SR168SS4011 , SS614CHHP25L01, RBGF1 3/16, RBGF1316, RBGF1316C0L, 1225353-13 , 1431252PC11 , 77M1624ZD5J, 3130-00-892-3974, 00-892-3974, 3130008923974, 122535313, 008923974
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1962 | 00-892-3974 | 30556 ( BEARING UNIT, BALL ) |

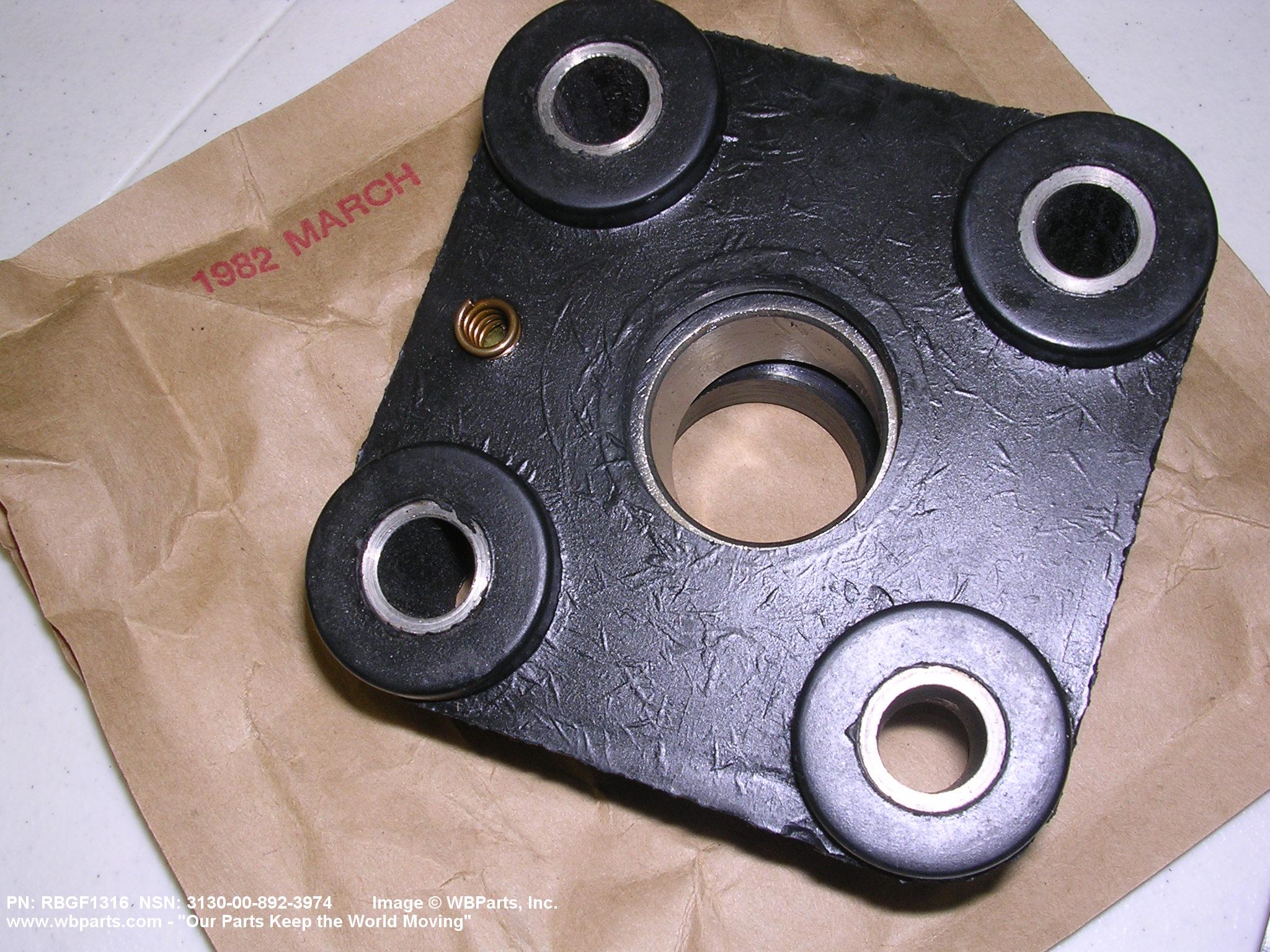

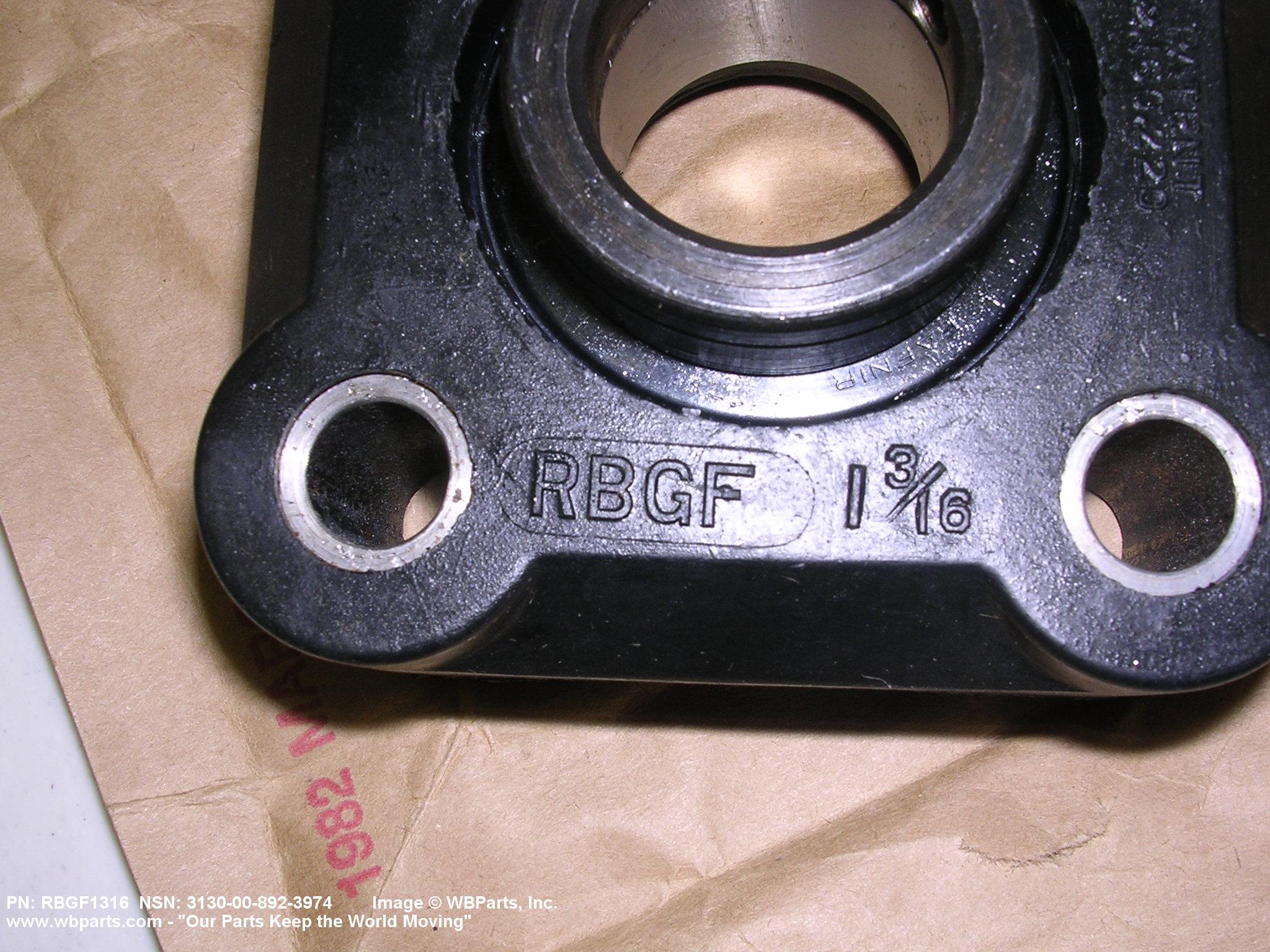

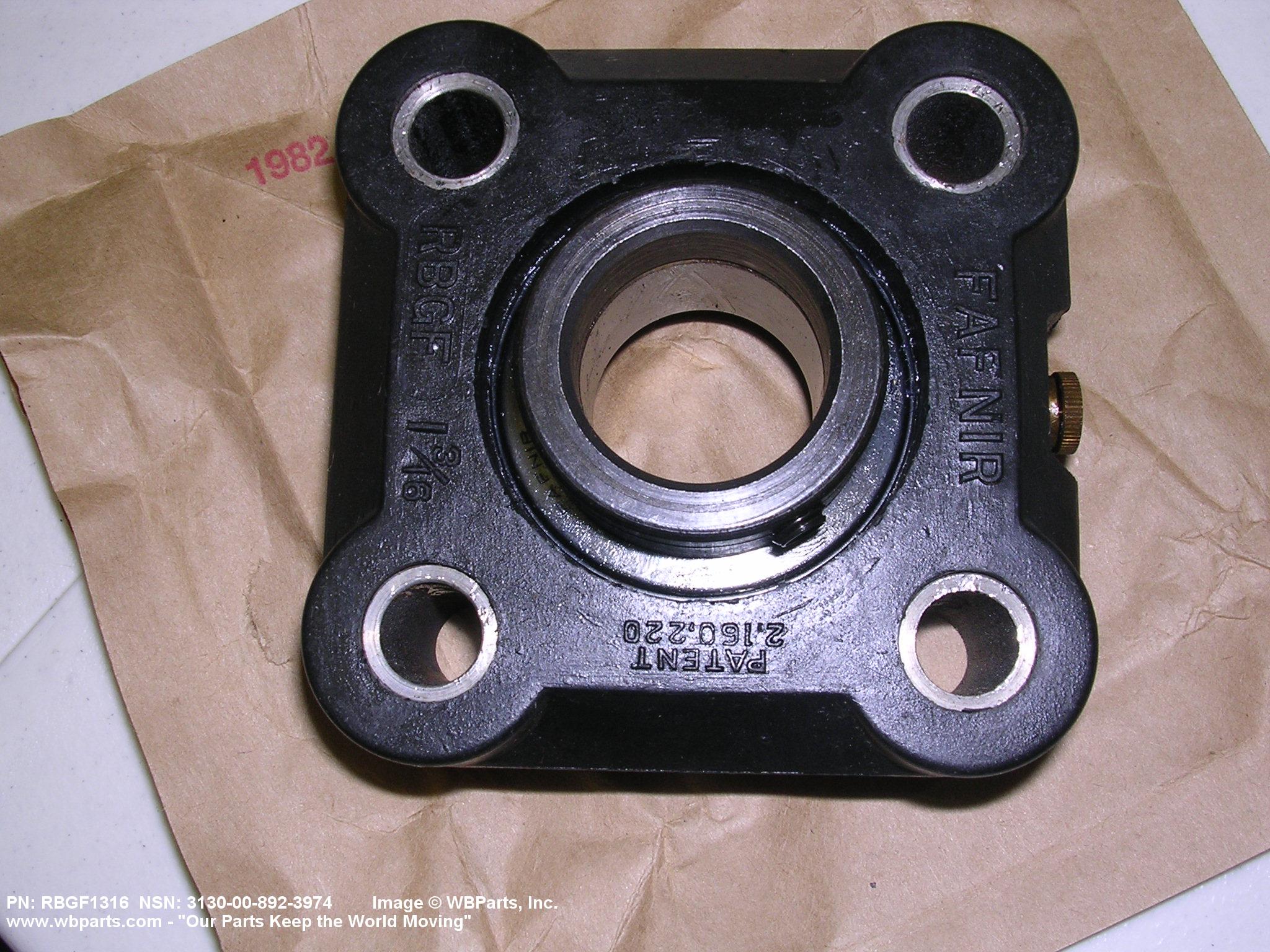

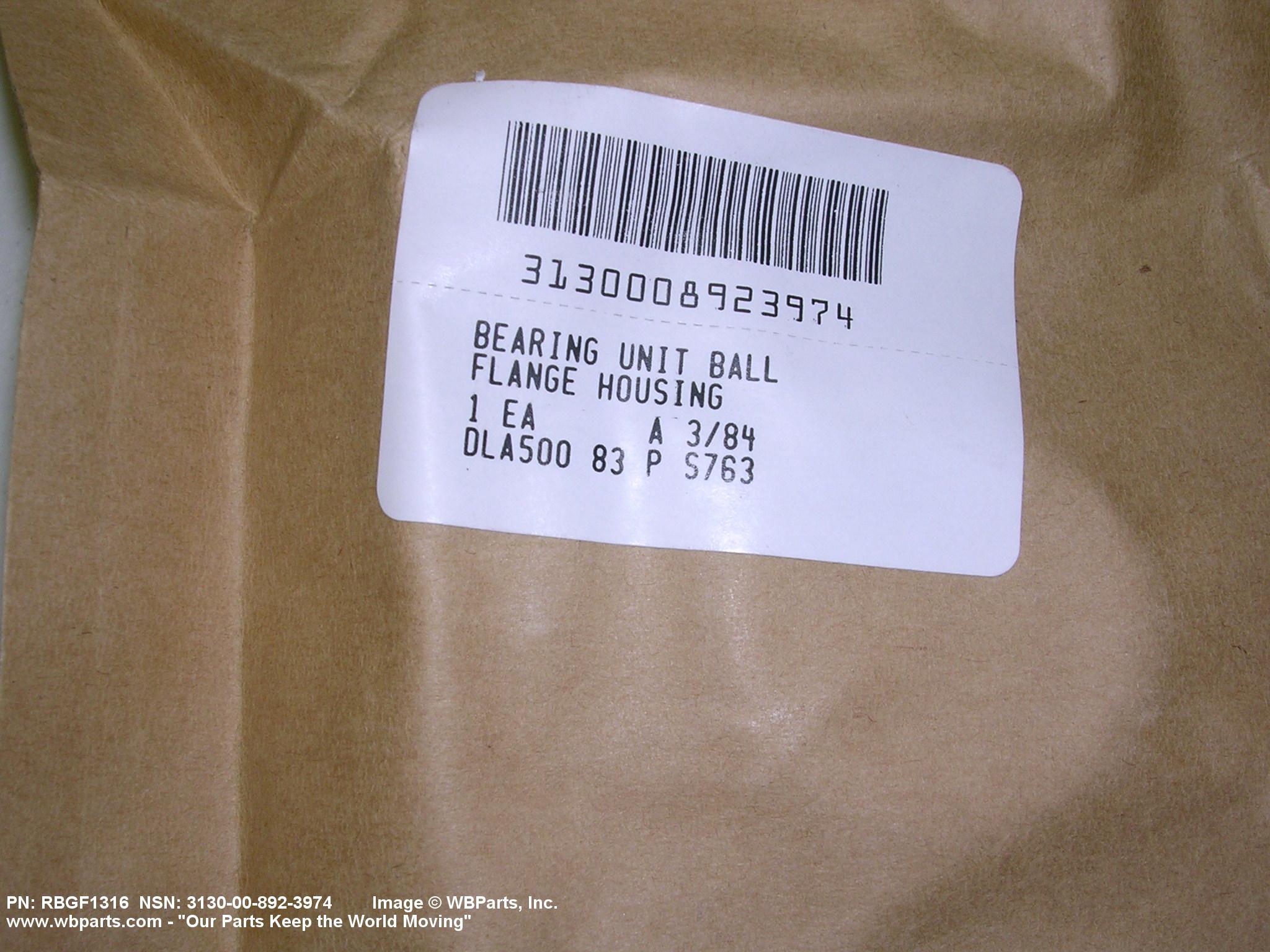

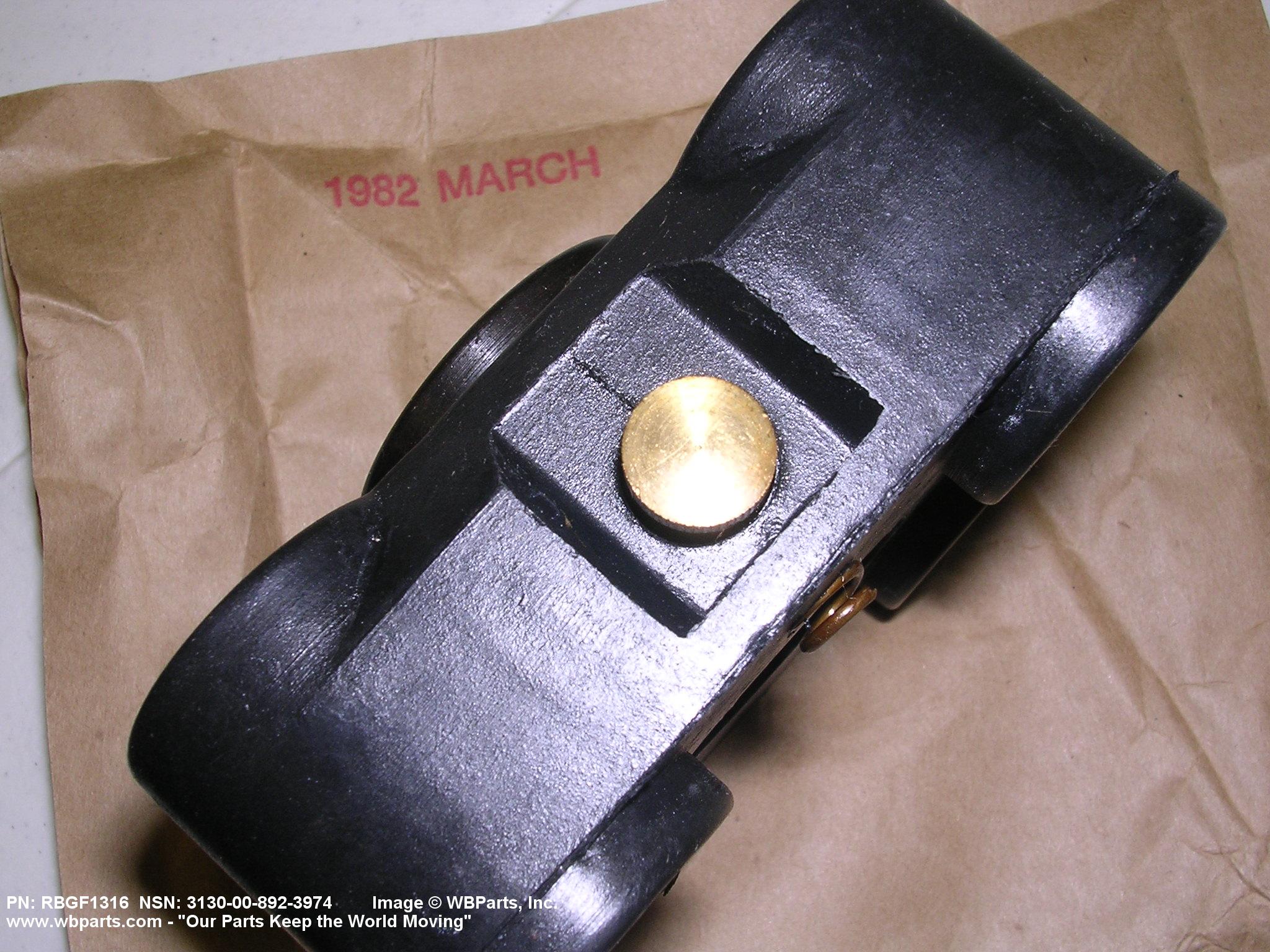

Drawings & Photos | NSN 3130-00-892-3974
Demand History | NSN 3130-00-892-3974
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3130-00-892-3974 | 2017-06-179 | 4 | US |
| 3130-00-892-3974 | 2011-02-38 | 1 | US |
| 3130-00-892-3974 | 2008-09-267 | 4 | United States |
| RBGF1316 | 2007-09-249 | 10 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3130-00-892-3974
Technical Data | NSN 3130-00-892-3974
| Characteristic | Specifications |
|---|---|
| BORE DIAMETER | 1.1875 INCHES NOMINAL |
| MATERIAL | RUBBER SYNTHETIC HOUSING STEEL SEAL |
| STYLE DESIGNATOR | A34 FLANGE BLOCK |
| BOLT CIRCLE DIAMETER | 2.5000 INCHES NOMINAL |
| FLANGE THICKNESS | 1.5312 INCHES NOMINAL |
| HOUSING LENGTH | 1.5312 INCHES NOMINAL |
| HOUSING WIDTH | 3.7500 INCHES NOMINAL |
| ASSEMBLY OVERALL LENGTH | 1.8750 INCHES NOMINAL |
| MOUNTING HOLE TYPE | ROUND, UNTHREADED |
| MOUNTING HOLE DIAMETER | 0.4844 INCHES NOMINAL |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION FITTING TYPE | PIPE PLUG |
| LUBRICATION FITTING ANGLE FROM HORIZONTAL CENTERLINE | 90.0 DEGREES NOMINAL |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
| ROLLING ELEMENT GROOVE QUANTITY | 1 |
| ALIGNMENT TYPE | SELF-ALIGNING |
| BLOCK TYPE | FIXED |
| SHAFT END TYPE | OPEN |
| SEAL TYPE | CONTACT |
| SEAL LOCATION | BOTH ENDS |
| ROTATING ELEMENT LOCKING METHOD | SETSCREW LOCKING COLLAR |
| COLLAR LOCATION | ONE END |
| LOAD CAPABILITY TYPE | RADIAL |
| FEATURES PROVIDED | GROUND ROLLING ELEMENT GROOVE |
Restrictions/Controls & Freight Information | NSN 3130-00-892-3974
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3130-00-892-3974
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
