NSN 3120-01-524-8130 AM040020206, AM-04-00-20206, 02MS5715310T
Product Details | SELF-ALIGNING PLAIN BEARING
3120-01-524-8130 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The item consists of a bored precision ground ball (or spherical plain bearing) around which an outer ring is fitted. The assembly may be either separable or nonseparable. Excludes BEARING, PLAIN, ROD END and BEARING, PLAIN, SPHERICAL.
Part Alternates: AM040020206, AM-04-00-20206, 02MS5715310T, 3120-01-524-8130, 01-524-8130, 3120015248130, 015248130
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 18 OCT 2004 | 01-524-8130 | 13208 ( BEARING, PLAIN, SELF-ALIGNING ) |
Drawings & Photos | NSN 3120-01-524-8130
Demand History | NSN 3120-01-524-8130
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 0 | 2017-04-95 | 5 | |
| 0 | 2016-03-77 | 15 | |
| 0 | 2012-05-147 | 1 | |
| 0 | 2012-04-118 | 1 | |
| 0 | 2012-04-102 | 1 | |
| 0 | 2011-08-228 | 1 |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-01-524-8130
Related Products | NSN 3120-01-524-8130
Technical Data | NSN 3120-01-524-8130
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC OVERALL |

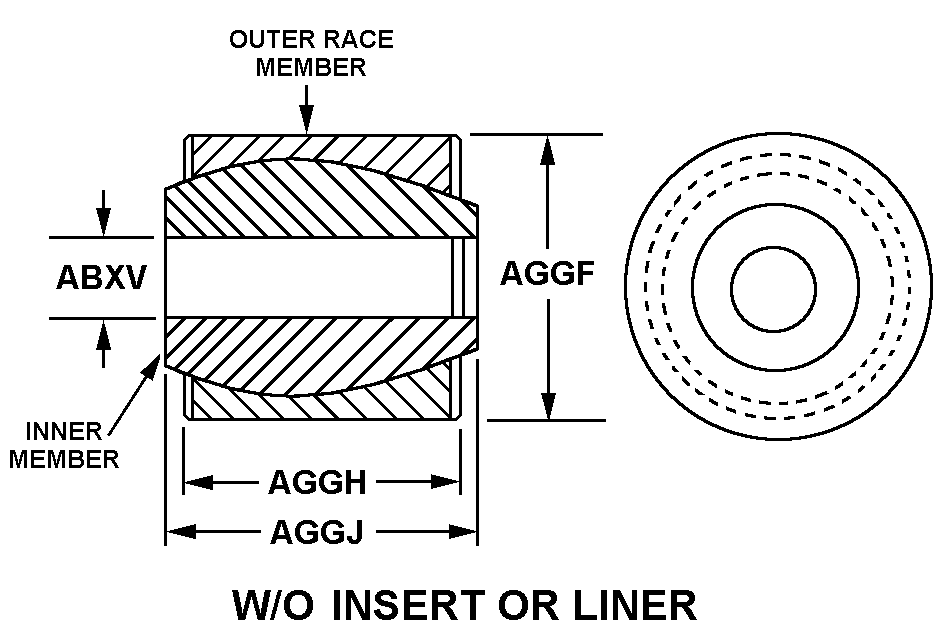

| STYLE DESIGNATOR | 8B WITHOUT INSERT OR LINER |
| BORE DIAMETER | 15.0 MILLIMETERS NOMINAL |
| OUTER MEMBER OUTSIDE DIAMETER | 15.2 MILLIMETERS NOMINAL |
| OUTER MEMBER WIDTH | 200.0 MILLIMETERS NOMINAL |
| INNER MEMBER WIDTH | 15.0 MILLIMETERS NOMINAL |
| III END ITEM IDENTIFICATION | LW155 HOWITZER |
| III FUNCTIONAL DESCRIPTION | TO PREVENT METAL TO METAL CONTACT BETWEEN SHAFT AND HOUSING AND PREVENT INGRESS OF DIRT, WHILST ABSORBING SHOCK LOADS |
| III SUPPLEMENTARY FEATURES | PLAIN, PTFE BASED, THERMOPLASTIC STRIP CUT AND FORMED TO ASSEMBLED REQUIREMENTS; OPER TEMP RANGE -60 DEG C TO +200 DEG C |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | SLYDRING 2 |
Restrictions/Controls & Freight Information | NSN 3120-01-524-8130
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | PA | Marine Corps Logistics Base Albany, GA 31704-1128 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | 2 | Arms/Weapons (all types including Inert Component Parts). When a 2 is indicated in the first position, then the special handling code must be determined from table 85 , part 1. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-01-524-8130
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | M | Ammunition weapons, and tracked combat vehicles weapons, special weapons, chemical and fire control materiel |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | G | Artillery |
| Weapons Systems/End Item or Homogeneous Group | GK | Howitzer, 155MM, M777E1 |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | B14 | US Army Armament and Chemical Acquisition and Logistics Activity ATTN: AMSTA-AC Rock Island, IL 61299-6000 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
