NSN 3120-01-377-6188 HT8VL1, SWKN8400, SWKN-8-400
Product Details | SELF-ALIGNING PLAIN BEARING
3120-01-377-6188 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The item consists of a bored precision ground ball (or spherical plain bearing) around which an outer ring is fitted. The assembly may be either separable or nonseparable. Excludes BEARING, PLAIN, ROD END and BEARING, PLAIN, SPHERICAL.
Part Alternates: HT8VL1, SWKN8400, SWKN-8-400, KNDB833, KNDB8-33, KR8CNGB, KR8-CNGB, 0382508, 03-825-08, 04A0648, 04A064-8, HT8V, 3120-01-377-6188, 01-377-6188, 3120013776188, 013776188
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 22 JUL 1993 | 01-377-6188 | 13208 ( BEARING, PLAIN, SELF-ALIGNING ) |

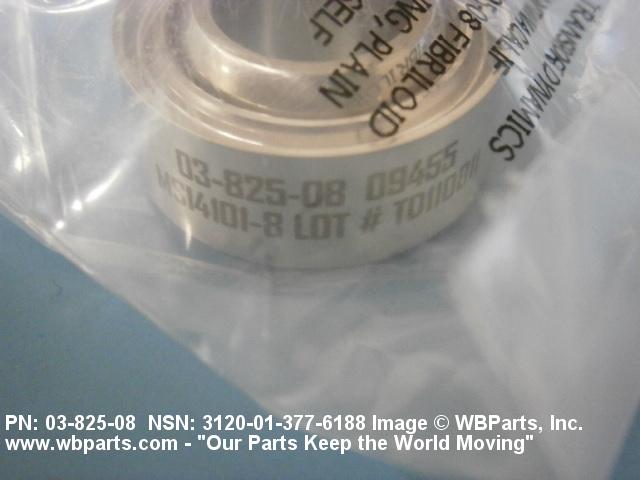

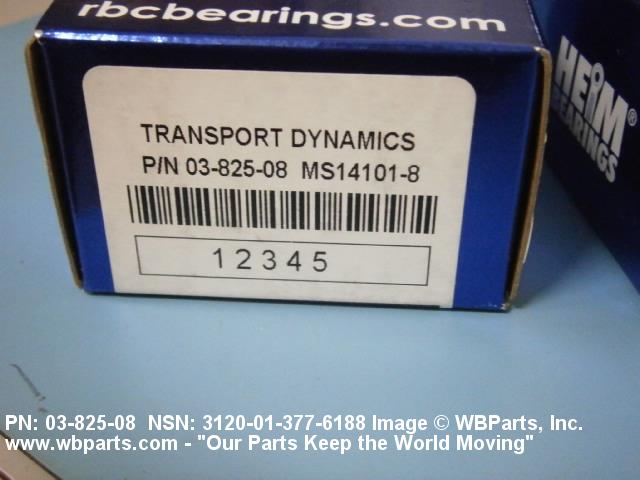

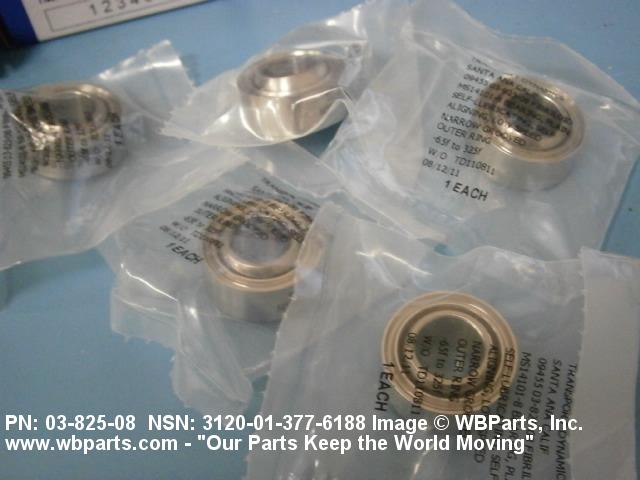

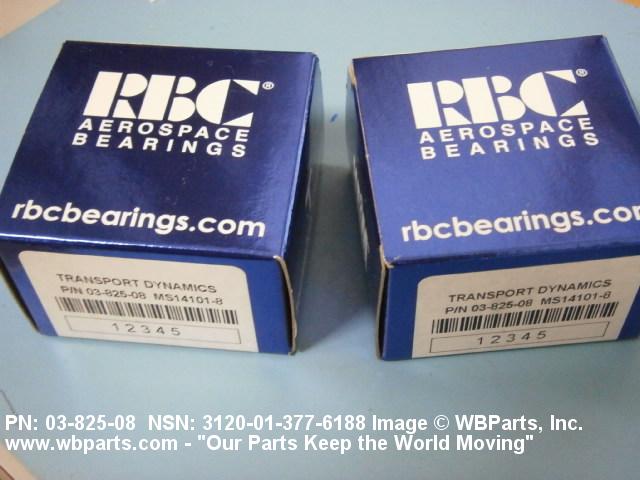

Drawings & Photos | NSN 3120-01-377-6188
Demand History | NSN 3120-01-377-6188
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| KR8CNGB | 2014-01-17 | 116 | US |
| KR8CNGB | 2014-01-17 | 558 | US |
Cross Reference | NSN 3120-01-377-6188
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 03-825-08 | 09455 | RBC TRANSPORT DYNAMICS CORP. DIV RBC TRANSPORT DYNAMICS |
| 04A064-8 | 1W025 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| HT8V | 50294 | NEW HAMPSHIRE BALL BEARINGS, INC. DBA NHBB |
| HT8V(L1) | 15860 | NEW HAMPSHIRE BALL BEARINGS, INC. DBA ASTRO DIVISION |
| KNDB8-33 | 97613 | DOVER ENGINEERED SYSTEMS, INC. DBA KAHR BEARING |
| KR8-CNGB | 50632 | KAMATICS CORPORATION |
| SWKN-8-400 | 81376 | RBC SOUTHWEST PRODUCTS, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-01-377-6188
Related Products | NSN 3120-01-377-6188
Technical Data | NSN 3120-01-377-6188
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYTETRAFLUOROETHYLENE INNER LAYER STEEL COMP 440C OUTER LAYER |
| STYLE DESIGNATOR | 10A WITH INSERT AND/OR LINER WITH STAKING GROOVE |
| BORE DIAMETER | 0.4995 INCHES MINIMUM AND 0.5000 INCHES MAXIMUM |
| OUTER MEMBER OUTSIDE DIAMETER | 0.9995 INCHES MINIMUM AND 1.0000 INCHES MAXIMUM |
| OUTER MEMBER WIDTH | 0.3850 INCHES MINIMUM AND 0.3950 INCHES MAXIMUM |
| INNER MEMBER WIDTH | 0.4980 INCHES MINIMUM AND 0.5000 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 3120-01-377-6188
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114850 | BEARING/BUSHING O/T BALL/ROLLER I/S |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-01-377-6188
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
