NSN 3120-01-513-7437 123CM10032511, 123CM10032-511, 01-513-7437
Product Details | ROD END PLAIN BEARING
3120-01-513-7437 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The outer member of the assembly is modified to provide a shank. The inner member may be either a plain spherical bearing or a sleeve bearing. Excludes BEARING, PLAIN, SPHERICAL and BEARING, PLAIN, SELF-ALIGNING.
Part Alternates: 123CM10032511, 123CM10032-511, 3120-01-513-7437, 01-513-7437, 3120015137437, 015137437
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 04 OCT 2003 | 01-513-7437 | 13209 ( BEARING, PLAIN, ROD END ) |
Drawings & Photos | NSN 3120-01-513-7437
Cross Reference | NSN 3120-01-513-7437
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 123CM10032-511 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-01-513-7437
Technical Data | NSN 3120-01-513-7437
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-200/2, 225/4 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |

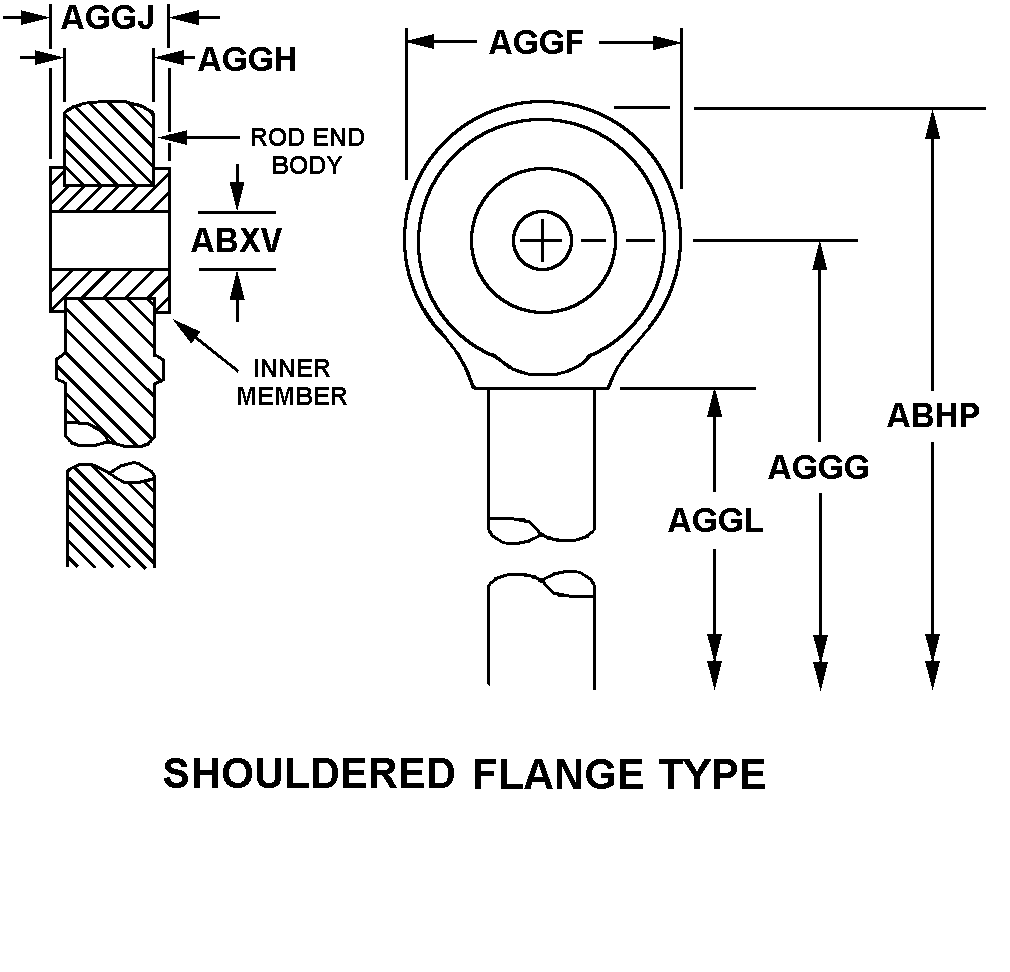

| STYLE DESIGNATOR | 1 SHOULDERED FLANGE TYPE |
| OUTER MEMBER OUTSIDE DIAMETER | 1.7500 INCHES NOMINAL |
| INNER MEMBER WIDTH | 1.8120 INCHES NOMINAL |
| SHANK STYLE | 1 EXTERNALLY THREADED |
| THREAD SERIES DESIGNATOR | UNEF |
| THREAD DIAMETER | 1.2413 INCHES MINIMUM AND 1.2500 INCHES MAXIMUM |
| THREAD QUANTITY PER INCH | 18 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| SPECIAL FEATURES | NEXT ASSY, 123C10223 |
| III END ITEM IDENTIFICATION | E2C HAWKEYE |
| III FUNCTIONAL DESCRIPTION | INSERT DIA 0.870/0.880 |
Restrictions/Controls & Freight Information | NSN 3120-01-513-7437
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
