NSN 3120-01-506-0855 ADB14V304, 01-506-0855, 015060855
Product Details | SELF-ALIGNING PLAIN BEARING
3120-01-506-0855 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The item consists of a bored precision ground ball (or spherical plain bearing) around which an outer ring is fitted. The assembly may be either separable or nonseparable. Excludes BEARING, PLAIN, ROD END and BEARING, PLAIN, SPHERICAL.
Part Alternates: ADB14V304, 3120-01-506-0855, 01-506-0855, 3120015060855, 015060855
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 24 MAR 2003 | 01-506-0855 | 13208 ( BEARING, PLAIN, SELF-ALIGNING ) |
Drawings & Photos | NSN 3120-01-506-0855
Demand History | NSN 3120-01-506-0855
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| ADB14V304 | 2022-11-333 | 84 | US |
| ADB14V304 | 2022-05-126 | 31 | DIBBS |
| ADB14V304 | 2022-04-107 | 31 | DIBBS |
| ADB14V304 | 2022-03-82 | 80 | United States |
| ADB14V304 | 2022-03-80 | 80 | US |
| ADB14V304 | 2020-08-237 | 2 | US |
| ADB14V304 | 2019-03-64 | 53 | DIBBS |
| 3120-01-506-0855 | 2018-12-338 | 46 | DIBBS |
| 3120-01-506-0855 | 2017-01-10 | 50 | DIBBS |
| 3120-01-506-0855 | 2009-11-308 | 66 | DIBBS |
| 3120-01-506-0855 | 2009-10-278 | 14 | DIBBS |
| 3120-01-506-0855 | 2009-09-261 | 13 | DIBBS |
| 3120-01-506-0855 | 2009-08-237 | 20 | DIBBS |
| 3120-01-506-0855 | 2009-06-155 | 9 | DIBBS |
Cross Reference | NSN 3120-01-506-0855
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| ADB14V304 | 15860 | NEW HAMPSHIRE BALL BEARINGS, INC. DBA ASTRO DIVISION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-01-506-0855
Related Products | NSN 3120-01-506-0855
Technical Data | NSN 3120-01-506-0855
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5630 ASSN STD ALL MATERIAL RESPONSES AND AMS5643 ASSN STD ALL MATERIAL RESPONSES OVERALL |

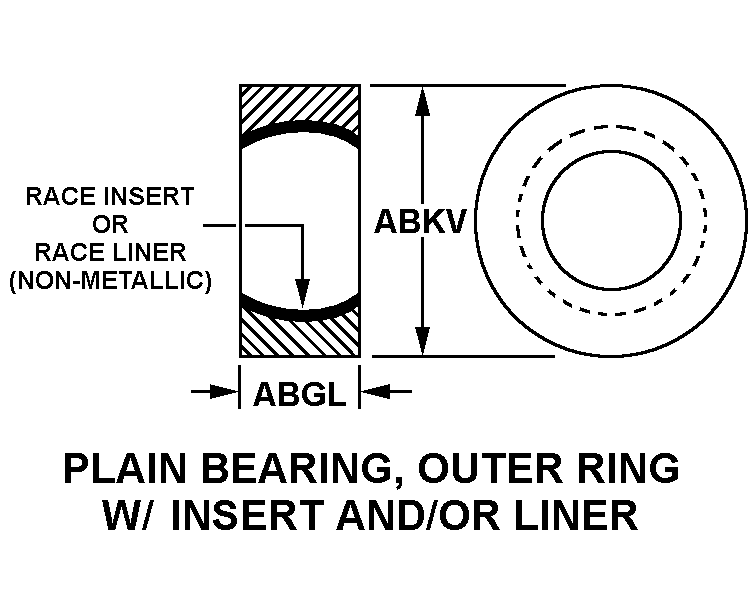

| STYLE DESIGNATOR | 11C PLAIN BEARING, OUTER RING WITH INSERT AND/OR LINER |
| WIDTH | 0.5000 INCHES MINIMUM AND 0.5050 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 1.3120 INCHES MINIMUM AND 1.3125 INCHES MAXIMUM |
| LUBRICATION FEATURE | SELF-LUBRICATING LINER RACE LINER |
| III END ITEM IDENTIFICATION | FLEET SUPPORT |
Restrictions/Controls & Freight Information | NSN 3120-01-506-0855
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114800 | BEARING,ROLLER,THRUST |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-01-506-0855
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
