NSN 3120-01-501-5352 DREM6380, DREM6-380, 01-501-5352
Product Details | ROD END PLAIN BEARING
3120-01-501-5352 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The outer member of the assembly is modified to provide a shank. The inner member may be either a plain spherical bearing or a sleeve bearing. Excludes BEARING, PLAIN, SPHERICAL and BEARING, PLAIN, SELF-ALIGNING.
Part Alternates: DREM6380, DREM6-380, 3120-01-501-5352, 01-501-5352, 3120015015352, 015015352
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 04 OCT 2002 | 01-501-5352 | 13209 ( BEARING, PLAIN, ROD END ) |
Drawings & Photos | NSN 3120-01-501-5352
Cross Reference | NSN 3120-01-501-5352
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| DREM6-380 | 81376 | RBC SOUTHWEST PRODUCTS, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-01-501-5352
Technical Data | NSN 3120-01-501-5352
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING BODY |

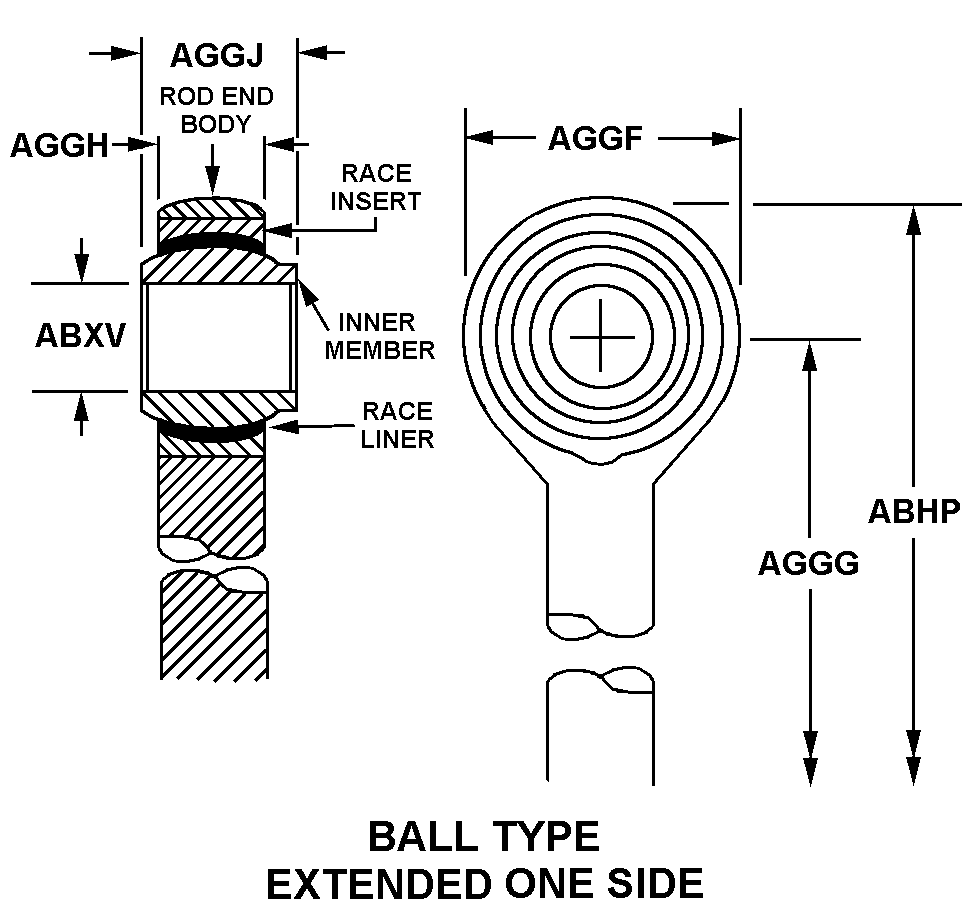

| STYLE DESIGNATOR | 4 BALL TYPE EXTENDED ONE SIDE |
| OVERALL LENGTH | 2.8785 INCHES NOMINAL |
| BORE DIAMETER | 0.3745 INCHES MINIMUM AND 0.3750 INCHES MAXIMUM |
| OUTER MEMBER OUTSIDE DIAMETER | 1.1150 INCHES MINIMUM AND 1.1350 INCHES MAXIMUM |
| BORE CENTER TO SHANK END DISTANCE | 2.3020 INCHES MINIMUM AND 2.3220 INCHES MAXIMUM |
| OUTER MEMBER WIDTH | 0.3700 INCHES MINIMUM AND 0.3750 INCHES MAXIMUM |
| INNER MEMBER WIDTH | 0.4980 INCHES MINIMUM AND 0.5000 INCHES MAXIMUM |
| STATIC RADIAL LOAD RATING | 15200 POUNDS |
| SHANK STYLE | 1 EXTERNALLY THREADED |
| SHANK THREAD LENGTH | 1.3440 INCHES MINIMUM AND 1.4370 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNF |
| THREAD DIAMETER | 0.438 INCHES NOMINAL |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| SPECIAL FEATURES | SELF LUBRICATED, SALT WATER IMMERSION; DYFLON PLASTIC ALLOY LINER; THE BODY,RACE AND BALL ARE STAINLESS STEEL HEAT TREATED; LOW FRICTION ROD END |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | ROD END |
Restrictions/Controls & Freight Information | NSN 3120-01-501-5352
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
