NSN 3120-01-383-7395 M81935/4-4K, M8193544K, 01-383-7395
Product Details | ROD END PLAIN BEARING
3120-01-383-7395 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The outer member of the assembly is modified to provide a shank. The inner member may be either a plain spherical bearing or a sleeve bearing. Excludes BEARING, PLAIN, SPHERICAL and BEARING, PLAIN, SELF-ALIGNING.
Part Alternates: M81935/4-4K, M8193544K, 3120-01-383-7395, 01-383-7395, 3120013837395, 013837395
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 DEC 1993 | 01-383-7395 | 13209 ( BEARING, PLAIN, ROD END ) |

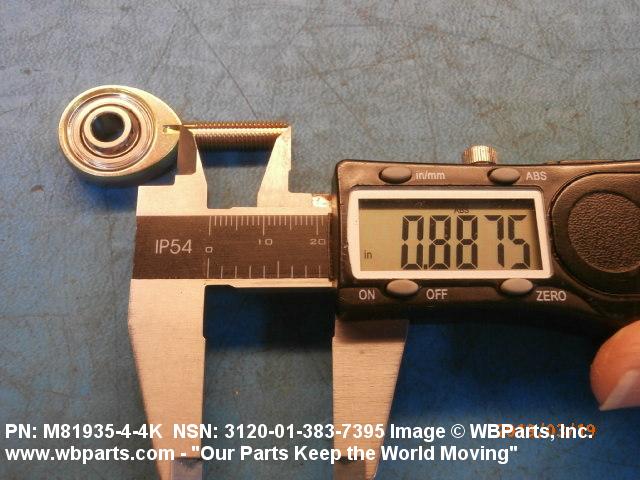

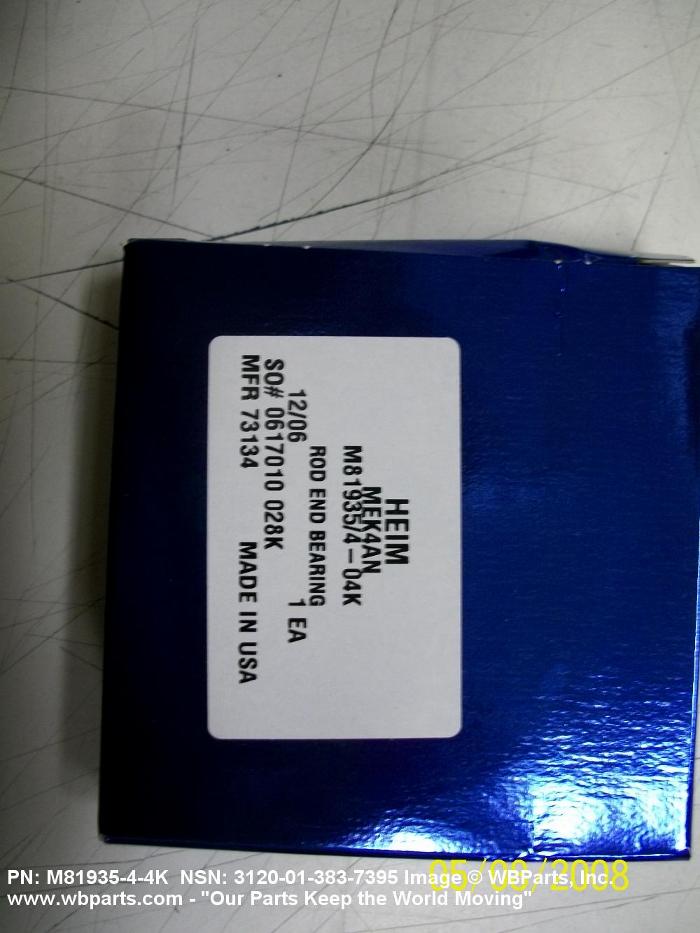

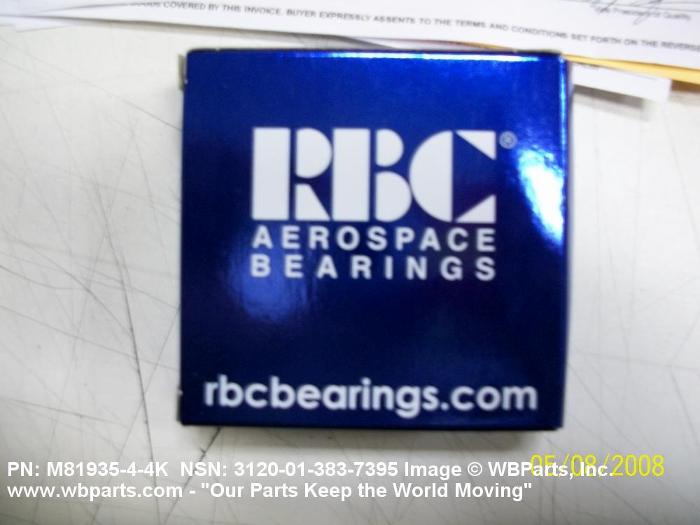

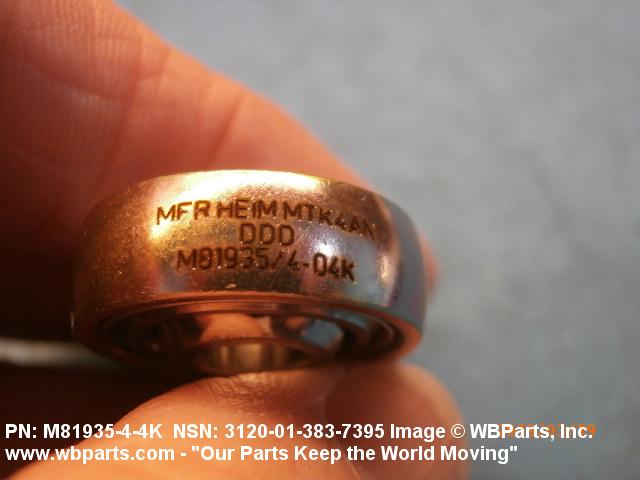

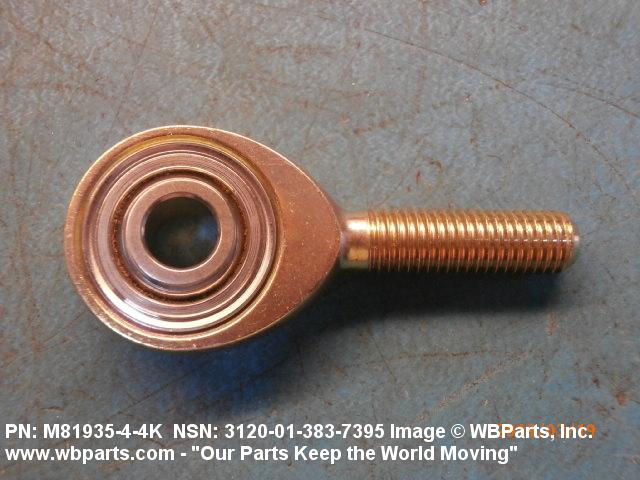

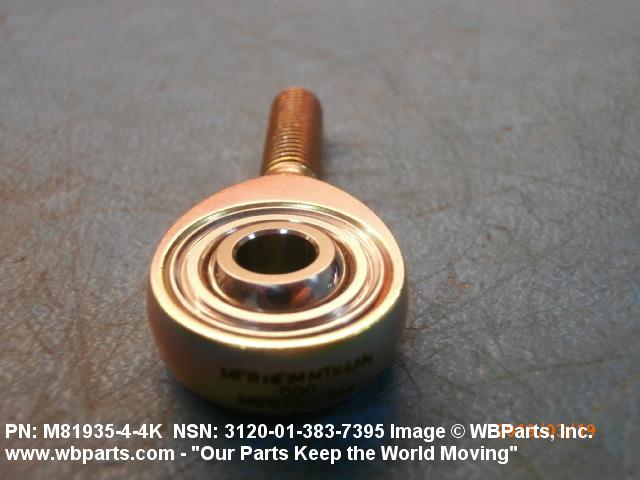

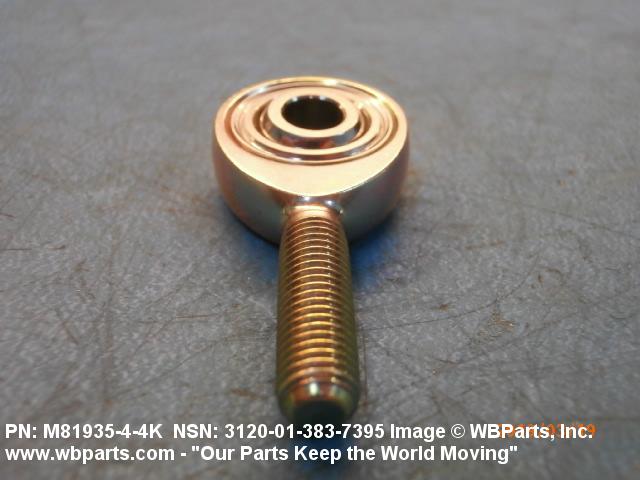

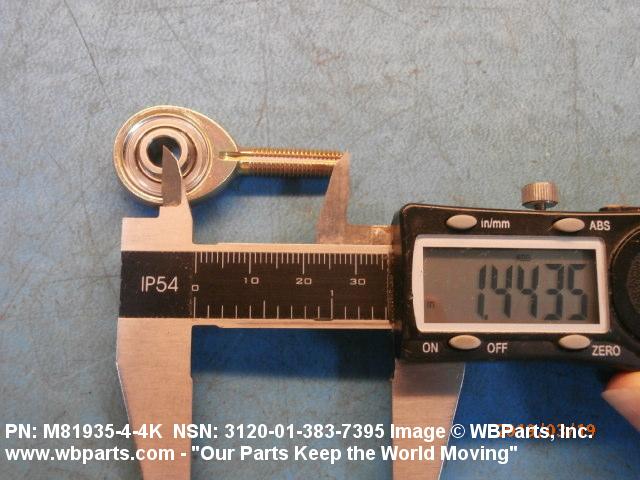

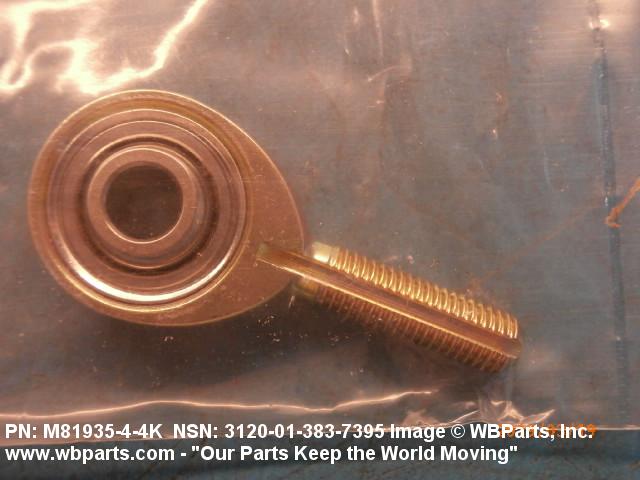

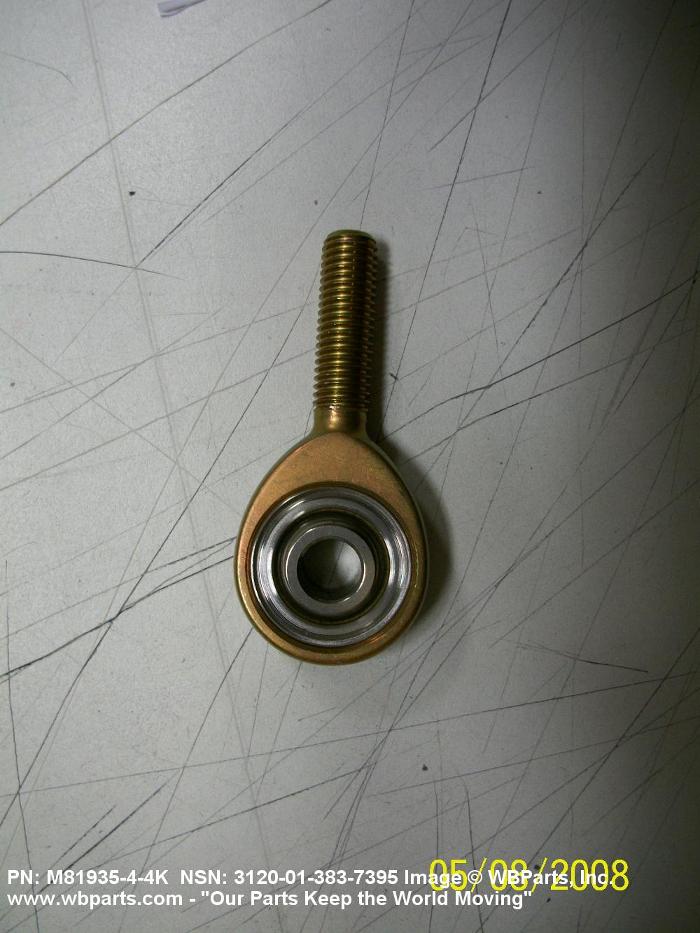

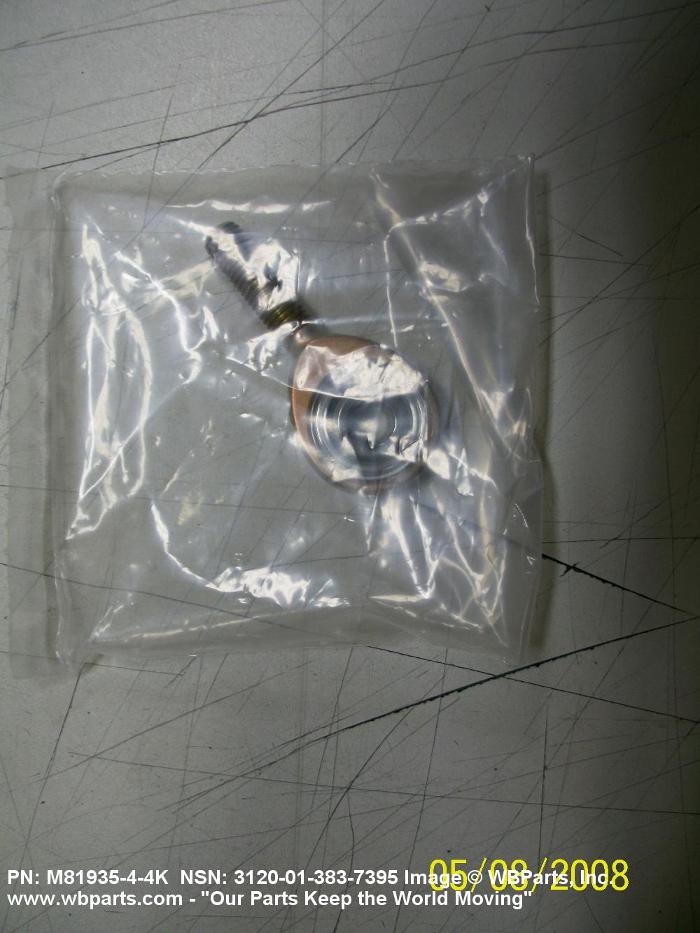

Drawings & Photos | NSN 3120-01-383-7395
Demand History | NSN 3120-01-383-7395
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-01-383-7395 | 2021-07-201 | 2 | United States |
| 3120-01-383-7395 | 2021-04-94 | 25 | DIBBS |
| 3120-01-383-7395 | 2021-03-77 | 2 | DIBBS |
| 3120-01-383-7395 | 2020-05-125 | 12 | US |
| M8193544K | 2019-11-325 | 50 | US |
| M8193544K | 2019-10-283 | 35 | US |
| M8193544K | 2019-03-74 | 50 | United States |
| M8193544K | 2018-03-85 | 20 | United States |
| 3120-01-383-7395 | 2015-02-45 | 14 | US |
| 3120-01-383-7395 | 2011-07-186 | 4 | United States |
| 3120-01-383-7395 | 2011-03-81 | 25 | France |
| 3120-01-383-7395 | 2009-07-198 | 10 | US |
| 3120-01-383-7395 | 2008-06-182 | 14 | US |
Cross Reference | NSN 3120-01-383-7395
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M81935/4-4K | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-01-383-7395
Technical Data | NSN 3120-01-383-7395
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4340 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5000 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | 2 SHOULDERED BALL TYPE |

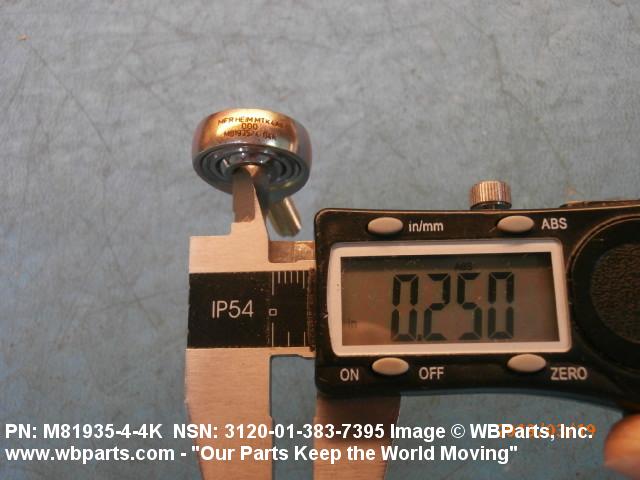

| BORE DIAMETER | 0.2495 INCHES MINIMUM AND 0.2500 INCHES MAXIMUM |

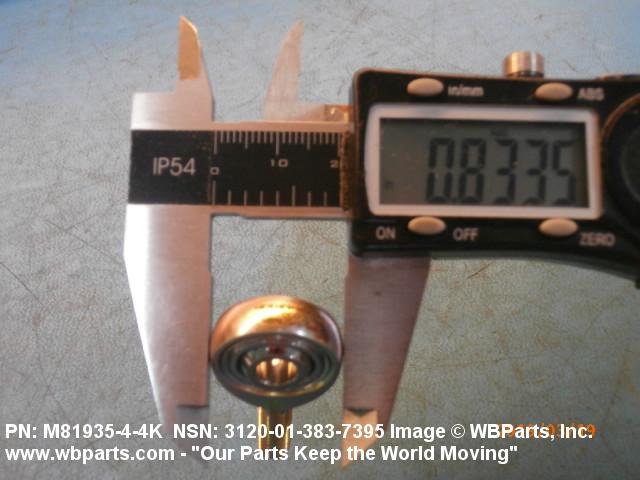

| OUTER MEMBER OUTSIDE DIAMETER | 0.8170 INCHES MINIMUM AND 0.8370 INCHES MAXIMUM |
| BORE CENTER TO SHANK END DISTANCE | 1.4330 INCHES MINIMUM AND 1.4530 INCHES MAXIMUM |

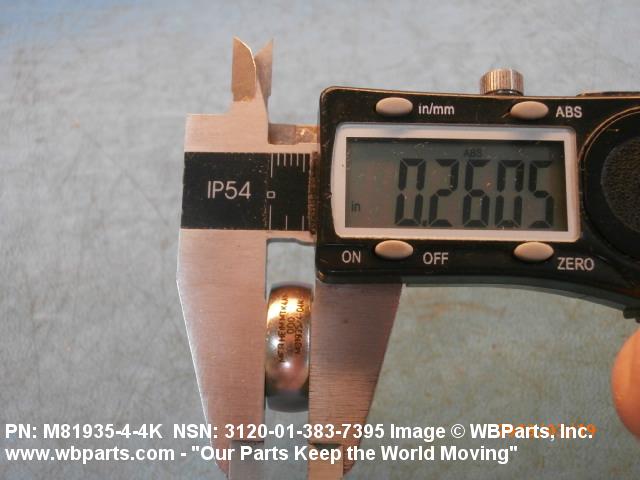

| OUTER MEMBER WIDTH | 0.2550 INCHES MINIMUM AND 0.2650 INCHES MAXIMUM |

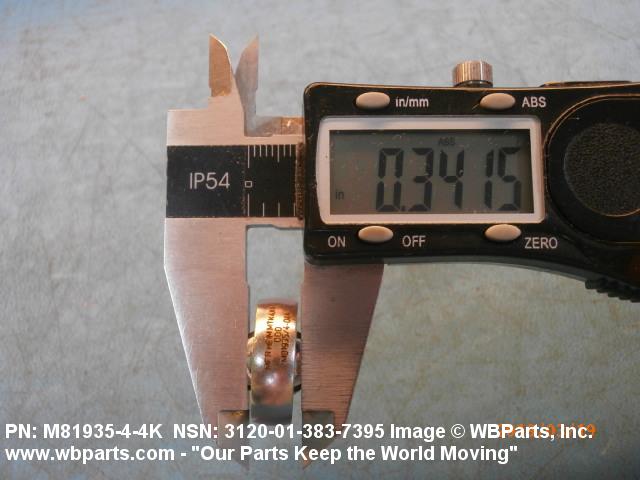

| INNER MEMBER WIDTH | 0.3410 INCHES MINIMUM AND 0.3430 INCHES MAXIMUM |
| KEYWAY DIMENSION | 0.0620 INCHES MINIMUM AND 0.0670 INCHES MAXIMUM INTERNAL KEYWAY WIDTH 0.2020 INCHES MINIMUM AND 0.2070 INCHES MAXIMUM INTERNAL KEYWAY DEPTH 0.8760 INCHES MINIMUM AND 0.8960 INCHES MAXIMUM INTERNAL KEYWAY LENGTH |
| SHANK STYLE | 1 EXTERNALLY THREADED |

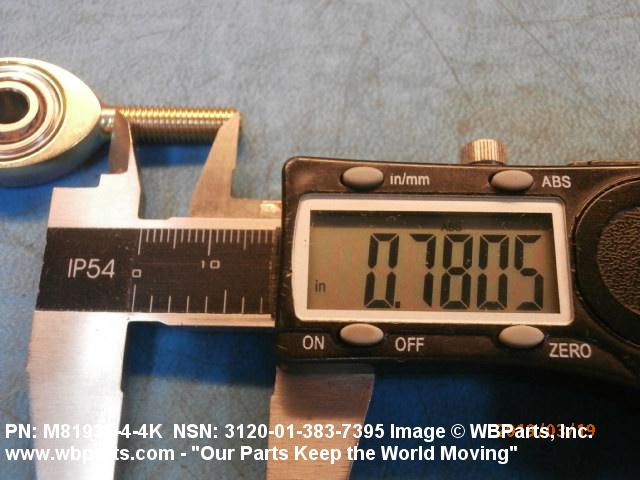

| SHANK THREAD LENGTH | 0.7440 INCHES MINIMUM AND 0.8060 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNJF |
| THREAD DIAMETER | 0.7440 INCHES MINIMUM AND 0.8060 INCHES MAXIMUM |

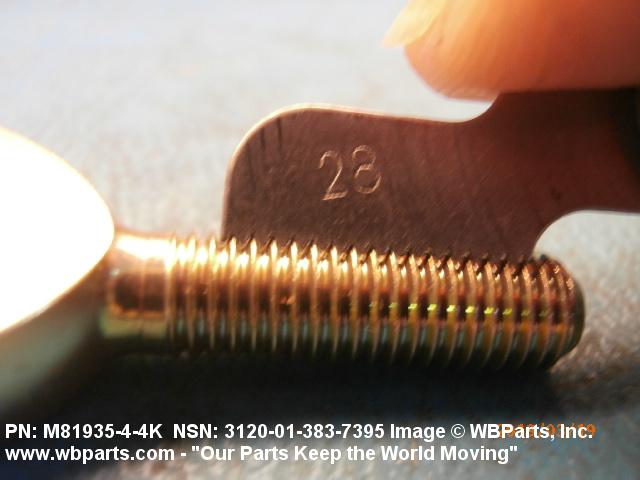

| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| SPECIAL FEATURES | BEARING IS SELF-ALIGNING AND SELFLUBRICATING |
| III END ITEM IDENTIFICATION | PACER DAWN |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M81935/4-4K |
Restrictions/Controls & Freight Information | NSN 3120-01-383-7395
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
