NSN 3120-01-284-0562 P23410, 1333M68, 1333M68P01
Product Details | SELF-ALIGNING PLAIN BEARING
3120-01-284-0562 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The item consists of a bored precision ground ball (or spherical plain bearing) around which an outer ring is fitted. The assembly may be either separable or nonseparable. Excludes BEARING, PLAIN, ROD END and BEARING, PLAIN, SPHERICAL.
Part Alternates: P23410, 1333M68, 1333M68P01, 3120-01-284-0562, 01-284-0562, 3120012840562, 012840562
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 18 AUG 1988 | 01-284-0562 | 13208 ( BEARING, PLAIN, SELF-ALIGNING ) |

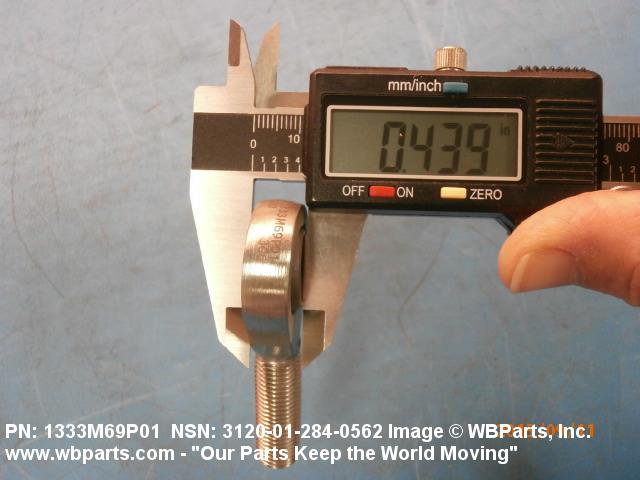

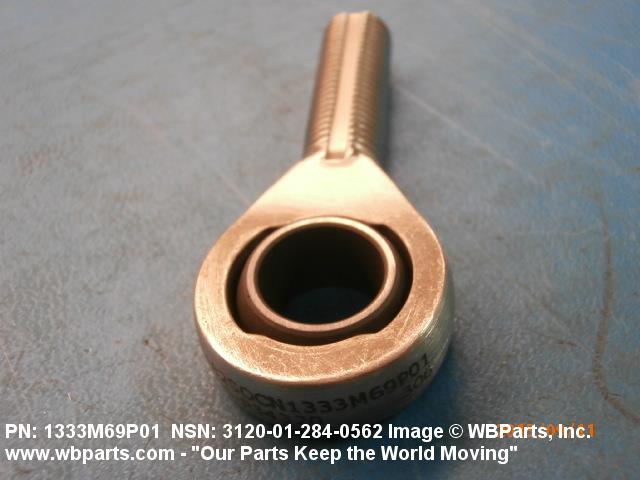

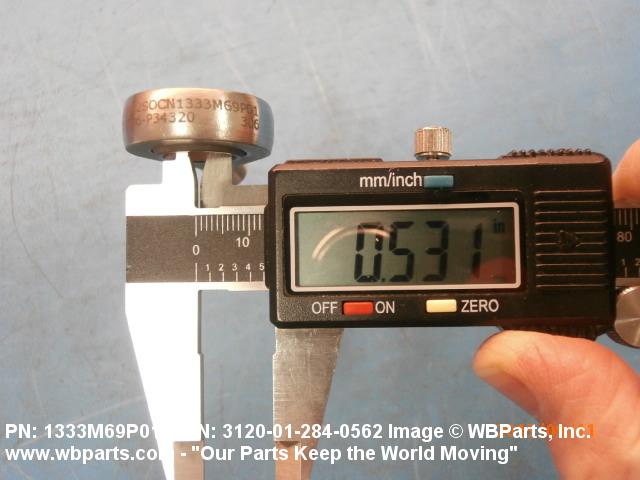

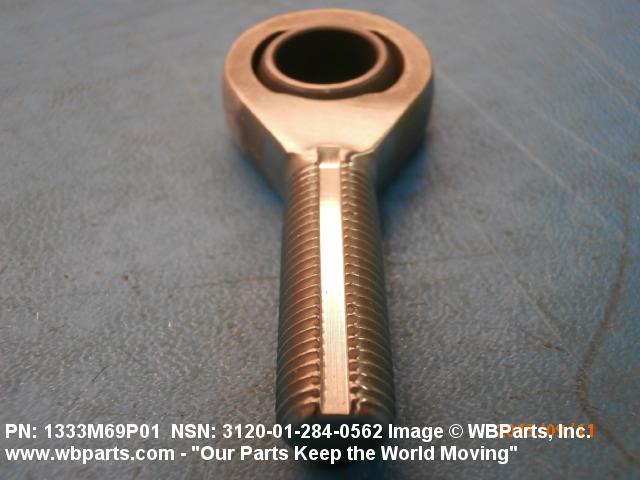

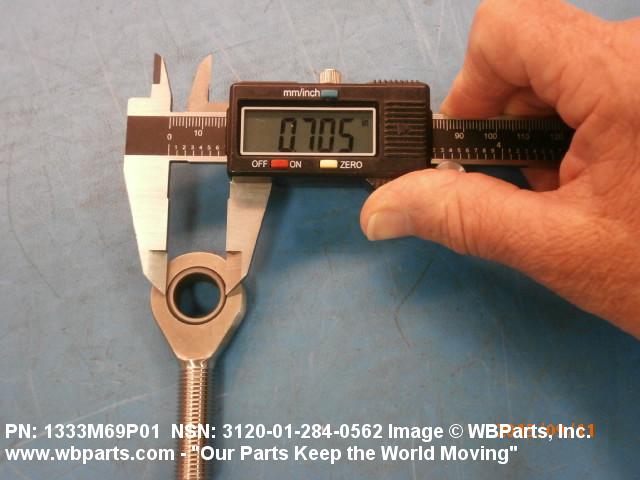

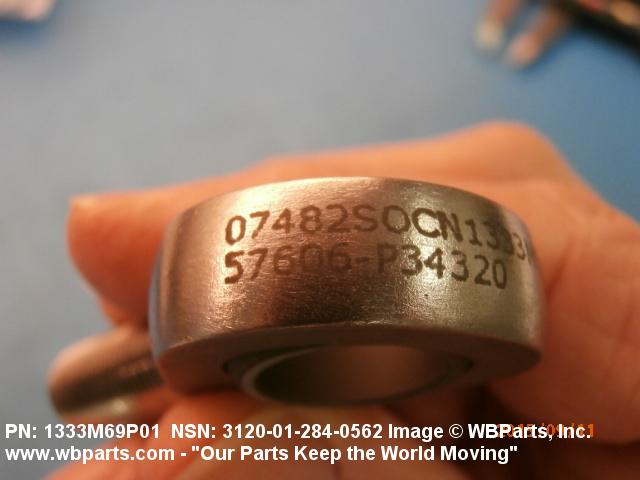

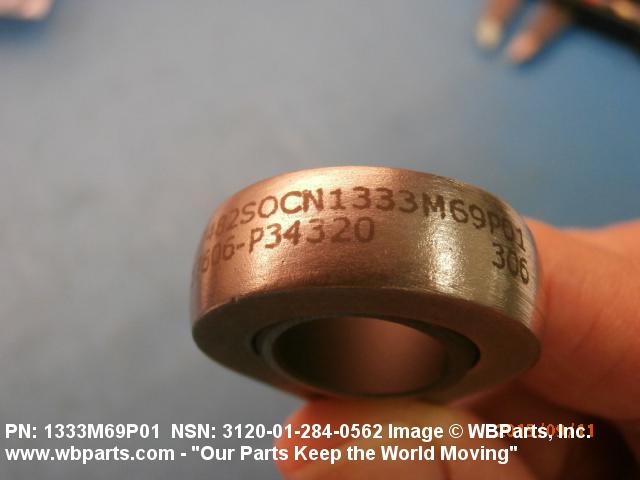

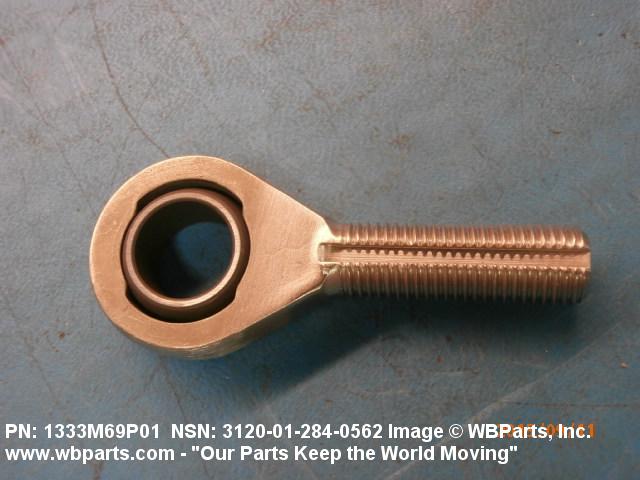

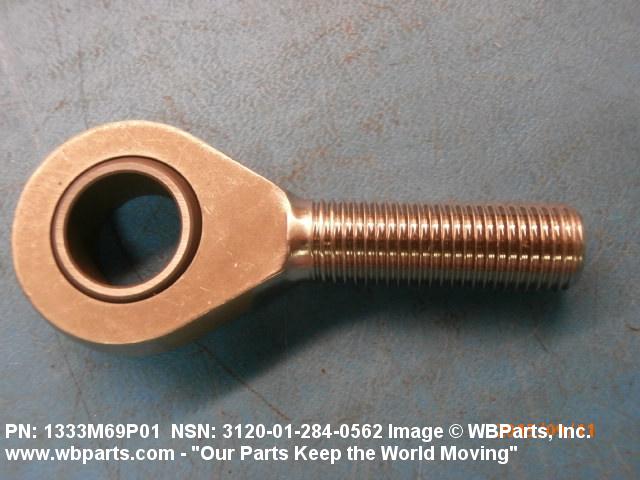

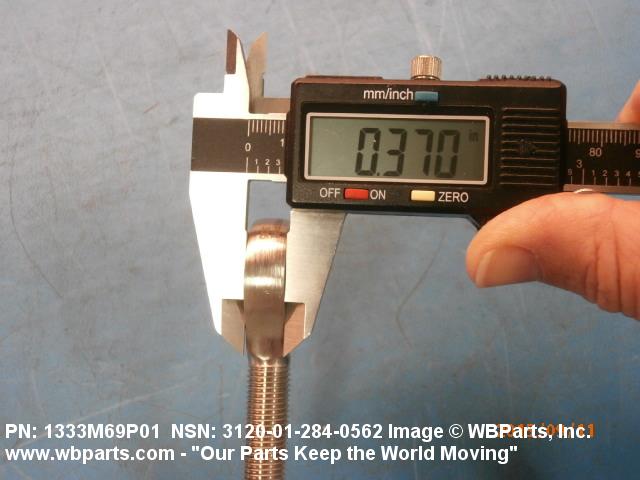

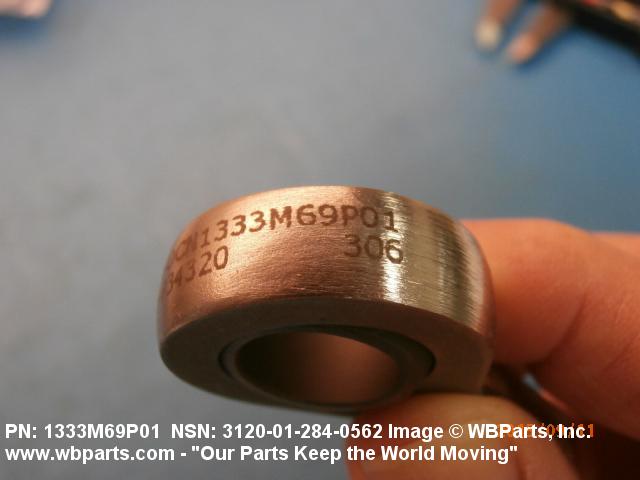

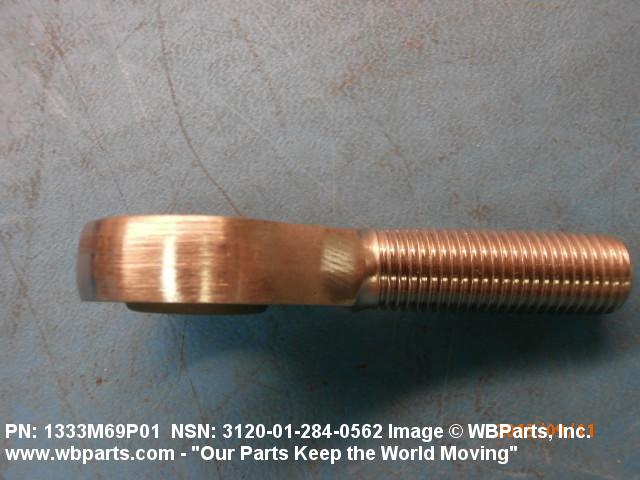

Drawings & Photos | NSN 3120-01-284-0562
Demand History | NSN 3120-01-284-0562
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1333M68P01 | 2024-05-152 | 150 | United States |
| 3120-01-284-0562 | 2016-06-167 | 50 | DIBBS |
| 3120-01-284-0562 | 2016-06-159 | 50 | DIBBS |
| 3120-01-284-0562 | 2016-06-158 | 10 | DIBBS |
| 3120-01-284-0562 | 2013-11-330 | 1 | SG |
| 1333M68P01 | 2013-10-280 | 1 | us |
| 1333M68P01 | 2013-03-67 | 250 | US |
| 3120-01-284-0562 | 2011-04-110 | 2 | US |
| 3120-01-284-0562 | 2011-04-110 | 2 | US |
| 1333M68P01 | 2009-08-219 | 1000 | US |
Cross Reference | NSN 3120-01-284-0562
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-01-284-0562
Related Products | NSN 3120-01-284-0562
Technical Data | NSN 3120-01-284-0562
| Characteristic | Specifications |
|---|---|
| MATERIAL | COBALT COMP 6 INNER MEMBER STEEL COMP XM-12 OUTER RACE MEMBER |
| HARDNESS RATING | 37.0 ROCKWELL C NOMINAL INNER MEMBER 35.0 ROCKWELL C NOMINAL OUTER RACE MEMBER |
| STYLE DESIGNATOR | 11B WITHOUT INSERT OR LINER |
| BORE DIAMETER | 0.3747 INCHES MINIMUM AND 0.3750 INCHES MAXIMUM |
| OUTER MEMBER OUTSIDE DIAMETER | 0.8520 INCHES NOMINAL |
| OUTER MEMBER WIDTH | 0.3090 INCHES MINIMUM AND 0.3150 INCHES MAXIMUM |
| INNER MEMBER WIDTH | 0.4040 INCHES MINIMUM AND 0.4060 INCHES MAXIMUM |
| MANUFACTURERS CODE | 07482 |
| MFR SOURCE CONTROLLING REFERENCE | 1333M68P01 |
Restrictions/Controls & Freight Information | NSN 3120-01-284-0562
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-01-284-0562
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | NY | SX:"GENERAL ELECTRIC ENGINES & COMPONENTS, TF-39" |
| Price Validation | P | The current standard price is the initial negotiated provisioned price.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
