NSN 3120-01-060-7267 MS21242S04, MS21242S4, MS21242-S4
Product Details | ROD END PLAIN BEARING
3120-01-060-7267 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The outer member of the assembly is modified to provide a shank. The inner member may be either a plain spherical bearing or a sleeve bearing. Excludes BEARING, PLAIN, SPHERICAL and BEARING, PLAIN, SELF-ALIGNING.
Part Alternates: MS21242S04, MS21242S4, MS21242-S4, MXJR4AS, MXJR-4AS, M81935/1-04, M81935/1-4, M81935104, M8193514, ART04E, AS81935, ATNE4, DREM4476, DREM4-476, KBDE4242, KBDE-4-242, REM8ATC10ZM, REM8W10M, REMS8ATC10ZM, MILB81935, MIL-B-81935, 017404, 01-740-4, 3120-01-060-7267, 01-060-7267, 3120010607267, 010607267
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 29 MAY 1978 | 01-060-7267 | 13209 ( BEARING, PLAIN, ROD END ) |

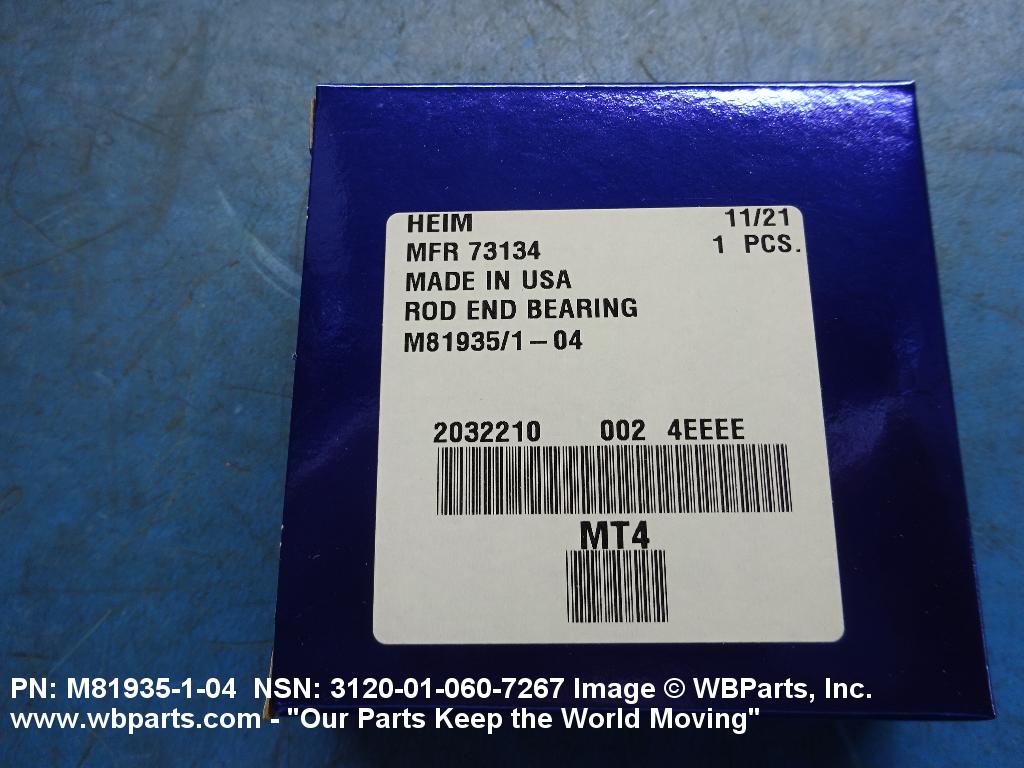

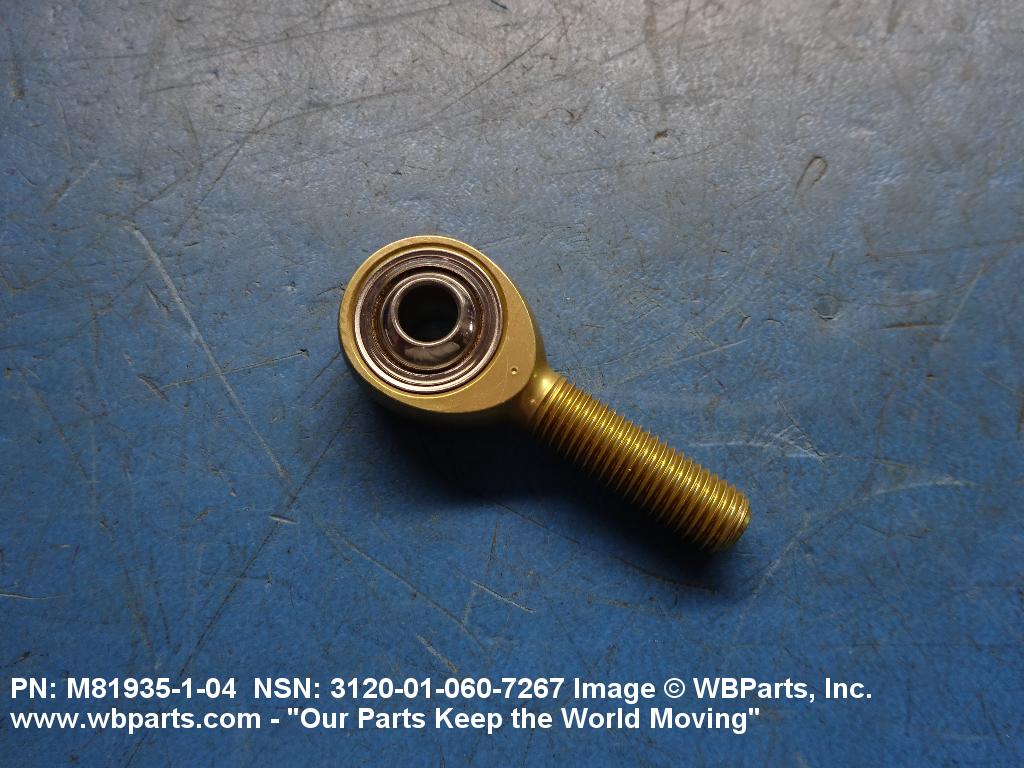

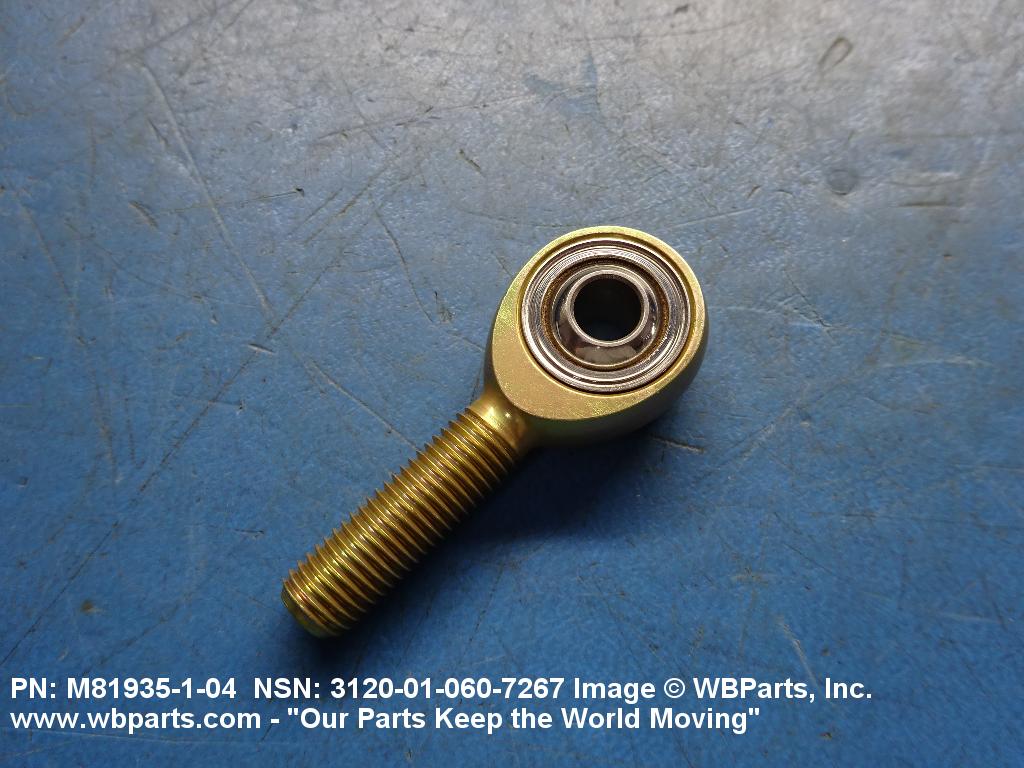

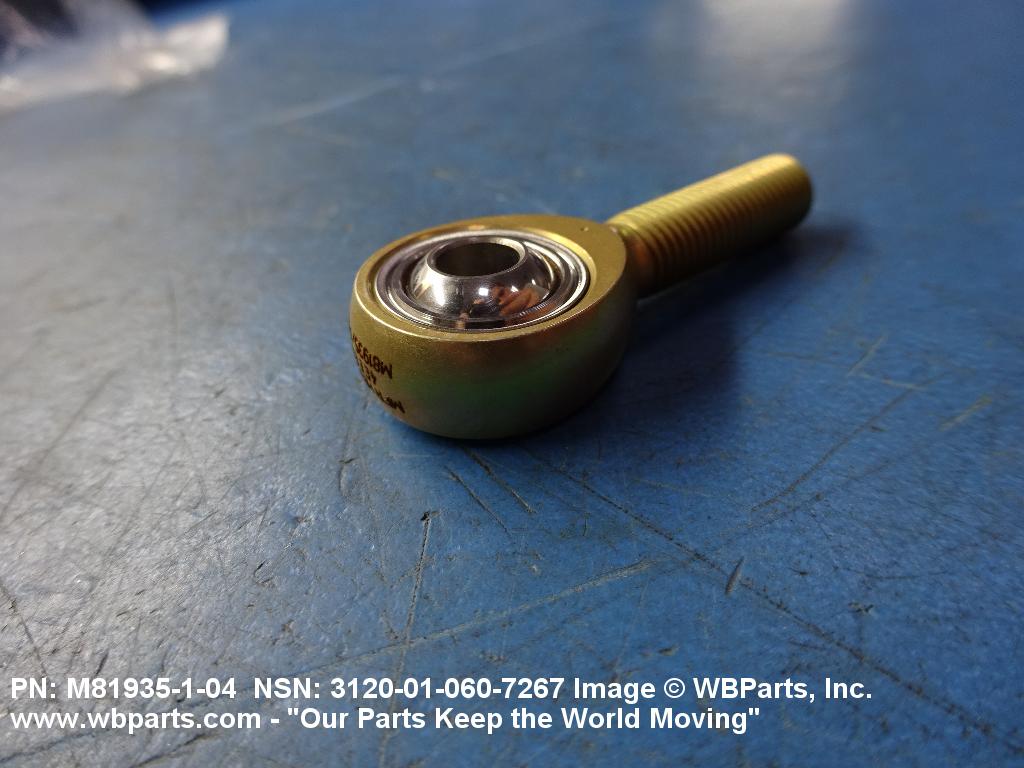

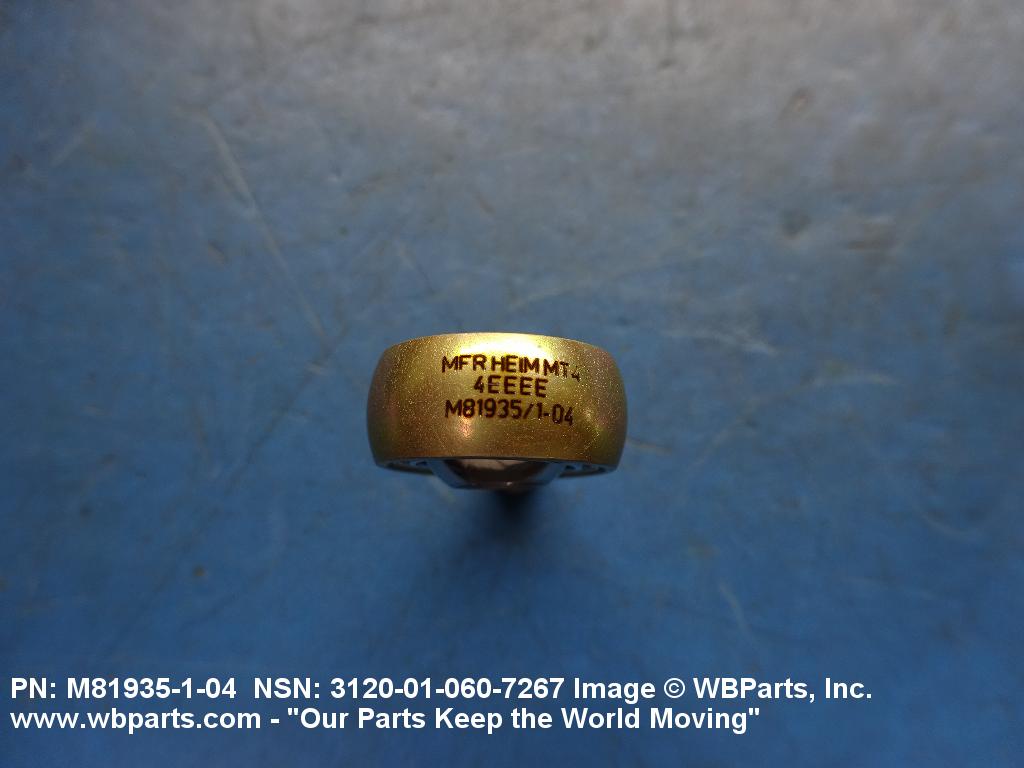

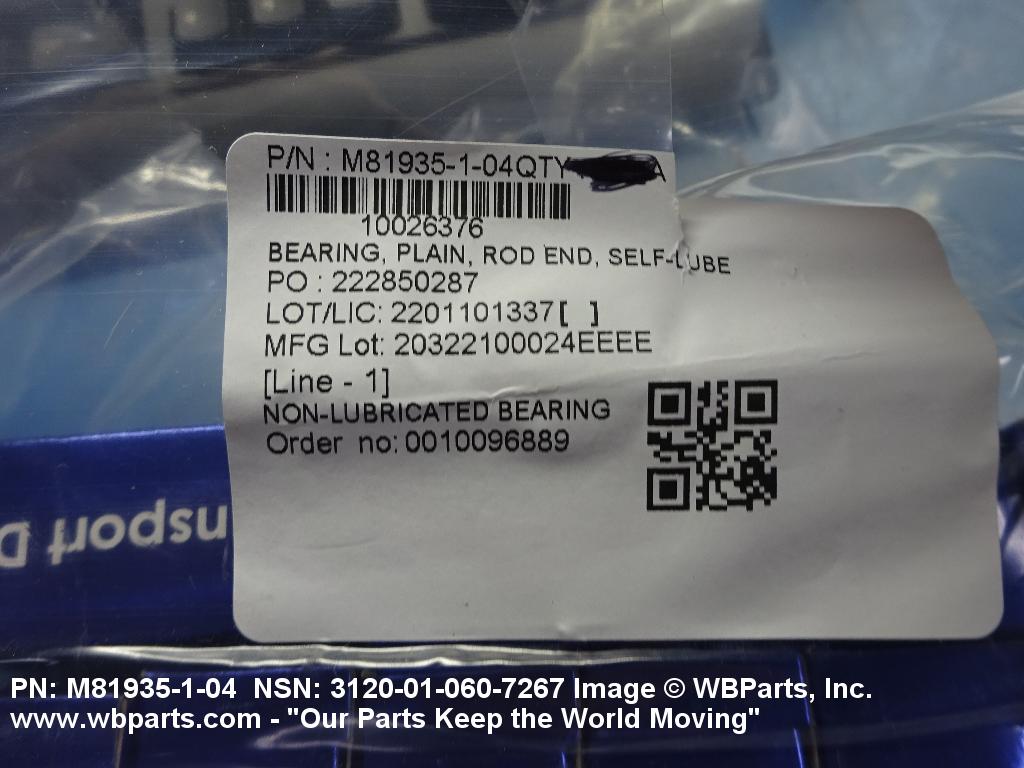

Drawings & Photos | NSN 3120-01-060-7267
Demand History | NSN 3120-01-060-7267
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| M8193514 | 2023-07-192 | 2728 | United States |
| 3120-01-060-7267 | 2022-10-304 | 4 | United States |
| 3120-01-060-7267 | 2022-08-233 | 30 | PL |
| M8193514 | 2022-07-207 | 500 | IN |
| M8193514 | 2022-07-201 | 28 | United States |
| M81935104 | 2021-10-298 | 1 | Canada |
| MS21242S4 | 2021-07-200 | 2 | JP |
| REMS8ATC10ZM | 2020-01-15 | 10 | AU |
| 3120-01-060-7267 | 2019-09-259 | 152 | US |
| REM8ATC10ZM | 2018-03-61 | 10 | Brazil |
| MS21242S4 | 2017-03-81 | 100 | Brazil |
| M8193514 | 2017-01-05 | 700 | United States |
| 3120-01-060-7267 | 2016-11-335 | 94 | DIBBS |
| 3120-01-060-7267 | 2016-10-285 | 1 | DIBBS-RFPs |
| M8193514 | 2016-07-189 | 550 | United States |
| M8193514 | 2015-05-124 | 70 | IT |
| M81935104 | 2014-09-259 | 4 | US |
| M8193514 | 2012-03-79 | 1 | DE |
| M8193514 | 2012-03-79 | 10 | DE |
| MILB81935 | 2011-11-318 | 30 | United Kingdom |
| M81935104 | 2011-08-235 | 100 | United States |
| 3120-01-060-7267 | 2011-06-165 | 100 | US |
| M8193514 | 2011-06-165 | 100 | US |
| 3120-01-060-7267 | 2011-03-62 | 48 | United States |
| 3120-01-060-7267 | 2010-07-209 | 202 | DIBBS |
| 3120-01-060-7267 | 2010-02-34 | 10 | US |
| M8193514 | 2009-05-131 | 1 | US |
| M8193514 | 2009-04-105 | 4 | US |
| 3120-01-060-7267 | 2008-11-330 | 100 | us |
| 3120-01-060-7267 | 2008-11-323 | 10 | US |
| 3120-01-060-7267 | 2008-11-317 | 685 | DIBBS |
| M8193514 | 2008-09-261 | 2 | Canada |
| M8193514 | 2008-07-207 | 10 | US |
| AS81935 | 2008-02-42 | 4 | US |
| 3120-01-060-7267 | 2008-02-36 | 50 | us |
| 3120-01-060-7267 | 2007-08-214 | 90 | US |
| 3120-01-060-7267 | 2007-04-109 | 82 | DIBBS |
Cross Reference | NSN 3120-01-060-7267
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 01-740-4 | 09455 | RBC TRANSPORT DYNAMICS CORP. DIV RBC TRANSPORT DYNAMICS |
| 6620249 | 15090 | RAYTHEON COMPANY DBA RAYTHEON |
| 6620249 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| ADNE4CRJ | 83086 | NEW HAMPSHIRE BALL BEARINGS, INC. DIV HITECH DIVISION |
| ART04E | 50294 | NEW HAMPSHIRE BALL BEARINGS, INC. DBA NHBB |
| AS81935 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| ATNE4 | 15860 | NEW HAMPSHIRE BALL BEARINGS, INC. DBA ASTRO DIVISION |
| DREM4-476 | 81376 | RBC SOUTHWEST PRODUCTS, INC. |
| KBDE-4-242 | 97613 | DOVER ENGINEERED SYSTEMS, INC. DBA KAHR BEARING |
| M81935/1-04 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| M81935/1-04 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M81935/1-4 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-B-81935 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS21242-S4 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS21242S04 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MXJR-4AS | 73134 | ROLLER BEARING COMPANY OF AMERICA, INC. |
| REM8ATC10ZM | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| REM8W10M | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| REMS8ATC10ZM | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-01-060-7267
Related Products | NSN 3120-01-060-7267
Technical Data | NSN 3120-01-060-7267
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 440C INNER MEMBER |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5643 ASSN STD SINGLE MATERIAL RESPONSE INNER MEMBER |
| STYLE DESIGNATOR | 6 BALL TYPE |

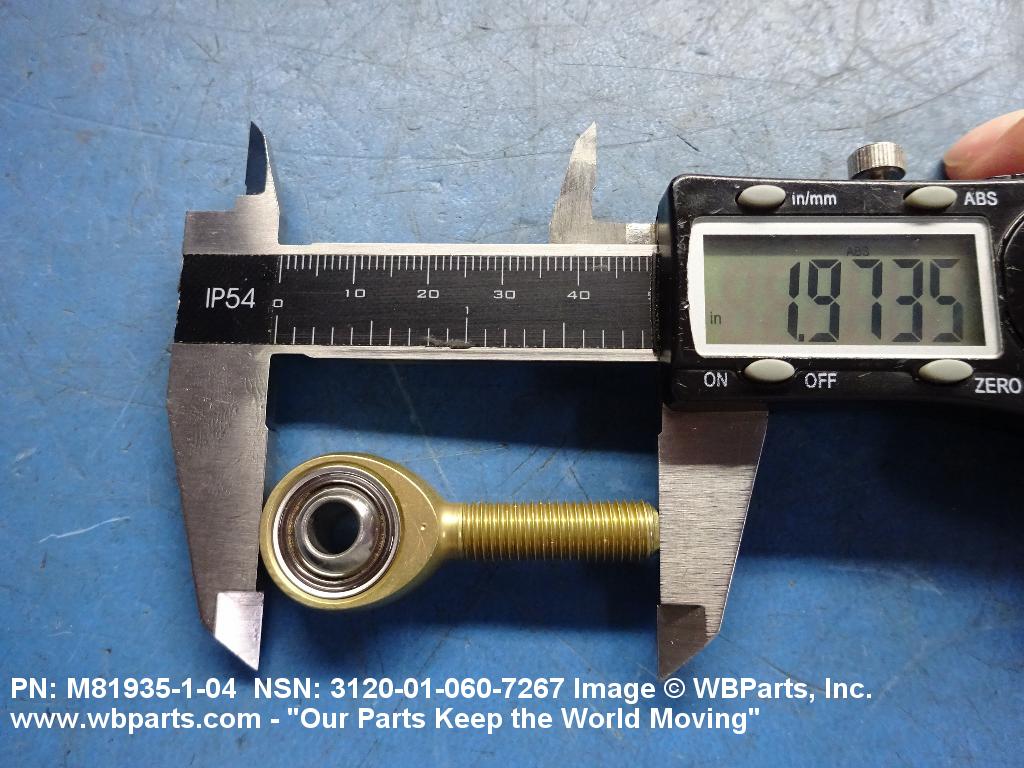

| OVERALL LENGTH | 1.9500 INCHES MINIMUM AND 1.9800 INCHES MAXIMUM |

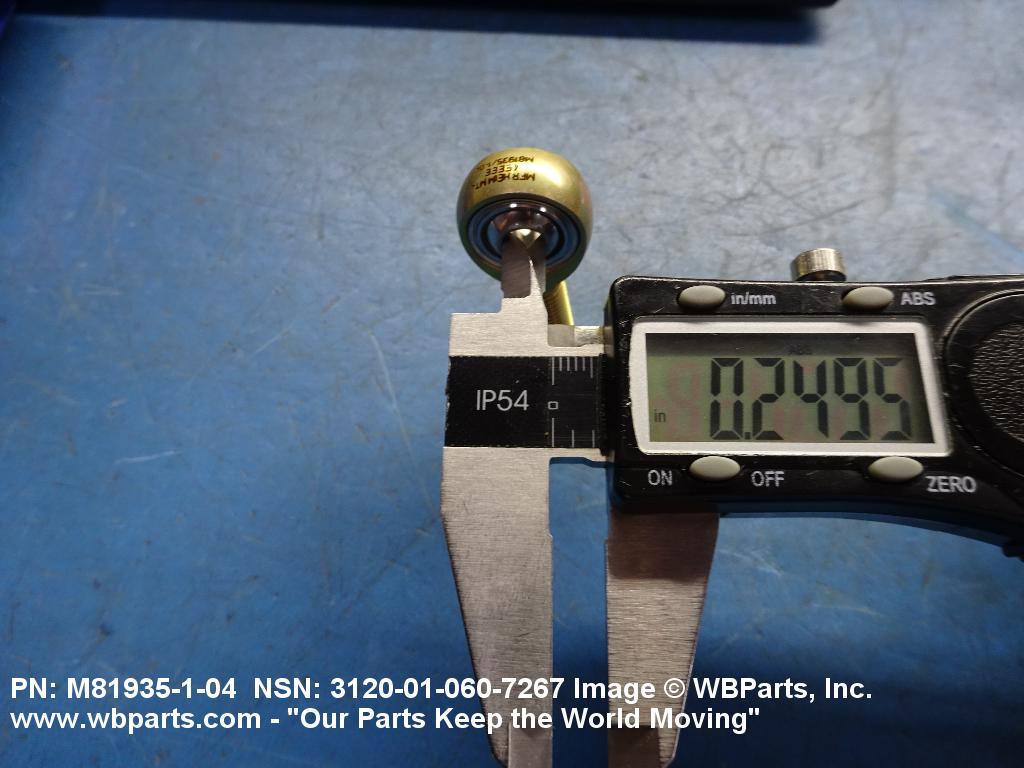

| BORE DIAMETER | 0.2495 INCHES MINIMUM AND 0.2500 INCHES MAXIMUM |

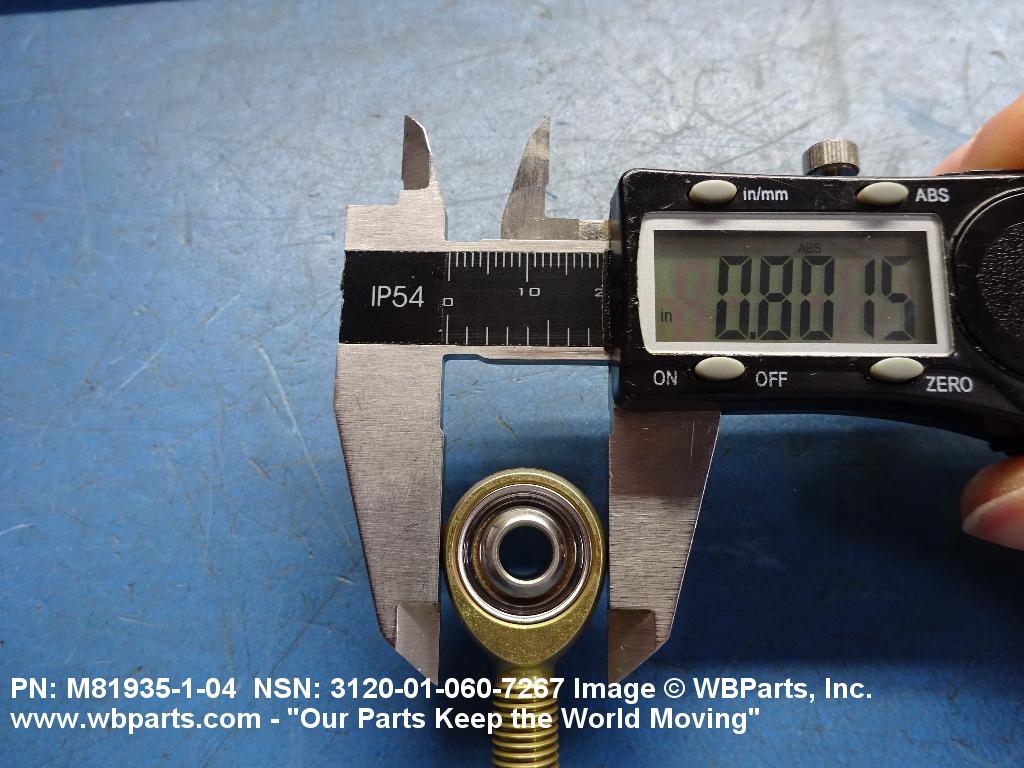

| OUTER MEMBER OUTSIDE DIAMETER | 0.7960 INCHES MINIMUM AND 0.8160 INCHES MAXIMUM |

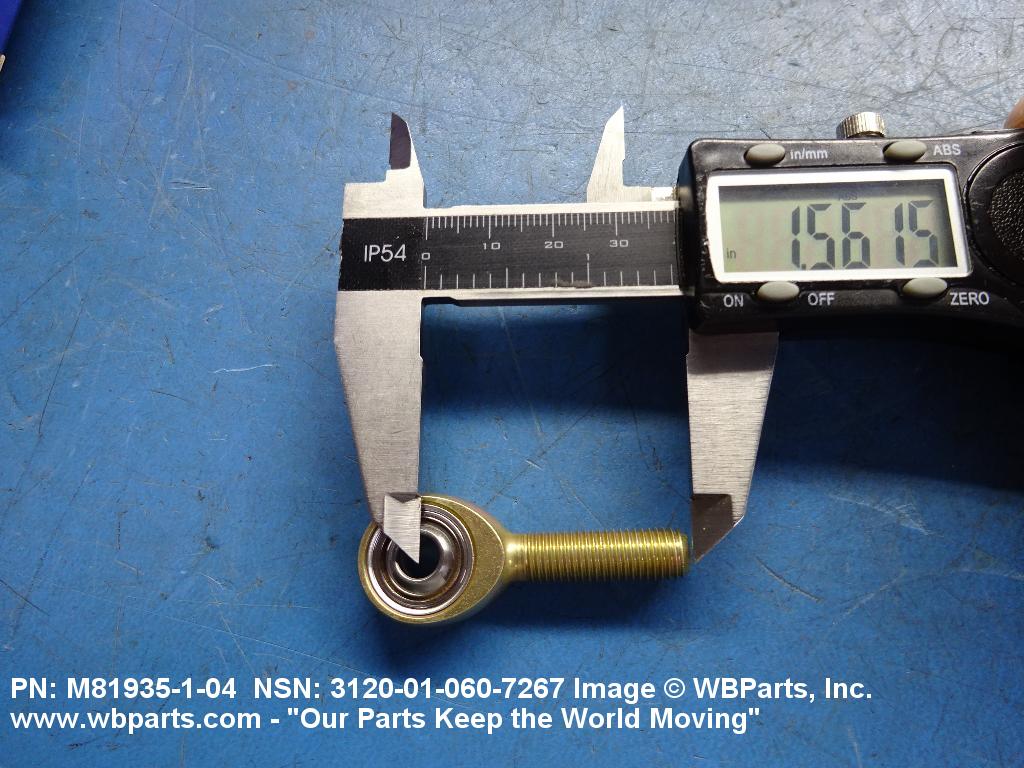

| BORE CENTER TO SHANK END DISTANCE | 1.5520 INCHES MINIMUM AND 1.5720 INCHES MAXIMUM |

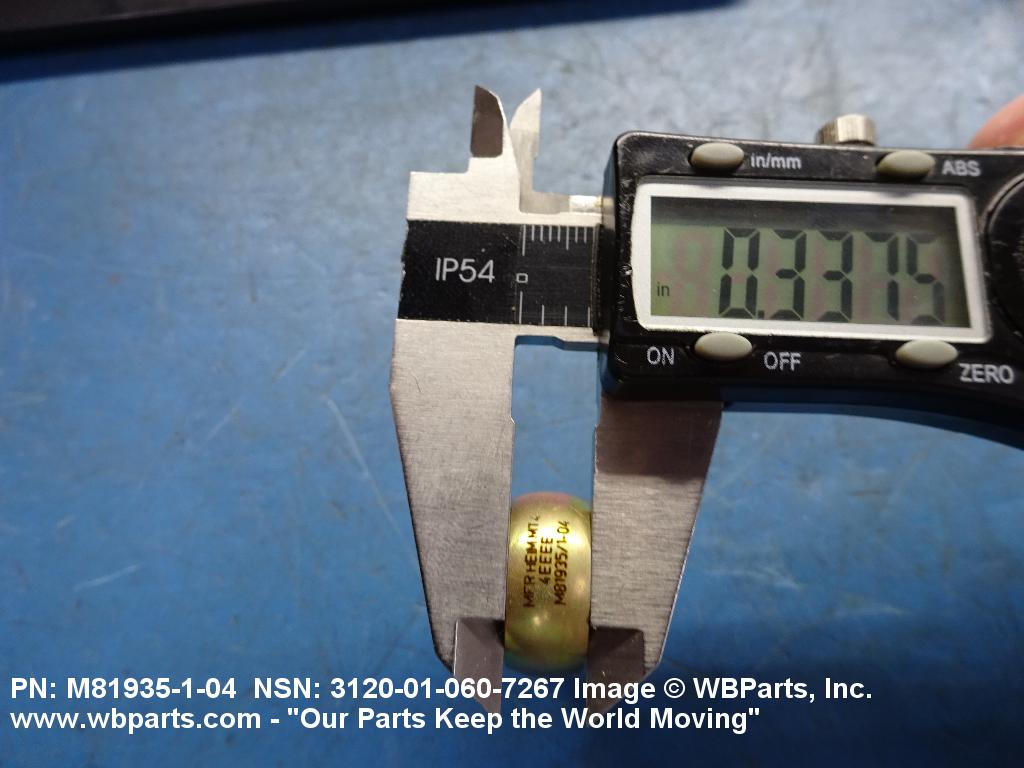

| OUTER MEMBER WIDTH | 0.3320 INCHES MINIMUM AND 0.3420 INCHES MAXIMUM |

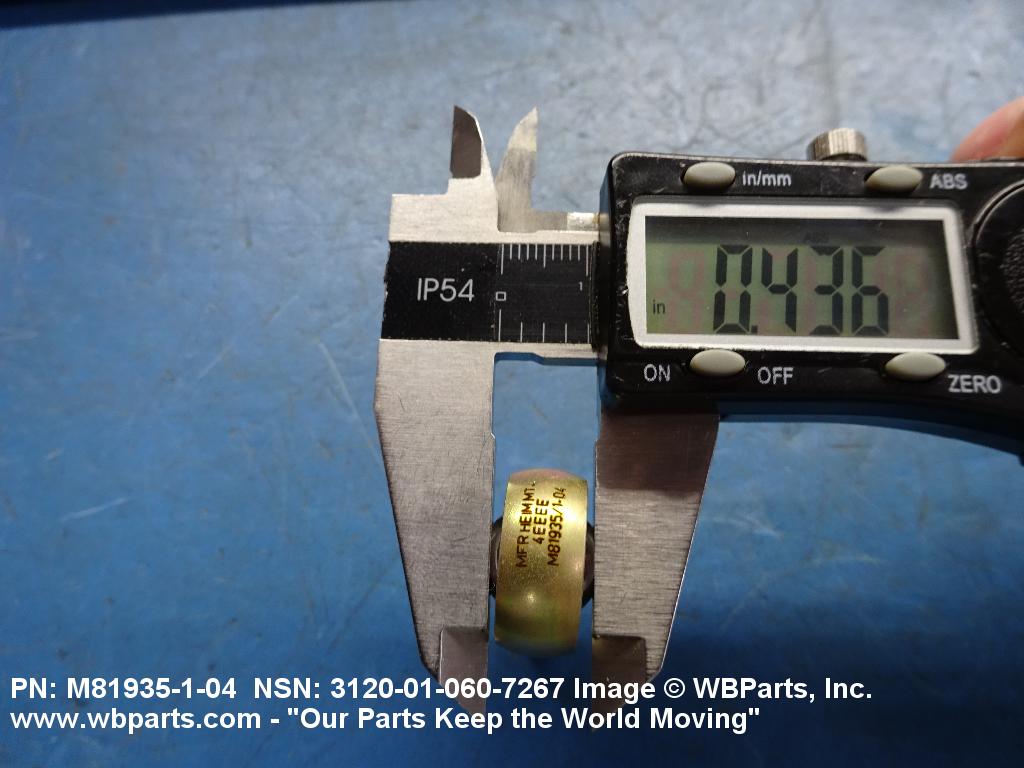

| INNER MEMBER WIDTH | 0.4350 INCHES MINIMUM AND 0.4370 INCHES MAXIMUM |
| STATIC RADIAL LOAD RATING | 4860 POUNDS |
| SHANK STYLE | 1 EXTERNALLY THREADED |

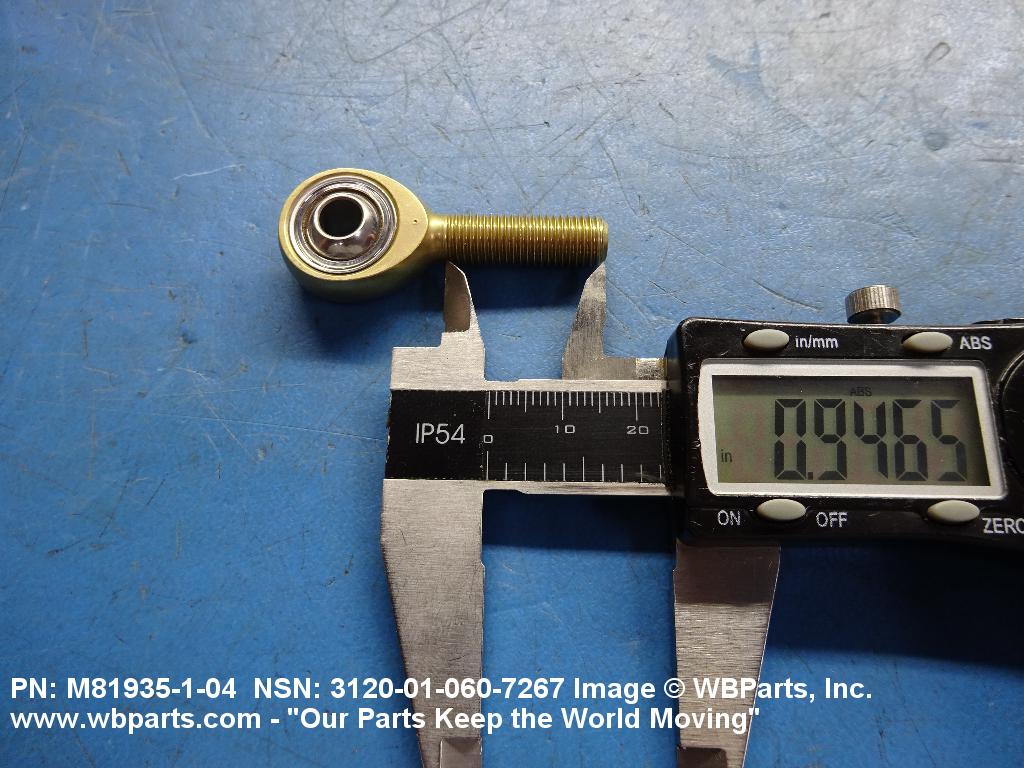

| SHANK THREAD LENGTH | 0.9370 INCHES MINIMUM AND 0.9990 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNJF |
| THREAD DIAMETER | 0.312 INCHES NOMINAL |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
Restrictions/Controls & Freight Information | NSN 3120-01-060-7267
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063420 | TRANSFORMERS,NOI,OR TRANSFORMER PAR |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 595 | unknown |
| Originating Activity Code | SX | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
