NSN 3120-01-041-7129 MS141043, MS14104-3, MS212333

Product Details | SELF-ALIGNING PLAIN BEARING

3120-01-041-7129 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The item consists of a bored precision ground ball (or spherical plain bearing) around which an outer ring is fitted. The assembly may be either separable or nonseparable. Excludes BEARING, PLAIN, ROD END and BEARING, PLAIN, SPHERICAL.

Part Alternates: MS141043, MS14104-3, MS212333, MS21233-3, AS14104, AS81820, AS81820/1 , AS818201, 3120-01-041-7129, 01-041-7129, 3120010417129, 010417129

Bearings | Bearings, Plain, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	29 MAY 1977	01-041-7129	13208 ( BEARING, PLAIN, SELF-ALIGNING )

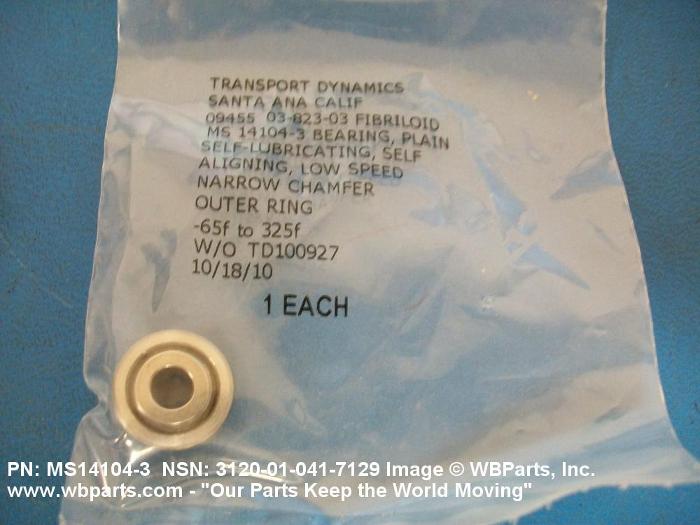

Drawings & Photos | NSN 3120-01-041-7129

Part Number	Request Date	QTY	Origin
MS141043	2024-04-107	600	Korea
3120-01-041-7129	2024-03-65	398	DIBBS
3120-01-041-7129	2023-11-323	314	DIBBS
3120-01-041-7129	2023-09-255	188	DIBBS
3120-01-041-7129	2023-07-207	126	DIBBS
MS141043	2023-03-79	1200	Korea
MS141043	2022-05-125	550	Korea
MS141043	2022-03-80	990	Korea
MS141043	2021-12-348	990	Korea
3120-01-041-7129	2021-07-190	2	US
3120-01-041-7129	2021-01-11	4	US
MS14104-3	2020-09-268	603	South Korea
MS14104-3	2020-09-268	603	South Korea
MS141043	2020-09-258	50	South Korea
MS141043	2020-01-06	50	United States
MS141043	2020-01-06	50	United States
3120-01-041-7129	2019-02-36	298	DIBBS
3120-01-041-7129	2018-09-249	89	DIBBS
MS14104-3	2018-05-150	2470	South Korea
MS14104-3	2018-05-149	2470	South Korea
3120-01-041-7129	2017-05-129	69	DIBBS
MS212333	2015-09-244	35	Israel
MS141043	2015-05-140	25	TR
MS141043	2013-01-23	100	United States
MS141043	2012-10-276	20	United States
MS141043	2012-10-276	200	United States
3120-01-041-7129	2010-08-222	1450	United States
3120-01-041-7129	2010-04-95	55	DIBBS
3120-01-041-7129	2009-07-208	188	DIBBS
3120-01-041-7129	2009-05-132	17	DIBBS
3120-01-041-7129	2009-05-125	15	DIBBS
3120-01-041-7129	2009-01-07	35	United States
3120-01-041-7129	2009-01-07	825	United States
3120-01-041-7129	2008-11-317	35	United States
3120-01-041-7129	2008-11-317	825	United States
3120-01-041-7129	2008-09-253	51	DIBBS
MS141043	2008-06-156	325	US
MS141043	2008-04-112	12	US
3120-01-041-7129	2007-08-219	122	DIBBS
3120-01-041-7129	2007-06-157	67	DIBBS
3120-01-041-7129	2007-03-89	59	DIBBS

Cross Reference | NSN 3120-01-041-7129

Part Number	Cage Code	Manufacturer
AS14104	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS81820	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS81820/1	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS14104-3	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS14104-3	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS21233-3	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3120-01-041-7129

Compare

Related Products | NSN 3120-01-041-7129

3120-01-041-7130, 3120-01-041-7320, 3120-01-041-8205, 3120-01-041-8311, 3120-01-041-8312

Technical Data | NSN 3120-01-041-7129

Characteristic	Specifications
MATERIAL	STEEL COMP 440C INNER MEMBER STEEL COMP 630 OUTER RACE MEMBER PLASTIC POLYTETRAFLUOROETHYLENE RACE LINER
HARDNESS RATING	55.0 ROCKWELL C MINIMUM AND 62.0 ROCKWELL C MAXIMUM INNER MEMBER 28.0 ROCKWELL C MINIMUM AND 37.0 ROCKWELL C MAXIMUM OUTER RACE MEMBER
STYLE DESIGNATOR	11A WITH INSERT AND/OR LINER
BORE DIAMETER	0.1895 INCHES MINIMUM AND 0.1900 INCHES MAXIMUM
OUTER MEMBER OUTSIDE DIAMETER	0.5620 INCHES MINIMUM AND 0.5625 INCHES MAXIMUM
OUTER MEMBER WIDTH	0.2130 INCHES MINIMUM AND 0.2230 INCHES MAXIMUM
INNER MEMBER WIDTH	0.2790 INCHES MINIMUM AND 0.2810 INCHES MAXIMUM
STATIC RADIAL LOAD RATING	3975 POUNDS

Restrictions/Controls & Freight Information | NSN 3120-01-041-7129

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	133300	MACHINERY/MACHINES NOI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	772	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3120-01-041-7129

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
