NSN 3120-01-041-6462 MS141026, MS14102-6, MS212316

Product Details | SELF-ALIGNING PLAIN BEARING

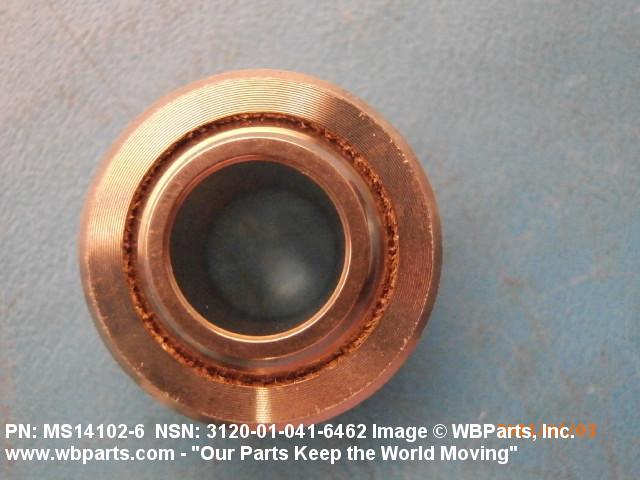

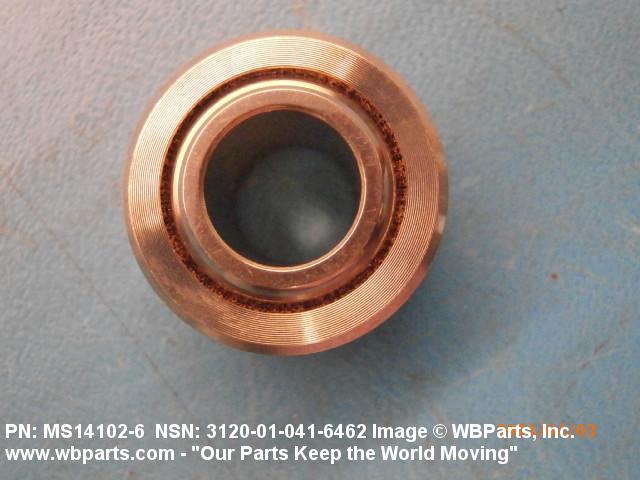

3120-01-041-6462 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The item consists of a bored precision ground ball (or spherical plain bearing) around which an outer ring is fitted. The assembly may be either separable or nonseparable. Excludes BEARING, PLAIN, ROD END and BEARING, PLAIN, SPHERICAL.

Part Alternates: MS141026, MS14102-6, MS212316, MS21231-6, AS14102, AS141026, AS14102-6, AS81820 , AS81820/1 , AS818201, KR6CWB, KR-6CWB, 53660461, 5366046-1, 3120-01-041-6462, 01-041-6462, 3120010416462, 010416462

Bearings | Bearings, Plain, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	28 MAY 1977	01-041-6462	13208 ( BEARING, PLAIN, SELF-ALIGNING )

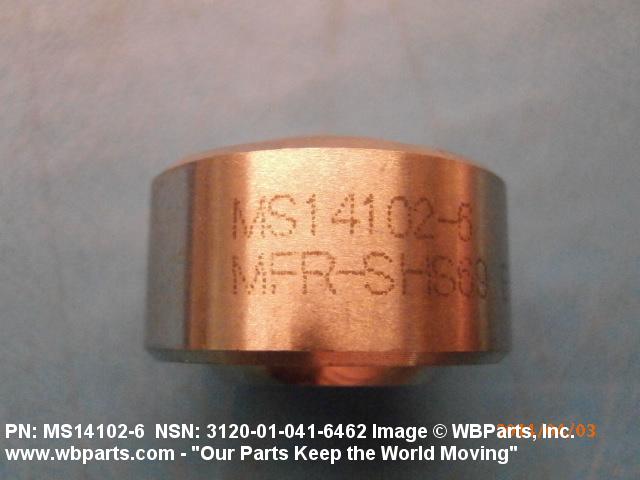

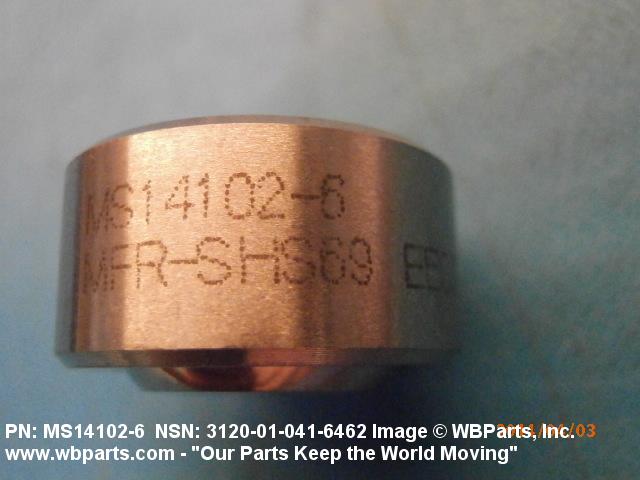

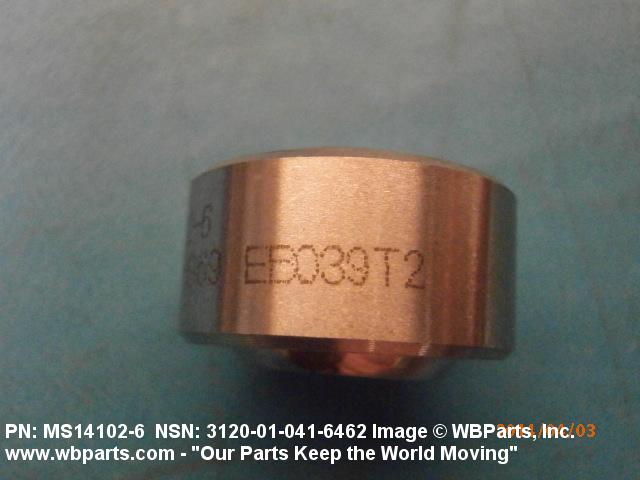

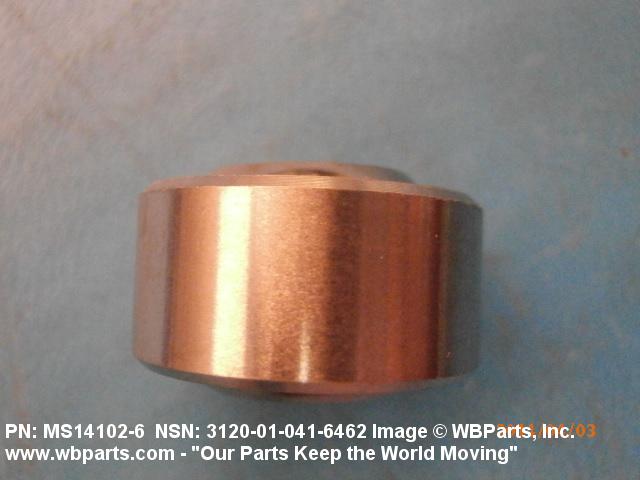

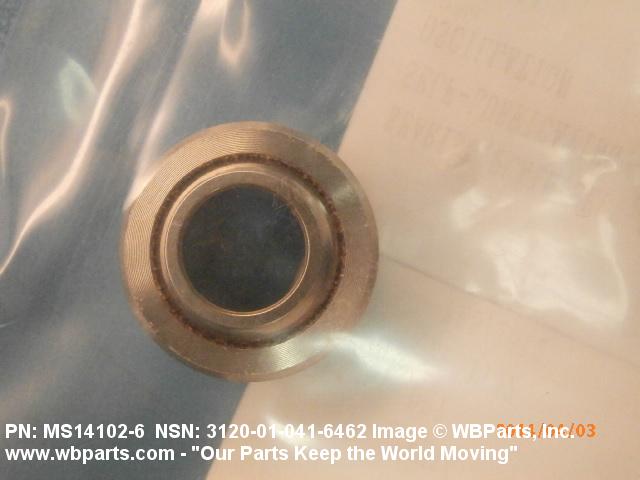

Drawings & Photos | NSN 3120-01-041-6462

Part Number	Request Date	QTY	Origin
3120-01-041-6462	2024-10-298	32	Canada
3120-01-041-6462	2021-09-269	44	DIBBS
3120-01-041-6462	2020-12-355	82	DIBBS
MS141026	2018-07-184	1	United States
3120-01-041-6462	2016-09-274	48	United States
3120-01-041-6462	2016-09-274	50	United States
3120-01-041-6462	2016-09-274	250	United States
53660461	2016-09-274	48	United States
53660461	2016-06-160	25	United States
53660461	2016-06-160	50	United States
MS212316	2014-10-280	100	HK
3120-01-041-6462	2014-03-86	60	United States
MS141026	2014-03-69	100	IL
MS141026	2014-03-64	100	Israel
3120-01-041-6462	2013-12-344	60	United States
MS141026	2013-08-228	8	US
3120-01-041-6462	2011-08-221	8	UK
MS141026	2011-07-210	11	United States
3120-01-041-6462	2010-03-61	42	DIBBS
3120-01-041-6462	2009-07-193	4	South Korea
MS212316	2009-04-93	100	Turkey
MS212316	2009-04-93	100	Turkey
MS212316	2009-04-93	100	Turkey
3120-01-041-6462	2008-05-148	41	DIBBS
MS141026	2008-05-137	400	India
AS14102	2008-04-113	5000	US
3120-01-041-6462	2008-04-112	32	DIBBS
3120-01-041-6462	2008-02-58	10	DIBBS
3120-01-041-6462	2007-04-99	104	DIBBS

Cross Reference | NSN 3120-01-041-6462

Part Number	Cage Code	Manufacturer
5366046-1	53711	NAVAL SEA SYSTEMS COMMAND
AS14102	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS14102-6	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS81820	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS81820/1	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
KR-6CWB	50632	KAMATICS CORPORATION
MS14102-6	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS14102-6	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS21231-6	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3120-01-041-6462

Compare

Related Products | NSN 3120-01-041-6462

3120-01-041-6888, 3120-01-041-7033, 3120-01-041-7126, 3120-01-041-7127, 3120-01-041-7128

Technical Data | NSN 3120-01-041-6462

Characteristic	Specifications
MATERIAL	STEEL COMP 440C INNER MEMBER STEEL COMP 630 OUTER RACE MEMBER PLASTIC POLYTETRAFLUOROETHYLENE RACE LINER
HARDNESS RATING	55.0 ROCKWELL C MINIMUM AND 62.0 ROCKWELL C MAXIMUM INNER MEMBER 28.0 ROCKWELL C MINIMUM AND 37.0 ROCKWELL C MAXIMUM OUTER RACE MEMBER
STYLE DESIGNATOR	11A WITH INSERT AND/OR LINER

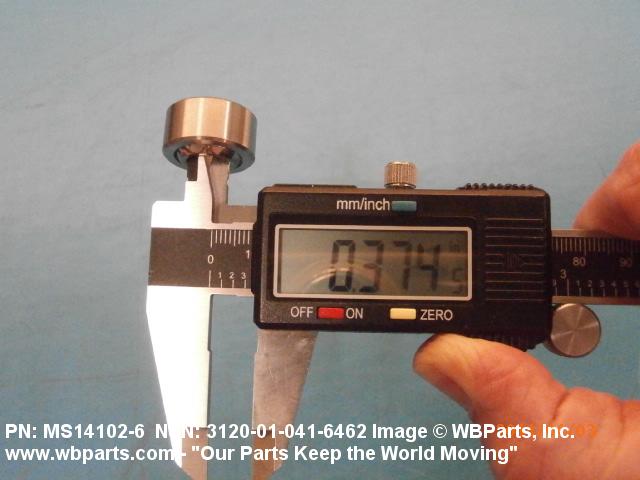

BORE DIAMETER	0.3745 INCHES MINIMUM AND 0.3750 INCHES MAXIMUM

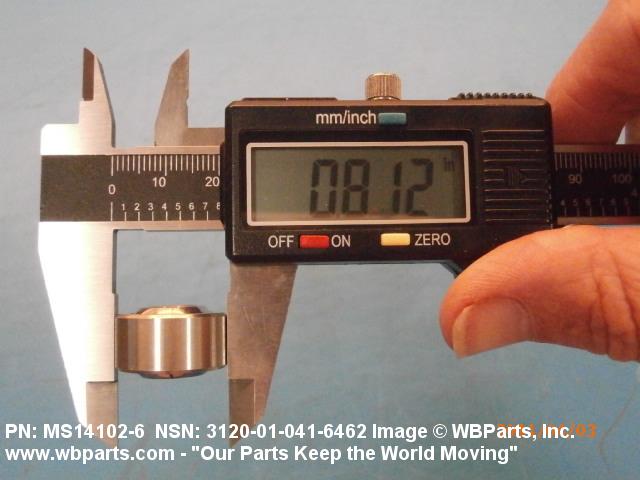

OUTER MEMBER OUTSIDE DIAMETER	0.8120 INCHES MINIMUM AND 0.8125 INCHES MAXIMUM

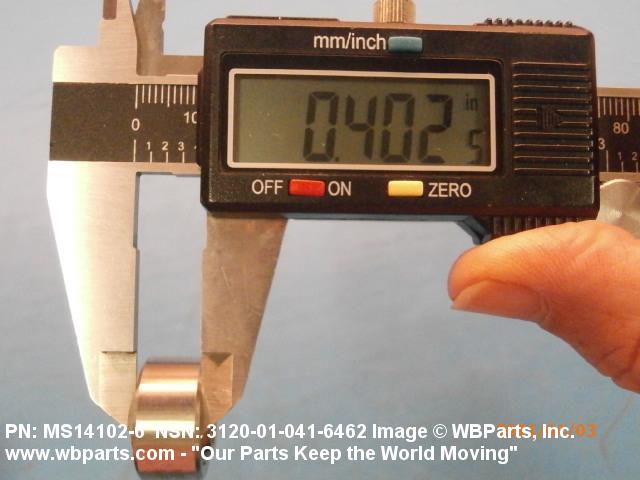

OUTER MEMBER WIDTH	0.4010 INCHES MINIMUM AND 0.4110 INCHES MAXIMUM

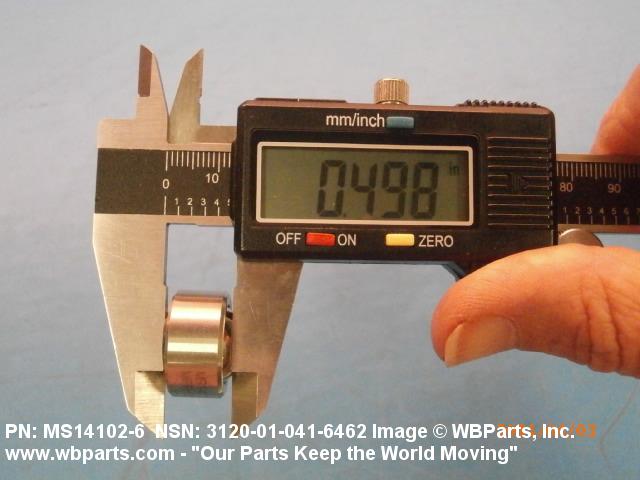

INNER MEMBER WIDTH	0.4980 INCHES MINIMUM AND 0.5000 INCHES MAXIMUM
STATIC RADIAL LOAD RATING	13700 POUNDS

Restrictions/Controls & Freight Information | NSN 3120-01-041-6462

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	114850	BEARING/BUSHING O/T BALL/ROLLER I/S
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	742	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3120-01-041-6462

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
