NSN 3120-01-030-8773 MS141046, MS14104-6, MS212336

Product Details | SELF-ALIGNING PLAIN BEARING

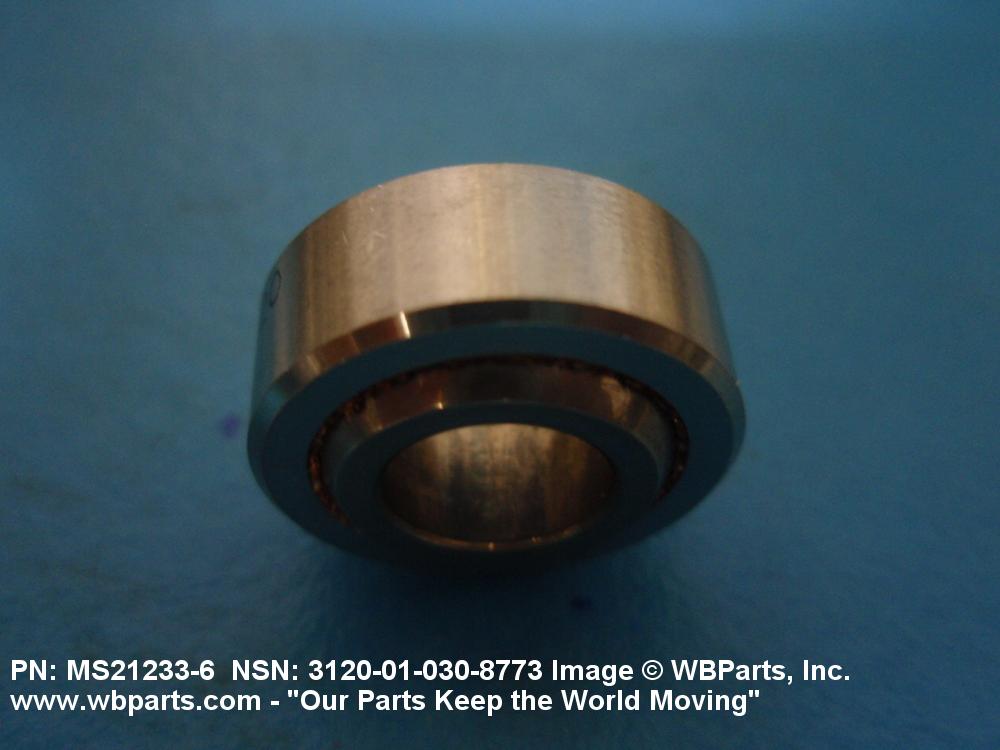

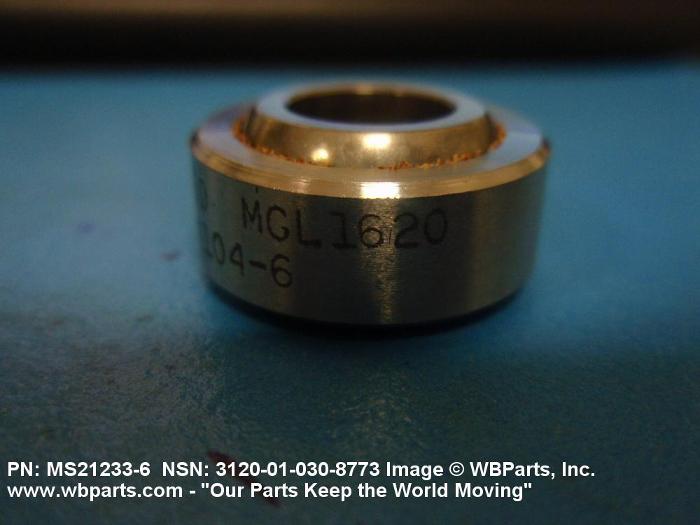

3120-01-030-8773 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The item consists of a bored precision ground ball (or spherical plain bearing) around which an outer ring is fitted. The assembly may be either separable or nonseparable. Excludes BEARING, PLAIN, ROD END and BEARING, PLAIN, SPHERICAL.

Part Alternates: MS141046, MS14104-6, MS212336, MS21233-6, AS14104, BS12ATH26M, C5556, C555-6 , HSB6DU, KR6CN001, LNP06C100, LNP06C-100, 0340306, 03-403-06, 0370306, 03-703-06, 176042 , NR6, NR-6 , NV6 , 3120-01-030-8773, 01-030-8773, 03-001-0375, 3120010308773, 010308773, 030010375

Bearings | Bearings, Plain, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	13 NOV 1976	01-030-8773	13208 ( BEARING, PLAIN, SELF-ALIGNING )

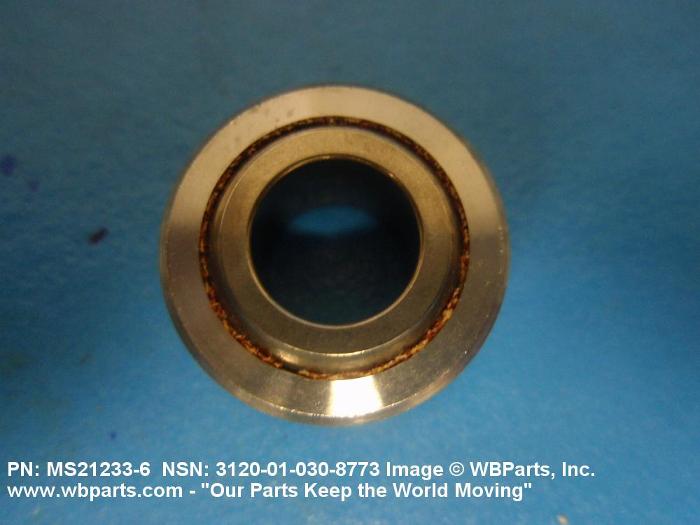

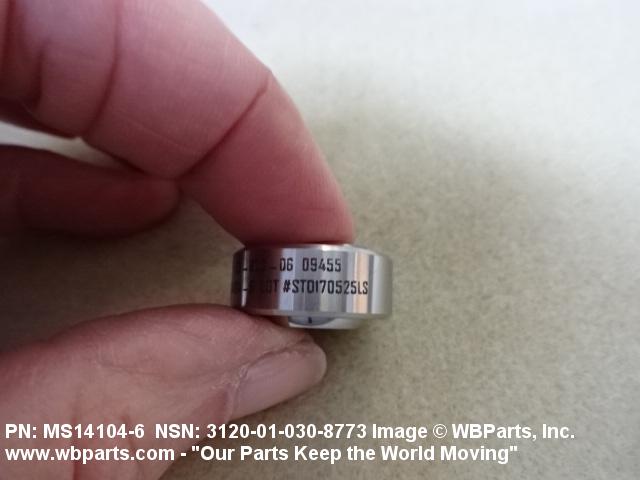

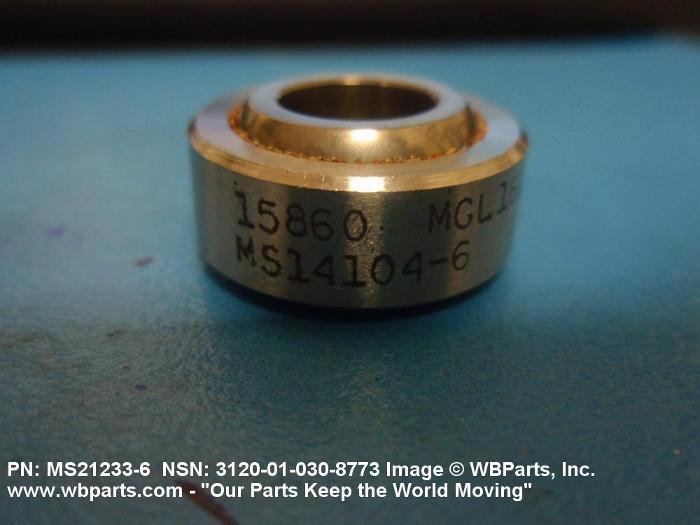

Drawings & Photos | NSN 3120-01-030-8773

Part Number	Request Date	QTY	Origin
MS212336	2022-04-109	40	United States
MS141046	2022-04-108	40	United States
MS141046	2020-01-06	50	United States
MS141046	2020-01-06	50	United States
3120-01-030-8773	2018-04-120	247	DIBBS
3120-01-030-8773	2018-04-112	247	DIBBS
MS212336	2018-04-94	50	UAE
3120-01-030-8773	2017-11-318	157	DIBBS
3120-01-030-8773	2017-11-306	157	DIBBS
MS141046	2014-02-49	5	United States
MS141046	2012-12-341	80	SE
3120-01-030-8773	2012-06-160	1	United States
MS212336	2011-03-81	10	United States
KR6CN001	2009-03-65	100	US
3120-01-030-8773	2008-09-269	10	US
3120-01-030-8773	2008-09-262	10	US
MS141046	2008-08-226	40	SE
MS141046	2008-08-220	40	SE
MS212336	2007-12-340	30	US
3120-01-030-8773	2007-09-262	3	US
MS212336	2007-08-229	10	Canada

Cross Reference | NSN 3120-01-030-8773

Part Number	Cage Code	Manufacturer
03-001-0375	09455	RBC TRANSPORT DYNAMICS CORP. DIV RBC TRANSPORT DYNAMICS
03-001-0375	52285	DIPACO INC. L
03-403-06	09455	RBC TRANSPORT DYNAMICS CORP. DIV RBC TRANSPORT DYNAMICS
03-703-06	09455	RBC TRANSPORT DYNAMICS CORP. DIV RBC TRANSPORT DYNAMICS
176042	09455	RBC TRANSPORT DYNAMICS CORP. DIV RBC TRANSPORT DYNAMICS
AS14104	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
BS12ATH26M	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
BS12ATH26M	3NPS1	RBC AIRCRAFT PRODUCTS, INC.
C555-6	81755	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS
HSB6DU	02758	U S BEARINGS
KR6CN001	50632	KAMATICS CORPORATION
LNP06C-100	16746	SPECLINE INC.
MS14104-6	15860	NEW HAMPSHIRE BALL BEARINGS, INC. DBA ASTRO DIVISION
MS14104-6	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS14104-6	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS21233-6	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
NR-6	73134	ROLLER BEARING COMPANY OF AMERICA, INC.
NV6	73134	ROLLER BEARING COMPANY OF AMERICA, INC.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3120-01-030-8773

Compare

Related Products | NSN 3120-01-030-8773

3120-01-030-9095, 3120-01-030-9164, 3120-01-030-9165, 3120-01-030-9284, 3120-01-030-9303

Technical Data | NSN 3120-01-030-8773

Characteristic	Specifications
STYLE DESIGNATOR	11A WITH INSERT AND/OR LINER

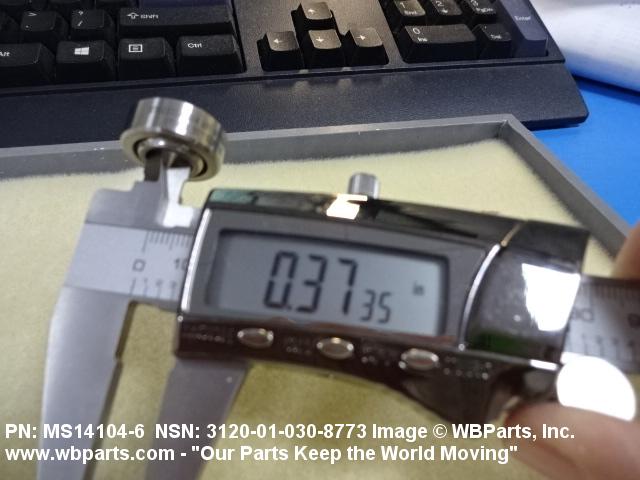

BORE DIAMETER	0.3745 INCHES MINIMUM AND 0.3750 INCHES MAXIMUM

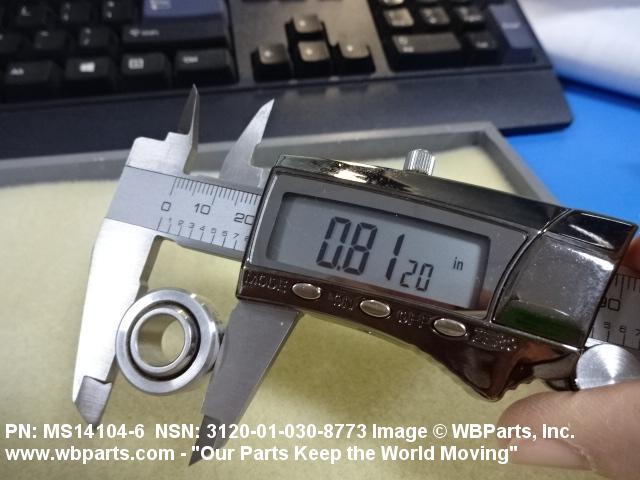

OUTER MEMBER OUTSIDE DIAMETER	0.8120 INCHES MINIMUM AND 0.8125 INCHES MAXIMUM

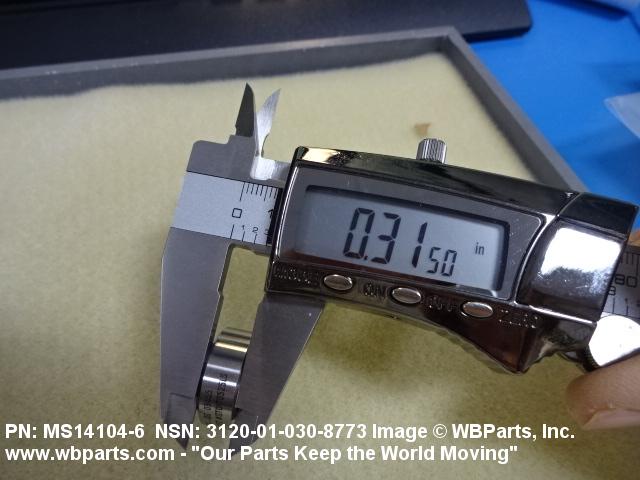

OUTER MEMBER WIDTH	0.3070 INCHES MINIMUM AND 0.3170 INCHES MAXIMUM

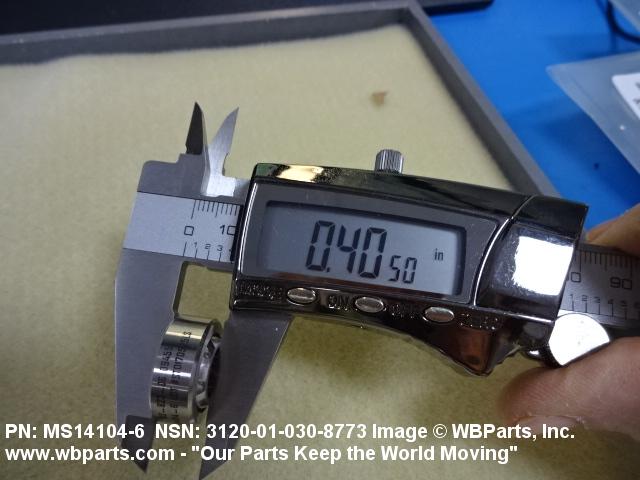

INNER MEMBER WIDTH	0.4040 INCHES MINIMUM AND 0.4060 INCHES MAXIMUM
STATIC RADIAL LOAD RATING	10540 POUNDS

Restrictions/Controls & Freight Information | NSN 3120-01-030-8773

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	133300	MACHINERY/MACHINES NOI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	742	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3120-01-030-8773

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
