NSN 3120-01-008-9407 KSR170505V, REF10ATC10Z, 01-008-9407
Product Details | ROD END PLAIN BEARING
3120-01-008-9407 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The outer member of the assembly is modified to provide a shank. The inner member may be either a plain spherical bearing or a sleeve bearing. Excludes BEARING, PLAIN, SPHERICAL and BEARING, PLAIN, SELF-ALIGNING.
Part Alternates: KSR170505V, REF10ATC10Z, 3120-01-008-9407, 01-008-9407, 3120010089407, 010089407
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 SEP 1975 | 01-008-9407 | 13209 ( BEARING, PLAIN, ROD END ) |

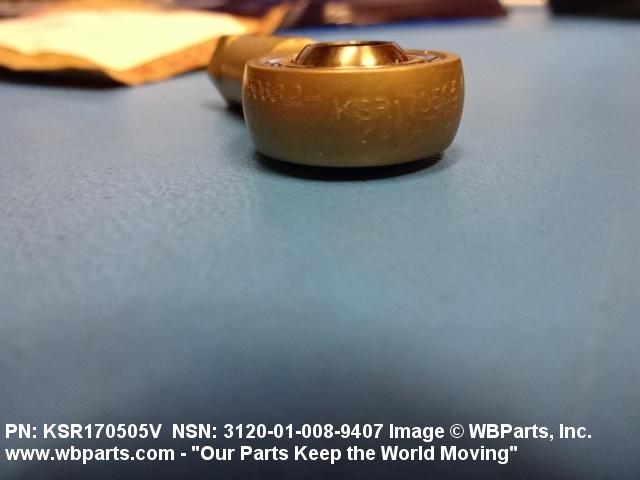

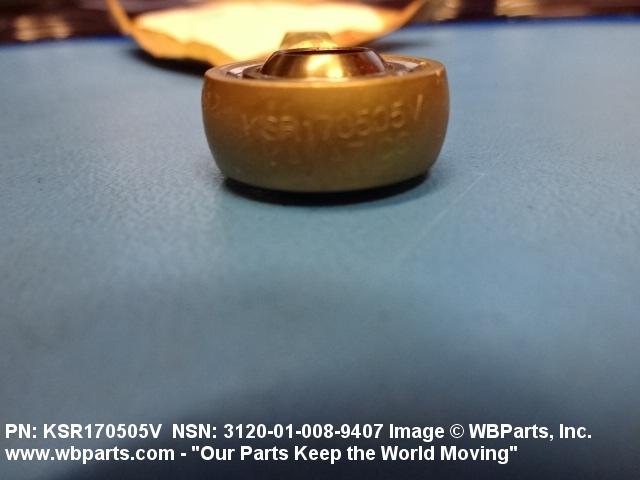

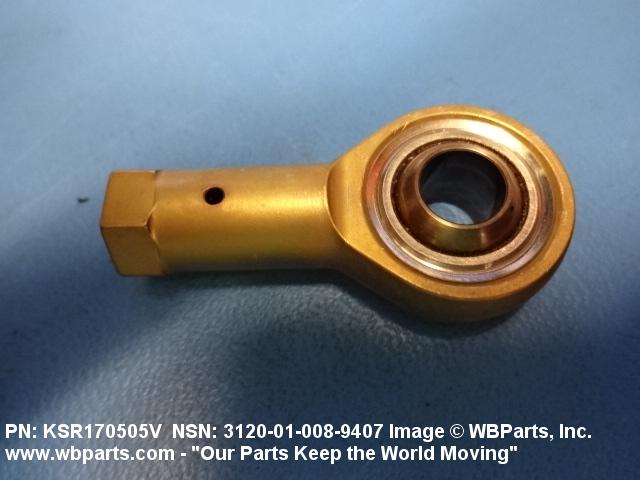

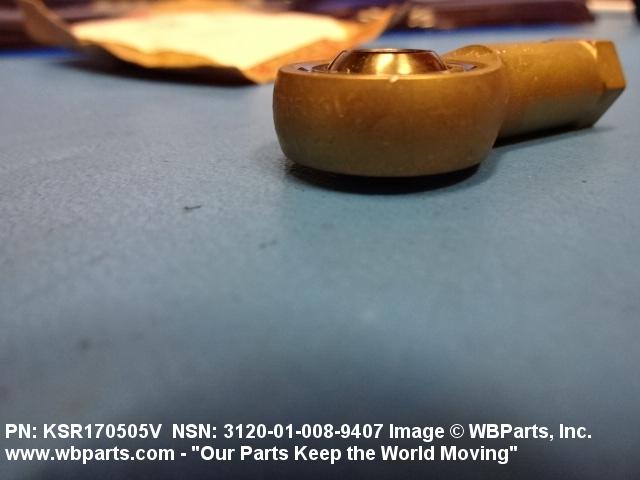

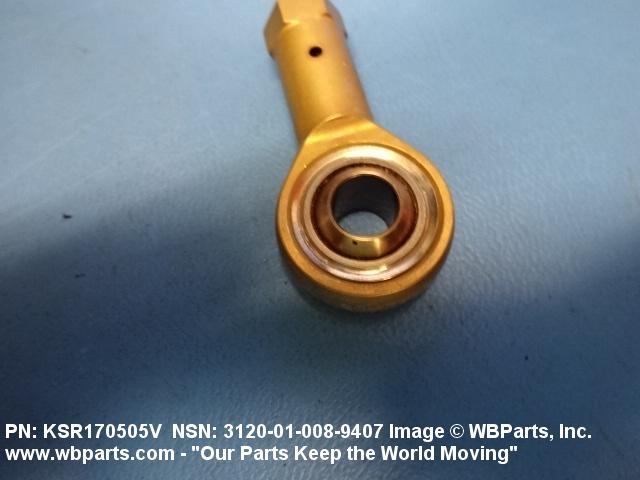

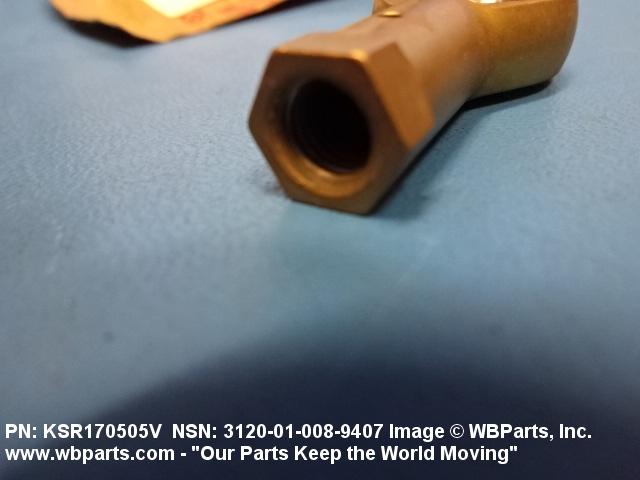

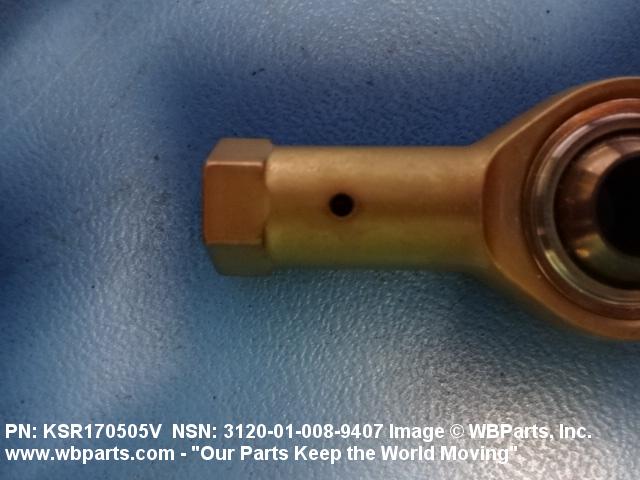

Drawings & Photos | NSN 3120-01-008-9407
Demand History | NSN 3120-01-008-9407
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| KSR170505V | 2023-03-72 | 5 | DIBBS |
| KSR170505V | 2023-03-61 | 5 | DIBBS |
| KSR170505V | 2022-11-332 | 11 | DIBBS |
| KSR170505V | 2022-11-324 | 11 | DIBBS |
| KSR170505V | 2022-08-226 | 10 | DIBBS |
| KSR170505V | 2022-05-135 | 5 | DIBBS |
| KSR170505V | 2022-01-31 | 7 | DIBBS |
| KSR170505V | 2022-01-25 | 7 | DIBBS |
| KSR170505V | 2019-01-08 | 27 | DIBBS |
| 3120-01-008-9407 | 2018-10-291 | 30 | DIBBS |
| 3120-01-008-9407 | 2018-10-283 | 30 | DIBBS |
| 3120-01-008-9407 | 2017-11-311 | 42 | DIBBS |
| 3120-01-008-9407 | 2017-10-277 | 16 | United States |
| 3120-01-008-9407 | 2017-05-144 | 26 | DIBBS |
| 3120-01-008-9407 | 2017-05-136 | 26 | DIBBS |
| KSR170505V | 2012-01-10 | 40 | United States |
| REF10ATC10Z | 2012-01-10 | 40 | United States |
| REF10ATC10Z | 2011-10-283 | 6 | US |
| 3120-01-008-9407 | 2009-09-261 | 23 | DIBBS |
| 3120-01-008-9407 | 2009-05-134 | 25 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-01-008-9407
Related Products | NSN 3120-01-008-9407
Technical Data | NSN 3120-01-008-9407
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 440C INNER MEMBER STEEL COMP 410 OUTER RING PLASTIC TETRAFLUOROETHYLENE RACE LINER STEEL COMP 4130 OR STEEL COMP 4340 ROD END BODY |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE INNER MEMBER 66 FED STD SINGLE MATERIAL RESPONSE OUTER RING 66 FED STD 1ST MATERIAL RESPONSE OR AISI ASSN STD 2ND MATERIAL RESPONSE ROD END BODY |
| SURFACE TREATMENT | CADMIUM ROD END BODY |
| STYLE DESIGNATOR | 6 BALL TYPE |
| BORE DIAMETER | 0.3120 INCHES MINIMUM AND 0.3125 INCHES MAXIMUM |
| OUTER MEMBER OUTSIDE DIAMETER | 0.8650 INCHES MINIMUM AND 0.9100 INCHES MAXIMUM |
| BORE CENTER TO SHANK END DISTANCE | 1.3650 INCHES MINIMUM AND 1.3850 INCHES MAXIMUM |
| OUTER MEMBER WIDTH | 0.3220 INCHES MINIMUM AND 0.3320 INCHES MAXIMUM |
| INNER MEMBER WIDTH | 0.4320 INCHES MINIMUM AND 0.4370 INCHES MAXIMUM |
| SHANK STYLE | 7 INTERNALLY THREADED W/HEXAGON END AND INSPECTION HOLE |
| SHANK THREAD LENGTH | 0.7190 INCHES MINIMUM AND 0.8120 INCHES MAXIMUM |
| INSPECTION HOLE CENTER TO END DISTANCE | 0.3700 INCHES MINIMUM AND 0.3900 INCHES MAXIMUM |
| SHANK WIDTH ACROSS WRENCH FLATS | 0.4370 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNF |
| THREAD DIAMETER | 0.312 INCHES NOMINAL |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MANUFACTURERS CODE | 50632 |
| DESIGN CONTROL REFERENCE | KSR170505V |
Restrictions/Controls & Freight Information | NSN 3120-01-008-9407
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114870 | BEARING/BUSHING METAL |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | DL | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-01-008-9407
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
