NSN 3120-01-006-9514 MS1410110, MS14101-10, MS17795

Product Details | SELF-ALIGNING PLAIN BEARING

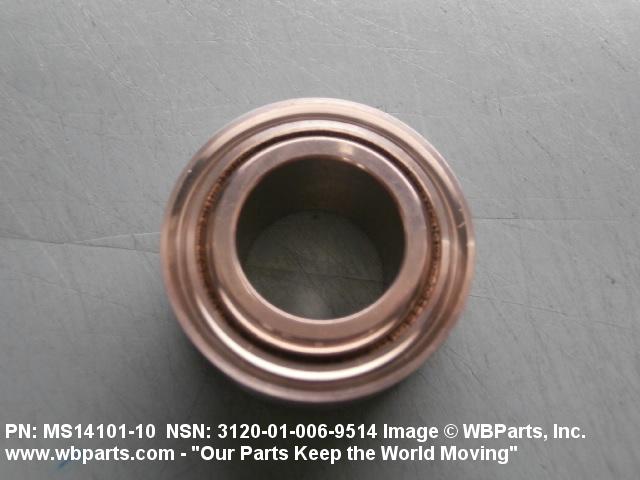

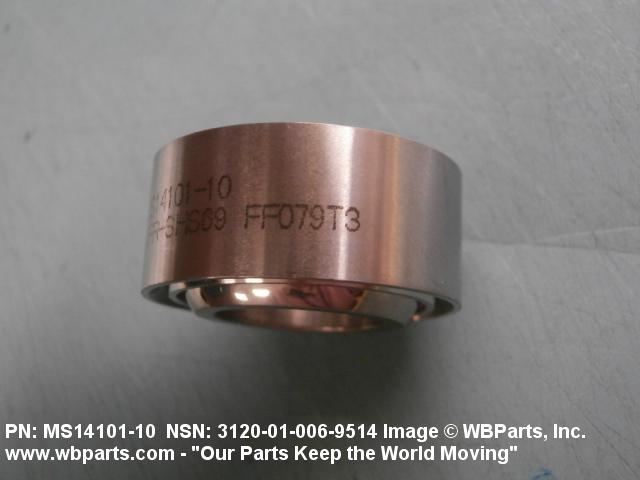

3120-01-006-9514 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The item consists of a bored precision ground ball (or spherical plain bearing) around which an outer ring is fitted. The assembly may be either separable or nonseparable. Excludes BEARING, PLAIN, ROD END and BEARING, PLAIN, SPHERICAL.

Part Alternates: MS1410110, MS14101-10, MS17795, MS2123210, MS21232-10, NRRG10, NRRG-10, ADB10V, AS14104, AS81820, AS81820/1 , AS818201, BS20ATC38, HSB10TL201, HSB10TL-201, HT10V, HT10VL1, SWKN10400, SWKN10-400, KNDB1033, KNDB10-33, KR10CNGB, KR10-CNGB, 0382510, 03-825-10, 04A06410, 04A064-10, 10107683 , 3120-01-006-9514, 01-006-9514, 3120010069514, 010069514

Bearings | Bearings, Plain, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	24 JUL 1975	01-006-9514	13208 ( BEARING, PLAIN, SELF-ALIGNING )

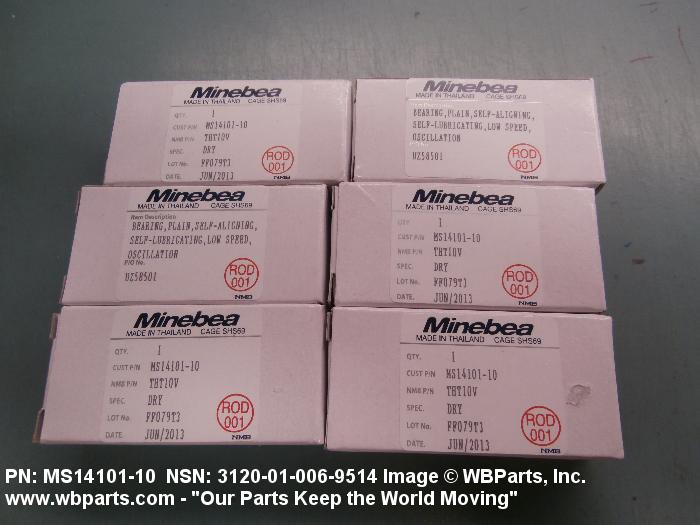

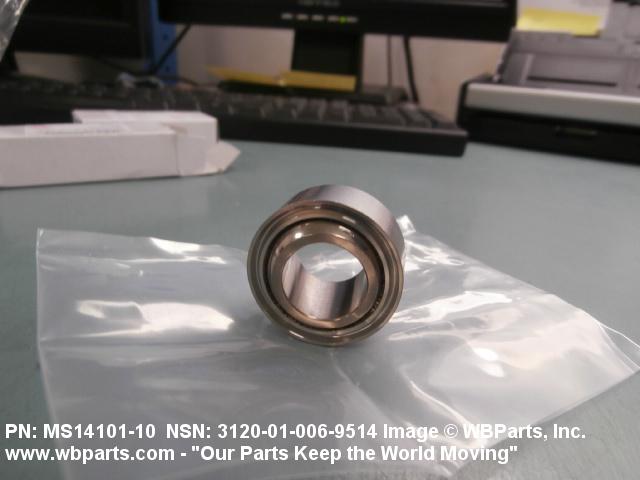

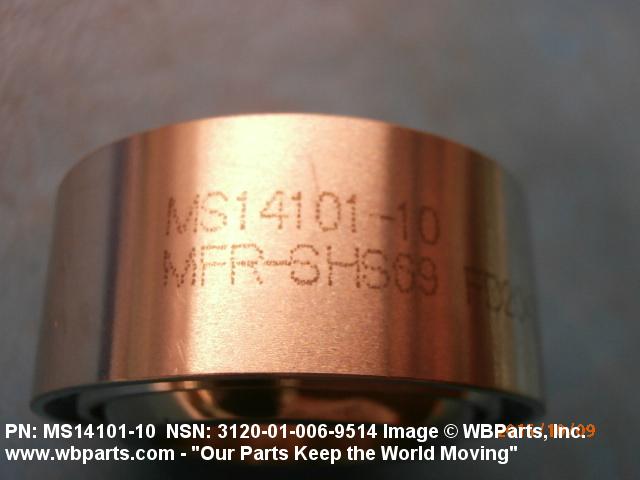

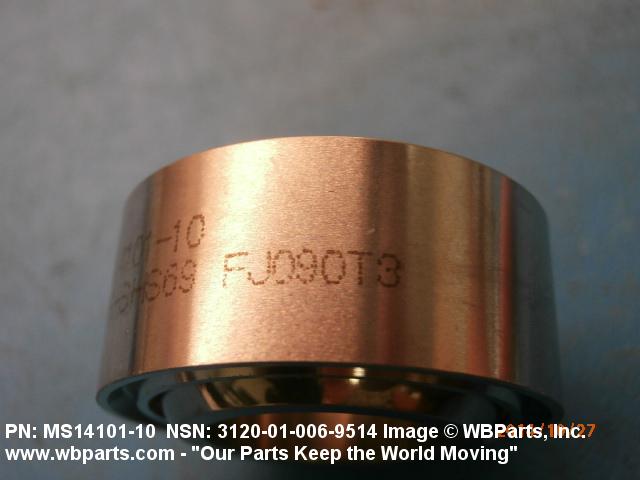

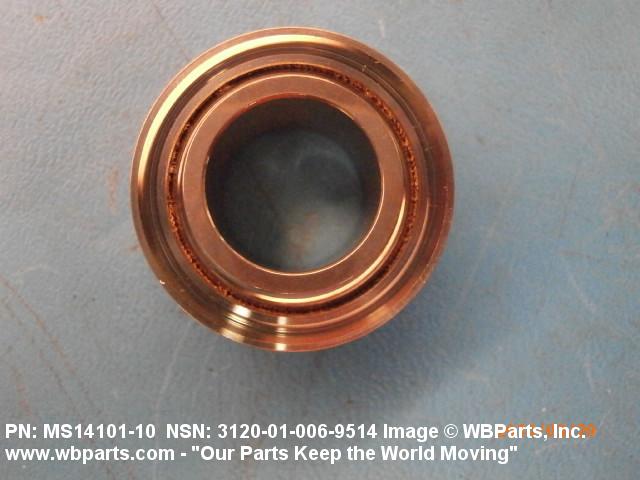

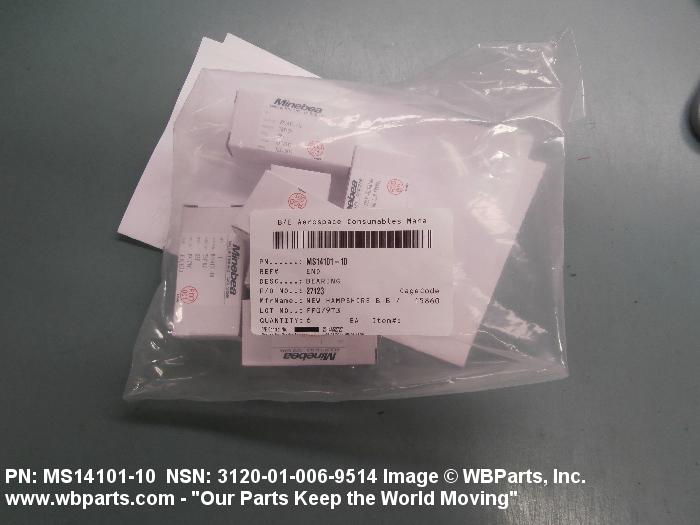

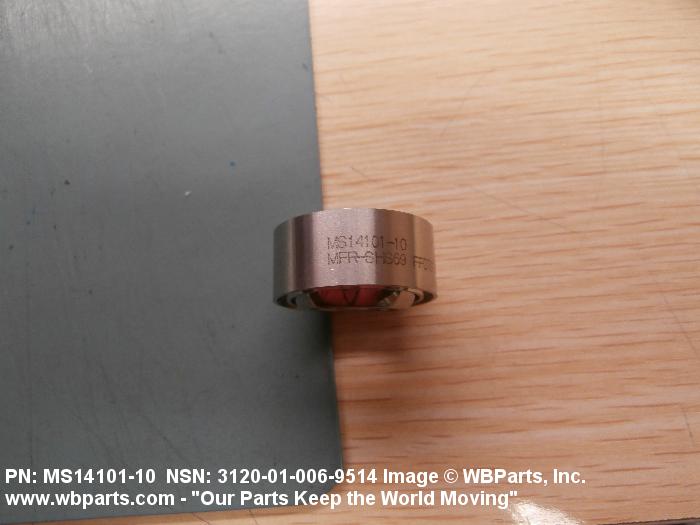

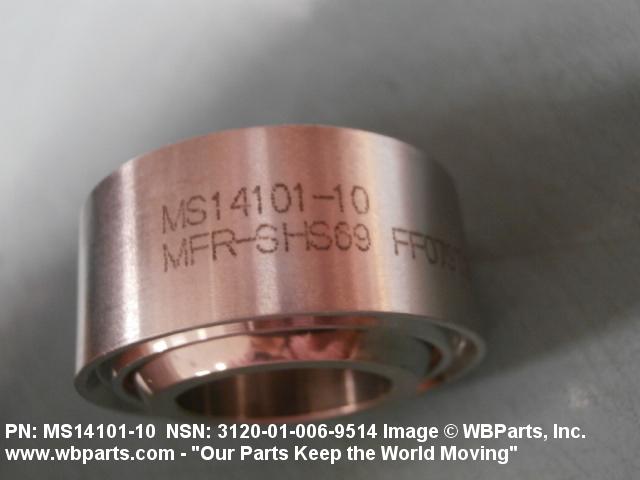

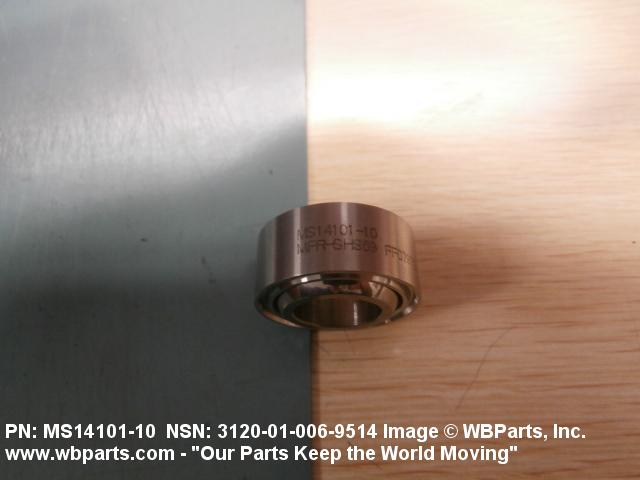

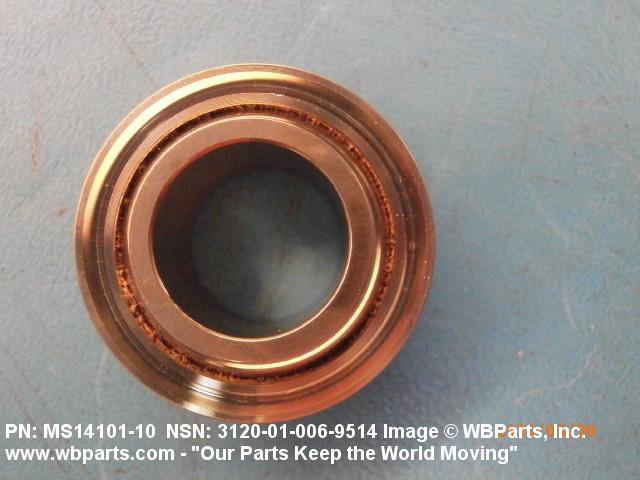

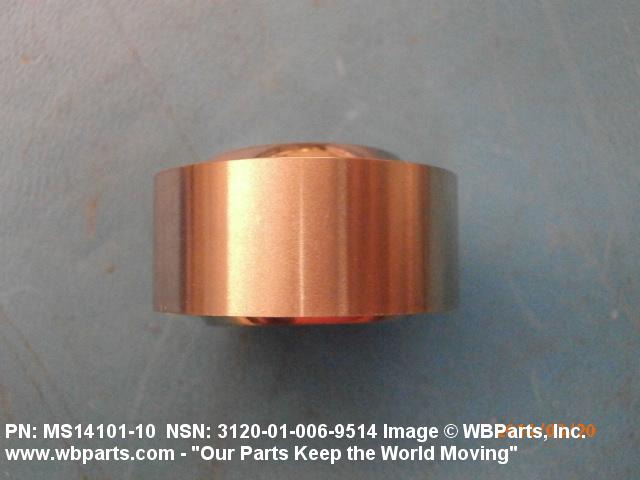

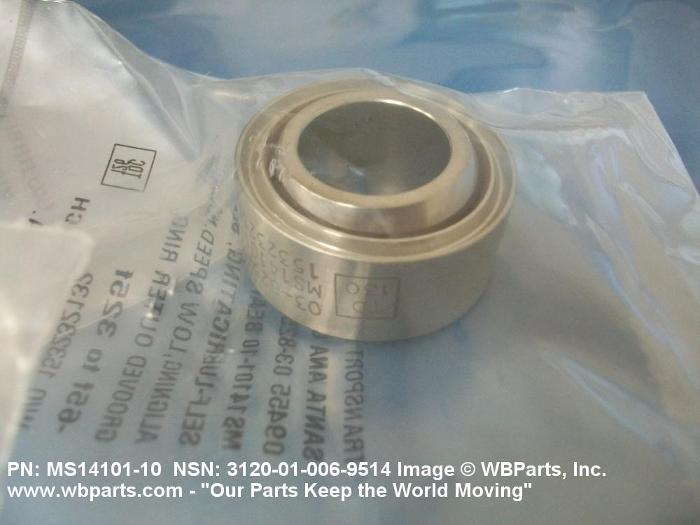

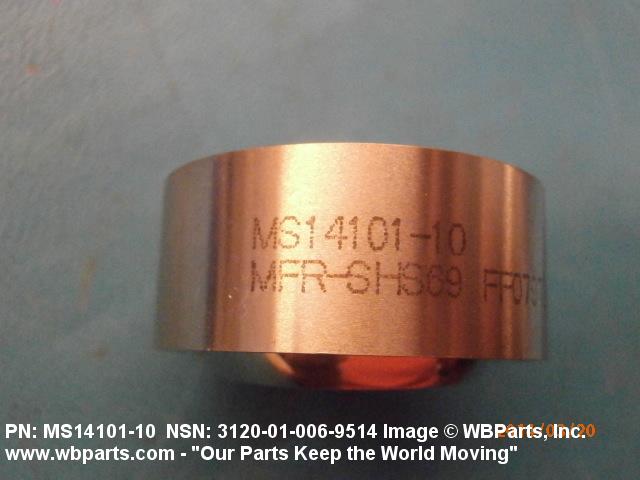

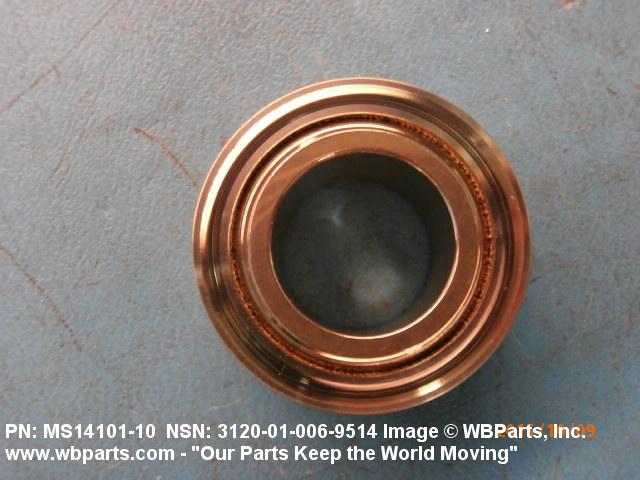

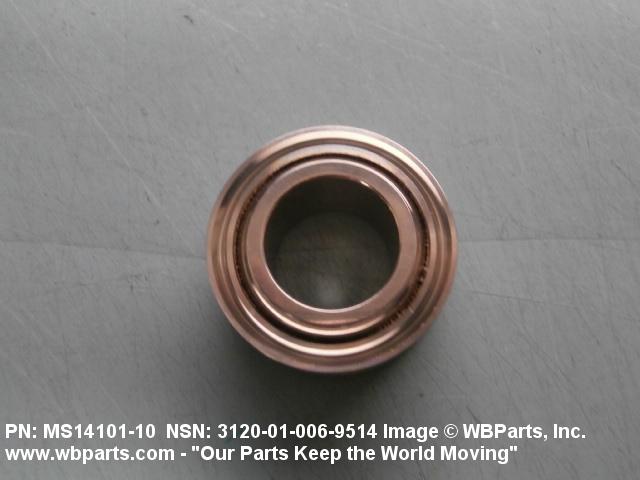

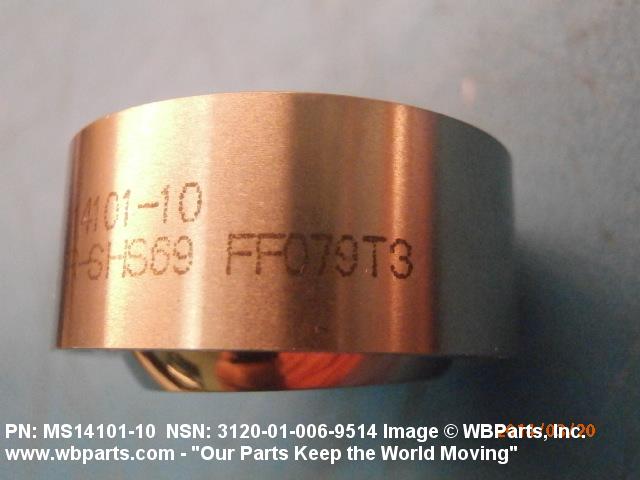

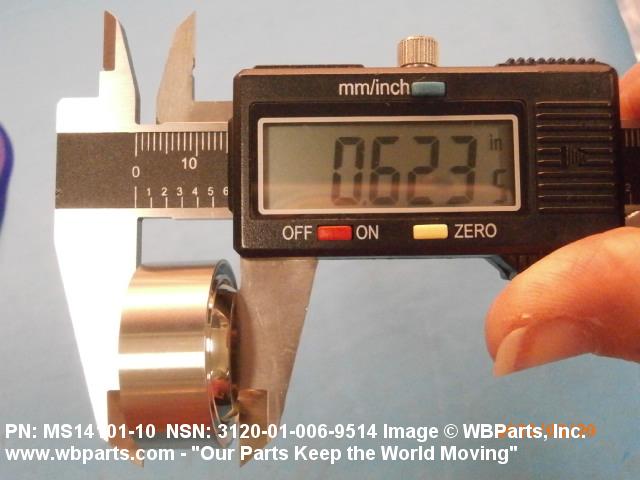

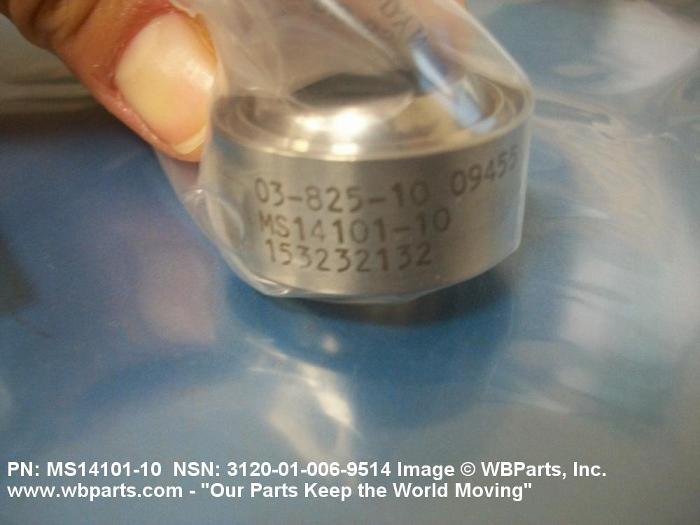

Drawings & Photos | NSN 3120-01-006-9514

Part Number	Request Date	QTY	Origin
MS1410110	2024-05-129	12	United States
MS1410110	2024-02-45	348	United States
0382510	2020-02-56	4	United States
MS1410110	2018-10-275	100	United States
3120-01-006-9514	2017-03-88	40	UM
3120-01-006-9514	2016-09-267	1	DIBBS-RFPs
MS1410110	2016-04-117	24	US
MS1410110	2015-09-273	5	United Kingdom
MS1410110	2015-02-41	150	United States
MS1410110	2014-10-293	10	United States
MS1410110	2014-07-192	16	United States
MS1410110	2014-06-168	1	United States
MS1410110	2014-06-157	6	United States
MS1410110	2014-05-122	2	United Kingdom
MS1410110	2014-04-109	20	ES
MS1410110	2014-04-109	20	ES
MS1410110	2014-02-51	10	United Kingdom
MS1410110	2014-01-16	30	United States
3120-01-006-9514	2014-01-13	12	United States
MS1410110	2013-11-318	8	United Kingdom
3120-01-006-9514	2013-06-179	8	United States
MS1410110	2013-03-86	46	United States
MS1410110	2013-03-78	12	United States
MS1410110	2013-03-66	5	United States
3120-01-006-9514	2012-09-261	50	United States
3120-01-006-9514	2012-04-117	100	United States
3120-01-006-9514	2012-02-59	2	US
3120-01-006-9514	2011-12-341	743	DIBBS
3120-01-006-9514	2011-11-320	1	MY
MS1410110	2011-09-250	4	United States
MS1410110	2011-08-220	100	Malaysia
MS1410110	2011-06-178	1	US
MS1410110	2011-05-140	8	US
MS1410110	2011-05-140	16	US
MS1410110	2011-05-140	32	US
MS1410110	2011-05-140	48	US
3120-01-006-9514	2011-05-139	328	DIBBS
MS1410110	2011-05-124	2	US
3120-01-006-9514	2011-05-123	4	US
MS1410110	2011-04-105	284	US
3120-01-006-9514	2010-12-354	328	DIBBS
MS1410110	2010-06-166	1	US
3120-01-006-9514	2010-02-40	30	United States
3120-01-006-9514	2009-07-189	212	DIBBS
3120-01-006-9514	2009-05-125	153	DIBBS
3120-01-006-9514	2008-12-337	4	US
MS1410110	2008-05-140	48	US
3120-01-006-9514	2008-04-113	4	United States

Cross Reference | NSN 3120-01-006-9514

Part Number	Cage Code	Manufacturer
03-825-10	09455	RBC TRANSPORT DYNAMICS CORP. DIV RBC TRANSPORT DYNAMICS
04A064-10	1W025	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE
ADB10V	15860	NEW HAMPSHIRE BALL BEARINGS, INC. DBA ASTRO DIVISION
AS14104	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS81820	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS81820/1	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
BS20ATC38	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
HSB10TL-201	02758	U S BEARINGS
HT10V	50294	NEW HAMPSHIRE BALL BEARINGS, INC. DBA NHBB
HT10V(L1)	15860	NEW HAMPSHIRE BALL BEARINGS, INC. DBA ASTRO DIVISION
KNDB10-33	97613	DOVER ENGINEERED SYSTEMS, INC. DBA KAHR BEARING
KR10-CNGB	50632	KAMATICS CORPORATION
MS14101-10	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS14101-10	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS17795	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS21232-10	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
NRRG-10	73134	ROLLER BEARING COMPANY OF AMERICA, INC.
SWKN10-400	81376	RBC SOUTHWEST PRODUCTS, INC.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3120-01-006-9514

Compare

Related Products | NSN 3120-01-006-9514

3120-01-006-9515, 3120-01-006-9516, 3120-01-006-9870, 3120-01-006-9871, 3120-01-006-9872

Technical Data | NSN 3120-01-006-9514

Characteristic	Specifications
MATERIAL	STEEL COMP 440C INNER MEMBER STEEL COMP 630 OUTER RACE MEMBER PLASTIC POLYTETRAFLUOROETHYLENE RACE LINER
HARDNESS RATING	55.0 ROCKWELL C MINIMUM AND 62.0 ROCKWELL C MAXIMUM INNER MEMBER 23.0 ROCKWELL C MINIMUM AND 35.0 ROCKWELL C MAXIMUM OUTER RACE MEMBER
STYLE DESIGNATOR	10A WITH INSERT AND/OR LINER WITH STAKING GROOVE

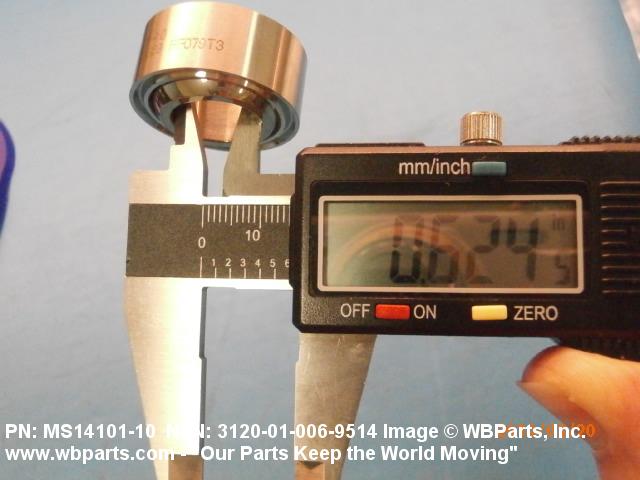

BORE DIAMETER	0.6245 INCHES MINIMUM AND 0.6250 INCHES MAXIMUM

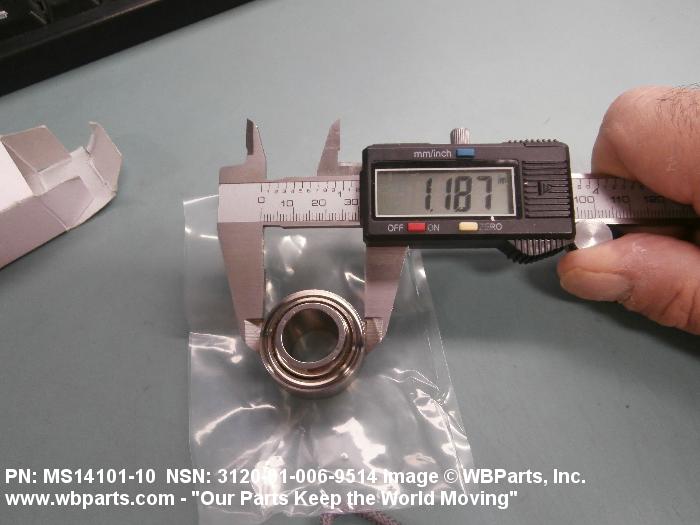

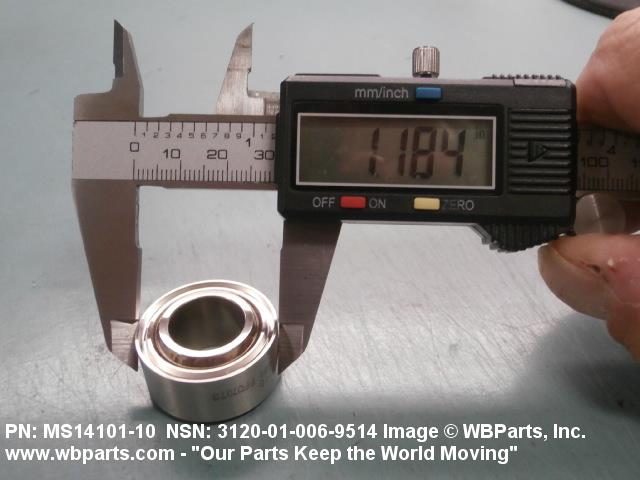

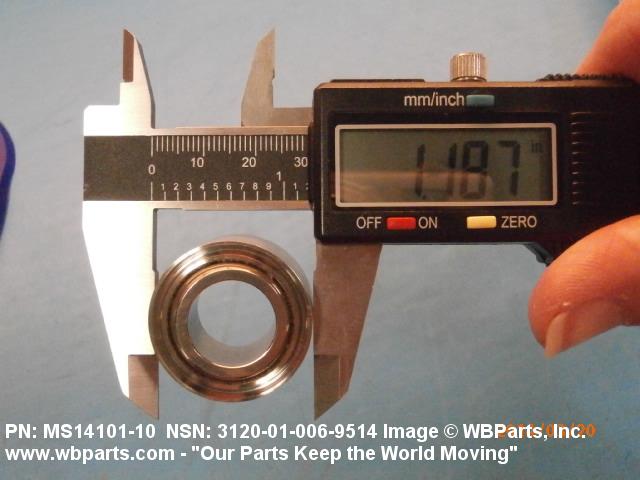

OUTER MEMBER OUTSIDE DIAMETER	1.1870 INCHES MINIMUM AND 1.1875 INCHES MAXIMUM

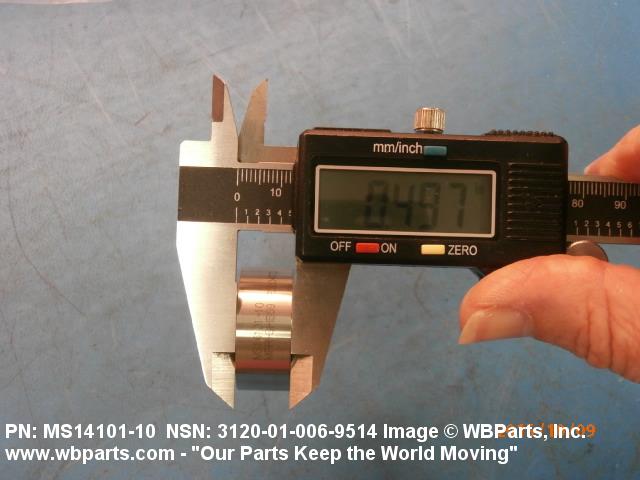

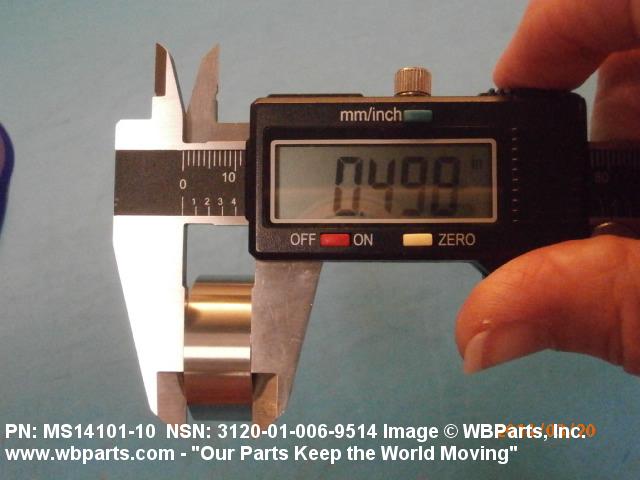

OUTER MEMBER WIDTH	0.4950 INCHES MINIMUM AND 0.5050 INCHES MAXIMUM

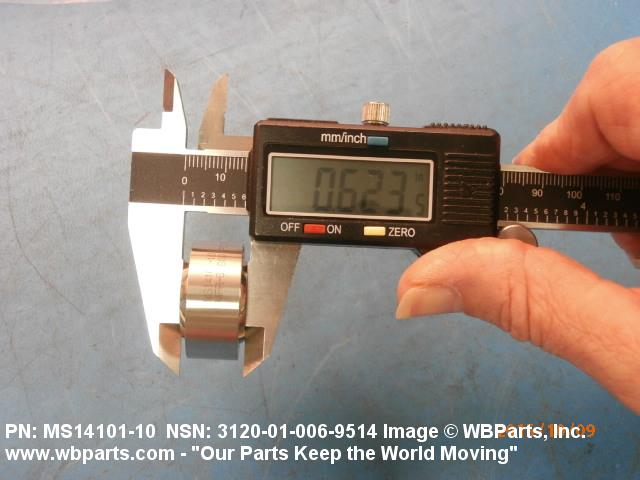

INNER MEMBER WIDTH	0.6230 INCHES MINIMUM AND 0.6250 INCHES MAXIMUM
STATIC RADIAL LOAD RATING	30500 POUNDS
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS14101-10

Restrictions/Controls & Freight Information | NSN 3120-01-006-9514

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	133300	MACHINERY/MACHINES NOI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	742	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3120-01-006-9514

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
