NSN 3120-01-006-9148 MS14103, MS1410312, MS14103-12
Product Details | SELF-ALIGNING PLAIN BEARING
3120-01-006-9148 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The item consists of a bored precision ground ball (or spherical plain bearing) around which an outer ring is fitted. The assembly may be either separable or nonseparable. Excludes BEARING, PLAIN, ROD END and BEARING, PLAIN, SPHERICAL.
Part Alternates: MS14103, MS1410312, MS14103-12, MS2123012, MS21230-12 , NAS77, ADW12V , AS81820, AS81820/1 , AS818201, AW 12VGA13, AW12VGA13, HU12TL203 , SWKR12400, SWKR-12-400 , TGA112, WEG12, WEG-12 , KWB12N7, KWDB1237, KWDB12-37 , GB520CD12, 0382612, 03-826-12 , 10107681 , 14420012, 14-4200-12, 7681812, 76818-12, 3120-01-006-9148, 01-006-9148, 03-566-1205, 3120010069148, 010069148, 035661205
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 23 JUL 1975 | 01-006-9148 | 13208 ( BEARING, PLAIN, SELF-ALIGNING ) |

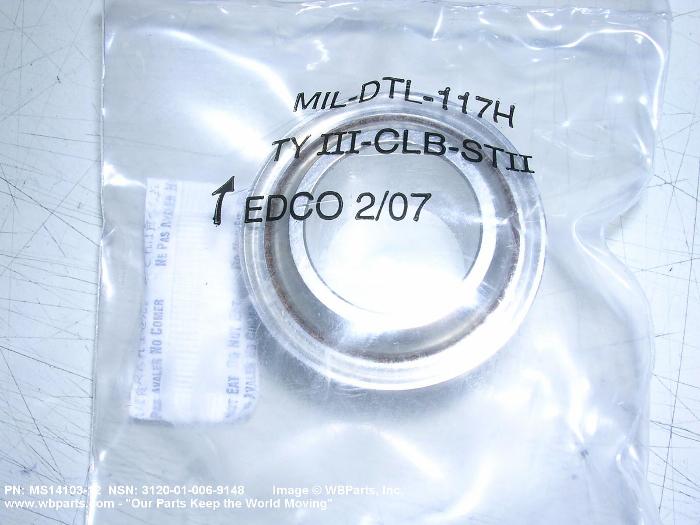

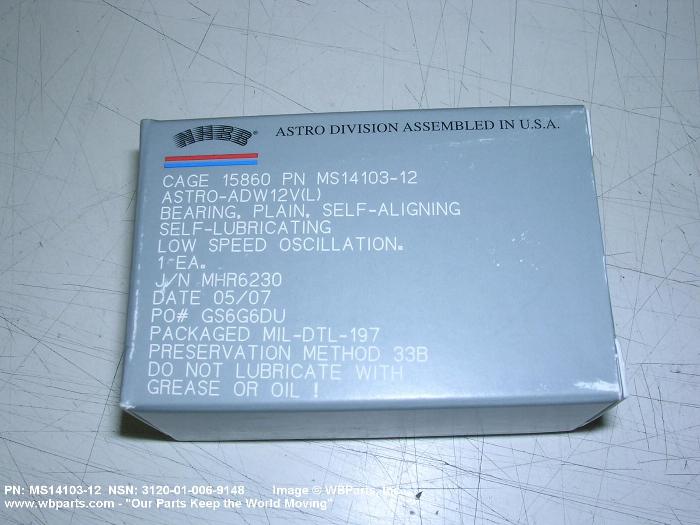

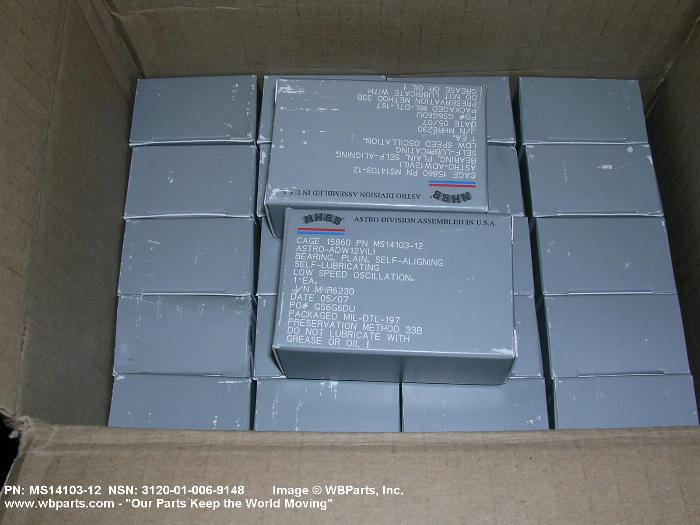

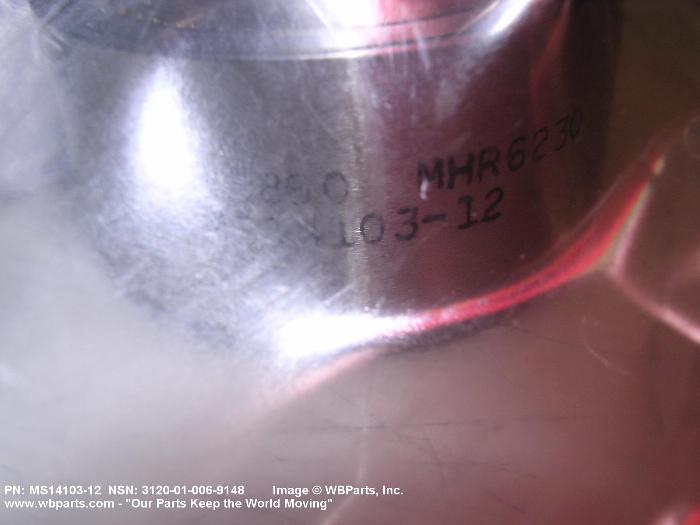

Drawings & Photos | NSN 3120-01-006-9148
Demand History | NSN 3120-01-006-9148
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-01-006-9148 | 2024-09-273 | 44 | DIBBS |
| 3120-01-006-9148 | 2024-02-45 | 114 | DIBBS |
| MS1410312 | 2021-07-196 | 30 | US |
| 3120-01-006-9148 | 2021-05-145 | 100 | US |
| 3120-01-006-9148 | 2021-04-112 | 12 | DE |
| MS1410312 | 2017-09-272 | 25 | United States |
| 3120-01-006-9148 | 2017-03-74 | 1 | DIBBS-RFPs |
| 3120-01-006-9148 | 2016-11-327 | 1 | DIBBS-RFPs |
| 0382612 | 2016-04-98 | 25 | US |
| MS1410312 | 2013-10-276 | 8 | India |
| MS1410312 | 2013-10-275 | 480 | United States |
| MS2123012 | 2012-11-326 | 10 | United States |
| MS1410312 | 2012-10-297 | 636 | United States |
| MS1410312 | 2012-01-19 | 1320 | United States |
| 3120-01-006-9148 | 2011-10-284 | 646 | DIBBS |
| MS1410312 | 2011-09-257 | 636 | United States |
| 3120-01-006-9148 | 2011-07-193 | 646 | DIBBS |
| 3120-01-006-9148 | 2010-11-328 | 8 | US |
| MS2123012 | 2010-10-283 | 20 | US |
| MS1410312 | 2010-01-06 | 190 | United States |
| 3120-01-006-9148 | 2008-10-303 | 3 | United States |
| 3120-01-006-9148 | 2008-05-128 | 4 | United States |
| 3120-01-006-9148 | 2008-05-127 | 4 | United States |
| MS1410312 | 2008-05-127 | 4 | United States |
| MS1410312 | 2008-03-71 | 22 | United States |
| MS2123012 | 2008-02-46 | 22 | United States |
| MS2123012 | 2008-02-46 | 50 | United States |
| 3120-01-006-9148 | 2007-11-311 | 872 | DIBBS |
| 3120-01-006-9148 | 2007-08-225 | 450 | DIBBS |
Cross Reference | NSN 3120-01-006-9148
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 03-566-1205 | 09455 | RBC TRANSPORT DYNAMICS CORP. DIV RBC TRANSPORT DYNAMICS |
| 03-826-12 | 09488 | MOTOROLA CANADA LTD |
| 14-4200-12 | 77896 | REXNORD INDUSTRIES, LLC DIV BEARING OPERATION |
| 76818-12 | 09455 | RBC TRANSPORT DYNAMICS CORP. DIV RBC TRANSPORT DYNAMICS |
| ADW12V | 15860 | NEW HAMPSHIRE BALL BEARINGS, INC. DBA ASTRO DIVISION |
| AS81820 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS81820/1 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AW 12VGA13 | 15860 | NEW HAMPSHIRE BALL BEARINGS, INC. DBA ASTRO DIVISION |
| GB520CD12 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| HU12TL203 | 02758 | U S BEARINGS |
| KWB12N7 | 97613 | DOVER ENGINEERED SYSTEMS, INC. DBA KAHR BEARING |
| KWDB12-37 | 97613 | DOVER ENGINEERED SYSTEMS, INC. DBA KAHR BEARING |
| MS14103 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS14103-12 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS14103-12 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS21230-12 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS21230-12 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| NAS77 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| SWKR-12-400 | 81376 | RBC SOUTHWEST PRODUCTS, INC. |
| TGA112 | 77896 | REXNORD INDUSTRIES, LLC DIV BEARING OPERATION |
| WEG-12 | 73134 | ROLLER BEARING COMPANY OF AMERICA, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-01-006-9148
Related Products | NSN 3120-01-006-9148
Technical Data | NSN 3120-01-006-9148
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 440C INNER MEMBER STEEL COMP 630 OUTER RACE MEMBER PLASTIC POLYTETRAFLUOROETHYLENE RACE LINER |
| HARDNESS RATING | 55.0 ROCKWELL C MINIMUM AND 62.0 ROCKWELL C MAXIMUM INNER MEMBER 23.0 ROCKWELL C MINIMUM AND 35.0 ROCKWELL C MAXIMUM OUTER RACE MEMBER |
| STYLE DESIGNATOR | 10A WITH INSERT AND/OR LINER WITH STAKING GROOVE |
| BORE DIAMETER | 0.7495 INCHES MINIMUM AND 0.7500 INCHES MAXIMUM |
| OUTER MEMBER OUTSIDE DIAMETER | 1.3745 INCHES MINIMUM AND 1.3750 INCHES MAXIMUM |
| OUTER MEMBER WIDTH | 0.6250 INCHES MINIMUM AND 0.6350 INCHES MAXIMUM |
| INNER MEMBER WIDTH | 0.8730 INCHES MINIMUM AND 0.8750 INCHES MAXIMUM |
| STATIC RADIAL LOAD RATING | 52300 POUNDS |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS14103-12 |
Restrictions/Controls & Freight Information | NSN 3120-01-006-9148
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114850 | BEARING/BUSHING O/T BALL/ROLLER I/S |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-01-006-9148
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | B | Rotary Wing Aircraft |
| Weapons Systems/End Item or Homogeneous Group | BJ | AH-64 Airframe |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
