NSN 3120-00-878-4389 AW825, AW8-25, BHDR8000
Product Details | SELF-ALIGNING PLAIN BEARING
3120-00-878-4389 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The item consists of a bored precision ground ball (or spherical plain bearing) around which an outer ring is fitted. The assembly may be either separable or nonseparable. Excludes BEARING, PLAIN, ROD END and BEARING, PLAIN, SPHERICAL.
Part Alternates: AW825, AW8-25, BHDR8000, KWB8SSY, RWSS81, RWSS8-1, 204-061-100, 204061100001, 204-061-100-001, 2040611001, 204-061-100-1, 3120-00-878-4389, 00-878-4389, 3120008784389, 204061100, 008784389
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 06 SEP 1967 | 00-878-4389 | 13208 ( BEARING, PLAIN, SELF-ALIGNING ) |

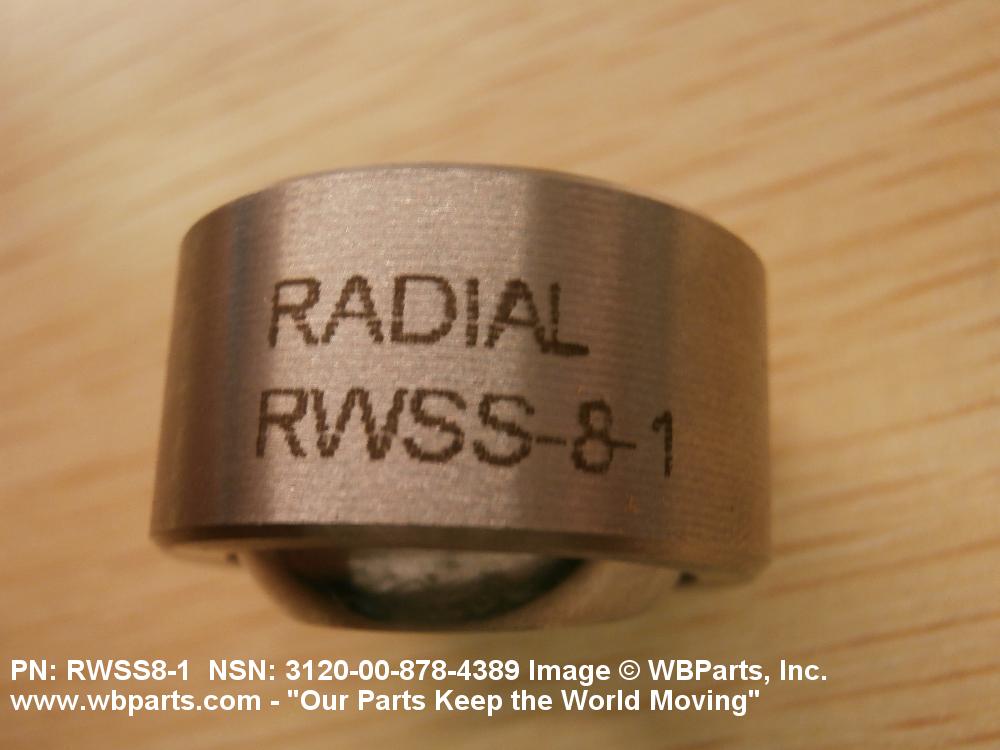

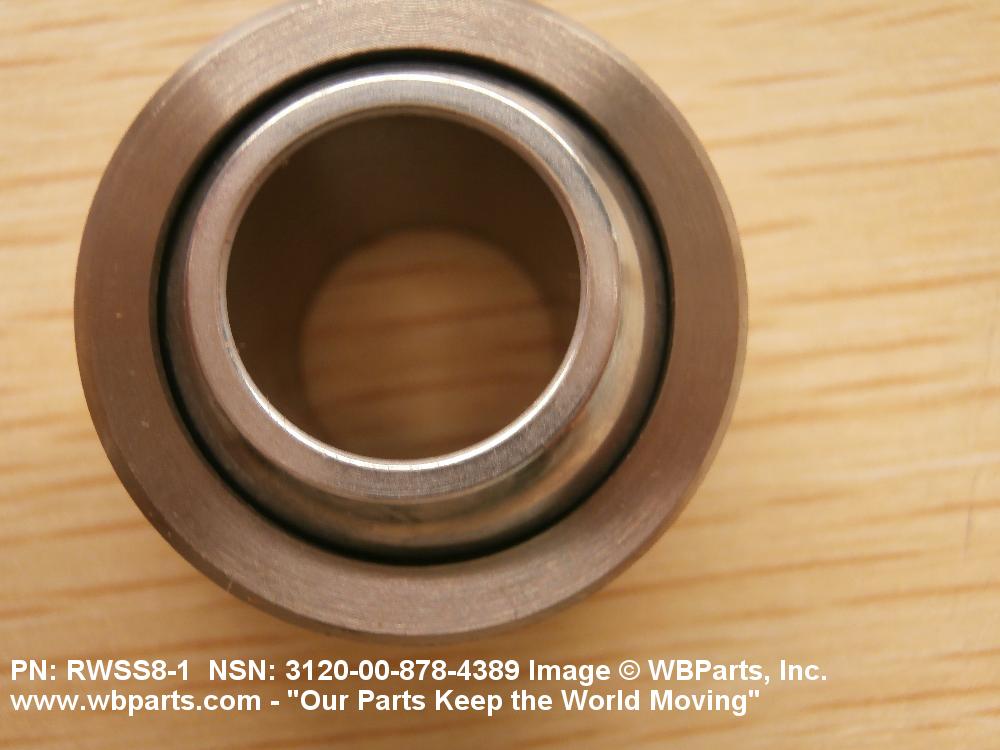

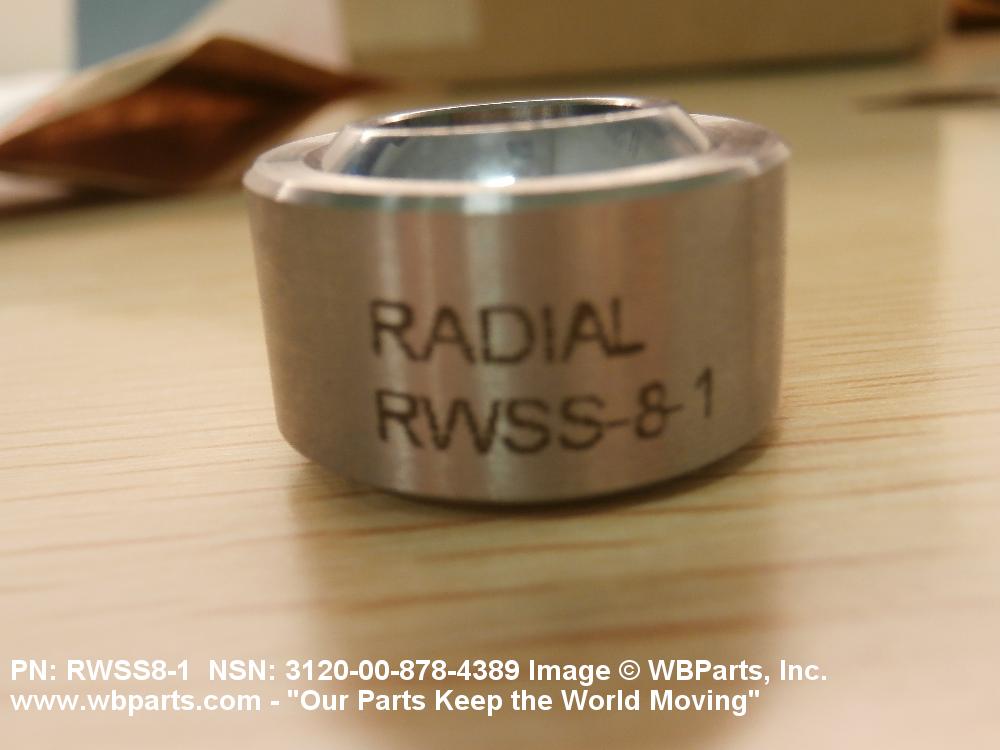

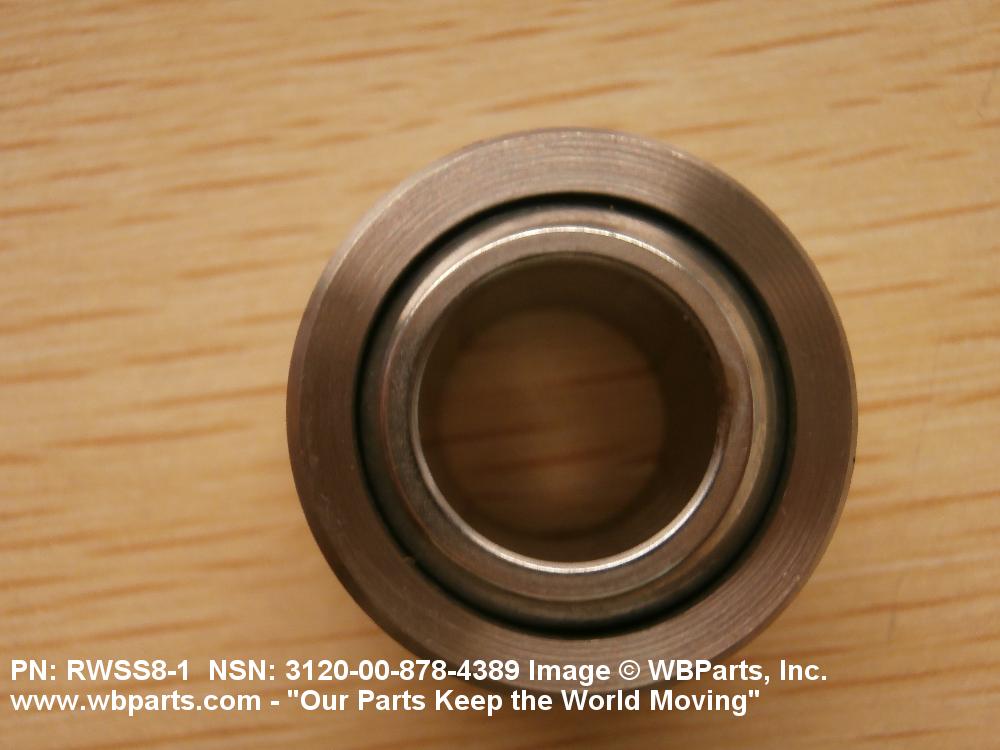

Drawings & Photos | NSN 3120-00-878-4389
Demand History | NSN 3120-00-878-4389
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 204061100001 | 2023-07-187 | 2 | Chile |
| 204061100001 | 2023-02-33 | 8 | Argentina |
| 3120-00-878-4389 | 2014-01-13 | 2 | United States |
| 3120-00-878-4389 | 2013-10-274 | 394 | DIBBS |
| 204061100001 | 2013-04-115 | 1 | CA |
| 3120-00-878-4389 | 2012-08-220 | 4 | United States |
| BHDR8000 | 2011-04-117 | 2400 | MX |
| BHDR8000 | 2011-04-111 | 2400 | MX |
| AW825 | 2010-06-179 | 4 | Australia |
| 3120-00-878-4389 | 2010-05-121 | 14 | DIBBS |
| 204061100001 | 2009-02-51 | 1 | US |
| 3120-00-878-4389 | 2009-02-36 | 4 | Philippines |
| 3120-00-878-4389 | 2007-12-360 | 2 | Philippines |
Cross Reference | NSN 3120-00-878-4389
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 204-061-100 | 97499 | BELL HELICOPTER TEXTRON INC. |
| 204-061-100-001 | 97499 | BELL HELICOPTER TEXTRON INC. |
| 204-061-100-1 | 97499 | BELL HELICOPTER TEXTRON INC. |
| 204-061-100-1 | D0216 | RUAG AEROSPACE SERVICES GMBH |
| AW8-25 | 15860 | NEW HAMPSHIRE BALL BEARINGS, INC. DBA ASTRO DIVISION |
| BHDR8000 | 81376 | RBC SOUTHWEST PRODUCTS, INC. |
| KWB8SSY | 97613 | DOVER ENGINEERED SYSTEMS, INC. DBA KAHR BEARING |
| RWSS8-1 | 99528 | RADIAL BEARING CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-00-878-4389
Related Products | NSN 3120-00-878-4389
Technical Data | NSN 3120-00-878-4389
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E52100 INNER MEMBER STEEL CORROSION RESISTING OUTER RACE MEMBER |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE INNER MEMBER |
| SURFACE TREATMENT | CHROMIUM INNER MEMBER |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | 204-061-100,97499 MFR REF SINGLE TREATMENT RESPONSE INNER MEMBER |
| STYLE DESIGNATOR | 11B WITHOUT INSERT OR LINER |
| BORE DIAMETER | 0.4995 INCHES MINIMUM AND 0.5000 INCHES MAXIMUM |
| OUTER MEMBER OUTSIDE DIAMETER | 0.9995 INCHES MINIMUM AND 1.0000 INCHES MAXIMUM |
| OUTER MEMBER WIDTH | 0.5000 INCHES MINIMUM AND 0.5100 INCHES MAXIMUM |
| INNER MEMBER WIDTH | 0.6200 INCHES MINIMUM AND 0.6250 INCHES MAXIMUM |
| STATIC RADIAL LOAD RATING | 54150 POUNDS |
| MANUFACTURERS CODE | 97499 |
| MFR SOURCE CONTROLLING REFERENCE | 204-061-100 |
Restrictions/Controls & Freight Information | NSN 3120-00-878-4389
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-00-878-4389
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | A | Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | GA | TG:H-1 IROQUOIS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
