NSN 3120-00-699-9070 1599431, 15994-31, 7974760
Product Details | SELF-ALIGNING PLAIN BEARING
3120-00-699-9070 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The item consists of a bored precision ground ball (or spherical plain bearing) around which an outer ring is fitted. The assembly may be either separable or nonseparable. Excludes BEARING, PLAIN, ROD END and BEARING, PLAIN, SPHERICAL.
Part Alternates: 1599431, 15994-31, 7974760, N301, 3120-00-699-9070, 00-699-9070, 3120006999070 , 006999070
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-699-9070 | 13208 ( BEARING, PLAIN, SELF-ALIGNING ) |

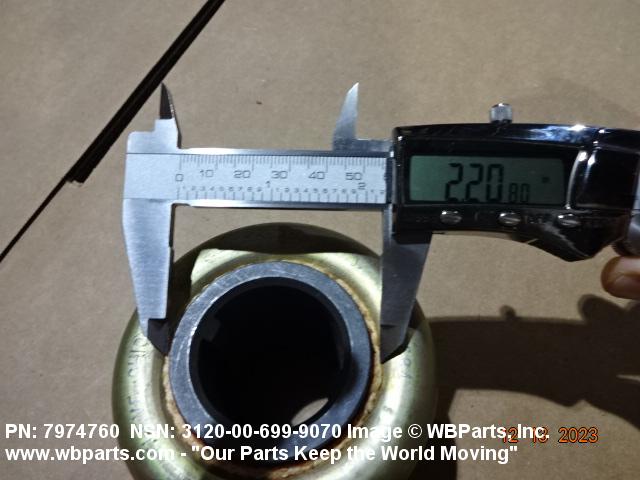

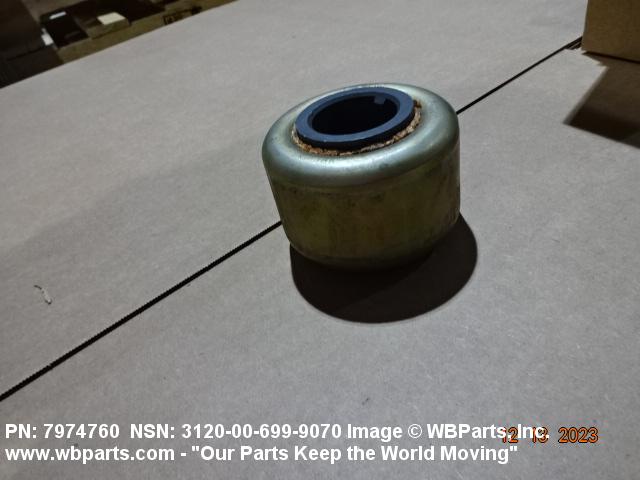

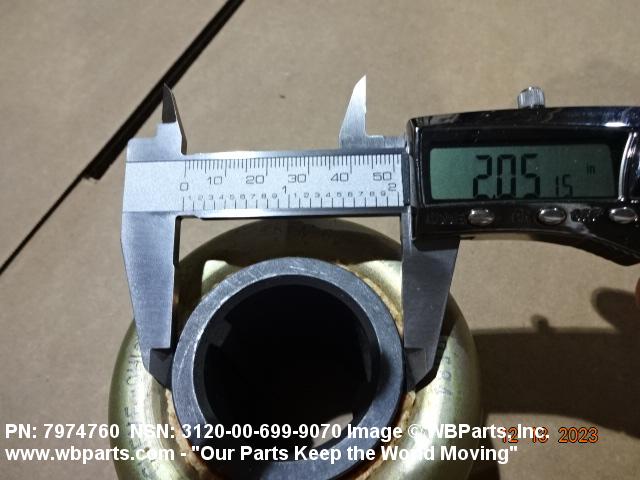

Drawings & Photos | NSN 3120-00-699-9070
Demand History | NSN 3120-00-699-9070
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-00-699-9070 | 2023-10-296 | 65 | Australia |
| 3120-00-699-9070 | 2023-07-193 | 22 | DIBBS |
| 3120-00-699-9070 | 2023-05-149 | 16 | DIBBS |
| 3120-00-699-9070 | 2022-08-228 | 50 | DIBBS |
| 3120-00-699-9070 | 2022-07-200 | 100 | DIBBS |
| 3120-00-699-9070 | 2021-05-140 | 241 | DIBBS |
| 3120-00-699-9070 | 2021-05-132 | 241 | DIBBS |
| 3120-00-699-9070 | 2021-03-84 | 8 | US |
| 3120-00-699-9070 | 2021-02-33 | 251 | DIBBS |
| 3120-00-699-9070 | 2021-01-25 | 251 | DIBBS |
| 3120-00-699-9070 | 2020-04-101 | 45 | United States |
| 3120-00-699-9070 | 2020-02-59 | 56 | United States |
| 3120-00-699-9070 | 2018-06-156 | 104 | DIBBS |
| 3120-00-699-9070 | 2018-05-124 | 2 | United States |
| 3120-00-699-9070 | 2016-12-354 | 55 | US |
| 3120-00-699-9070 | 2016-07-200 | 64 | DIBBS |
| 3120-00-699-9070 | 2016-07-192 | 64 | DIBBS |
| 3120-00-699-9070 | 2016-06-168 | 64 | DIBBS |
| 3120-00-699-9070 | 2016-06-160 | 220 | South Korea |
| 3120-00-699-9070 | 2016-05-124 | 210 | South Korea |
| 3120-00-699-9070 | 2013-02-39 | 224 | DIBBS |
| 3120-00-699-9070 | 2012-07-208 | 231 | DIBBS |
| 3120-00-699-9070 | 2011-03-89 | 4 | US |
| 3120-00-699-9070 | 2009-07-188 | 24 | US |
| 7974760 | 2009-04-105 | 50 | US |
| 3120-00-699-9070 | 2008-01-15 | 40 | US |
| 3120-00-699-9070 | 2007-08-226 | 7 | DIBBS |
| 3120-00-699-9070 | 2007-04-95 | 1400 | US |
Cross Reference | NSN 3120-00-699-9070
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-00-699-9070
Related Products | NSN 3120-00-699-9070
Technical Data | NSN 3120-00-699-9070
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| STYLE DESIGNATOR | 11A WITH INSERT AND/OR LINER |

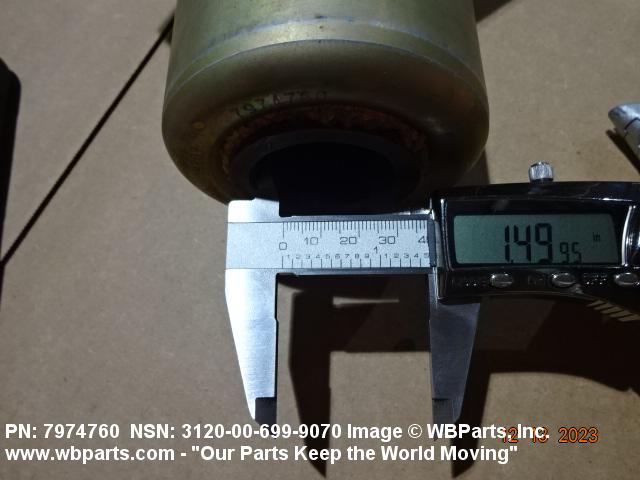

| BORE DIAMETER | 1.4990 INCHES MINIMUM AND 1.5020 INCHES MAXIMUM |

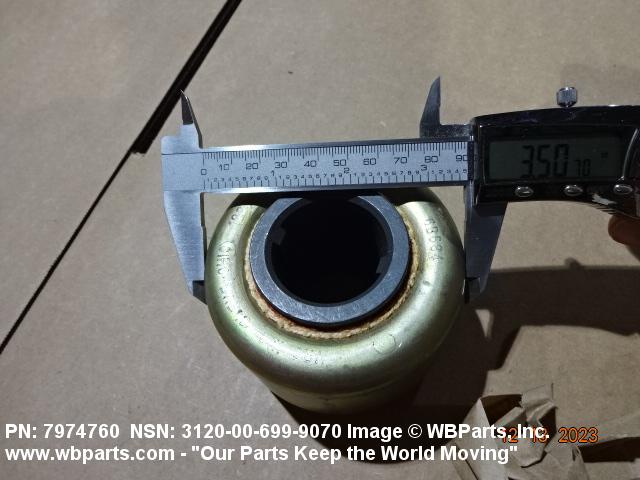

| OUTER MEMBER OUTSIDE DIAMETER | 3.4990 INCHES MINIMUM AND 3.5050 INCHES MAXIMUM |
| OUTER MEMBER WIDTH | 2.2500 INCHES NOMINAL |

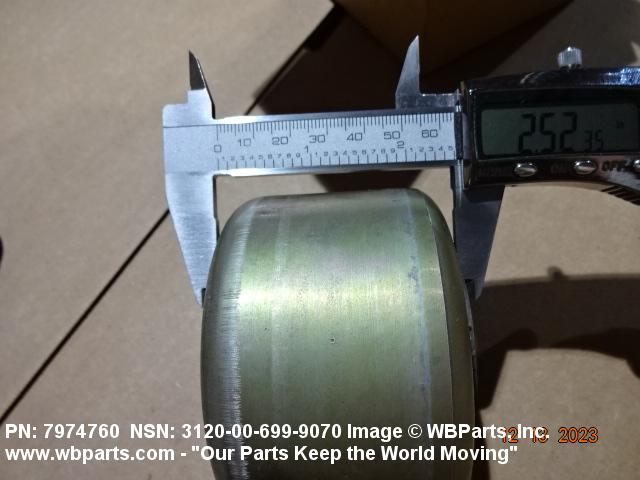

| INNER MEMBER WIDTH | 2.5150 INCHES MINIMUM AND 2.5250 INCHES MAXIMUM |
| LUBRICATION MATERIAL | CARBON GRAPHITE |
Restrictions/Controls & Freight Information | NSN 3120-00-699-9070
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-00-699-9070
Army
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | J | Tanks |
| Weapons Systems/End Item or Homogeneous Group | JT | Recovery Vehicle, M51/M74/M88 |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 2 | Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | B | Consumable Repair Parts |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
