NSN 3120-00-661-7127 HSBG4S, RS4, 00-661-7127
Product Details | SELF-ALIGNING PLAIN BEARING
3120-00-661-7127 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The item consists of a bored precision ground ball (or spherical plain bearing) around which an outer ring is fitted. The assembly may be either separable or nonseparable. Excludes BEARING, PLAIN, ROD END and BEARING, PLAIN, SPHERICAL.
Part Alternates: HSBG4S, RS4, 3120-00-661-7127, 00-661-7127, 3120006617127, 006617127
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-661-7127 | 13208 ( BEARING, PLAIN, SELF-ALIGNING ) |

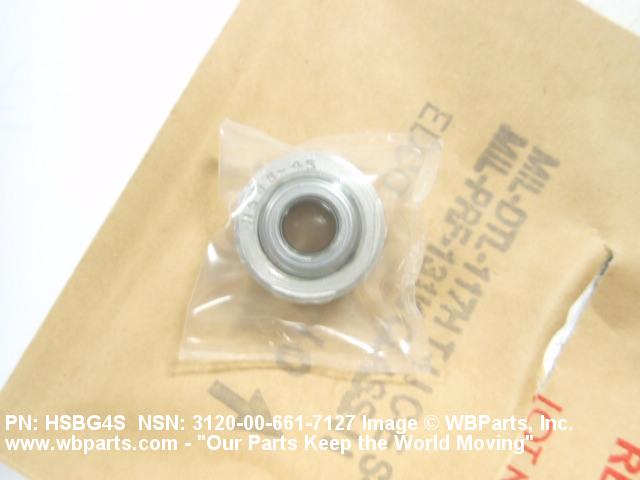

Drawings & Photos | NSN 3120-00-661-7127
Demand History | NSN 3120-00-661-7127
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| HSBG4S | 2024-05-135 | 2 | DIBBS |
| RS4 | 2024-05-135 | 2 | DIBBS |
| 3120-00-661-7127 | 2023-10-284 | 50 | Italy |
| HSBG4S | 2022-07-194 | 2 | DIBBS |
| RS4 | 2022-07-194 | 2 | DIBBS |
| HSBG4S | 2022-06-158 | 1 | DIBBS |
| RS4 | 2022-06-158 | 1 | DIBBS |
| HSBG4S | 2022-04-117 | 1 | DIBBS |
| RS4 | 2022-04-117 | 1 | DIBBS |
| 3120-00-661-7127 | 2021-12-346 | 1 | US |
| 3120-00-661-7127 | 2021-11-307 | 1 | US |
| HSBG4S | 2017-12-352 | 8 | Australia |
| 3120-00-661-7127 | 2016-10-286 | 2 | DIBBS |
| 3120-00-661-7127 | 2016-09-259 | 2 | DIBBS |
| 3120-00-661-7127 | 2016-08-221 | 1 | DIBBS |
| 3120-00-661-7127 | 2016-07-213 | 1 | DIBBS |
| 3120-00-661-7127 | 2016-06-161 | 30 | US |
| 3120-00-661-7127 | 2014-10-296 | 1 | DIBBS |
| 3120-00-661-7127 | 2014-10-288 | 1 | DIBBS |
| HSBG4S | 2012-11-310 | 71 | |
| HSBG4S | 2010-10-302 | 20 | Italy |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-00-661-7127
Related Products | NSN 3120-00-661-7127
Technical Data | NSN 3120-00-661-7127
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E52100 INNER MEMBER STEEL OUTER RACE MEMBER |
| HARDNESS RATING | 59.0 ROCKWELL C NOMINAL INNER MEMBER 36.0 ROCKWELL C NOMINAL OUTER RACE MEMBER |
| SURFACE TREATMENT | CHROMIUM INNER MEMBER CADMIUM OUTER RACE MEMBER |
| STYLE DESIGNATOR | 11B WITHOUT INSERT OR LINER |
| BORE DIAMETER | 0.2495 INCHES MINIMUM AND 0.2500 INCHES MAXIMUM |
| OUTER MEMBER OUTSIDE DIAMETER | 0.6557 INCHES MINIMUM AND 0.6562 INCHES MAXIMUM |
| OUTER MEMBER WIDTH | 0.2500 INCHES NOMINAL |
| INNER MEMBER WIDTH | 0.3380 INCHES MINIMUM AND 0.3430 INCHES MAXIMUM |
| LUBRICATION FEATURE | GROOVE EXTERNAL OUTER MEMBER PERFORATION INNER MEMBER GROOVE INTERNAL INNER MEMBER PERFORATION OUTER RACE MEMBER |
Restrictions/Controls & Freight Information | NSN 3120-00-661-7127
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114850 | BEARING/BUSHING O/T BALL/ROLLER I/S |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-00-661-7127
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
