NSN 3120-00-554-4304 NAS537, NAS73, NAS77A6025P
Product Details | SLEEVE BUSHING
3120-00-554-4304 A tubular shaped unthreaded item with or without a flange at one end designed to be inserted into a hole to reduce the inside diameter of the hole and to protect the surrounding body structure from damage resulting from stress, strain, and/or vibration. The overall length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body. Includes items which are divided into two or more segments which includes 180 degrees (3.141 radians) or less of the bearing periphery. For items made of rubber, see BUSHING, NONMETALLIC. See also BEARING, SLEEVE; BUSHING, TAPERED; SPACER, SLEEVE; INSULATOR, BUSHING; and BUSHING, ELECTRICAL CONDUCTOR. Excludes BUSHING, DRILL, JIG.20231200026Bearings, Plain, Unmounted53650035Bushings, Rings, Shims, and Spacers
Part Alternates: NAS537, NAS73, NAS77A6025P, NAS77A6-025P, NAS77A625, NAS77A6-25, NAS77A625P, NAS77A6-25P, 3120-00-554-4304, 00-554-4304, 3120005544304, 005544304
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-554-4304 | 13206 ( BUSHING, SLEEVE ) |

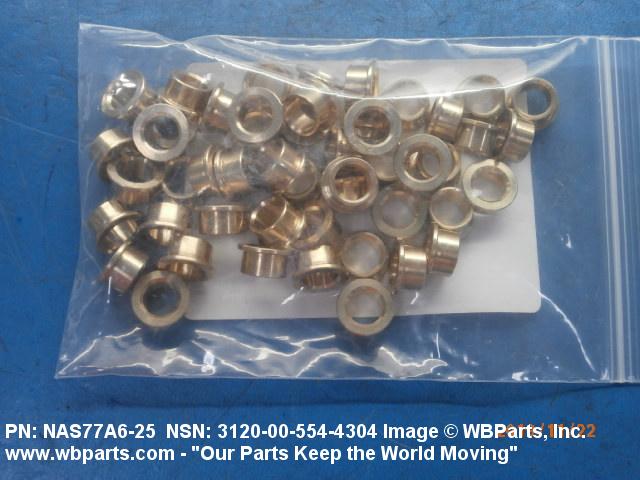

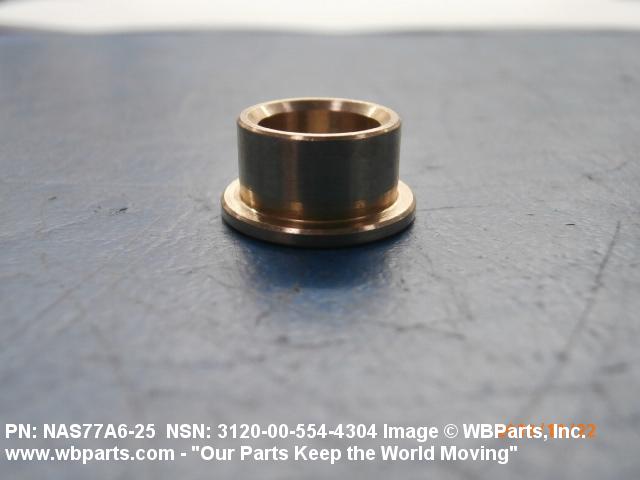

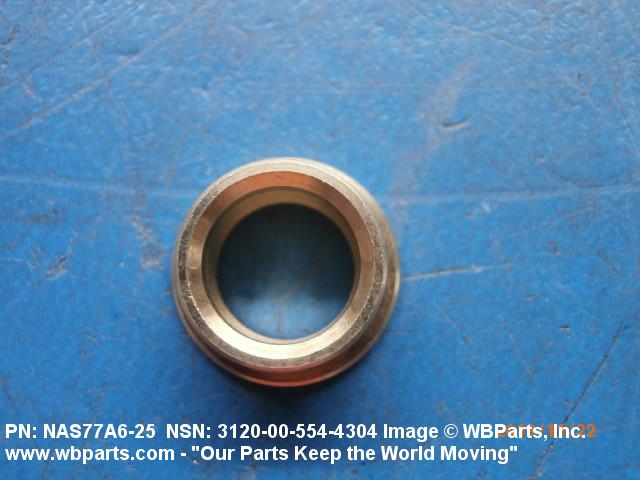

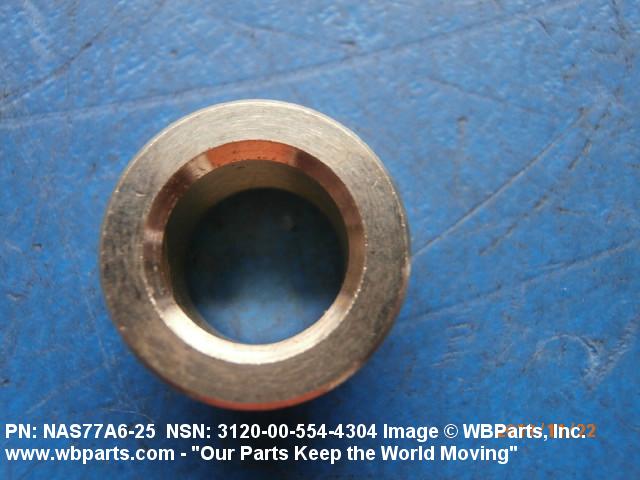

Drawings & Photos | NSN 3120-00-554-4304
Demand History | NSN 3120-00-554-4304
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-00-554-4304 | 2024-05-136 | 272 | DIBBS |
| 3120-00-554-4304 | 2023-01-04 | 25 | United States |
| NAS77A6025P | 2022-04-104 | 20 | UK |
| NAS77A625 | 2019-11-305 | 20 | United States |
| NAS77A625 | 2019-11-305 | 40 | United States |
| NAS77A625 | 2019-11-305 | 60 | United States |
| NAS77A6025P | 2018-03-67 | 200 | US |
| NAS77A625 | 2017-06-158 | 20 | United States |
| NAS77A625 | 2017-06-158 | 40 | United States |
| NAS77A625 | 2017-06-158 | 60 | United States |
| 3120-00-554-4304 | 2015-11-310 | 8 | TH |
| 3120-00-554-4304 | 2015-09-245 | 649 | DIBBS |
| 3120-00-554-4304 | 2015-01-21 | 379 | DIBBS |
| 3120-00-554-4304 | 2014-09-267 | 120 | TW |
| 3120-00-554-4304 | 2014-09-260 | 10 | US |
| 3120-00-554-4304 | 2014-06-177 | 206 | United States |
| NAS77A625 | 2014-02-55 | 8 | US |
| 3120-00-554-4304 | 2013-12-339 | 546 | DIBBS |
| NAS77A625 | 2012-09-272 | 100 | United States |
| NAS77A625 | 2011-12-340 | 40 | US |
Cross Reference | NSN 3120-00-554-4304
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS537 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| NAS73 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| NAS77A6-025P | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| NAS77A6-25 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| NAS77A6-25P | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-00-554-4304
Related Products | NSN 3120-00-554-4304
Technical Data | NSN 3120-00-554-4304
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY 642 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-C-465 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 22C SOLID |

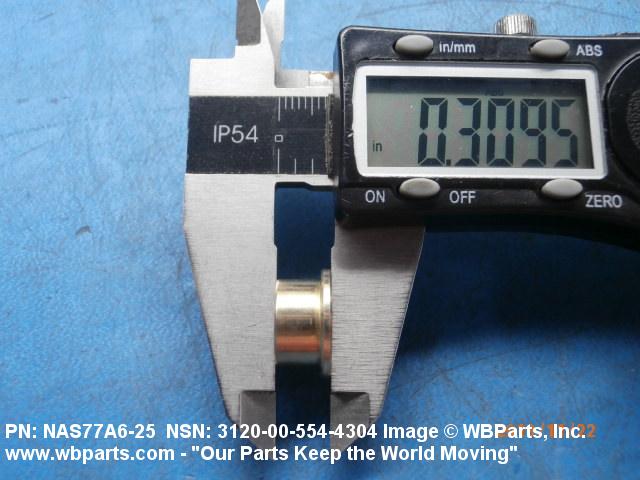

| OVERALL LENGTH | 0.3020 INCHES MINIMUM AND 0.3170 INCHES MAXIMUM |

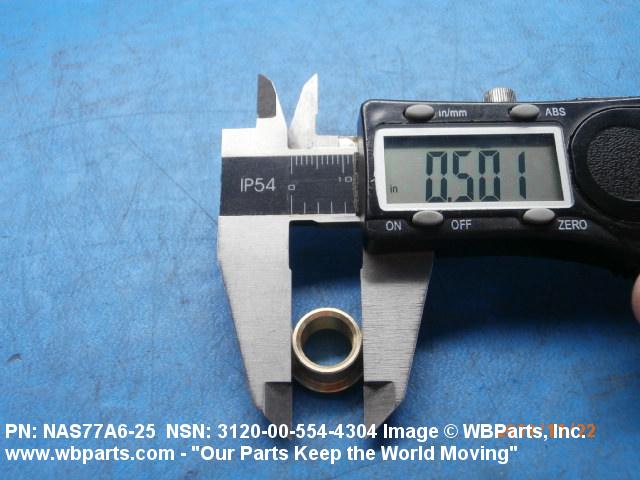

| BODY OUTSIDE DIAMETER | 0.5006 INCHES MINIMUM AND 0.5013 INCHES MAXIMUM |

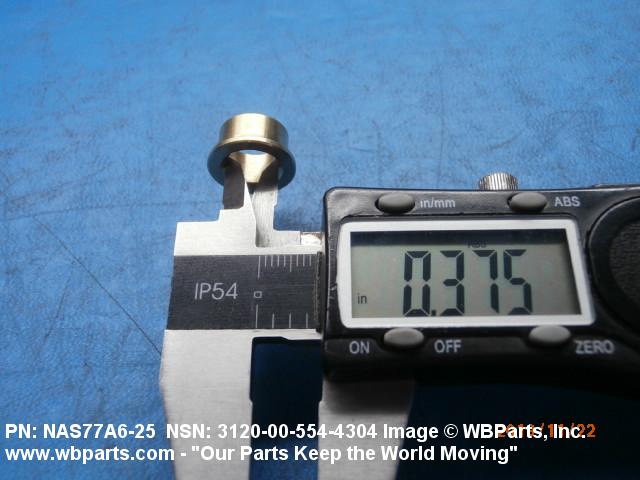

| BODY INSIDE DIAMETER | 0.3750 INCHES MINIMUM AND 0.3765 INCHES MAXIMUM |

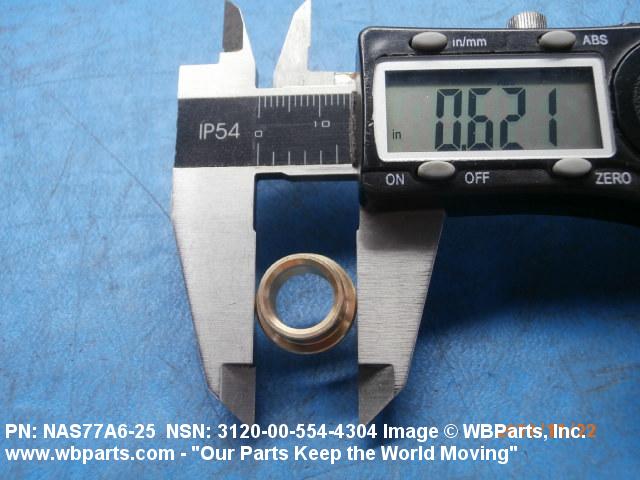

| FLANGE OUTSIDE DIAMETER | 0.6150 INCHES MINIMUM AND 0.6350 INCHES MAXIMUM |

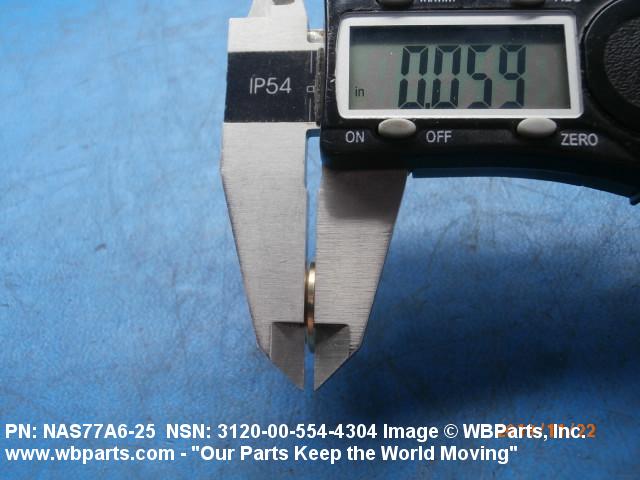

| FLANGE WIDTH | 0.0570 INCHES MINIMUM AND 0.0620 INCHES MAXIMUM |
| CORNER SHAPE | SQUARE OUTSIDE LEFT CORNER SQUARE OUTSIDE RIGHT CORNER CHAMFERED INSIDE RIGHT CORNER CHAMFERED INSIDE LEFT CORNER SQUARE LEFT FLANGE OUTSIDE RIGHT CORNER UNDERCUT LEFT FLANGE BODY CORNER |
| SURFACE FINISH | 100.0 MICROINCHES INTERMEDIATE LAYER |
| SPECIFICATION/STANDARD DATA | 80205-NAS77 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| (NON-CORE DATA) CHAMFER LENGTH | 0.0250 INCHES MINIMUM AND 0.0350 INCHES MAXIMUM 0.0250 INCHES MINIMUM AND 0.0350 INCHES MAXIMUM |
| (NON-CORE DATA) CHAMFER ANGLE | 45.0 DEGREES NOMINAL 45.0 DEGREES NOMINAL |
| (NON-CORE DATA) UNDERCUT WIDTH | 0.0620 INCHES MAXIMUM |
| (NON-CORE DATA) UNDERCUT DEPTH | 0.0050 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 3120-00-554-4304
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114870 | BEARING/BUSHING METAL |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-00-554-4304
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
