NSN 3120-00-554-4305 NAS538, NAS77, NAS77A3012

Product Details | SLEEVE BUSHING

3120-00-554-4305 A tubular shaped unthreaded item with or without a flange at one end designed to be inserted into a hole to reduce the inside diameter of the hole and to protect the surrounding body structure from damage resulting from stress, strain, and/or vibration. The overall length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body. Includes items which are divided into two or more segments which includes 180 degrees (3.141 radians) or less of the bearing periphery. For items made of rubber, see BUSHING, NONMETALLIC. See also BEARING, SLEEVE; BUSHING, TAPERED; SPACER, SLEEVE; INSULATOR, BUSHING; and BUSHING, ELECTRICAL CONDUCTOR. Excludes BUSHING, DRILL, JIG.20231200026Bearings, Plain, Unmounted53650035Bushings, Rings, Shims, and Spacers

Part Alternates: NAS538, NAS77, NAS77A3012, NAS77A3-012, NAS77A3012P, NAS77A3-012P, NAS77A312, NAS77A3-12, NAS77A312P, NAS77A3-12P, 10107650, 3120-00-554-4305, 00-554-4305, 3120005544305, 005544305

Bearings | Bearings, Plain, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	01 JAN 1963	00-554-4305	13206 ( BUSHING, SLEEVE )

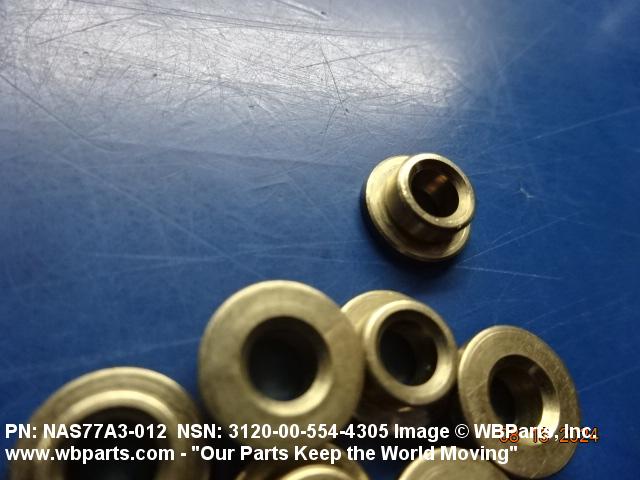

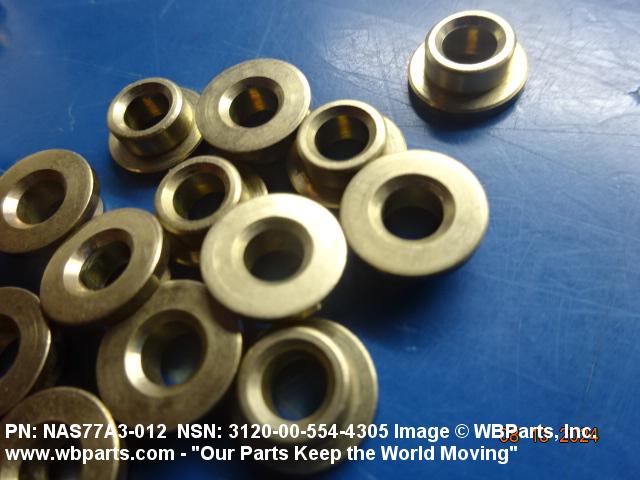

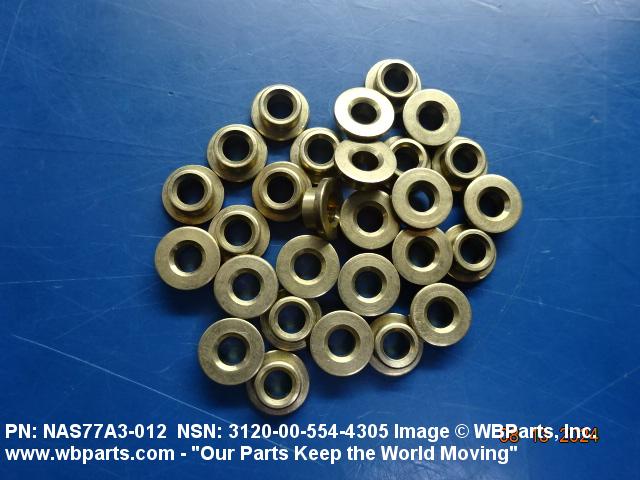

Drawings & Photos | NSN 3120-00-554-4305

Part Number	Request Date	QTY	Origin
NAS77A3012	2024-08-222	28	United States
NAS77A3012	2020-01-06	50	United States
NAS77A3012	2020-01-06	50	United States
3120-00-554-4305	2016-01-13	3699	DIBBS
NAS77A3012P	2015-12-338	1	US
3120-00-554-4305	2012-06-164	20	United States
NAS77A3012	2010-10-287	50	United States
NAS77A3012	2009-03-61	34	US
3120-00-554-4305	2008-09-273	19	us
3120-00-554-4305	2008-09-273	400	Canada
3120-00-554-4305	2007-08-239	206	DIBBS

Cross Reference | NSN 3120-00-554-4305

Part Number	Cage Code	Manufacturer
NAS538	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
NAS77	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
NAS77A3-012	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
NAS77A3-012P	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
NAS77A3-12	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
NAS77A3-12P	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3120-00-554-4305

Compare

Related Products | NSN 3120-00-554-4305

3120-00-554-4308, 3120-00-554-4373, 3120-00-554-4378, 3120-00-554-4409, 3120-00-554-4432

Technical Data | NSN 3120-00-554-4305

Characteristic	Specifications
MATERIAL	COPPER ALLOY 642 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-C-465 FED SPEC SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
STYLE DESIGNATOR	22C SOLID
OVERALL LENGTH	0.1720 INCHES MINIMUM AND 0.1870 INCHES MAXIMUM
BODY OUTSIDE DIAMETER	0.3131 INCHES MINIMUM AND 0.3136 INCHES MAXIMUM
BODY INSIDE DIAMETER	0.1900 INCHES MINIMUM AND 0.1915 INCHES MAXIMUM
FLANGE OUTSIDE DIAMETER	0.4270 INCHES MINIMUM AND 0.4470 INCHES MAXIMUM
FLANGE WIDTH	0.0570 INCHES MINIMUM AND 0.0620 INCHES MAXIMUM
CORNER SHAPE	SQUARE OUTSIDE LEFT CORNER SQUARE OUTSIDE RIGHT CORNER CHAMFERED INSIDE RIGHT CORNER CHAMFERED INSIDE LEFT CORNER SQUARE LEFT FLANGE OUTSIDE RIGHT CORNER UNDERCUT LEFT FLANGE BODY CORNER
SURFACE FINISH	100.0 MICROINCHES INTERMEDIATE LAYER
SPECIFICATION/STANDARD DATA	80205-NAS77 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD
(NON-CORE DATA) CHAMFER LENGTH	0.0250 INCHES MINIMUM AND 0.0350 INCHES MAXIMUM 0.0250 INCHES MINIMUM AND 0.0350 INCHES MAXIMUM
(NON-CORE DATA) CHAMFER ANGLE	45.0 DEGREES NOMINAL 45.0 DEGREES NOMINAL
(NON-CORE DATA) UNDERCUT WIDTH	0.0150 INCHES MAXIMUM
(NON-CORE DATA) UNDERCUT DEPTH	0.0050 INCHES MAXIMUM
