NSN 3120-00-281-3062 M81936/1-20, M81936120, AGB20VA
Product Details | SELF-ALIGNING PLAIN BEARING
3120-00-281-3062 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The item consists of a bored precision ground ball (or spherical plain bearing) around which an outer ring is fitted. The assembly may be either separable or nonseparable. Excludes BEARING, PLAIN, ROD END and BEARING, PLAIN, SPHERICAL.
Part Alternates: M81936/1-20, M81936120, AGB20VA, AS81936/1, AS819361, BSSN202025G3, BSSN20-2025G3, SAE AS81936/1, SAEAS819361, SBU40RGH74A, SBU40RGH74M, ST4M123G20, MILB81936, MIL-B-81936, KSB2027GA, KSB20-27GA, 5584220, 55842-20, 3120-00-281-3062, 00-281-3062, 3120002813062, 002813062
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 25 AUG 1973 | 00-281-3062 | 13208 ( BEARING, PLAIN, SELF-ALIGNING ) |
Drawings & Photos | NSN 3120-00-281-3062
Demand History | NSN 3120-00-281-3062
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| M81936120 | 2024-01-22 | 3 | Saudi Arabia |
| 3120-00-281-3062 | 2022-02-59 | 20 | Singapore |
| 3120-00-281-3062 | 2020-06-180 | 6 | SA |
| M81936120 | 2016-10-287 | 1 | United States |
| M81936120 | 2016-06-165 | 25 | Germany |
| 3120-00-281-3062 | 2015-12-338 | 1 | DIBBS-RFPs |
| 3120-00-281-3062 | 2015-05-135 | 161 | DIBBS |
| 3120-00-281-3062 | 2015-01-20 | 94 | DIBBS |
| M81936120 | 2014-05-126 | 20 | Australia |
| 3120-00-281-3062 | 2013-04-101 | 270 | DIBBS |
| 3120-00-281-3062 | 2013-02-38 | 137 | DIBBS |
| 3120-00-281-3062 | 2013-01-08 | 67 | DIBBS |
| 3120-00-281-3062 | 2012-06-158 | 75 | DIBBS |
| 3120-00-281-3062 | 2012-04-95 | 22 | DIBBS |
| 3120-00-281-3062 | 2012-03-81 | 52 | DIBBS |
| M81936120 | 2012-01-27 | 40 | United States |
| M81936120 | 2011-12-355 | 4 | US |
| AS819361 | 2010-08-239 | 2 | CA |
| 3120-00-281-3062 | 2008-12-344 | 61 | DIBBS |
| 3120-00-281-3062 | 2008-12-340 | 55 | DIBBS |
| 3120-00-281-3062 | 2008-11-325 | 40 | DIBBS |
Cross Reference | NSN 3120-00-281-3062
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 55842-20 | 09455 | RBC TRANSPORT DYNAMICS CORP. DIV RBC TRANSPORT DYNAMICS |
| AGB20VA | 15860 | NEW HAMPSHIRE BALL BEARINGS, INC. DBA ASTRO DIVISION |
| AS81936/1 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| BSSN20-2025G3 | 81376 | RBC SOUTHWEST PRODUCTS, INC. |
| KSB20-27GA | 97613 | DOVER ENGINEERED SYSTEMS, INC. DBA KAHR BEARING |
| M81936/1-20 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| M81936/1-20 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-B-81936 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| SAE AS81936/1 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| SBU40RGH74A | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| SBU40RGH74A | 3NPS1 | RBC AIRCRAFT PRODUCTS, INC. |
| SBU40RGH74M | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| SBU40RGH74M | 3NPS1 | RBC AIRCRAFT PRODUCTS, INC. |
| ST4M123G20 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-00-281-3062

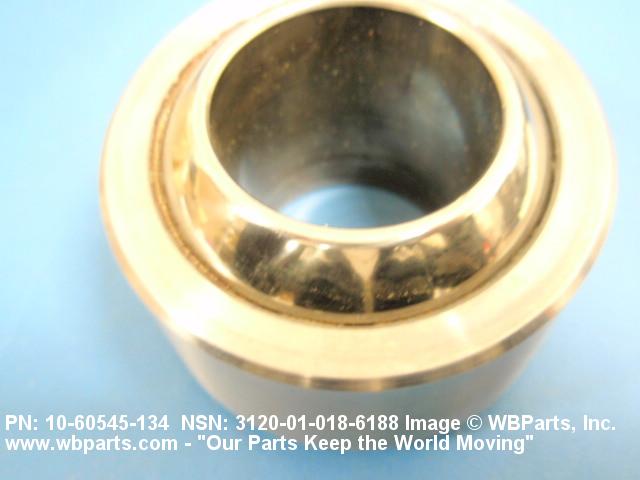

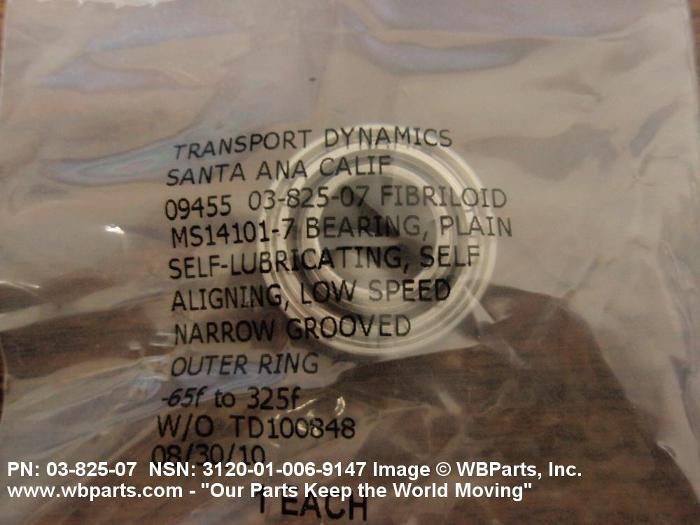

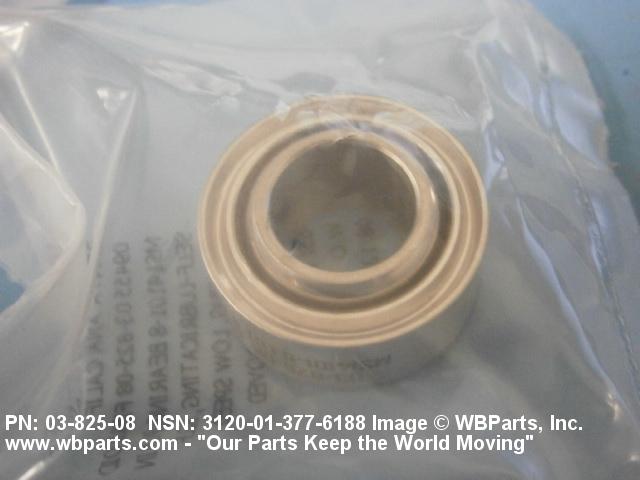

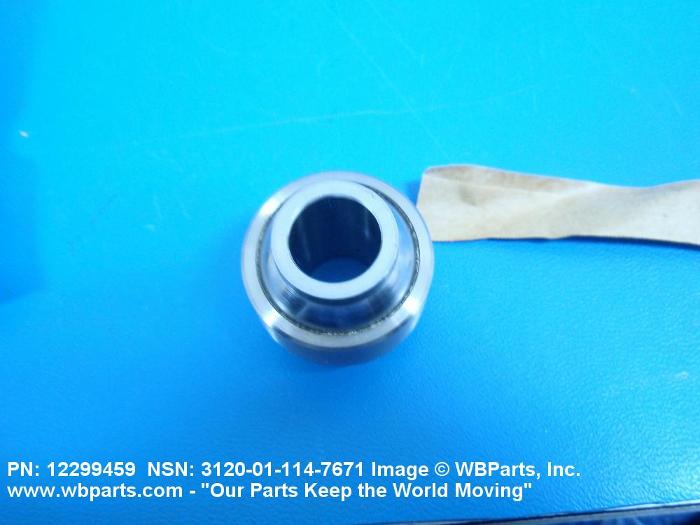

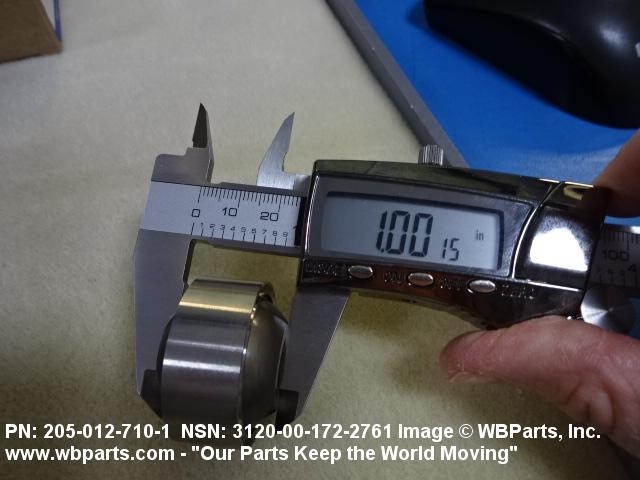

Related Products | NSN 3120-00-281-3062
Technical Data | NSN 3120-00-281-3062
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY 172 OR COPPER ALLOY 173 INNER MEMBER STEEL COMP 630 OUTER RACE MEMBER |
| HARDNESS RATING | 238.0 ROCKWELL C NOMINAL INNER MEMBER 36.0 ROCKWELL C MINIMUM AND 37.0 ROCKWELL C MAXIMUM OUTER RACE MEMBER |

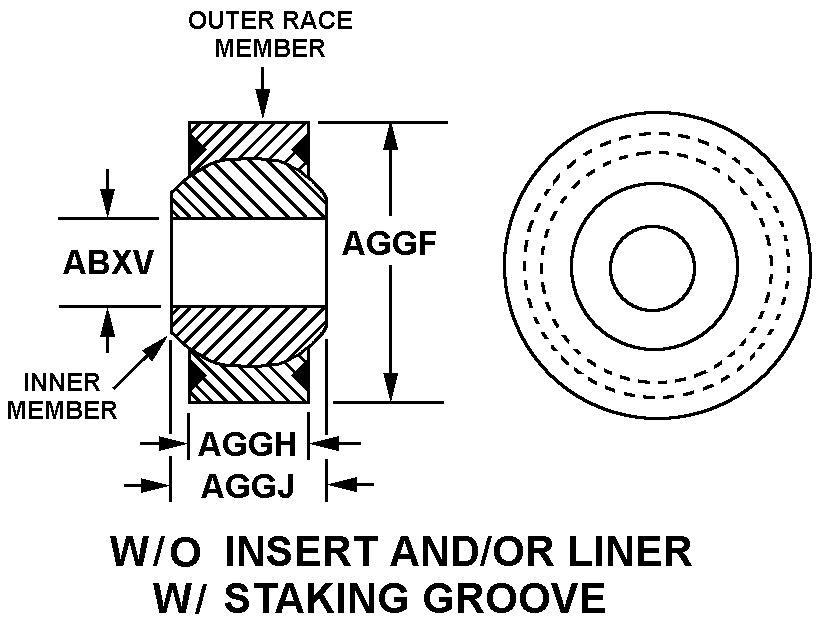

| STYLE DESIGNATOR | 10B WITHOUT INSERT OR LINER WITH STAKING GROOVE |
| BORE DIAMETER | 1.2495 INCHES MINIMUM AND 1.2500 INCHES MAXIMUM |
| OUTER MEMBER OUTSIDE DIAMETER | 2.3120 INCHES MINIMUM AND 2.3125 INCHES MAXIMUM |
| OUTER MEMBER WIDTH | 0.9950 INCHES MINIMUM AND 1.0000 INCHES MAXIMUM |
| INNER MEMBER WIDTH | 1.2450 INCHES MINIMUM AND 1.2500 INCHES MAXIMUM |
| LUBRICATION MATERIAL | GREASE, MIL-G-81322 |
| LUBRICATION FEATURE | GROOVE EXTERNAL OUTER MEMBER PERFORATION INNER MEMBER GROOVE INTERNAL INNER MEMBER GROOVE INTERNAL OUTER MEMBER PERFORATION OUTER RACE MEMBER |
| STATIC RADIAL LOAD RATING | 152000 POUNDS |
Restrictions/Controls & Freight Information | NSN 3120-00-281-3062
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114870 | BEARING/BUSHING METAL |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-00-281-3062
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
