NSN 3120-00-179-7318 ATBY10AA11, LHV1048, LHV10-48
Product Details | SELF-ALIGNING PLAIN BEARING
3120-00-179-7318 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The item consists of a bored precision ground ball (or spherical plain bearing) around which an outer ring is fitted. The assembly may be either separable or nonseparable. Excludes BEARING, PLAIN, ROD END and BEARING, PLAIN, SPHERICAL.
Part Alternates: ATBY10AA11, LHV1048, LHV10-48, WBS20FTF56, 76570, 206-001-338, 2060013381, 206-001-338-1, 3120-00-179-7318, 00-179-7318, 3120001797318, 206001338, 001797318
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 05 MAR 1969 | 00-179-7318 | 13208 ( BEARING, PLAIN, SELF-ALIGNING ) |

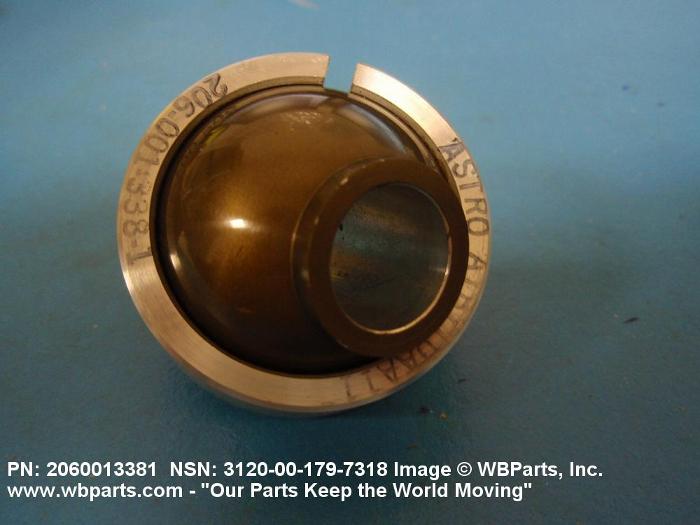

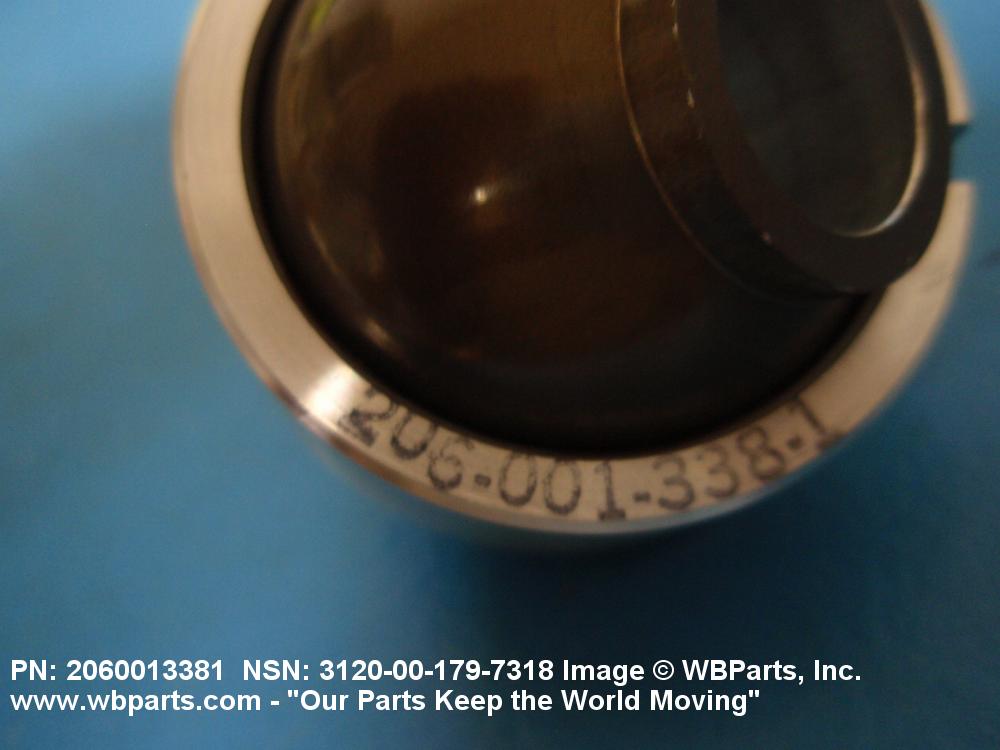

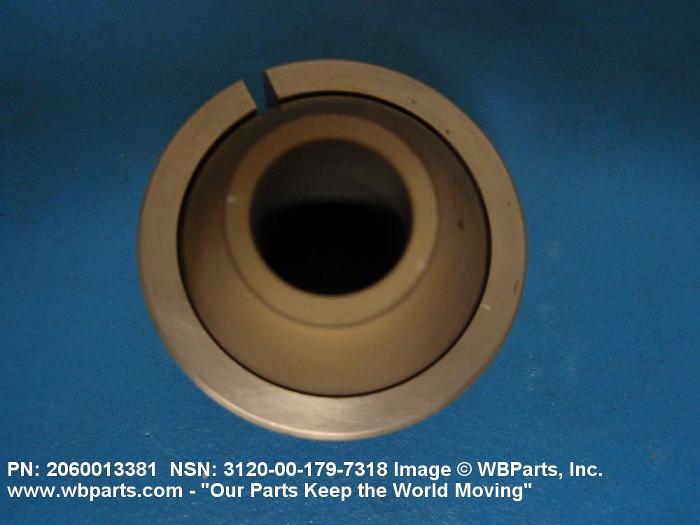

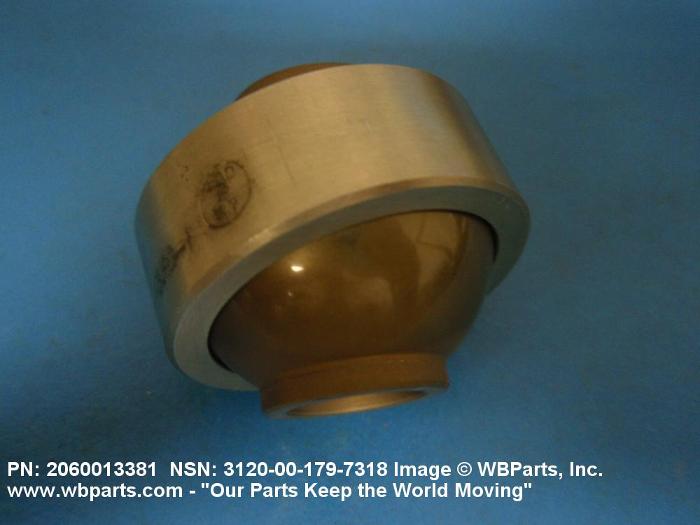

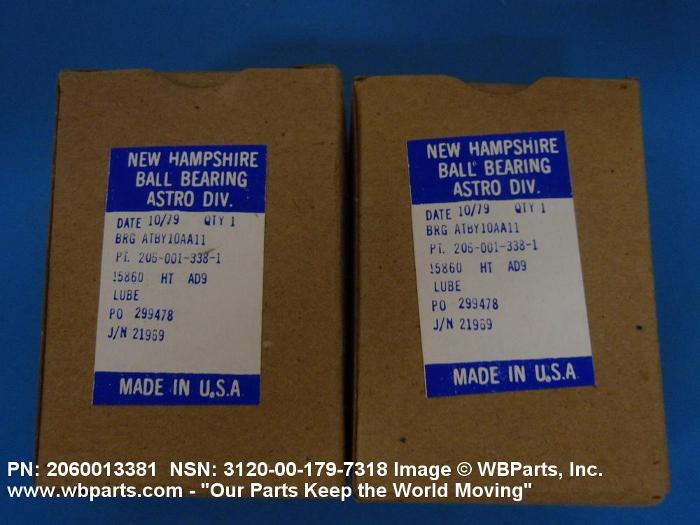

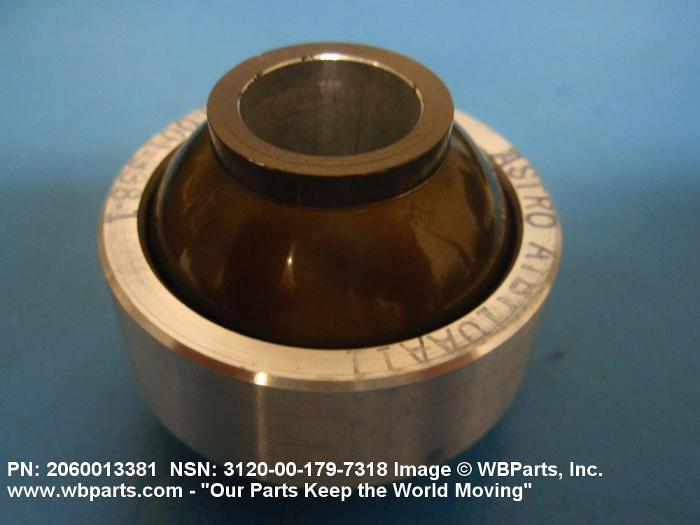

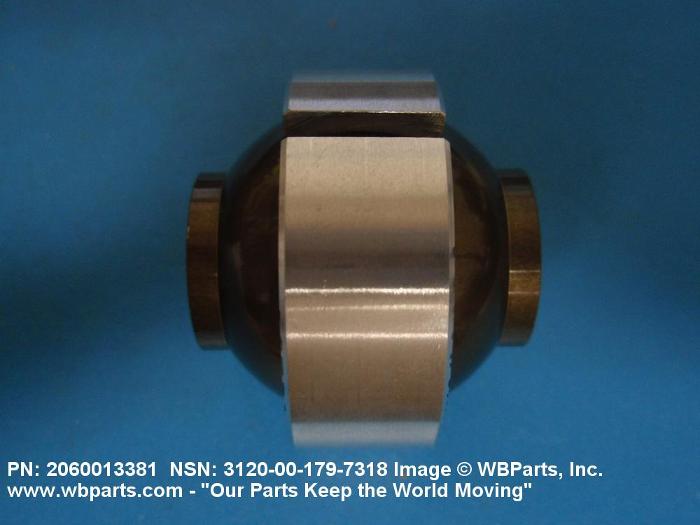

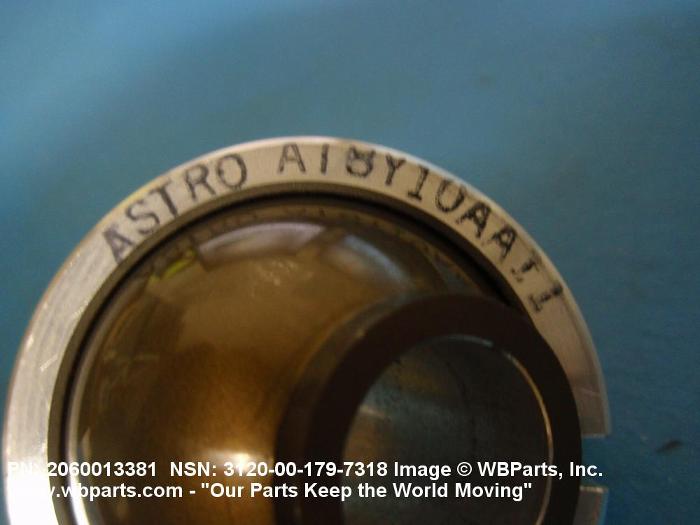

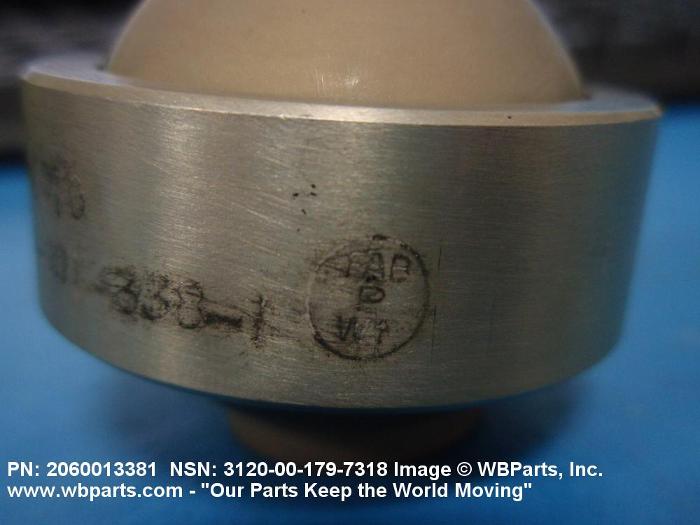

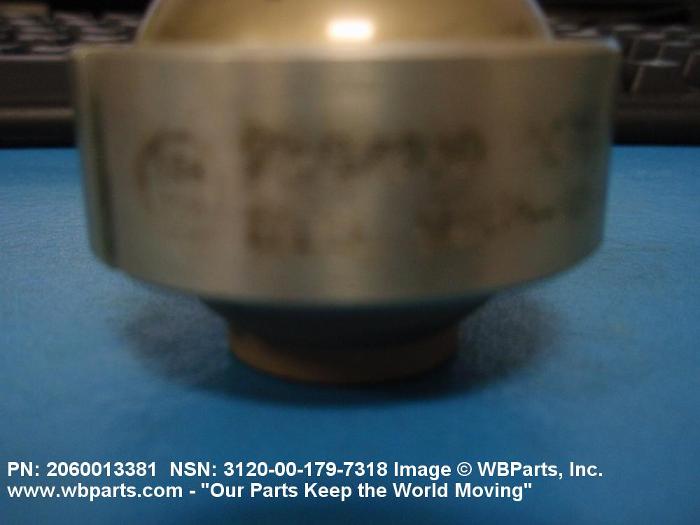

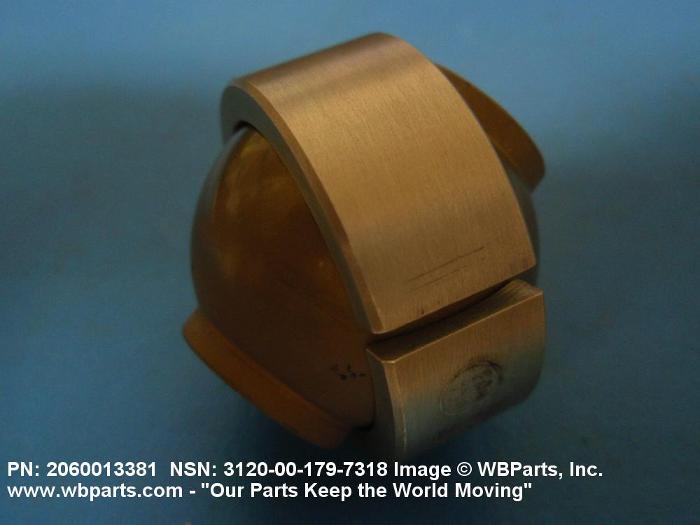

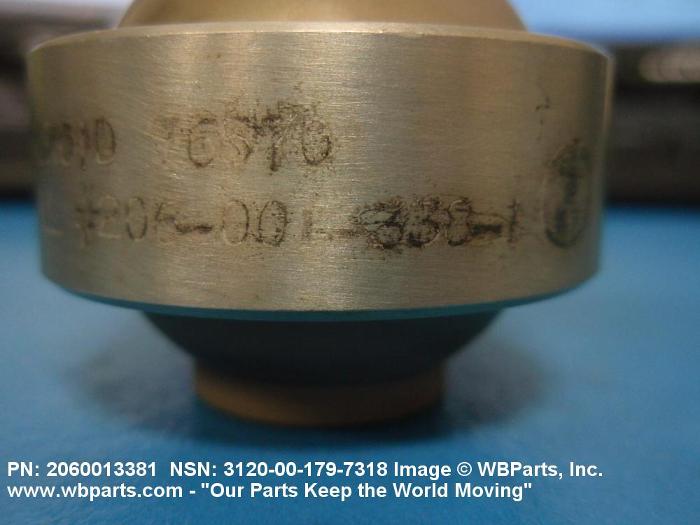

Drawings & Photos | NSN 3120-00-179-7318
Demand History | NSN 3120-00-179-7318
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| ATBY10AA11 | 2015-02-35 | 3 | United States |
| 3120-00-179-7318 | 2014-09-259 | 2 | United States |
| ATBY10AA11 | 2011-03-84 | 3 | US |
| 2060013381 | 2011-03-62 | 2 | United States |
| ATBY10AA11 | 2011-03-62 | 2 | United States |
| ATBY10AA11 | 2011-01-19 | 1 | US |
Cross Reference | NSN 3120-00-179-7318
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 206-001-338 | 97499 | BELL HELICOPTER TEXTRON INC. |
| 206-001-338-1 | 97499 | BELL HELICOPTER TEXTRON INC. |
| 76570 | 09455 | RBC TRANSPORT DYNAMICS CORP. DIV RBC TRANSPORT DYNAMICS |
| ATBY10AA11 | 15860 | NEW HAMPSHIRE BALL BEARINGS, INC. DBA ASTRO DIVISION |
| LHV10-48 | 73134 | ROLLER BEARING COMPANY OF AMERICA, INC. |
| WBS20FTF56 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| WBS20FTF56 | 3NPS1 | RBC AIRCRAFT PRODUCTS, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-00-179-7318
Technical Data | NSN 3120-00-179-7318
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 11A WITH INSERT AND/OR LINER |
| BORE DIAMETER | 0.6245 INCHES MINIMUM AND 0.6255 INCHES MAXIMUM |
| OUTER MEMBER OUTSIDE DIAMETER | 1.7497 INCHES MINIMUM AND 1.7502 INCHES MAXIMUM |
| OUTER MEMBER WIDTH | 0.6350 INCHES MINIMUM AND 0.6450 INCHES MAXIMUM |
| INNER MEMBER WIDTH | 1.4990 INCHES MINIMUM AND 1.5010 INCHES MAXIMUM |
| STATIC RADIAL LOAD RATING | 12000 POUNDS |
| MANUFACTURERS CODE | 97499 |
| MFR SOURCE CONTROLLING REFERENCE | 206-001-338 |
Restrictions/Controls & Freight Information | NSN 3120-00-179-7318
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-00-179-7318
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9W | Navy-owned stocks of material managed by the Army within the Army Troop Support and Aviation Materiel Readiness Command Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | B17 | US Army Aviation and Missile Command (Air) ATTN: AMSMI-LC-MM-C Redstone Arsenal, AL 35898-5230 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
