NSN 3120-00-007-0120 AVRE16, BHM-6, HPPRE16
Product Details | ROD END PLAIN BEARING
3120-00-007-0120 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The outer member of the assembly is modified to provide a shank. The inner member may be either a plain spherical bearing or a sleeve bearing. Excludes BEARING, PLAIN, SPHERICAL and BEARING, PLAIN, SELF-ALIGNING.
Part Alternates: AVRE16, BHM-6, HPPRE16, HM6T, BHM6, 437405, ARE6, 3120-00-007-0120, 00-007-0120, 3120000070120, 000070120
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 30 JUN 1972 | 00-007-0120 | 13209 ( BEARING, PLAIN, ROD END ) |

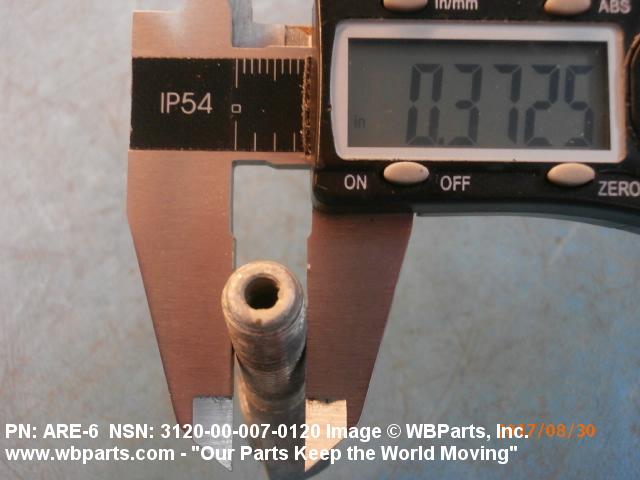

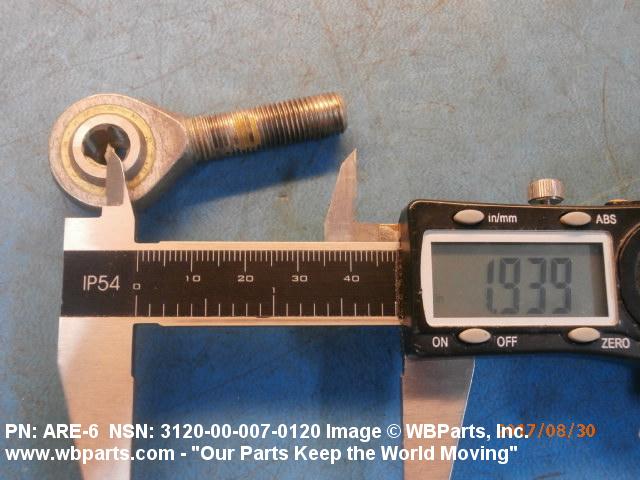

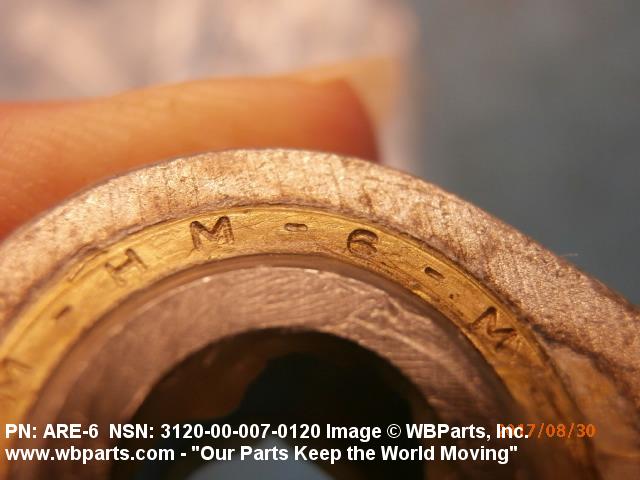

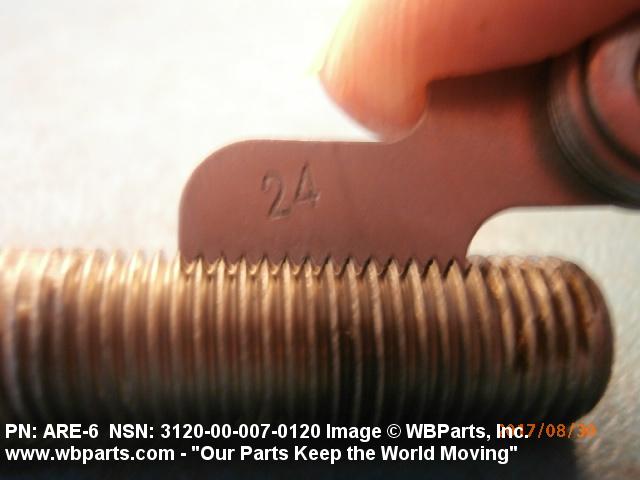

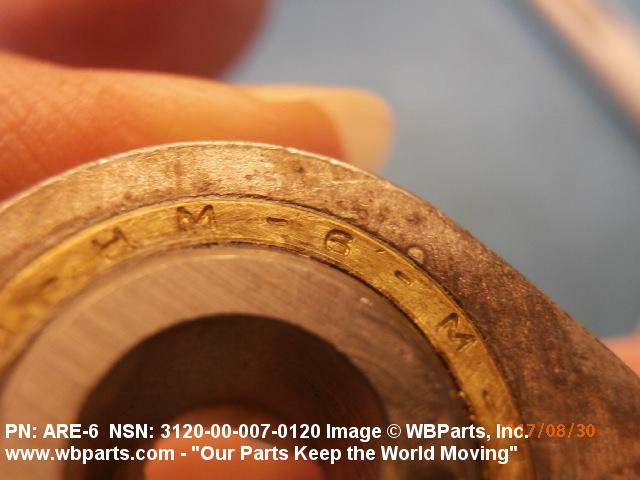

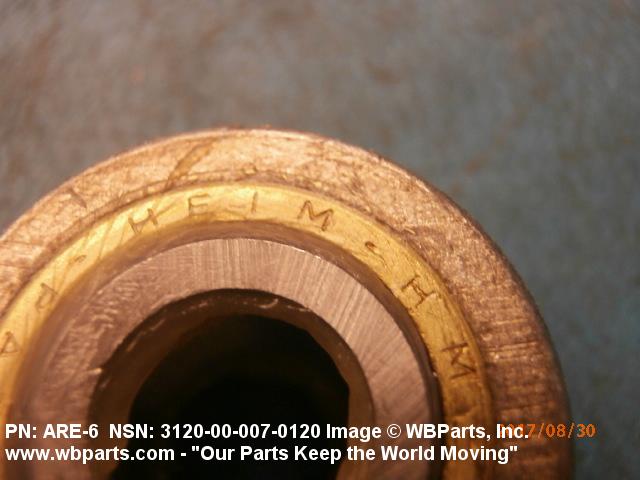

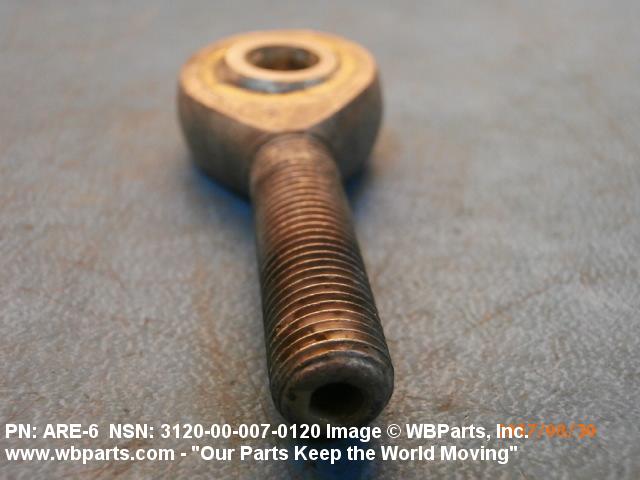

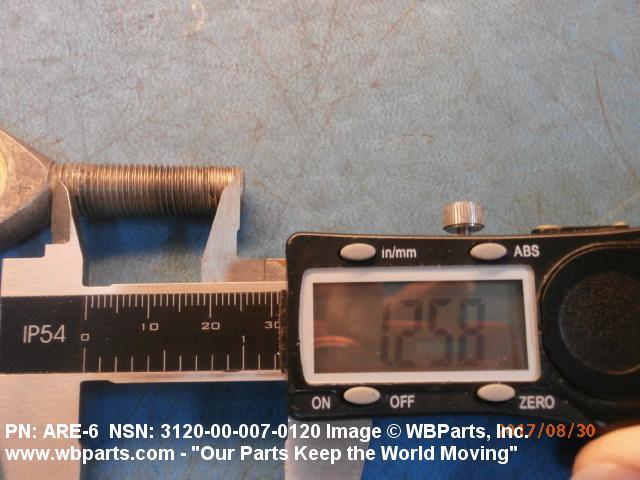

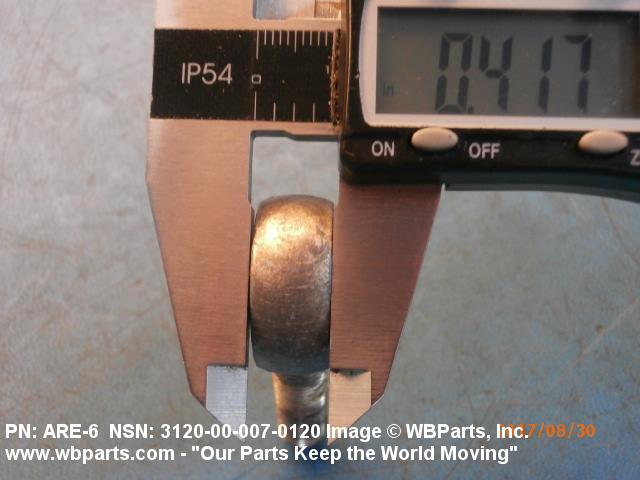

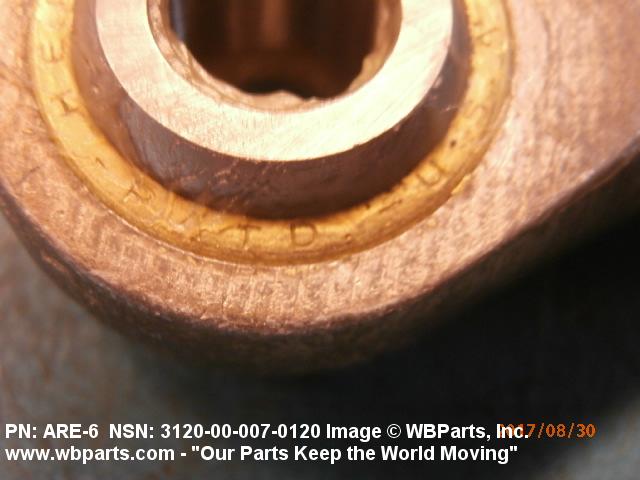

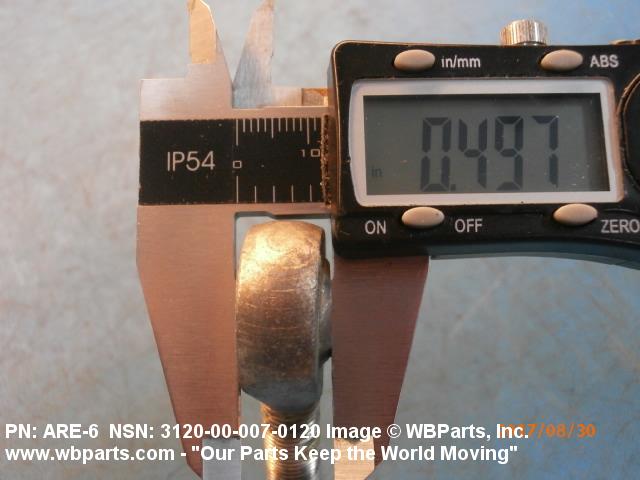

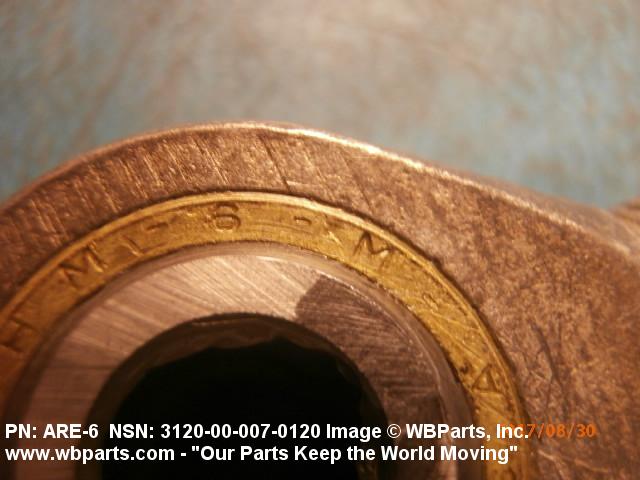

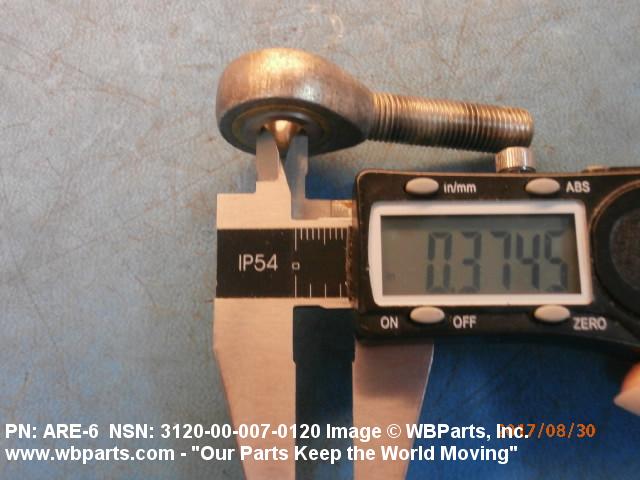

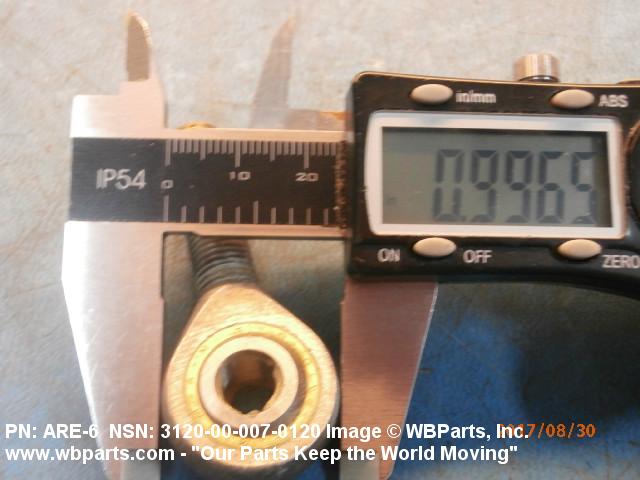

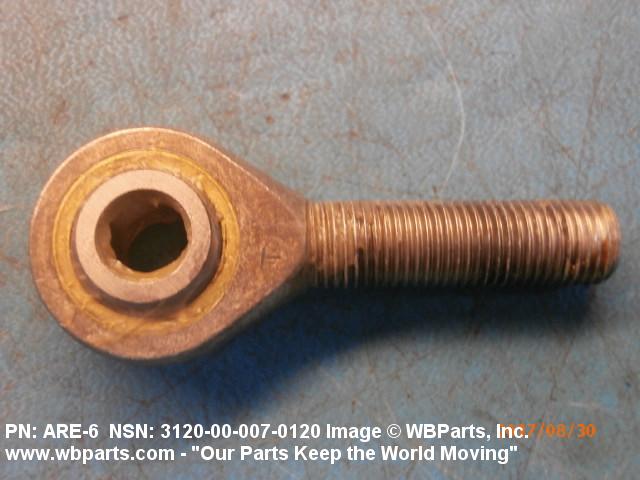

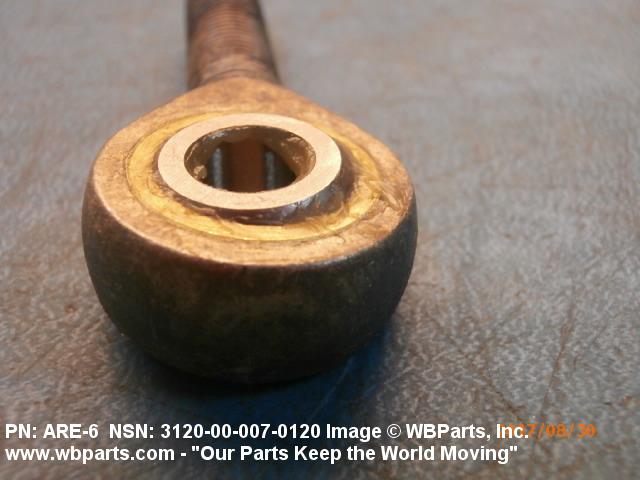

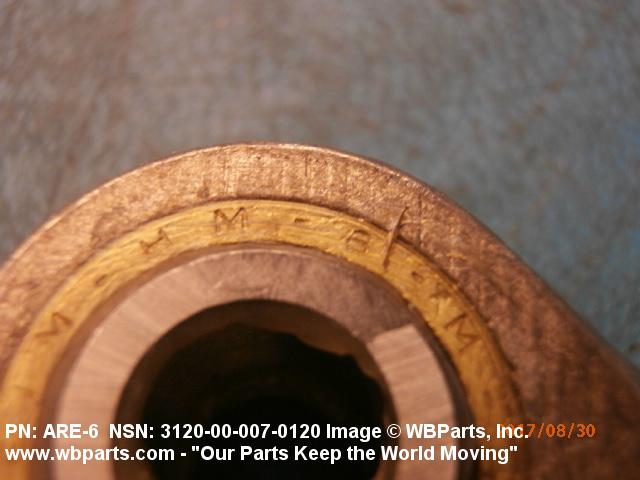

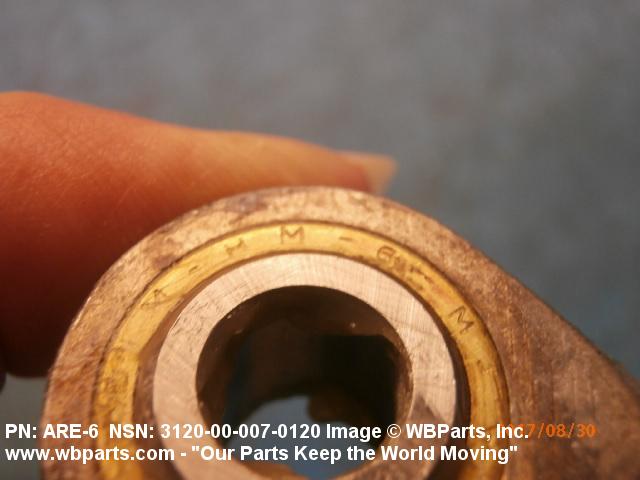

Drawings & Photos | NSN 3120-00-007-0120
Demand History | NSN 3120-00-007-0120
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-00-007-0120 | 2017-08-236 | 4 | United States |
| 3120-00-007-0120 | 2017-08-230 | 4 | United States |
| 3120-00-007-0120 | 2013-11-326 | 1 | United Kingdom |
| 3120-00-007-0120 | 2013-02-39 | 50 | DIBBS |
| 3120-00-007-0120 | 2012-11-332 | 20 | DIBBS |
| HM6T | 2010-01-29 | 10 | US |
| 3120-00-007-0120 | 2009-12-350 | 30 | DIBBS |
| 3120-00-007-0120 | 2009-10-293 | 29 | DIBBS |
| 3120-00-007-0120 | 2009-05-150 | 11 | DIBBS |
| 3120-00-007-0120 | 2009-05-121 | 11 | DIBBS |
Cross Reference | NSN 3120-00-007-0120
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 437405 | 02695 | MORSE INDUSTRIAL CORP SEALMASTER BEARING DIV |
| 437405 | 1PQF4 | L-3 COMMUNICATIONS CORPORATION DBA LINK SIMULATION & TRAINING |
| 437405 | 5H615 | MORSE INDUSTRIAL CORP SUB OF EMERSON ELECTRIC CO |
| 437405 | 73134 | ROLLER BEARING COMPANY OF AMERICA, INC. |
| 437405 | 89446 | HILLER AIRCRAFT CORPORATION |
| 437405 | K1182 | THALES UK LIMITED DBA THALES UK LTDTRAINING AND SIMULATION |
| ARE6 | 02695 | MORSE INDUSTRIAL CORP SEALMASTER BEARING DIV |
| ARE6 | 86271 | ALLIS-CHALMERS CANADA INC |
| AVRE16 | 81996 | U S ARMY AVIATION AND MISSILE COMMAND |
| BHM-6 | 73134 | ROLLER BEARING COMPANY OF AMERICA, INC. |
| HM6T | 73134 | ROLLER BEARING COMPANY OF AMERICA, INC. |
| HM6T | 89446 | HILLER AIRCRAFT CORPORATION |
| HPPRE16 | 1DC28 | HELICOPTER PARTS SERVICE INC |
| HPPRE16 | 73134 | ROLLER BEARING COMPANY OF AMERICA, INC. |
| HPPRE16 | 89446 | HILLER AIRCRAFT CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-00-007-0120
Related Products | NSN 3120-00-007-0120
Technical Data | NSN 3120-00-007-0120
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E52100 INNER MEMBER COPPER ALLOY RACE INSERT STEEL COMP 4130 ROD END BODY |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE INNER MEMBER 66 FED STD SINGLE MATERIAL RESPONSE ROD END BODY |
| SURFACE TREATMENT | CHROMIUM INNER MEMBER CADMIUM ROD END BODY |
| STYLE DESIGNATOR | 6 BALL TYPE |

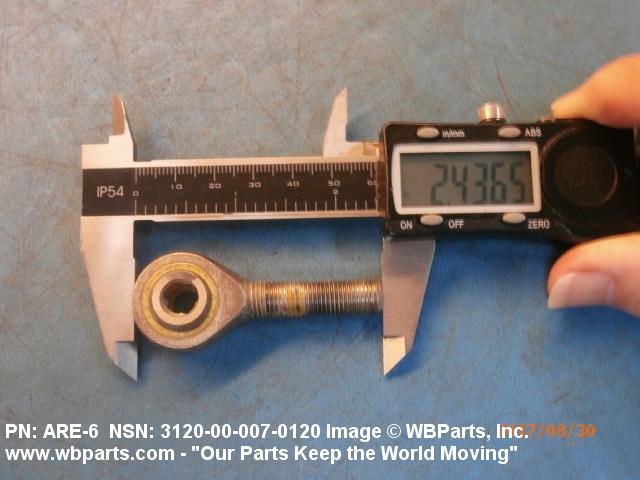

| OVERALL LENGTH | 2.4380 INCHES NOMINAL |
