NSN 3110-01-364-4352 64993040991, 6499-304099-1, 01-364-4352
Product Details | DUPLEX BALL BEARING
3110-01-364-4352 Two single row annular ball bearings selected dimensionally to be a matched pair or set. The ring faces have been specially ground to specified offsets that will produce predetermined preload when mounted. May include a single row angular contact bearing with faces specially ground for duplex mounting.
Part Alternates: 64993040991, 6499-304099-1, 3110-01-364-4352, 01-364-4352, 3110013644352, 013644352
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 19 SEP 1992 | 01-364-4352 | 30213 ( BEARING, BALL, DUPLEX ) |
Drawings & Photos | NSN 3110-01-364-4352
Demand History | NSN 3110-01-364-4352
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-01-364-4352 | 2011-10-279 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-01-364-4352
Related Products | NSN 3110-01-364-4352
Technical Data | NSN 3110-01-364-4352
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 440C BALL STEEL COMP 440C INNER RACE STEEL COMP 440C OUTER RACE PLASTIC POLYTETRAFLUOROETHYLENE SEPARATOR |

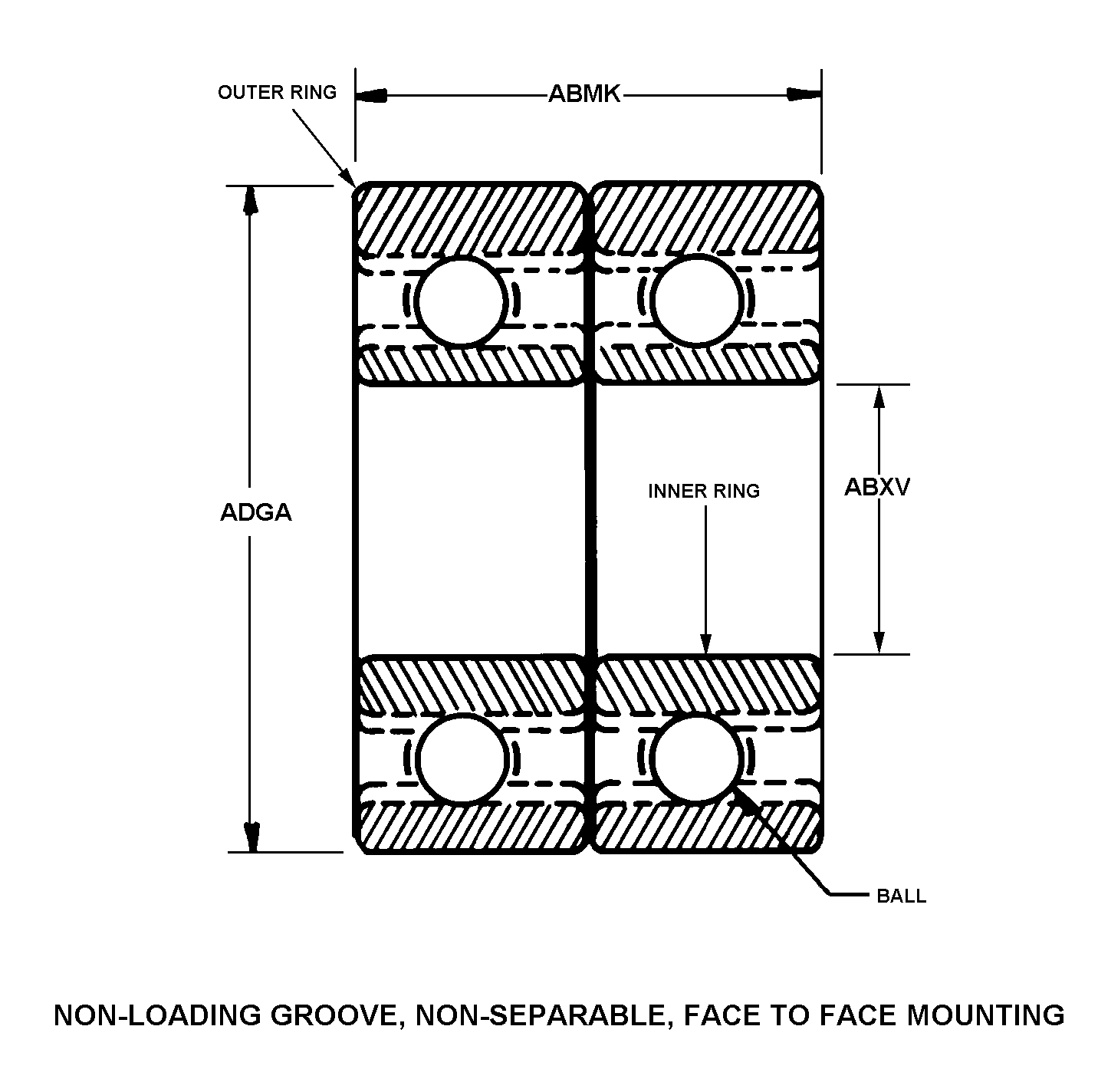

| STYLE DESIGNATOR | 92H NON-LOADING GROOVE, NON-SEPARABLE, FACE TO FACE MOUNTING |
| OVERALL WIDTH | 0.6230 INCHES MINIMUM AND 0.6250 INCHES MAXIMUM |
| BORE DIAMETER | 3.0621 INCHES MINIMUM AND 3.0625 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 3.8746 INCHES MINIMUM AND 3.8750 INCHES MAXIMUM |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.5 |
| SURFACE FINISH | GROUND |
| LOAD DIRECTION | ANGULAR |
| CONTACT ANGLE | 18.0 DEGREES NOMINAL |
Restrictions/Controls & Freight Information | NSN 3110-01-364-4352
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-01-364-4352
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
