NSN 3110-01-041-3676 MM205KPCRDULFS381, HKMZ205Q73DB1218ZOMLY231, 205FTX36K5DBLG33ABEC7

Product Details | DUPLEX BALL BEARING

3110-01-041-3676 Two single row annular ball bearings selected dimensionally to be a matched pair or set. The ring faces have been specially ground to specified offsets that will produce predetermined preload when mounted. May include a single row angular contact bearing with faces specially ground for duplex mounting.

Part Alternates: MM205KPCRDULFS381, HKMZ205Q73DB1218ZOMLY231, 205FTX36K5DBLG33ABEC7, 21006410101, 21006410-101, 3110-01-041-3676, 01-041-3676, 3110010413676, 010413676

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	23 MAY 1977	01-041-3676	30213 ( BEARING, BALL, DUPLEX )

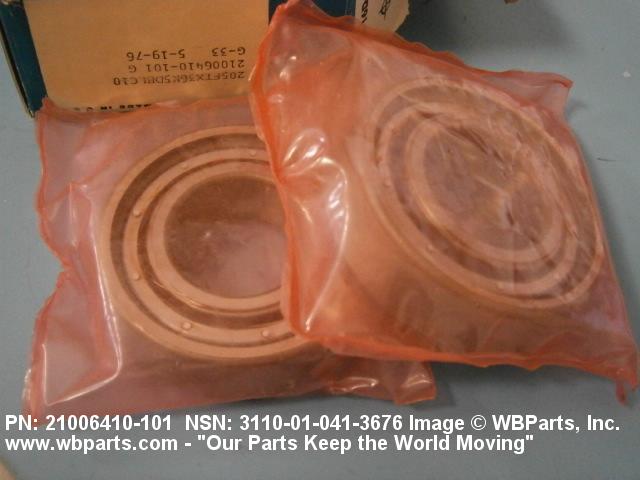

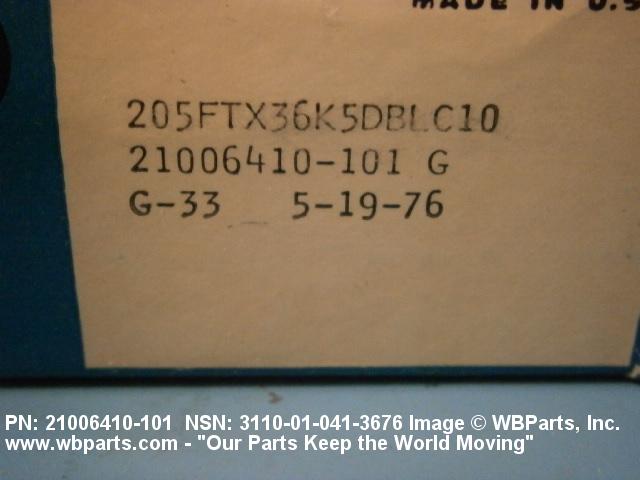

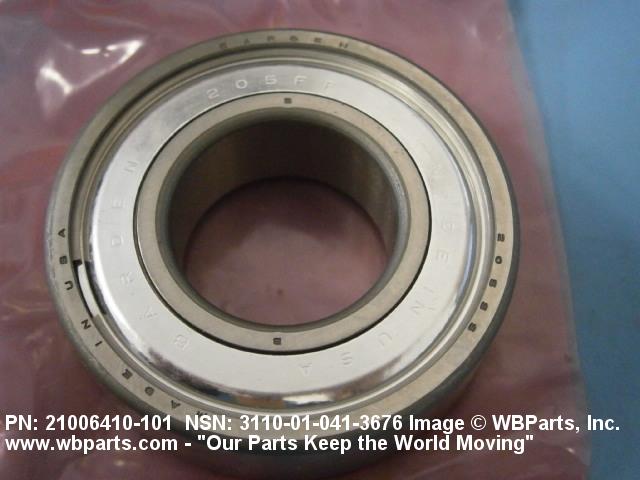

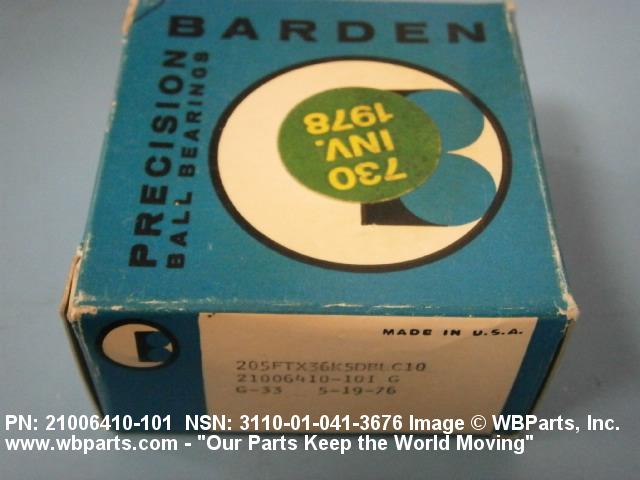

Drawings & Photos | NSN 3110-01-041-3676

Part Number	Request Date	QTY	Origin	SBA
21006410101	2012-02-37	2	Korea
3110-01-041-3676	2010-03-64	1	US

Cross Reference | NSN 3110-01-041-3676

Part Number	Cage Code	Manufacturer
205FTX36K5DBLG33 (ABEC-7)	70854	BARDEN CORPORATION, THE DIV BARDEN PRECISION BEARINGS
21006410-101	81395	BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I
HKMZ205-Q7(3)DB12/18ZOMLY231	78118	MPB CORPORATION DBA TIMKEN AEROSPACE
MM205KPCRDULFS381	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3110-01-041-3676

Compare

Related Products | NSN 3110-01-041-3676

3110-01-041-3940, 3110-01-041-4139, 3110-01-041-4319, 3110-01-041-4849, 3110-01-041-4850

Technical Data | NSN 3110-01-041-3676

Characteristic	Specifications
MATERIAL	STEEL COMP E52100 BALL STEEL COMP E52100 INNER RING STEEL COMP E52100 OUTER RING PLASTIC PHENOLIC RETAINER RUBBER SYNTHETIC SEAL
MATERIAL DOCUMENT AND CLASSIFICATION	SAE ASSN STD SINGLE MATERIAL RESPONSE BALL SAE ASSN STD SINGLE MATERIAL RESPONSE INNER RING SAE ASSN STD SINGLE MATERIAL RESPONSE OUTER RING
STYLE DESIGNATOR	92B COUNTERBORED OUTER RINGS, NON-SEPARABLE, BACK TO BACK MOUNTING
OVERALL WIDTH	1.1612 INCHES MINIMUM AND 1.1812 INCHES MAXIMUM
BORE DIAMETER	0.9842 INCHES MINIMUM AND 0.9843 INCHES MAXIMUM
OVERALL OUTSIDE DIAMETER	2.0470 INCHES MINIMUM AND 2.0472 INCHES MAXIMUM
LUBRICATION MATERIAL	GREASE
LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION	MIL-G-81322 MIL SPEC SINGLE MATERIAL RESPONSE
STANDARD TOLERANCE DESIGNATION	ABEC NO.7
SURFACE FINISH	GROUND
RETAINER FABRICATION METHOD	MACHINED
SEAL QUANTITY	1
BEARING SEAL TYPE	CONTACT
LOAD DIRECTION	ANGULAR
SPECIAL FEATURES	DUPLEX PAIR MATCHED BACK TO BACK; 100 PCT DYNAMIC NOISE TESTED; 20 PCT FULL OF SPECIFIED LUBRICANT

Restrictions/Controls & Freight Information | NSN 3110-01-041-3676

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	114820	BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	742	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3110-01-041-3676

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9G	Navy-owned stocks of defense general material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	V	TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
