NSN 3110-01-332-4474 15218201, 17578, 717801759003
Product Details | DUPLEX BALL BEARING
3110-01-332-4474 Two single row annular ball bearings selected dimensionally to be a matched pair or set. The ring faces have been specially ground to specified offsets that will produce predetermined preload when mounted. May include a single row angular contact bearing with faces specially ground for duplex mounting.
Part Alternates: 15218201, 17578, 717801759003, 717801759-003, 3110-01-332-4474, 01-332-4474, 3110013324474, 013324474
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 11 JAN 1991 | 01-332-4474 | 30213 ( BEARING, BALL, DUPLEX ) |
Drawings & Photos | NSN 3110-01-332-4474
Demand History | NSN 3110-01-332-4474
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-01-332-4474 | 2011-01-06 | 20 | DIBBS |
| 3110-01-332-4474 | 2010-09-250 | 1 | DIBBS |
| 3110-01-332-4474 | 2009-10-278 | 4 | DIBBS |
| 3110-01-332-4474 | 2007-07-187 | 9 | DIBBS |
| 3110-01-332-4474 | 2007-06-165 | 8 | DIBBS |
| 3110-01-332-4474 | 2007-04-102 | 5 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-01-332-4474
Related Products | NSN 3110-01-332-4474
Technical Data | NSN 3110-01-332-4474
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 440C BALL STEEL COMP 440C INNER RING STEEL COMP 440C OUTER RING PLASTIC POLYAMIDE RETAINER |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763,COND A FED SPEC SINGLE MATERIAL RESPONSE BALL QQ-S-763,COND A FED SPEC SINGLE MATERIAL RESPONSE INNER RING QQ-S-763,COND A FED SPEC SINGLE MATERIAL RESPONSE OUTER RING MIL-R-46198,TYPE 1 MIL SPEC SINGLE MATERIAL RESPONSE RETAINER |
| SURFACE TREATMENT | PASSIVATE BALL PASSIVATE INNER RING PASSIVATE OUTER RING |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | ASTM A380 ASSN STD SINGLE TREATMENT RESPONSE BALL ASTM A380 ASSN STD SINGLE TREATMENT RESPONSE INNER RING ASTM A380 ASSN STD SINGLE TREATMENT RESPONSE RETAINING PLATE |

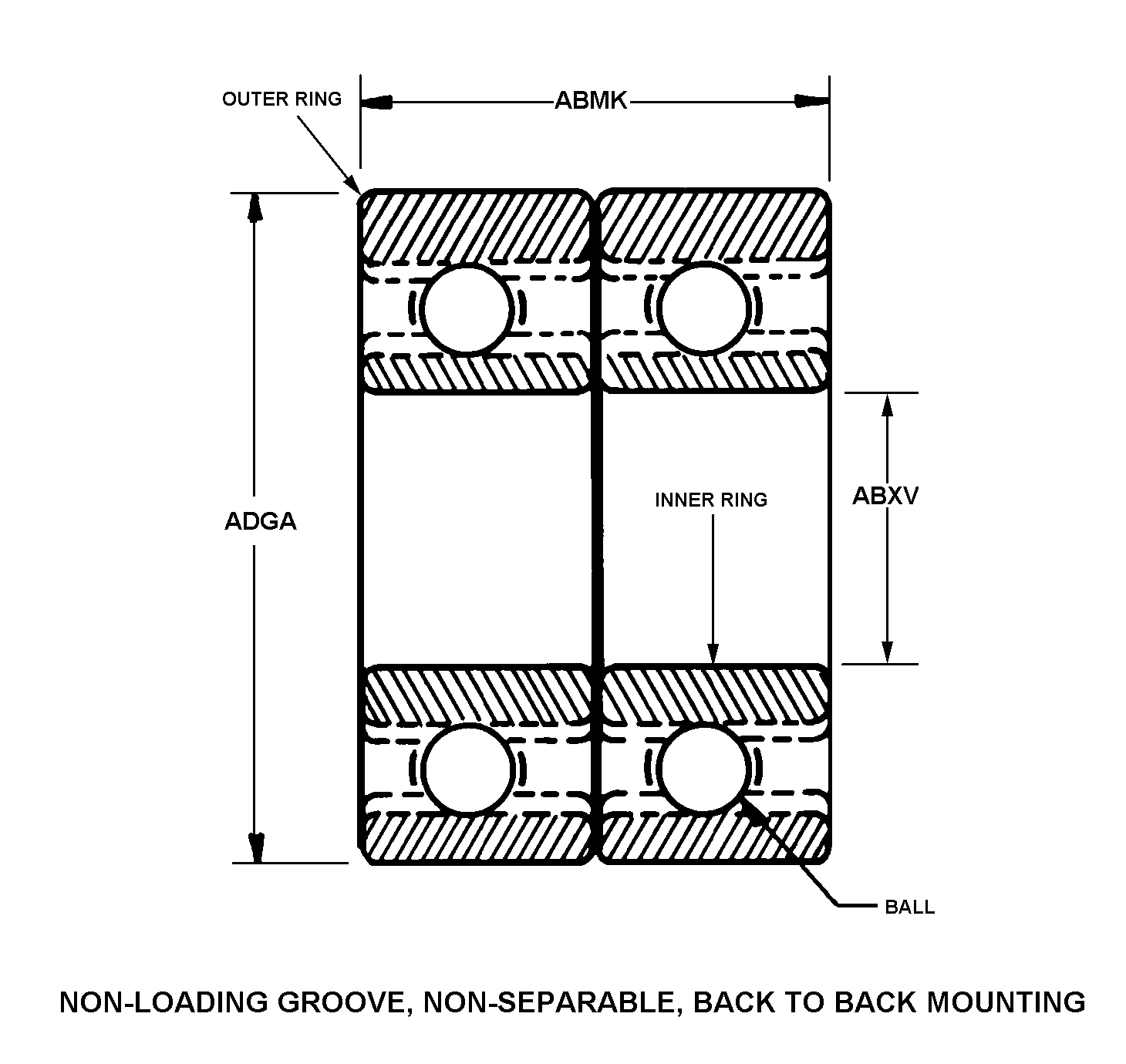

| STYLE DESIGNATOR | 92G NON-LOADING GROOVE, NON-SEPARABLE, BACK TO BACK MOUNTING |
| OVERALL WIDTH | 0.5000 INCHES NOMINAL |
| BORE DIAMETER | 11.0000 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 11.5000 INCHES NOMINAL |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | 717806003 TYPE 2,CAGEC 04939 MFR REF SINGLE MATERIAL RESPONSE |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.7 |
| SURFACE FINISH | GROUND |
| LOAD DIRECTION | ANGULAR |
| BEARING PRELOAD RATING | 20.0 POUNDS MINIMUM AND 60.0 POUNDS MAXIMUM |
| CONTACT ANGLE | 30.0 RADIANS NOMINAL |
| SPECIAL FEATURES | EACH BEARING SHALL BE LUBRICATED WITH 10 PORM 1 DROPS- EVENLY DISTRIBUTED AROUND CIRCUMFRENCE |
Restrictions/Controls & Freight Information | NSN 3110-01-332-4474
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114800 | BEARING,ROLLER,THRUST |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-01-332-4474
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 PR : Pair |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 PR : Pair |
