NSN 3110-01-294-0377 SA414A41, SA4-14A-41, 01-294-0377
Product Details | AIRFRAME ROLLER BEARING
3110-01-294-0377 A cylindrical item in which the inner or outer ring turns upon row(s) of hardened ROLLER, BEARING which roll on a raceway, thus minimizing friction. These items are characterized by their noncorrosive qualities, lightness of weight, inch dimensions rather than metric, inner rings generally projecting beyond the faces of the outer ring, or a very narrow width inner ring having an outside diameter slightly larger than the bore diameter. Designed primarily for use in aircraft assemblies, such as control systems and surfaces of aircraft. Excludes BEARING, ROLLER, CYLINDRICAL.
Part Alternates: SA414A41, SA4-14A-41, 3110-01-294-0377, 01-294-0377, 3110012940377, 012940377
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 10 FEB 1989 | 01-294-0377 | 00046 ( BEARING, ROLLER, AIRFRAME ) |

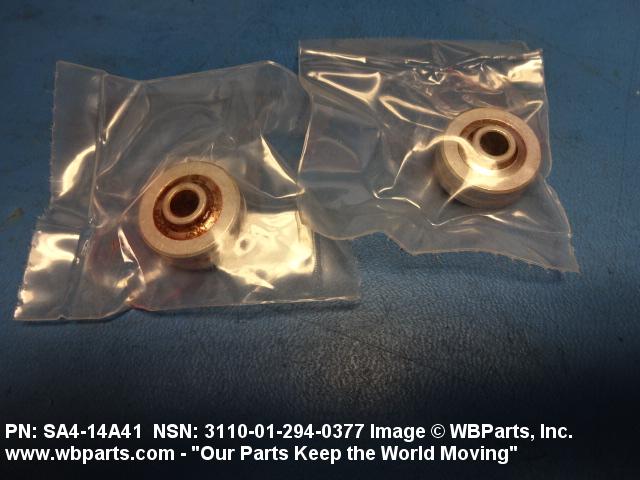

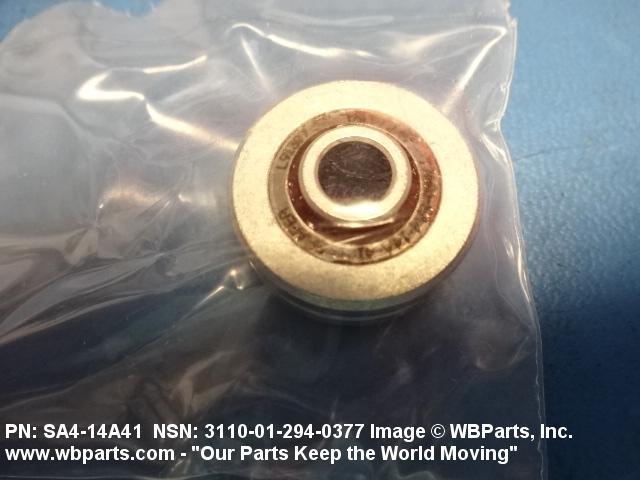

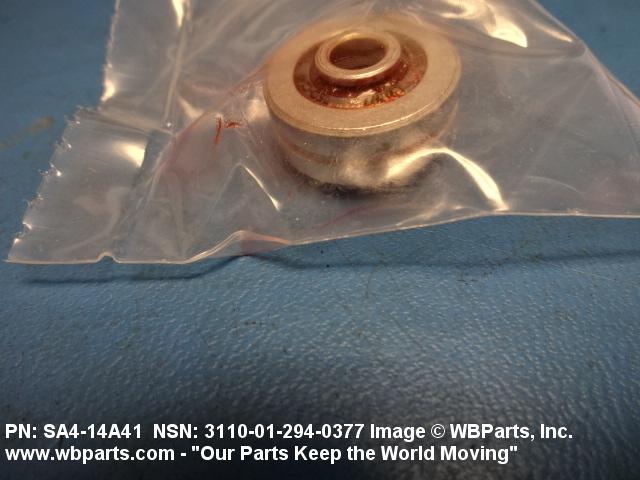

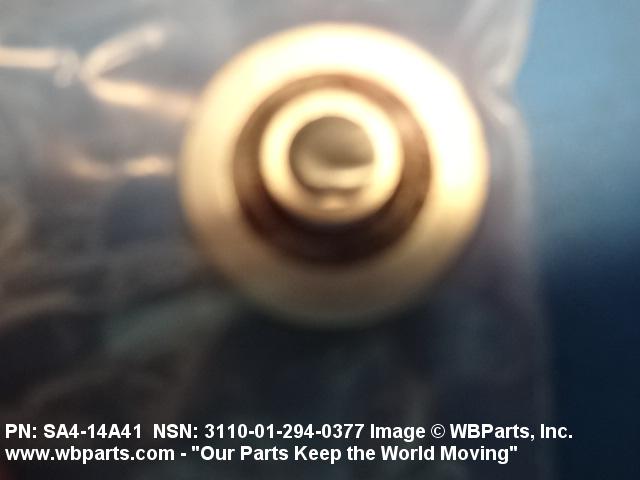

Drawings & Photos | NSN 3110-01-294-0377
Demand History | NSN 3110-01-294-0377
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| SA4-14A-41 | 2024-09-267 | 39 | DIBBS |
| SA4-14A-41 | 2024-09-259 | 39 | DIBBS |
| SA4-14A-41 | 2024-05-149 | 45 | DIBBS |
| SA4-14A-41 | 2024-05-140 | 45 | DIBBS |
| 3110-01-294-0377 | 2020-10-282 | 1 | DIBBS-RFPs |
| 3110-01-294-0377 | 2020-09-253 | 2 | United States |
| SA414A41 | 2017-03-73 | 2 | Canada |
| SA414A41 | 2017-03-73 | 2 | Canada |
| 3110-01-294-0377 | 2015-11-328 | 1 | DIBBS-RFPs |
| 3110-01-294-0377 | 2015-06-175 | 124 | DIBBS |
| SA414A41 | 2015-05-139 | 1 | US |
| SA4-14A-41 | 2014-05-149 | 10 | Canada |
| SA414A41 | 2012-11-335 | 50 | United States |
| SA414A41 | 2012-11-335 | 100 | United States |
| 3110-01-294-0377 | 2011-12-362 | 427 | DIBBS |
| SA414A41 | 2011-03-81 | 50 | us |
| SA414A41 | 2011-03-74 | 410 | US |
| 3110-01-294-0377 | 2011-03-73 | 1 | US |
| SA414A41 | 2010-02-55 | 50 | United States |
| SA414A41 | 2009-07-185 | 1 | India |
| SA414A41 | 2008-08-233 | 15 | US |
| SA414A41 | 2008-08-225 | 15 | US |
| SA414A41 | 2007-11-309 | 200 | us |
Cross Reference | NSN 3110-01-294-0377
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SA4-14A-41 | 77896 | REXNORD INDUSTRIES, LLC DIV BEARING OPERATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-01-294-0377
Related Products | NSN 3110-01-294-0377
Technical Data | NSN 3110-01-294-0377
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E52100 INNER RACE STEEL COMP E52100 OUTER RACE STEEL COMP E52100 ROLLER RUBBER BUTADIENE-ACRYLONITRILE CLASS NBR SEAL STEEL COMP 430 SHIELD |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-7420 MIL SPEC SINGLE MATERIAL RESPONSE INNER RACE MIL-S-7420 MIL SPEC SINGLE MATERIAL RESPONSE OUTER RACE MIL-S-7420 MIL SPEC SINGLE MATERIAL RESPONSE ROLLER QQ-S-763 FED SPEC SINGLE MATERIAL RESPONSE SHIELD |
| SURFACE TREATMENT | CADMIUM ALL EXTERNAL/EXPOSED METAL SURFACES |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416A,TYPE 1,CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE ALL EXTERNAL/EXPOSED METAL SURFACES |
| STYLE DESIGNATOR | 272 CONCAVE ROLLER, DOUBLE CLOSURE, SELF ALIGNING |
| BORE DIAMETER | 0.2495 INCHES MINIMUM AND 0.2500 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 0.9009 INCHES MINIMUM AND 0.9014 INCHES MAXIMUM |
| OUTER RING WIDTH | 0.3300 INCHES MINIMUM AND 0.3350 INCHES MAXIMUM |
| INNER RING WIDTH | 0.4790 INCHES MINIMUM AND 0.4840 INCHES MAXIMUM |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-2387 MIL SPEC SINGLE MATERIAL RESPONSE |
| SEAL QUANTITY | 2 |
| BEARING SEAL TYPE | ONE LIP INWARD, ONE LIP OUTWARD |
| ALIGNMENT TYPE | SELF-ALIGNING |
| SELF-ALIGNMENT LOCATION | INTERNAL |
| INTERNAL CLEARANCE | 0.0006 INCHES MINIMUM RADIAL AND 0.0014 INCHES MAXIMUM RADIAL |
Restrictions/Controls & Freight Information | NSN 3110-01-294-0377
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | ZA | Australia ZB ZC |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-01-294-0377
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
