NSN 3110-01-188-2554 DAL1026A41, DAL10-26A41, 0036610041
Product Details | ROD END ROLLER BEARING
3110-01-188-2554 A special single or multiple-row roller bearing, rigid or self-aligning, and constructed with either inside threaded, plain hollow, maile threaded, or solid shank.
Part Alternates: DAL1026A41, DAL10-26A41, 0036610041, 00366-100-41, 3110-01-188-2554, 01-188-2554, 3110011882554, 011882554
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 31 AUG 1984 | 01-188-2554 | 00050 ( BEARING, ROLLER, ROD END ) |
Drawings & Photos | NSN 3110-01-188-2554
Demand History | NSN 3110-01-188-2554
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-01-188-2554 | 2011-11-313 | 148 | US |
| 3110-01-188-2554 | 2011-08-216 | 211 | DIBBS |
| 3110-01-188-2554 | 2010-06-166 | 103 | DIBBS |
| 3110-01-188-2554 | 2010-03-70 | 8 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-01-188-2554
Related Products | NSN 3110-01-188-2554
Technical Data | NSN 3110-01-188-2554
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E52100 INNER RACE BORE STEEL COMP E52100 OUTER RING COPPER ALLOY RETAINER STEEL COMP 4620 ROD END BODY STEEL COMP E52100 ROLLER PLASTIC POLYCHLOROTRIFLUOROETHYLENE SEAL STEEL COMP 4140 SLEEVE |

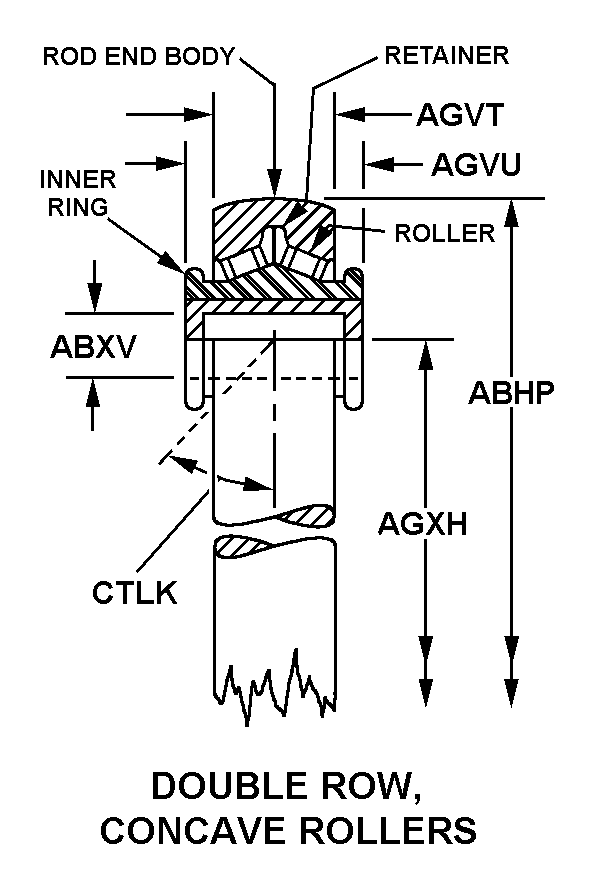

| STYLE DESIGNATOR | 470 DOUBLE ROW, CONCAVE ROLLERS |
| SELF-ALIGNMENT ANGLE | 16.00 DEGREES NOMINAL |
| OVERALL LENGTH | 5.4950 INCHES NOMINAL |
| BORE DIAMETER | 0.6245 INCHES MINIMUM AND 0.6250 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 2.6300 INCHES NOMINAL |
| OUTER RING WIDTH | 0.6400 INCHES MINIMUM AND 0.6450 INCHES MAXIMUM |
| INNER RING WIDTH | 0.7700 INCHES MINIMUM AND 0.7750 INCHES MAXIMUM |
| LENGTH FROM BORE CENTER TO SHANK END | 4.1800 INCHES NOMINAL |
| SHANK STYLE | 651 EXTERNALLY THREADED |
| SHANK DIAMETER | 1.6870 INCHES NOMINAL |
| SHANK THREAD LENGTH | 2.0300 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.750 INCHES |
| THREAD QUANTITY PER INCH | 16 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-81322 MIL SPEC SINGLE MATERIAL RESPONSE |
| ALIGNMENT TYPE | RIGID |
| III END ITEM IDENTIFICATION | C-5B ACFT |
Restrictions/Controls & Freight Information | NSN 3110-01-188-2554
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-01-188-2554
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | UC | TG:C-5A GALAXY |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
