NSN 3110-00-065-5537 SM46G45, SM4-6G-45, SM46G8
Product Details | ROD END ROLLER BEARING
3110-00-065-5537 A special single or multiple-row roller bearing, rigid or self-aligning, and constructed with either inside threaded, plain hollow, maile threaded, or solid shank.
Part Alternates: SM46G45, SM4-6G-45, SM46G8, SM4-6G-8, RM4-0, RM40, 114PS2021, 114PS202-1, 3110-00-065-5537, 00-065-5537, 3110000655537, 000655537
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-065-5537 | 00050 ( BEARING, ROLLER, ROD END ) |

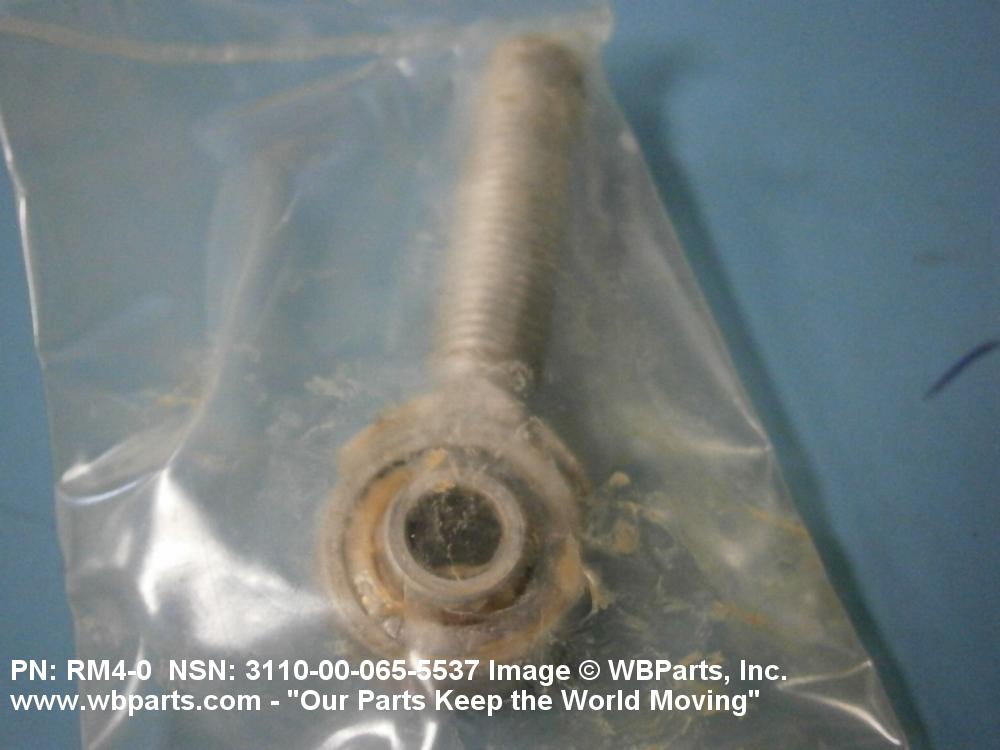

Drawings & Photos | NSN 3110-00-065-5537
Demand History | NSN 3110-00-065-5537
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| RM40 | 2024-11-325 | 54 | United States |
| 3110-00-065-5537 | 2021-09-273 | 1 | NL |
| 3110-00-065-5537 | 2021-08-222 | 1 | United States |
| 114PS202-1 | 2020-03-91 | 17 | DIBBS |
| 114PS202-1 | 2020-03-77 | 17 | DIBBS |
| 114PS202-1 | 2020-02-35 | 17 | DIBBS |
| 3110-00-065-5537 | 2016-11-329 | 28 | DIBBS |
| RM40 | 2016-09-246 | 2 | us |
| 3110-00-065-5537 | 2012-06-165 | 1 | United States |
| 3110-00-065-5537 | 2010-05-140 | 32 | DIBBS |
| 3110-00-065-5537 | 2010-04-120 | 20 | DIBBS |
| 3110-00-065-5537 | 2009-06-154 | 12 | DIBBS |
Cross Reference | NSN 3110-00-065-5537
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 114PS202-1 | 77272 | THE BOEING COMPANY DBA BOEING |
| 114PS202-1 | 77896 | REXNORD INDUSTRIES, LLC DIV BEARING OPERATION |
| 114PS202-1 | 81205 | THE BOEING COMPANY DBA BOEING |
| RM4-0 | 77896 | REXNORD INDUSTRIES, LLC DIV BEARING OPERATION |
| SM4-6G-45 | 77896 | REXNORD INDUSTRIES, LLC DIV BEARING OPERATION |
| SM4-6G-8 | 77896 | REXNORD INDUSTRIES, LLC DIV BEARING OPERATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-065-5537
Related Products | NSN 3110-00-065-5537
Technical Data | NSN 3110-00-065-5537
| Characteristic | Specifications |
|---|---|
| SURFACE TREATMENT | CADMIUM ALL EXTERNAL/EXPOSED METAL SURFACES |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 1,CL 2 FED SPEC SINGLE TREATMENT RESPONSE ALL EXTERNAL/EXPOSED METAL SURFACES |
| STYLE DESIGNATOR | 468 SINGLE ROW, CONCAVE ROLLERS |
| OVERALL LENGTH | 2.2500 INCHES MINIMUM AND 2.3100 INCHES MAXIMUM |
| BORE DIAMETER | 0.2495 INCHES MINIMUM AND 0.2500 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 0.8000 INCHES NOMINAL |
| OUTER RING WIDTH | 0.3200 INCHES MINIMUM AND 0.3800 INCHES MAXIMUM |
| INNER RING WIDTH | 0.5880 INCHES MINIMUM AND 0.5930 INCHES MAXIMUM |
| LENGTH FROM BORE CENTER TO SHANK END | 1.8650 INCHES MINIMUM AND 1.8950 INCHES MAXIMUM |
| SHANK STYLE | 651 EXTERNALLY THREADED |
| SHANK DIAMETER | 0.3750 INCHES NOMINAL |
| SHANK THREAD LENGTH | 1.2400 INCHES MINIMUM AND 1.2600 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD SIZE | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-23827 MIL SPEC SINGLE MATERIAL RESPONSE |
| SHIELD QUANTITY | 2 |
| SEAL QUANTITY | 2 |
| BEARING SEAL TYPE | CONTACT |
| ALIGNMENT TYPE | SELF-ALIGNING |
| SELF-ALIGNMENT LOCATION | INTERNAL |
| SPECIAL FEATURES | EQUIPPED W/FLUSH TYPE LUBRICATOR,SHANK SLOTTED 0.093 IN. TO 0.098 IN. W,0.064 IN. TO 0.069 IN. DP |
| MANUFACTURERS CODE | 77272 |
| MFR SOURCE CONTROLLING REFERENCE | 114PS202-1 |
Restrictions/Controls & Freight Information | NSN 3110-00-065-5537
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-065-5537
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
