NSN 3110-01-180-4825 SF44A1501, SF4-4A1-501, 477406
Product Details | ROD END ROLLER BEARING
3110-01-180-4825 A special single or multiple-row roller bearing, rigid or self-aligning, and constructed with either inside threaded, plain hollow, maile threaded, or solid shank.
Part Alternates: SF44A1501, SF4-4A1-501, 477406, 47740-6, 3110-01-180-4825, 01-180-4825, 3110011804825, 011804825
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 29 MAY 1984 | 01-180-4825 | 00050 ( BEARING, ROLLER, ROD END ) |
Drawings & Photos | NSN 3110-01-180-4825
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-01-180-4825
Related Products | NSN 3110-01-180-4825
Technical Data | NSN 3110-01-180-4825
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E52100 INNER RING STEEL COMP 4620 ROD END BODY STEEL COMP E52100 ROLLER PLASTIC POLYTETRAFLUOROETHYLENE AND GLASS SEAL STEEL COMP 430 SHIELD |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-7420 MIL SPEC SINGLE MATERIAL RESPONSE INNER RING MIL-S-7493 MIL SPEC SINGLE MATERIAL RESPONSE ROD END BODY MIL-S-7420 MIL SPEC SINGLE MATERIAL RESPONSE ROLLER QQ-S-763 FED SPEC SINGLE MATERIAL RESPONSE SHIELD |
| SURFACE TREATMENT | CADMIUM ROD END BODY |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 1,CL 2 FED SPEC SINGLE TREATMENT RESPONSE ROD END BODY |
| STYLE DESIGNATOR | 468 SINGLE ROW, CONCAVE ROLLERS |
| SELF-ALIGNMENT ANGLE | 4.00 DEGREES MINIMUM |
| OVERALL LENGTH | 1.7400 INCHES MINIMUM AND 1.7950 INCHES MAXIMUM |
| BORE DIAMETER | 0.2495 INCHES MINIMUM AND 0.2500 INCHES MAXIMUM |
| OUTER RING WIDTH | 0.3350 INCHES MINIMUM AND 0.3500 INCHES MAXIMUM |
| INNER RING WIDTH | 0.3700 INCHES MINIMUM AND 0.3750 INCHES MAXIMUM |
| LENGTH FROM BORE CENTER TO SHANK END | 1.3650 INCHES MINIMUM AND 1.3950 INCHES MAXIMUM |

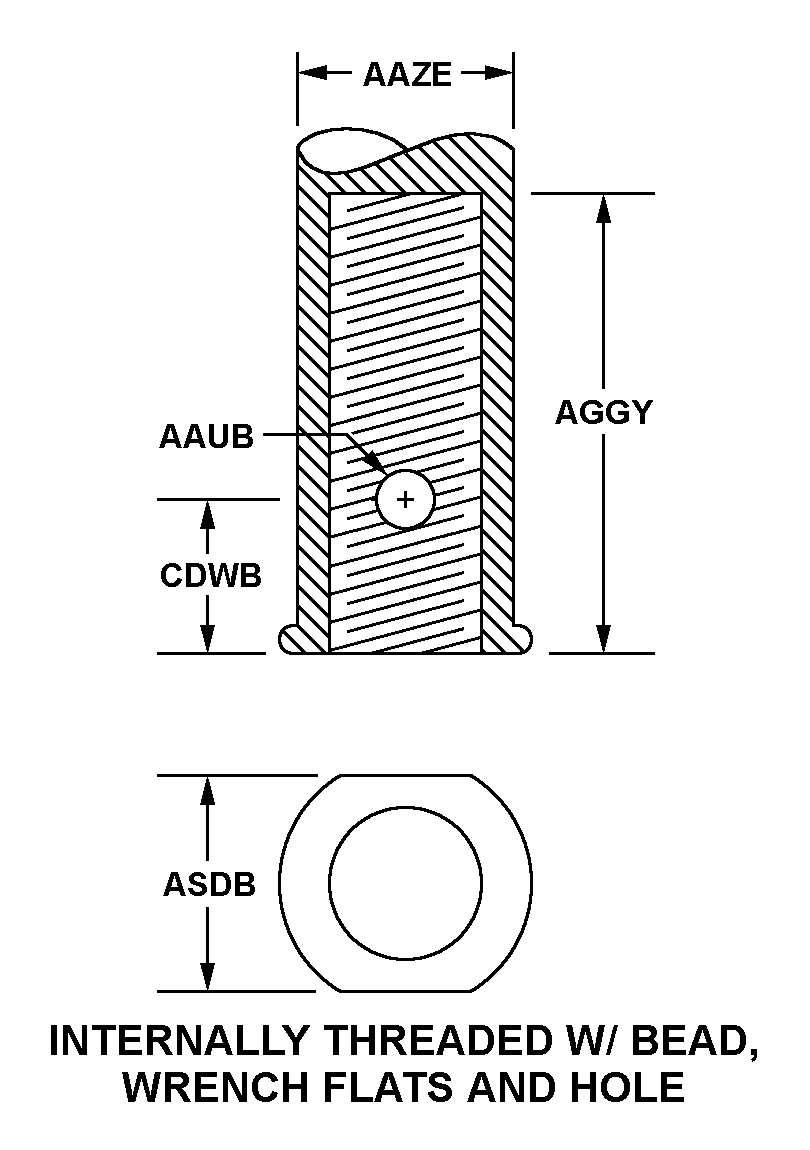

| SHANK STYLE | 669 INTERNALLY THREADED W/BEAD, WRENCH FLAT AND HOLE |
| HOLE DIAMETER | 0.0700 INCHES NOMINAL |
| SHANK DIAMETER | 0.4370 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.4370 INCHES NOMINAL |
| SHANK THREAD LENGTH | 0.7500 INCHES MINIMUM AND 0.8100 INCHES MAXIMUM |
| DISTANCE FROM HOLE CENTER TO END | 0.3750 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-81322 MIL SPEC SINGLE MATERIAL RESPONSE |
| SHIELD QUANTITY | 1 |
| SEAL QUANTITY | 1 |
| BEARING SEAL TYPE | CONTACT |
| ALIGNMENT TYPE | SELF-ALIGNING |
| SELF-ALIGNMENT LOCATION | INTERNAL |
| INTERNAL CLEARANCE | 0.0002 INCHES MINIMUM RADIAL AND 0.0010 INCHES MAXIMUM RADIAL |
| FEATURES PROVIDED | FLUSH LUBRICATION FITTING |
| SPECIAL FEATURES | SECOND FLUSH LUBRICATION FITTING OPTIONAL |
Restrictions/Controls & Freight Information | NSN 3110-01-180-4825
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-01-180-4825
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
