NSN 3110-01-154-4356 12296762, 01-154-4356, 011544356
Product Details | TAPERED ROLLER BEARING
3110-01-154-4356 A cylindrical device in which the inner cone or outer cup turns upon a single or double row of tapered hardened rollers which roll easily in a race, thus minimizing friction and designed to carry a radial load and capable of sustaining axial thrust. Excludes BEARING, ROLLER, THRUST.
Part Alternates: 12296762, 3110-01-154-4356, 01-154-4356, 3110011544356, 011544356
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 25 MAY 1983 | 01-154-4356 | 00021 ( BEARING, ROLLER, TAPERED ) |
Drawings & Photos | NSN 3110-01-154-4356
Demand History | NSN 3110-01-154-4356
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-01-154-4356 | 2022-02-53 | 6 | US |
| 3110-01-154-4356 | 2021-10-285 | 161 | DIBBS |
| 3110-01-154-4356 | 2021-06-153 | 45 | DIBBS |
| 3110-01-154-4356 | 2020-08-223 | 100 | United States |
| 3110-01-154-4356 | 2020-06-168 | 1 | DIBBS-RFPs |
| 3110-01-154-4356 | 2020-03-79 | 125 | DIBBS |
| 3110-01-154-4356 | 2020-03-75 | 145 | DIBBS |
| 3110-01-154-4356 | 2020-03-65 | 51 | DIBBS |
| 3110-01-154-4356 | 2020-01-29 | 51 | DIBBS |
| 3110-01-154-4356 | 2019-08-231 | 30 | US |
| 3110-01-154-4356 | 2019-06-160 | 23 | DIBBS |
| 3110-01-154-4356 | 2019-04-119 | 163 | DIBBS |
| 3110-01-154-4356 | 2018-11-318 | 45 | United States |
| 3110-01-154-4356 | 2018-05-135 | 47 | United States |
| 3110-01-154-4356 | 2018-05-130 | 10 | United States |
| 12296762 | 2018-05-128 | 47 | US |
| 12296762 | 2011-10-280 | 5 | US |
| 3110-01-154-4356 | 2008-04-97 | 231 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-01-154-4356
Related Products | NSN 3110-01-154-4356
Technical Data | NSN 3110-01-154-4356
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |

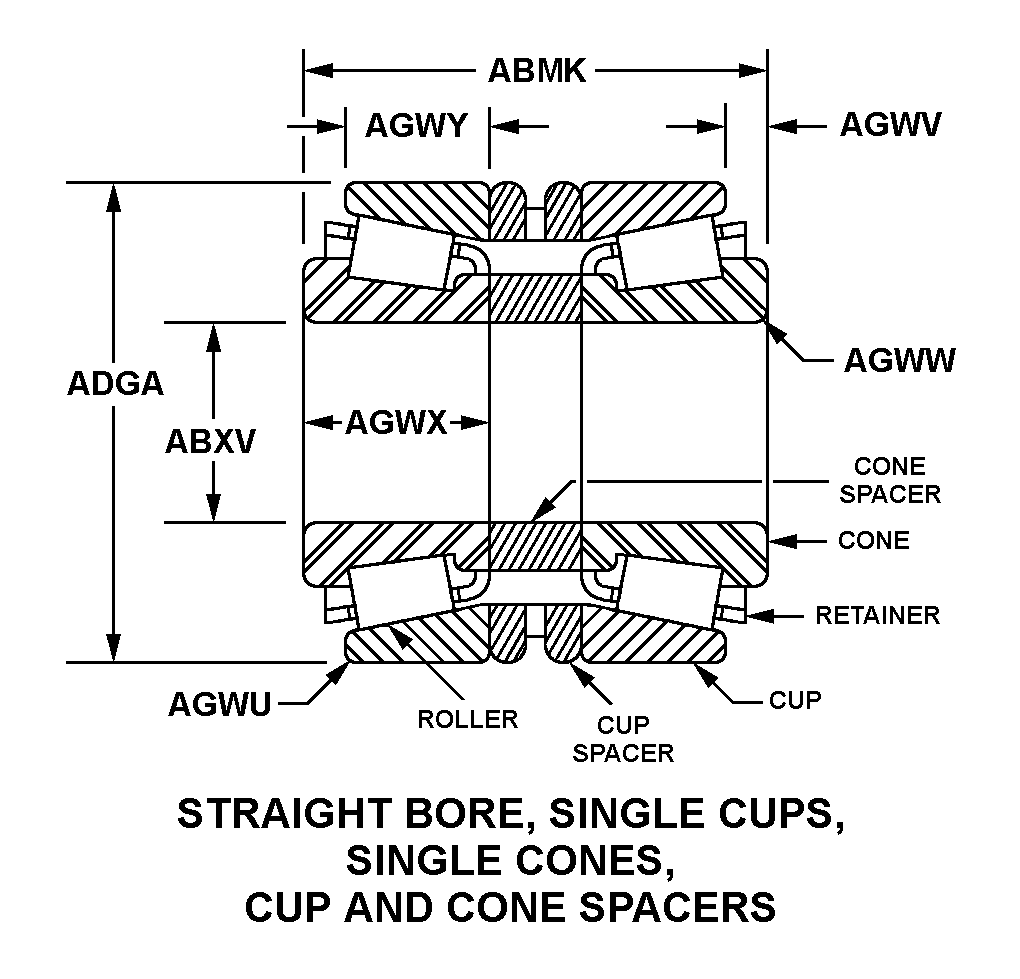

| STYLE DESIGNATOR | 388 STRAIGHT BORE, SINGLE CUPS, SINGLE CONES CUP AND CONE SPACERS |
| OVERALL WIDTH | 1.5580 INCHES MINIMUM AND 1.5780 INCHES MAXIMUM |
| BORE DIAMETER | 1.5000 INCHES MINIMUM AND 1.5005 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 2.6560 INCHES NOMINAL |
| STANDOUT WIDTH | 0.1640 INCHES NOMINAL |
| CONE CORNER RADIUS | 0.0800 INCHES MINIMUM AND 0.1100 INCHES MAXIMUM |
| CONE WIDTH | 1.5580 INCHES MINIMUM AND 1.5780 INCHES MAXIMUM |
| CUP WIDTH | 1.2380 INCHES MINIMUM AND 1.2420 INCHES MAXIMUM |
| LUBRICATION MATERIAL | LUBRICATING OIL |
| SPECIAL FEATURES | CONSISTS OF 2 SINGLE CONES,2 SINGLE CUPS 1 CUP SPACER,AND 1 CONE SPACER |
Restrictions/Controls & Freight Information | NSN 3110-01-154-4356
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-01-154-4356
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
