NSN 3110-01-115-5401 HADR00867, HADR008-67, R1908B11C2K274
Product Details | DUPLEX BALL BEARING
3110-01-115-5401 Two single row annular ball bearings selected dimensionally to be a matched pair or set. The ring faces have been specially ground to specified offsets that will produce predetermined preload when mounted. May include a single row angular contact bearing with faces specially ground for duplex mounting.
Part Alternates: HADR00867, HADR008-67, R1908B11C2K274, R1908B11C2K27-4, 2MM9308WOCRVDU, 9018581C, 901858-1C, 3110-01-115-5401, 01-115-5401, 3110011155401, 011155401
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 09 JUL 1981 | 01-115-5401 | 30213 ( BEARING, BALL, DUPLEX ) |
Drawings & Photos | NSN 3110-01-115-5401
Cross Reference | NSN 3110-01-115-5401
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3110-01-115-5401
Technical Data | NSN 3110-01-115-5401
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL BALL STEEL INNER RING STEEL OUTER RING PLASTIC RETAINER |

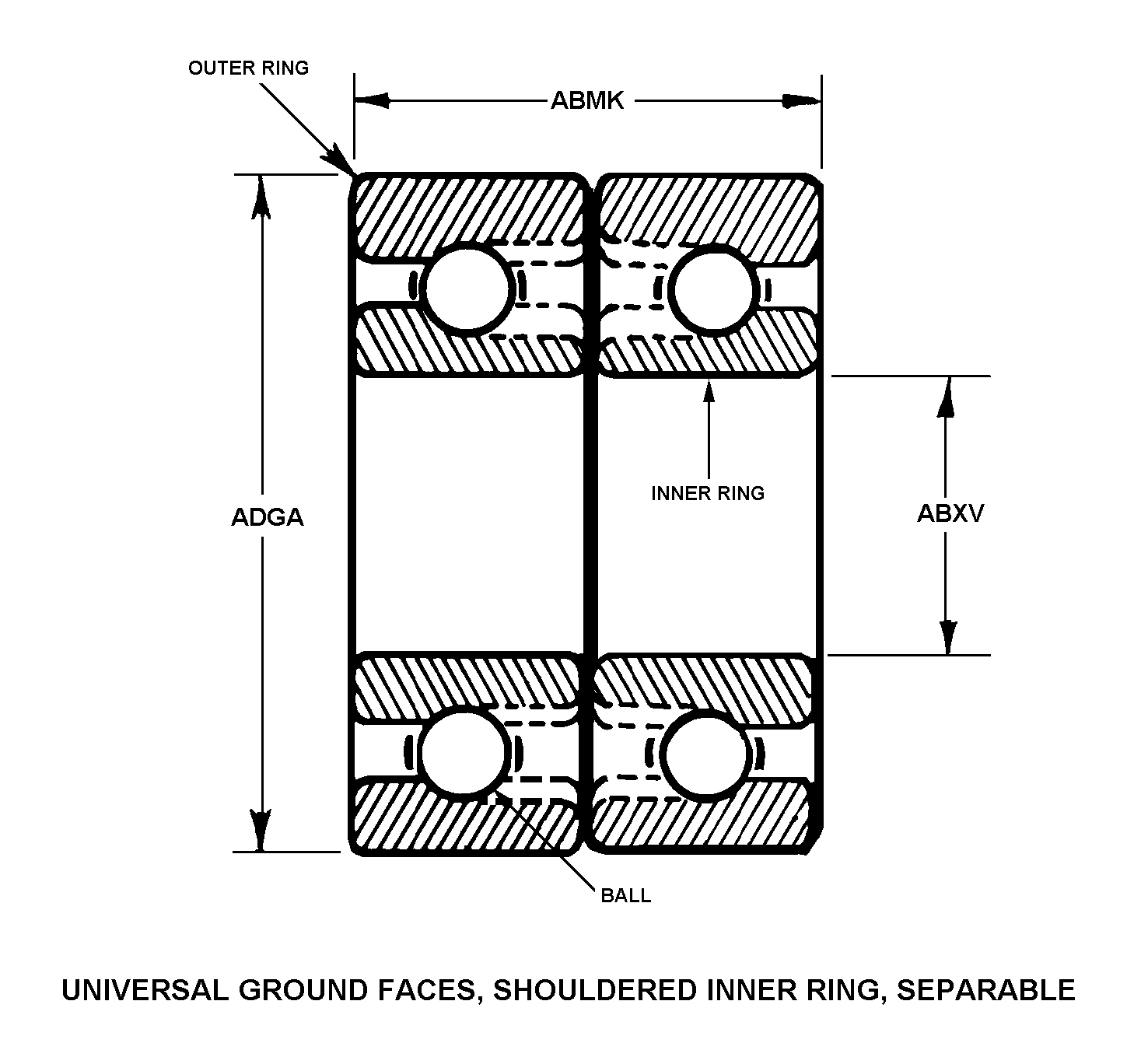

| STYLE DESIGNATOR | 90E UNIVERSAL GROUND FACES, SHOULDERED INNER RING, SEPARABLE |
| OVERALL WIDTH | 24.00 MILLIMETERS NOMINAL |
| BORE DIAMETER | 40.00 MILLIMETERS NOMINAL |
| OVERALL OUTSIDE DIAMETER | 62.00 MILLIMETERS NOMINAL |
| LUBRICATION MATERIAL | LUBRICATING OIL |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.7 |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | MACHINED |
| LOAD DIRECTION | ANGULAR |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
| CONTACT ANGLE | 18.0 DEGREES NOMINAL |
| FEATURES PROVIDED | EXTRA LIGHT DUTY SERIES |
| SPECIAL FEATURES | RETAINER VACUUM IMPREGNATED WITH OIL |
Restrictions/Controls & Freight Information | NSN 3110-01-115-5401
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-01-115-5401
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 PR : Pair |
