NSN 3110-01-114-6337 JAQC110V, 145DS100, 145DS1001
Product Details | TAPERED ROLLER BEARING
3110-01-114-6337 A cylindrical device in which the inner cone or outer cup turns upon a single or double row of tapered hardened rollers which roll easily in a race, thus minimizing friction and designed to carry a radial load and capable of sustaining axial thrust. Excludes BEARING, ROLLER, THRUST.
Part Alternates: JAQC110V, 145DS100, 145DS1001, 145DS100-1, 145DS1004, 145DS100-4, 464911, 3110-01-114-6337, 01-114-6337, 3110011146337, 011146337
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 20 JUN 1981 | 01-114-6337 | 00021 ( BEARING, ROLLER, TAPERED ) |
Drawings & Photos | NSN 3110-01-114-6337
Demand History | NSN 3110-01-114-6337
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-01-114-6337 | 2011-10-279 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-01-114-6337
Related Products | NSN 3110-01-114-6337
Technical Data | NSN 3110-01-114-6337
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CONE STEEL CUP STEEL RETAINER STEEL ROLLER |
| MATERIAL DOCUMENT AND CLASSIFICATION | FED-STD-66 FED STD SINGLE MATERIAL RESPONSE CONE FED-STD-66 FED STD SINGLE MATERIAL RESPONSE CUP FED-STD-66 FED STD SINGLE MATERIAL RESPONSE RETAINER FED-STD-66 FED STD SINGLE MATERIAL RESPONSE ROLLER |

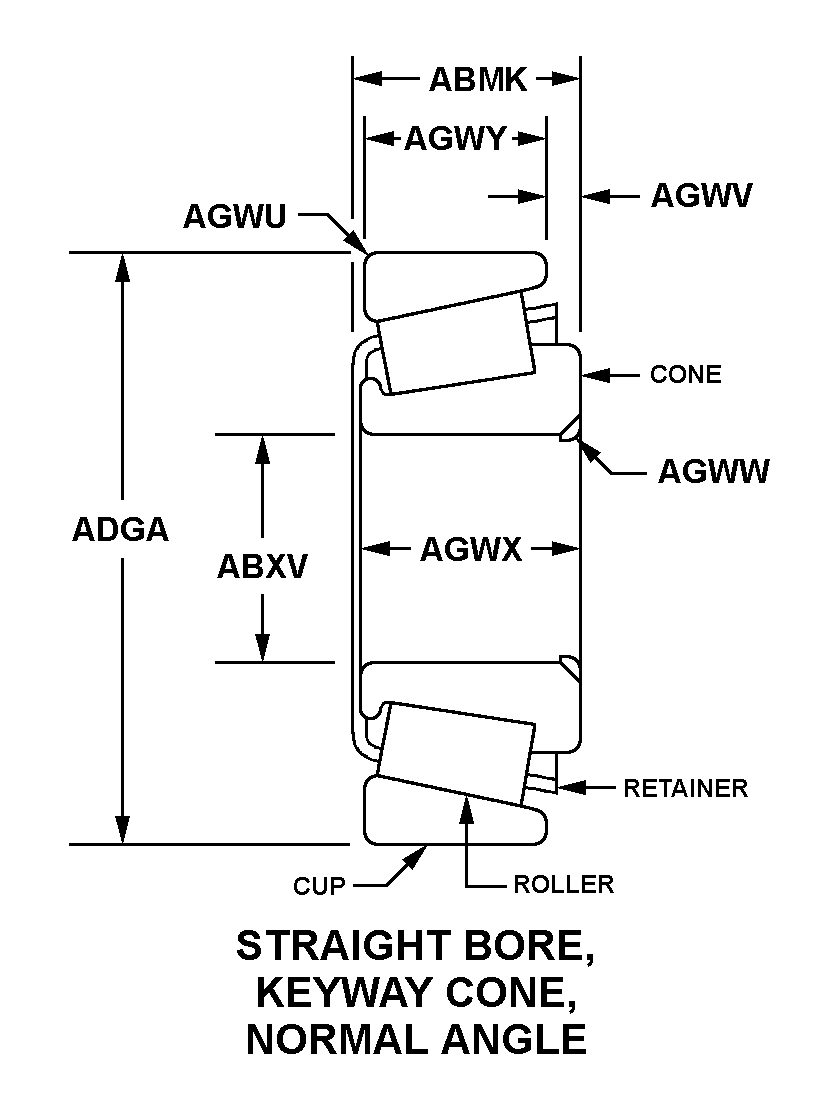

| STYLE DESIGNATOR | 356 STRAIGHT BORE, KEYWAY CONE, NORMAL ANGLE |
| OVERALL WIDTH | 1.6475 INCHES MINIMUM AND 1.6615 INCHES MAXIMUM |
| BORE DIAMETER | 7.7941 INCHES MINIMUM AND 7.7953 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 10.7464 INCHES MINIMUM AND 10.7480 INCHES MAXIMUM |
| BACKFACE CORNER RADIUS | 0.1400 INCHES MAXIMUM |
| STANDOUT WIDTH | 0.5905 INCHES NOMINAL |
| CONE CORNER RADIUS | 0.0500 INCHES MINIMUM AND 0.1000 INCHES MAXIMUM |
| CONE WIDTH | 1.3366 INCHES MINIMUM AND 1.3386 INCHES MAXIMUM |
| CUP WIDTH | 1.0596 INCHES MINIMUM AND 1.0630 INCHES MAXIMUM |
| SPECIAL FEATURES | BEARING TO BE FABRICATED TO U.O.SCLASS K TOLERANCES |
| MANUFACTURERS CODE | 77272 |
| MFR SOURCE CONTROLLING REFERENCE | 145DS100 |
Restrictions/Controls & Freight Information | NSN 3110-01-114-6337
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-01-114-6337
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | B | Rotary Wing Aircraft |
| Weapons Systems/End Item or Homogeneous Group | BK | CH-47 |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
