NSN 3110-01-106-8059 7305B.MP.P5.UL, 7305BDFGL, 7305BEY/DGB
Product Details | DUPLEX BALL BEARING
3110-01-106-8059 Two single row annular ball bearings selected dimensionally to be a matched pair or set. The ring faces have been specially ground to specified offsets that will produce predetermined preload when mounted. May include a single row angular contact bearing with faces specially ground for duplex mounting.
Part Alternates: 7305B.MP.P5.UL, 7305BDFGL, 7305BEY/DGB, 7305BEYDGB, 7305BG/GL, 7305BG05, 7305BGGL, 7305BMPP5UL, 12297951, 3110-01-106-8059, 01-106-8059, 3110011068059, 011068059
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 25 JAN 1981 | 01-106-8059 | 30213 ( BEARING, BALL, DUPLEX ) |
Drawings & Photos | NSN 3110-01-106-8059
Demand History | NSN 3110-01-106-8059
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 12297951 | 2024-05-142 | 126 | DIBBS |
| 3110-01-106-8059 | 2024-04-108 | 1 | Germany |
| 3110-01-106-8059 | 2022-08-234 | 176 | DIBBS |
| 3110-01-106-8059 | 2022-05-131 | 7 | DIBBS |
| 3110-01-106-8059 | 2022-03-68 | 27 | DIBBS |
| 3110-01-106-8059 | 2021-05-143 | 27 | DIBBS |
| 3110-01-106-8059 | 2020-11-307 | 155 | DIBBS |
| 3110-01-106-8059 | 2020-10-304 | 1 | DIBBS-RFPs |
| 3110-01-106-8059 | 2020-06-156 | 262 | DIBBS |
| 3110-01-106-8059 | 2020-05-148 | 262 | DIBBS |
| 3110-01-106-8059 | 2020-04-113 | 30 | United States |
| 3110-01-106-8059 | 2020-03-83 | 206 | DIBBS |
| 3110-01-106-8059 | 2020-03-75 | 206 | DIBBS |
| 3110-01-106-8059 | 2020-03-65 | 245 | DIBBS |
| 3110-01-106-8059 | 2020-02-49 | 245 | DIBBS |
| 3110-01-106-8059 | 2020-01-30 | 245 | DIBBS |
| 12297951 | 2019-05-122 | 293 | DIBBS |
| 3110-01-106-8059 | 2018-05-150 | 200 | DIBBS |
| 3110-01-106-8059 | 2018-05-128 | 84 | DIBBS |
| 3110-01-106-8059 | 2017-12-348 | 31 | DIBBS |
| 3110-01-106-8059 | 2017-12-340 | 31 | DIBBS |
| 3110-01-106-8059 | 2010-11-327 | 6 | US |
| 3110-01-106-8059 | 2010-11-324 | 6 | PE |
| 3110-01-106-8059 | 2009-04-105 | 373 | DIBBS |
| 7305BMPP5UL | 2008-04-107 | 437 | US |
Cross Reference | NSN 3110-01-106-8059
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12297951 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 12297951 | 23043 | N T N BEARING CORP OF AMERICA |
| 12297951 | 43991 | FAG BEARINGS CORPORATION |
| 12297951 | 52676 | SKF USA INC. |
| 7305B.MP.P5.UL | 43991 | FAG BEARINGS CORPORATION |
| 7305BDFGL | 23043 | N T N BEARING CORP OF AMERICA |
| 7305BEY/DGB | 52676 | SKF USA INC. |
| 7305BG/GL | 23043 | N T N BEARING CORP OF AMERICA |
| 7305BG05 | 52676 | SKF USA INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-01-106-8059
Related Products | NSN 3110-01-106-8059
Technical Data | NSN 3110-01-106-8059
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL BALL STEEL INNER RING STEEL OUTER RING COPPER ALLOY RETAINER |
| STYLE DESIGNATOR | 90A UNIVERSAL GROUND FACES, COUNTERBORED OUTER RING, NON-SEPARABLE |

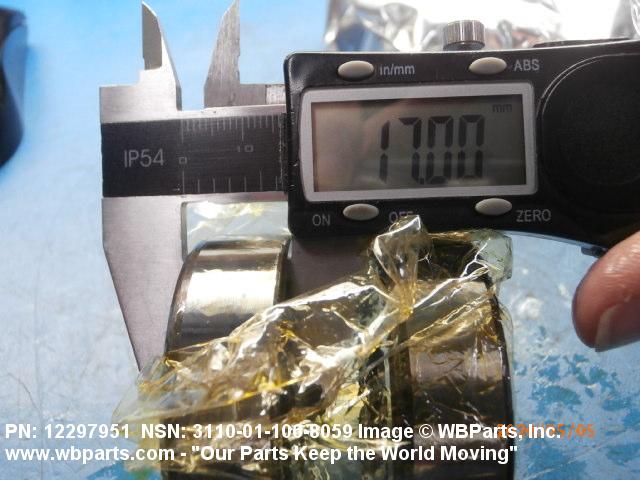

| OVERALL WIDTH | 17.0 MILLIMETERS NOMINAL |

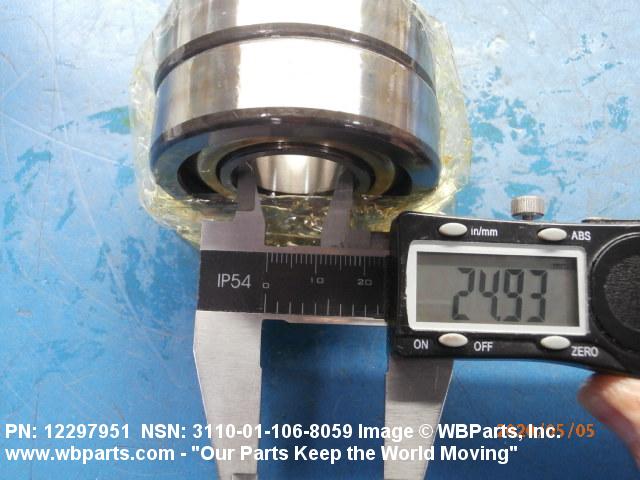

| BORE DIAMETER | 25.00 MILLIMETERS NOMINAL |
| OVERALL OUTSIDE DIAMETER | 62.00 MILLIMETERS NOMINAL |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.1 |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | PRESSED |
| LOAD DIRECTION | ANGULAR |
| BEARING PRELOAD DESIGNATION | LIGHT |
Restrictions/Controls & Freight Information | NSN 3110-01-106-8059
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114850 | BEARING/BUSHING O/T BALL/ROLLER I/S |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | AZ | U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-01-106-8059
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | M | Armored Carriers |
| Weapons Systems/End Item or Homogeneous Group | MM | Infantry Fighting Vehicle (M2, M2A1, M2A2), Cavelry Fighting Vehicle (M3, M3A1, M3A2) |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 PR : Pair |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 PR : Pair |
