NSN 3110-01-054-4688 NF 1008 VBG, NF1008VBG, RFB10871
Product Details | AIRFRAME ROLLER BEARING
3110-01-054-4688 A cylindrical item in which the inner or outer ring turns upon row(s) of hardened ROLLER, BEARING which roll on a raceway, thus minimizing friction. These items are characterized by their noncorrosive qualities, lightness of weight, inch dimensions rather than metric, inner rings generally projecting beyond the faces of the outer ring, or a very narrow width inner ring having an outside diameter slightly larger than the bore diameter. Designed primarily for use in aircraft assemblies, such as control systems and surfaces of aircraft. Excludes BEARING, ROLLER, CYLINDRICAL.
Part Alternates: NF 1008 VBG, NF1008VBG, RFB10871, RFB-108-71, 5901022, 5913537, 3110-01-054-4688, 01-054-4688, 3110010544688, 010544688
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 21 JAN 1978 | 01-054-4688 | 00046 ( BEARING, ROLLER, AIRFRAME ) |
Drawings & Photos | NSN 3110-01-054-4688
Demand History | NSN 3110-01-054-4688
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5913537 | 2023-01-11 | 25 | DIBBS |
| 5913537 | 2023-01-03 | 25 | DIBBS |
| 5913537 | 2022-12-340 | 92 | DIBBS |
| 5913537 | 2022-11-332 | 92 | DIBBS |
| 3110-01-054-4688 | 2020-10-304 | 1 | DIBBS-RFPs |
| 3110-01-054-4688 | 2017-03-75 | 103 | DIBBS |
| 3110-01-054-4688 | 2016-07-197 | 120 | DIBBS |
| 3110-01-054-4688 | 2016-06-166 | 120 | DIBBS |
| 3110-01-054-4688 | 2016-04-104 | 74 | DIBBS |
| 3110-01-054-4688 | 2016-02-40 | 69 | DIBBS |
| 3110-01-054-4688 | 2013-06-156 | 57 | DIBBS |
| 3110-01-054-4688 | 2013-02-38 | 57 | DIBBS |
| 3110-01-054-4688 | 2010-06-180 | 2 | DIBBS |
| RFB10871 | 2008-04-101 | 3 | US |
| 3110-01-054-4688 | 2007-10-276 | 50 | DIBBS |
| 3110-01-054-4688 | 2007-10-274 | 50 | DIBBS |
| 3110-01-054-4688 | 2007-10-274 | 235 | DIBBS |
| 3110-01-054-4688 | 2007-09-260 | 8 | DIBBS |
| 3110-01-054-4688 | 2007-09-248 | 15 | DIBBS |
| 3110-01-054-4688 | 2007-08-215 | 14 | DIBBS |
| 3110-01-054-4688 | 2007-06-159 | 151 | DIBBS |
| 3110-01-054-4688 | 2007-02-52 | 140 | DIBBS |
| 3110-01-054-4688 | 2007-02-36 | 140 | DIBBS |
Cross Reference | NSN 3110-01-054-4688
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3110-01-054-4688
Technical Data | NSN 3110-01-054-4688
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E52100 INNER RACE STEEL COMP E52100 OUTER RACE COPPER ALLOY RETAINER STEEL COMP E52100 ROLLER |

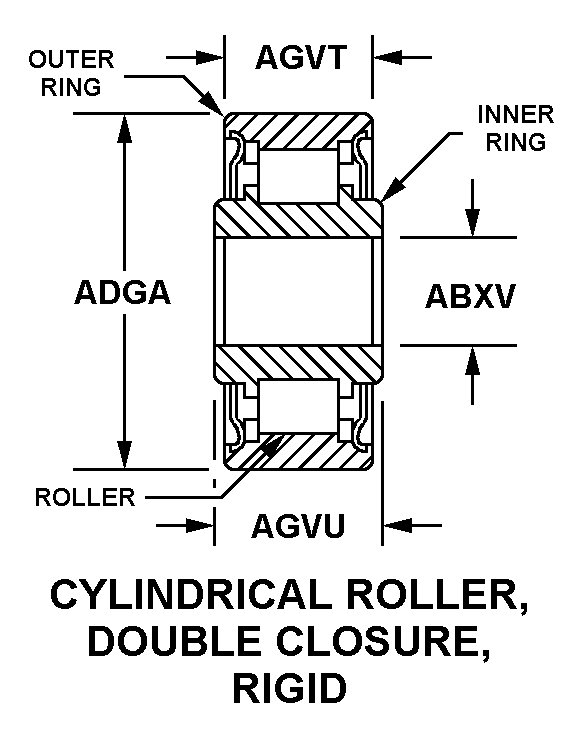

| STYLE DESIGNATOR | 270 CYLINDRICAL ROLLER, DOUBLE CLOSURE, RIGID |
| BORE DIAMETER | 1.5748 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 2.6772 INCHES NOMINAL |
| INNER RING WIDTH | 0.5881 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | GEN DYNAMICS F-16 ACFT |
Restrictions/Controls & Freight Information | NSN 3110-01-054-4688
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-01-054-4688
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Materiel Management Aggregation Code | YP | SU:GAS TURBINES AND JET ENGINES NON-AIRCRAFT |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
