NSN 3110-01-053-9866 ABR4H104, ABR4H-104, BACB10AE10A
Product Details | ROD END BALL BEARING

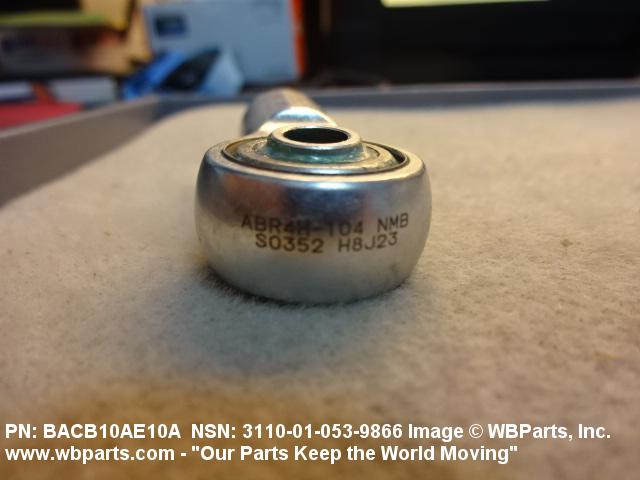

3110-01-053-9866 A special single or multiple-row ball bearing, rigid or self-aligning, and constructed with either a solid or hollow shank, internally or externally threaded.
Part Alternates: ABR4H104, ABR4H-104, BACB10AE10A, HHRE4H81, HHRE-4-H-8-1, REP4H8FS436, REP4H8FS436S8, 602293, 60-2293, 3110-01-053-9866, 01-053-9866, 3110010539866, 010539866
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 13 JAN 1978 | 01-053-9866 | 00049 ( BEARING, BALL, ROD END ) |

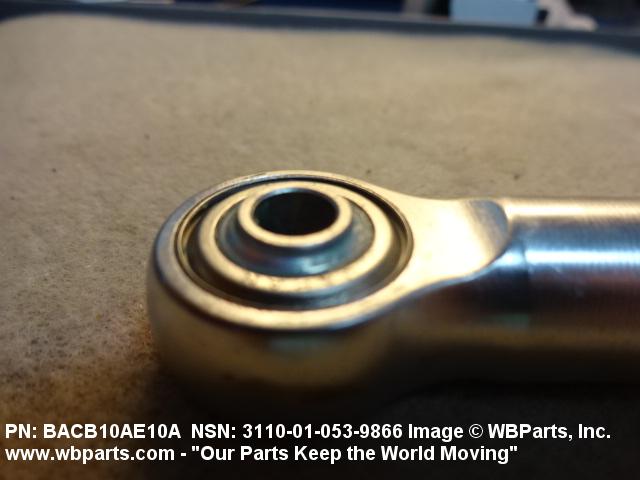

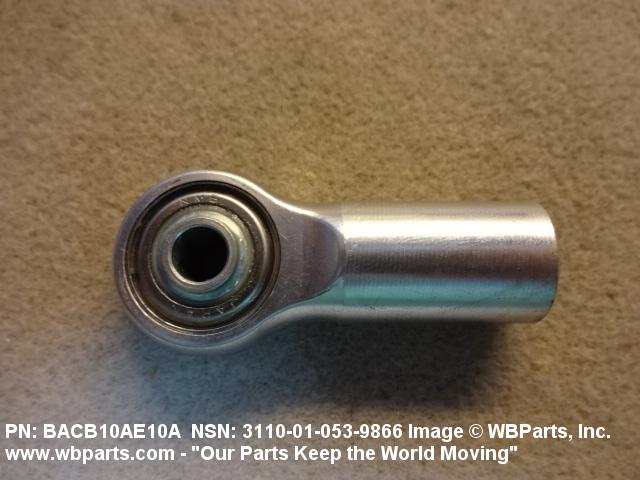

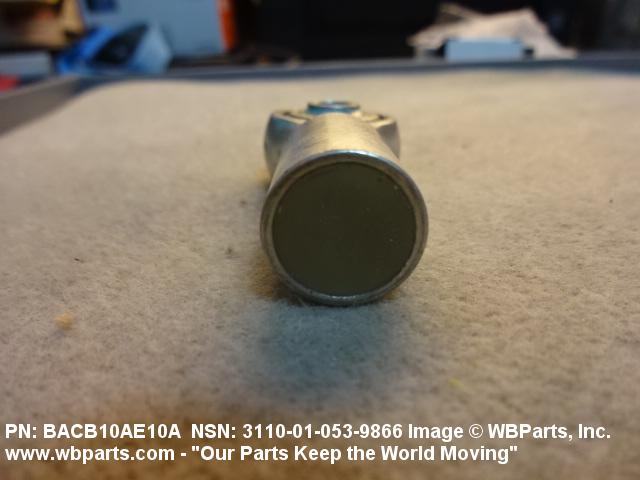

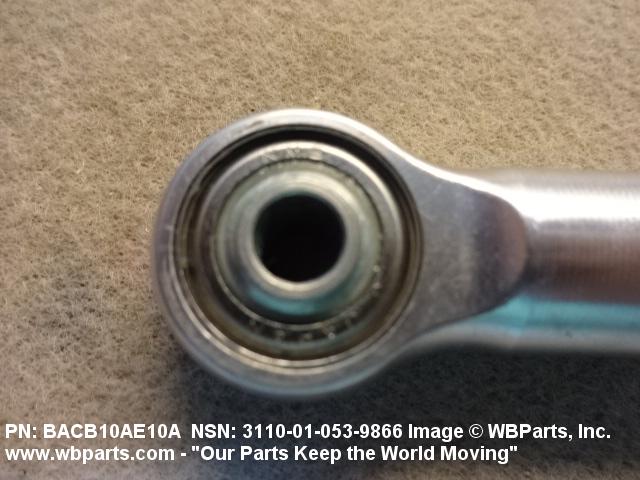

Drawings & Photos | NSN 3110-01-053-9866
Demand History | NSN 3110-01-053-9866
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| BACB10AE10A | 2024-07-210 | 150 | DIBBS |
| BACB10AE10A | 2024-07-200 | 150 | DIBBS |
| BACB10AE10A | 2023-08-213 | 134 | DIBBS |
| BACB10AE10A | 2023-05-151 | 84 | DIBBS |
| BACB10AE10A | 2023-04-114 | 29 | DIBBS |
| BACB10AE10A | 2021-02-34 | 59 | DIBBS |
| BACB10AE10A | 2021-01-26 | 59 | DIBBS |
| 602293 | 2019-03-73 | 1 | United Kingdom |
| 3110-01-053-9866 | 2015-06-158 | 550 | DIBBS |
| 3110-01-053-9866 | 2015-05-123 | 162 | DIBBS |
| BACB10AE10A | 2014-09-272 | 10 | United States |
| 3110-01-053-9866 | 2014-01-02 | 100 | us |
| 3110-01-053-9866 | 2013-04-114 | 484 | DIBBS |
| BACB10AE10A | 2013-01-31 | 2 | US |
| 3110-01-053-9866 | 2012-11-328 | 282 | DIBBS |
| 3110-01-053-9866 | 2012-07-198 | 140 | United States |
| BACB10AE10A | 2012-02-39 | 10 | United States |
| 3110-01-053-9866 | 2011-12-343 | 237 | DIBBS |
| 3110-01-053-9866 | 2011-12-342 | 237 | DIBBS |
| 3110-01-053-9866 | 2011-11-313 | 100 | United States |
| 3110-01-053-9866 | 2011-07-199 | 125 | United States |
| 3110-01-053-9866 | 2011-01-17 | 130 | US |
| BACB10AE10A | 2010-12-363 | 0 | United States |
| 3110-01-053-9866 | 2009-02-40 | 130 | US |
| REP4H8FS436 | 2007-08-219 | 190 | United States |
Cross Reference | NSN 3110-01-053-9866
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 60-2293 | 81205 | THE BOEING COMPANY DBA BOEING |
| ABR4H-104 | 50294 | NEW HAMPSHIRE BALL BEARINGS, INC. DBA NHBB |
| BACB10AE10A | 15860 | NEW HAMPSHIRE BALL BEARINGS, INC. DBA ASTRO DIVISION |
| BACB10AE10A | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| BACB10AE10A | 50294 | NEW HAMPSHIRE BALL BEARINGS, INC. DBA NHBB |
| BACB10AE10A | 73134 | ROLLER BEARING COMPANY OF AMERICA, INC. |
| BACB10AE10A | 77896 | REXNORD INDUSTRIES, LLC DIV BEARING OPERATION |
| BACB10AE10A | 81205 | THE BOEING COMPANY DBA BOEING |
| BACB10AE10A | 92563 | MCGILL MANUFACTURING COMPANY INC DBA EMERSON POWER TRANSMISSION |
| HHRE-4-H-8-1 | 38443 | SKF USA INC DBA SKF AEROENGINE NORTH AMERICA |
| REP4H8FS436 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| REP4H8FS436S8 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-01-053-9866
Related Products | NSN 3110-01-053-9866
Technical Data | NSN 3110-01-053-9866
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E52100 BALL STEEL COMP E52100 INNER RING STEEL COMP 302 OR STEEL COMP 301 RETAINER STEEL COMP 4620 OR STEEL COMP 4720 OR STEEL COMP 8620 OR STEEL COMP 4130 ROD END BODY PLASTIC POLYTETRAFLUOROETHYLENE AND GLASS FIBER SEAL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-7420 MIL SPEC SINGLE MATERIAL RESPONSE BALL MIL-S-7420 MIL SPEC SINGLE MATERIAL RESPONSE INNER RING AMS5515 ASSN STD 1ST MATERIAL RESPONSE OR MIL-S-5059 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-5059 MIL SPEC 2ND MATERIAL RESPONSE RETAINER QQ-S-624 FED SPEC 1ST MATERIAL RESPONSE OR QQ-S-624 FED SPEC 2ND MATERIAL RESPONSE OR QQ-B-624 FED SPEC 3RD MATERIAL RESPONSE OR MIL-S-6758 MIL SPEC 4TH MATERIAL RESPONSE ROD END BODY AMS 3652 ASSN STD SINGLE MATERIAL RESPONSE SEAL |
| SURFACE TREATMENT | CADMIUM ROD END BODY |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 1,CL 2 FED SPEC SINGLE TREATMENT RESPONSE ROD END BODY |
| STYLE DESIGNATOR | 466 DOUBLE ROW, STAGGERED, BALL |
| SELF-ALIGNMENT ANGLE | 10.00 DEGREES NOMINAL |

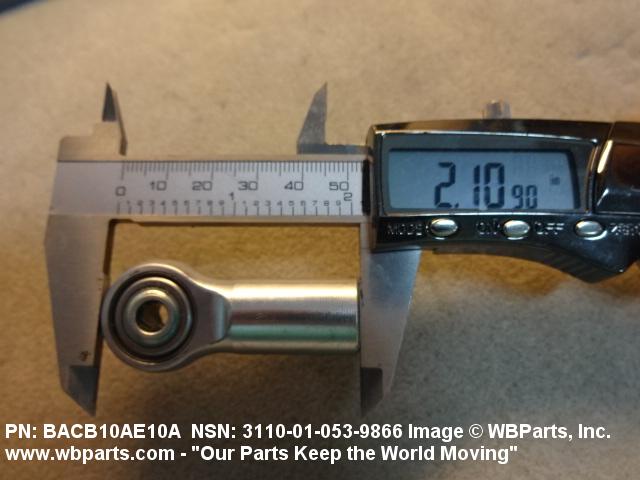

| OVERALL LENGTH | 2.0940 INCHES NOMINAL |

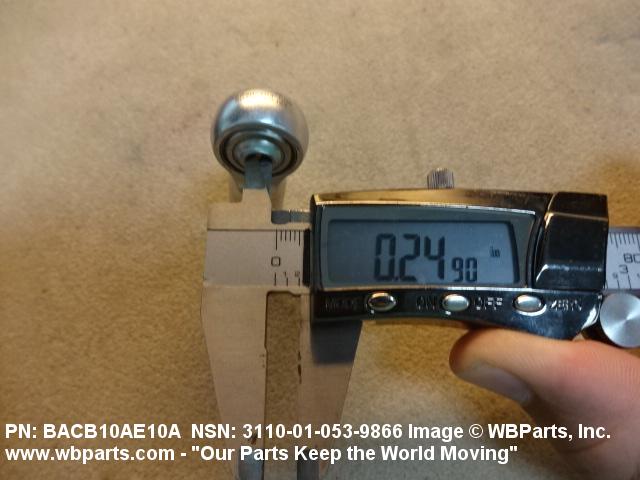

| BORE DIAMETER | 0.2497 INCHES MINIMUM AND 0.2500 INCHES MAXIMUM |

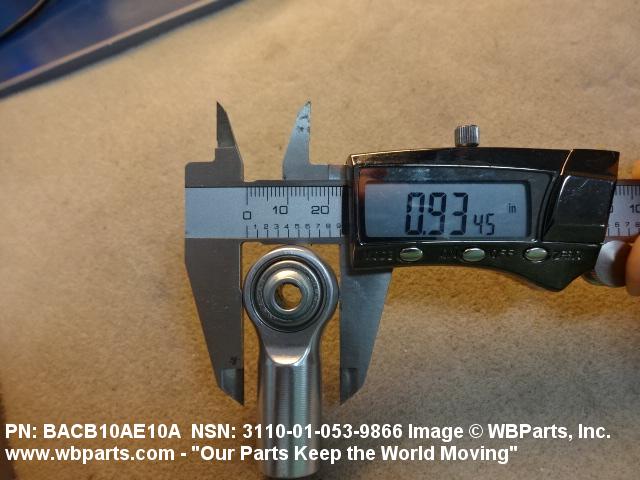

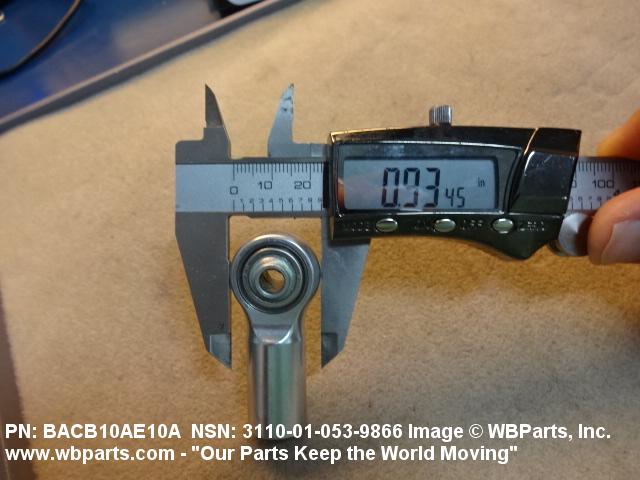

| OVERALL OUTSIDE DIAMETER | 0.9280 INCHES MINIMUM AND 0.9480 INCHES MAXIMUM |
| OUTER RING WIDTH | 0.4280 INCHES MINIMUM AND 0.4480 INCHES MAXIMUM |

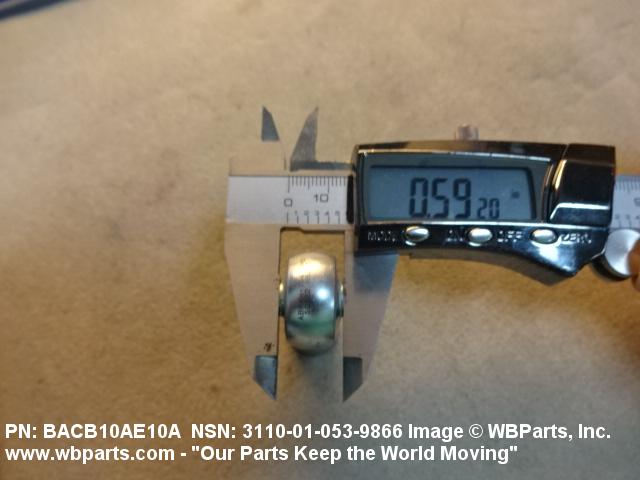

| INNER RING WIDTH | 0.5880 INCHES MINIMUM AND 0.5930 INCHES MAXIMUM |

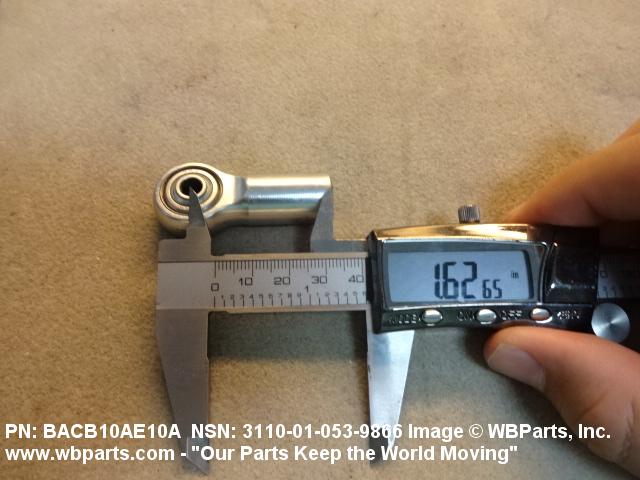

| LENGTH FROM BORE CENTER TO SHANK END | 1.6150 INCHES MINIMUM AND 1.6350 INCHES MAXIMUM |
| SHANK STYLE | 659 HOLLOW |

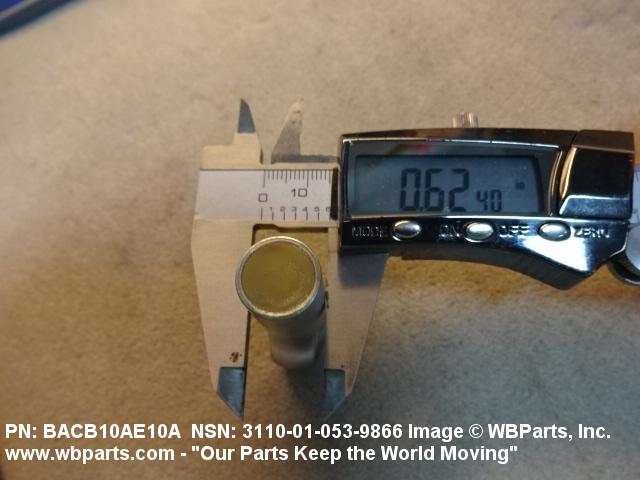

| SHANK DIAMETER | 0.6230 INCHES MINIMUM AND 0.6250 INCHES MAXIMUM |
| SHANK BORE DIAMETER | 0.5150 INCHES NOMINAL |
| SHANK BORE DEPTH | 0.8440 INCHES MINIMUM AND 0.9060 INCHES MAXIMUM |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-23827 MIL SPEC SINGLE MATERIAL RESPONSE |
| SEAL QUANTITY | 2 |
| BEARING SEAL TYPE | CONTACT |
| ALIGNMENT TYPE | SELF-ALIGNING |
| SELF-ALIGNMENT LOCATION | INTERNAL |
| SPECIAL FEATURES | 80 PCT MIN FULL SPECIFIED LUBRICANT,SHANK FULL OF PUTTY |
