NSN 3110-01-006-4014 MS211518C, MS21151-8C, AS21151
Product Details | ROD END BALL BEARING

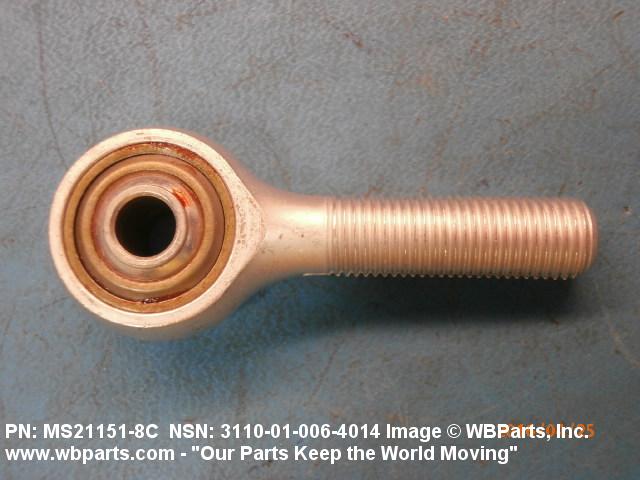

3110-01-006-4014 A special single or multiple-row ball bearing, rigid or self-aligning, and constructed with either a solid or hollow shank, internally or externally threaded.
Part Alternates: MS211518C, MS21151-8C, AS21151, REP4M64FS464, REP4M6-4FS464, REP4M64FS4648C, REP4M6-4FS464-8C, REP4MK68F, REP4MK6-8F, 10107432 , 3110-01-006-4014, 01-006-4014, 3110010064014, 010064014
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 17 JUL 1975 | 01-006-4014 | 00049 ( BEARING, BALL, ROD END ) |

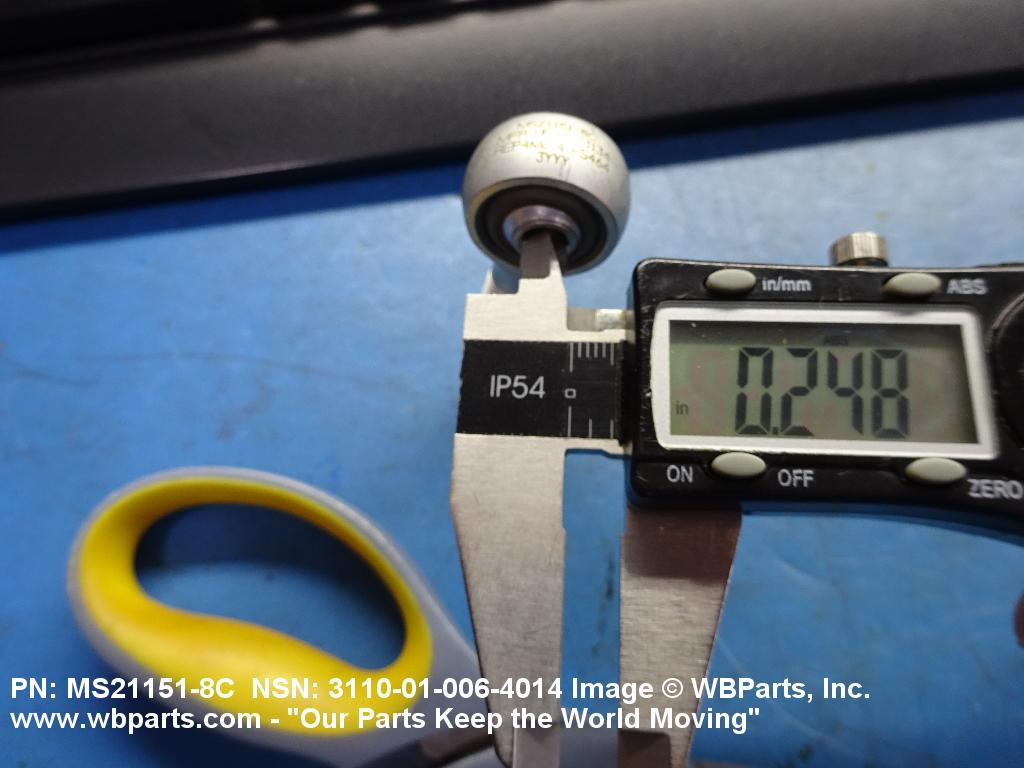

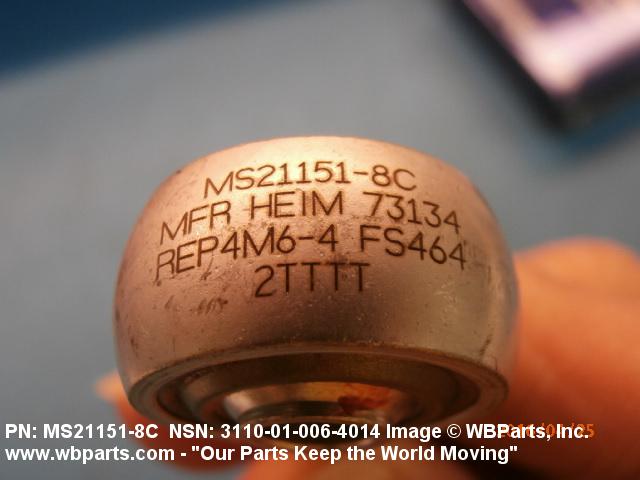

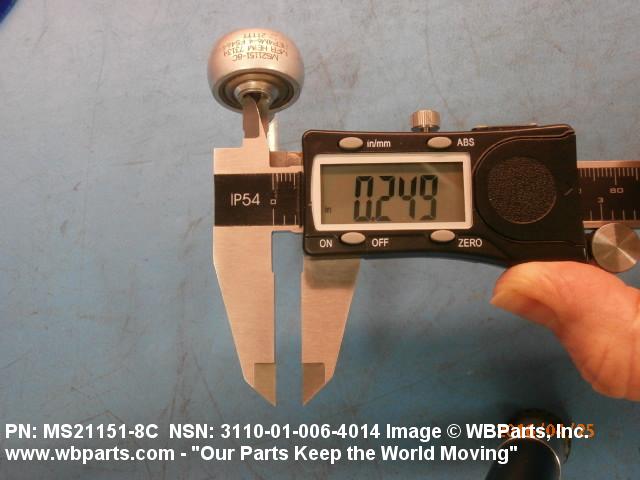

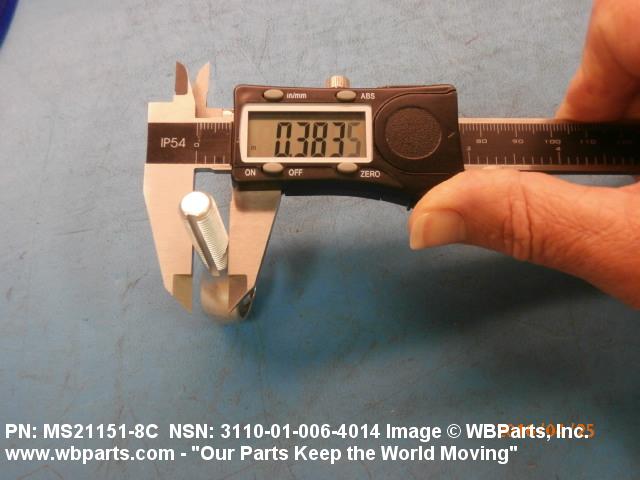

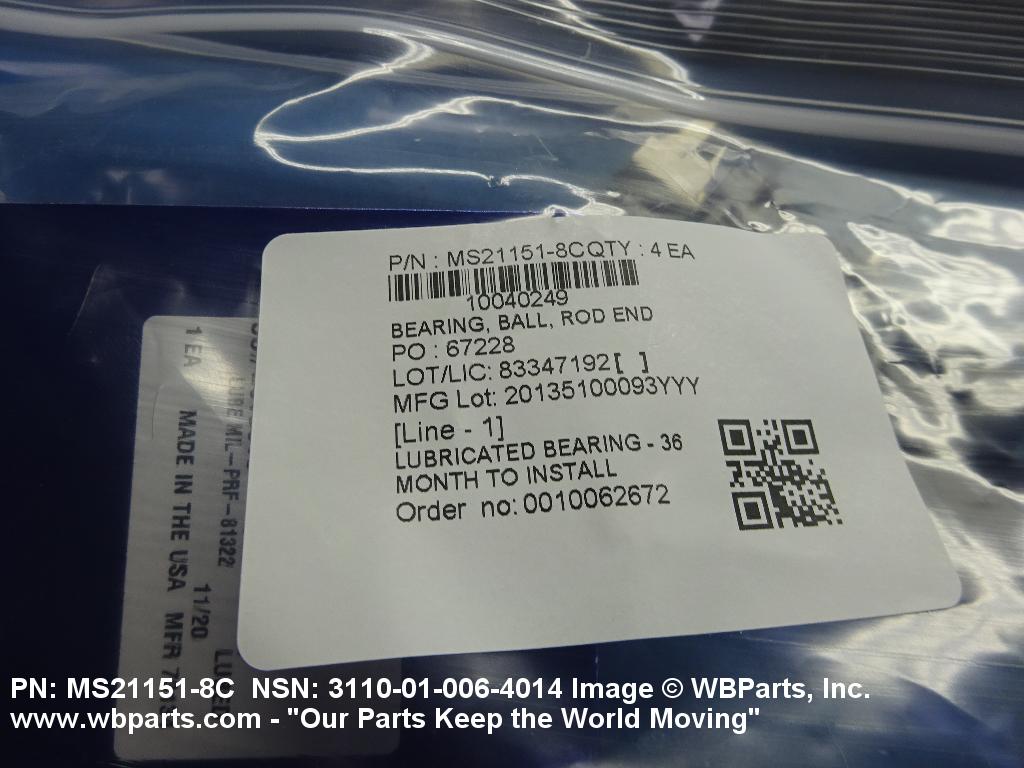

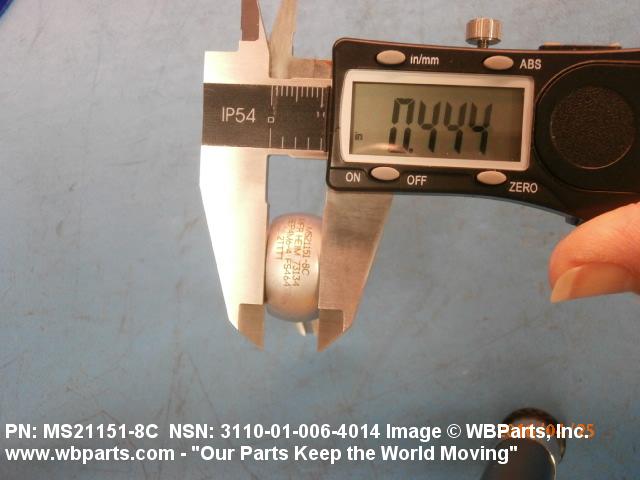

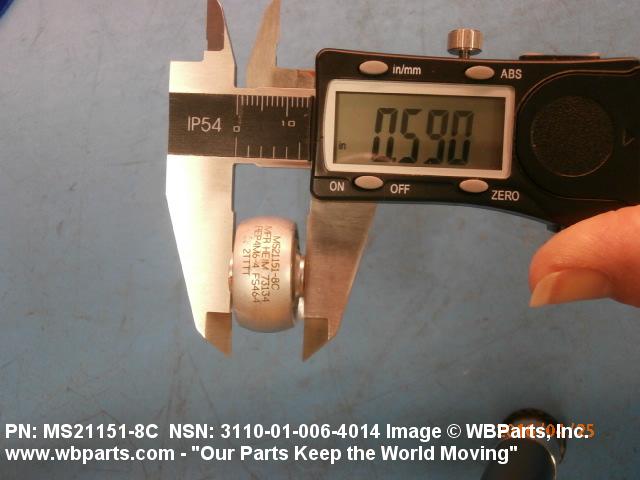

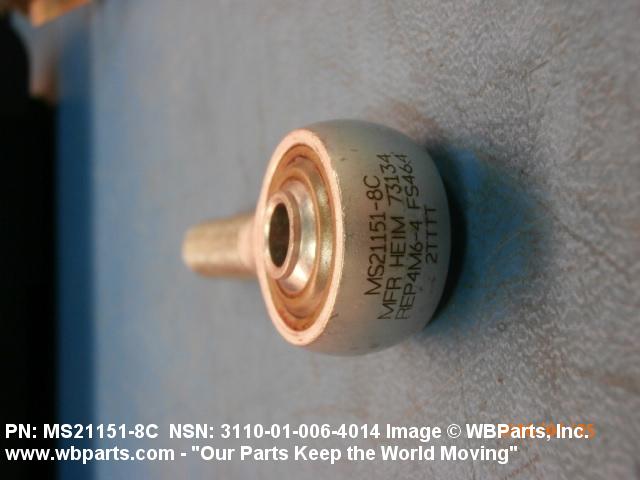

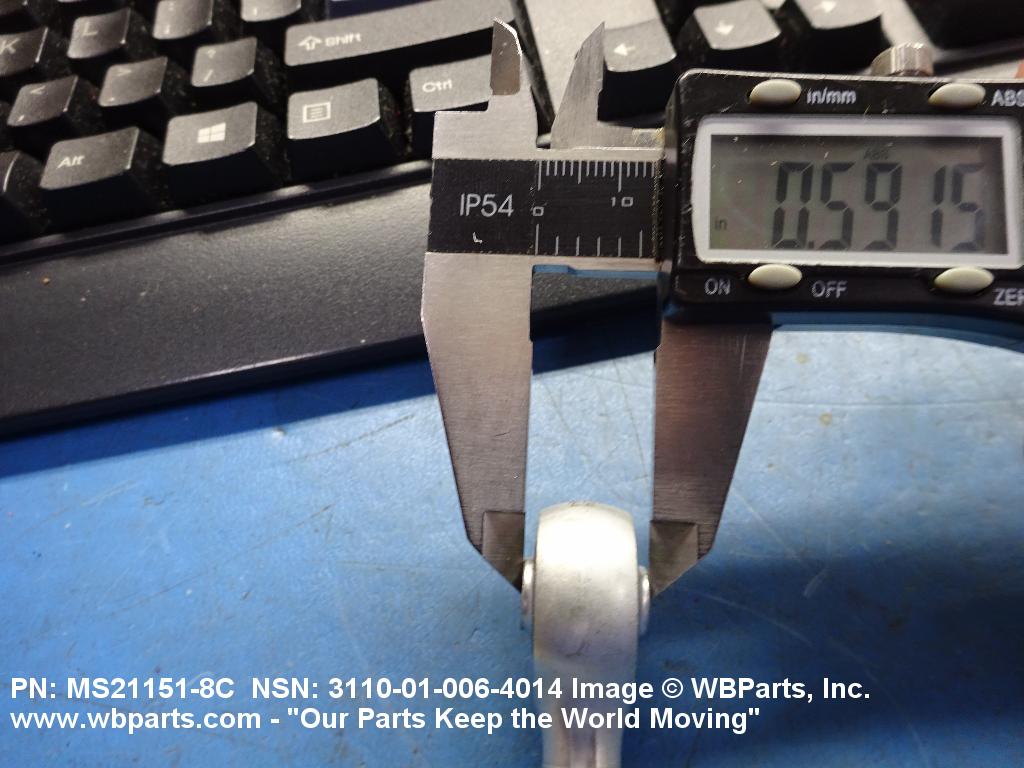

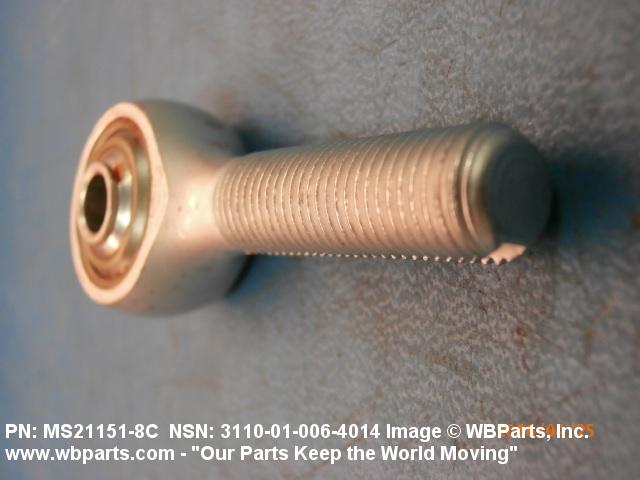

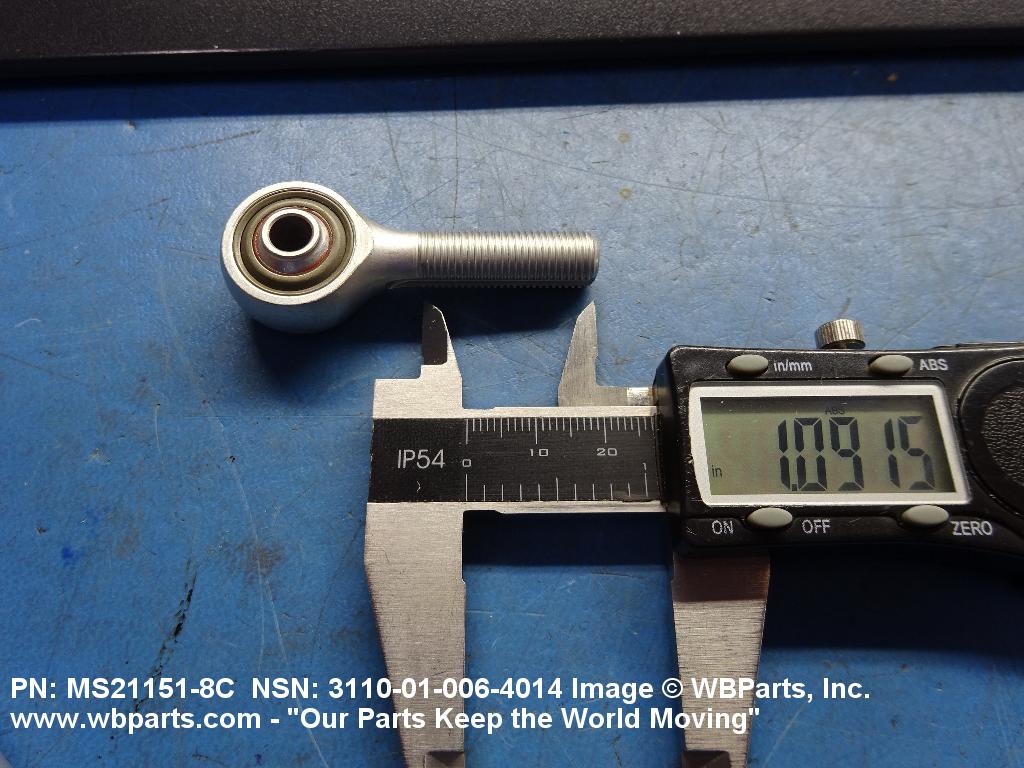

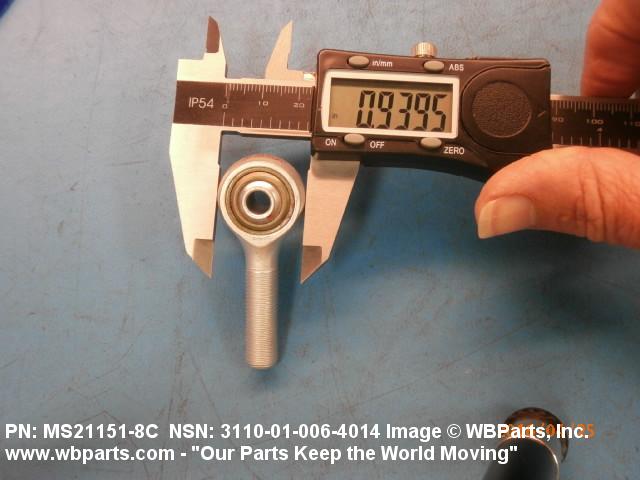

Drawings & Photos | NSN 3110-01-006-4014
Demand History | NSN 3110-01-006-4014
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-01-006-4014 | 2023-04-111 | 8 | United States |
| MS211518C | 2023-04-93 | 1 | US |
| MS211518C | 2022-08-224 | 100 | US |
| 3110-01-006-4014 | 2022-06-178 | 4 | United States |
| 3110-01-006-4014 | 2019-10-284 | 26 | US |
| 3110-01-006-4014 | 2019-03-77 | 40 | us |
| 3110-01-006-4014 | 2018-06-157 | 30 | us |
| 3110-01-006-4014 | 2018-06-156 | 60 | us |
| 3110-01-006-4014 | 2018-02-33 | 1 | DIBBS-RFPs |
| MS211518C | 2016-06-158 | 1 | us |
| MS211518C | 2016-04-109 | 1 | United States |
| MS211518C | 2016-04-102 | 4 | United States |
| MS211518C | 2016-04-102 | 8 | United States |
| MS211518C | 2016-04-102 | 15 | United States |
| MS211518C | 2016-04-102 | 31 | United States |
| MS211518C | 2016-04-102 | 60 | United States |
| MS211518C | 2016-04-102 | 83 | United States |
| 3110-01-006-4014 | 2015-10-302 | 5 | United States |
| MS211518C | 2015-03-71 | 1 | CN |
| MS21151-8C | 2012-11-310 | 13 | |
| 3110-01-006-4014 | 2011-08-243 | 1698 | DIBBS |
| 3110-01-006-4014 | 2011-07-210 | 553 | DIBBS |
| MS211518C | 2011-07-189 | 500 | US |
| 3110-01-006-4014 | 2011-01-08 | 1143 | DIBBS |
| MS211518C | 2010-12-343 | 3 | United States |
| REP4M64FS464 | 2010-12-343 | 3 | United States |
| 3110-01-006-4014 | 2010-11-328 | 50 | United States |
| MS211518C | 2010-09-267 | 1 | United States |
| REP4M64FS464 | 2010-08-221 | 5 | United States |
| 3110-01-006-4014 | 2010-04-91 | 10 | Germany |
| 3110-01-006-4014 | 2010-02-32 | 2 | Germany |
| 3110-01-006-4014 | 2010-01-15 | 20 | Germany |
| 3110-01-006-4014 | 2010-01-05 | 528 | DIBBS |
| 3110-01-006-4014 | 2009-09-246 | 895 | DIBBS |
| MS211518C | 2009-05-132 | 20 | United States |
| 3110-01-006-4014 | 2009-05-125 | 1 | US |
| 3110-01-006-4014 | 2009-04-104 | 242 | DIBBS |
| 3110-01-006-4014 | 2009-01-08 | 1 | US |
| 3110-01-006-4014 | 2009-01-05 | 5 | US |
| 3110-01-006-4014 | 2008-12-344 | 213 | DIBBS |
| 3110-01-006-4014 | 2008-10-283 | 175 | DIBBS |
| 3110-01-006-4014 | 2007-12-347 | 730 | US |
| MS211518C | 2007-12-344 | 23 | US |
| 3110-01-006-4014 | 2007-08-226 | 489 | DIBBS |
| 3110-01-006-4014 | 2007-08-225 | 31 | DIBBS |
| MS211518C | 2006-01-13 | 5 | United States |
Cross Reference | NSN 3110-01-006-4014
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AS21151 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS21151-8C | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS21151-8C | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| REP4M6-4FS464 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| REP4M6-4FS464-8C | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| REP4MK6-8F | 73134 | ROLLER BEARING COMPANY OF AMERICA, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-01-006-4014
Related Products | NSN 3110-01-006-4014
Technical Data | NSN 3110-01-006-4014
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E52100 BALL STEEL COMP E52100 INNER RING STEEL COMP 4130 OUTER RING STEEL COMP 4130 ROD END BODY PLASTIC POLYTETRAFLUOROETHYLENE SEAL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-7420 MIL SPEC SINGLE MATERIAL RESPONSE BALL MIL-S-7420 MIL SPEC SINGLE MATERIAL RESPONSE INNER RING MIL-S-6758 MIL SPEC SINGLE MATERIAL RESPONSE OUTER RING MIL-S-6758 MIL SPEC SINGLE MATERIAL RESPONSE ROD END BODY AMS 3652 ASSN STD SINGLE MATERIAL RESPONSE SEAL |
| SURFACE TREATMENT | CADMIUM ALL EXTERNAL/EXPOSED METAL SURFACES |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 1,CL 2 FED SPEC SINGLE TREATMENT RESPONSE ALL EXTERNAL/EXPOSED METAL SURFACES |
| STYLE DESIGNATOR | 466 DOUBLE ROW, STAGGERED, BALL |
| SELF-ALIGNMENT ANGLE | 10.00 DEGREES NOMINAL |

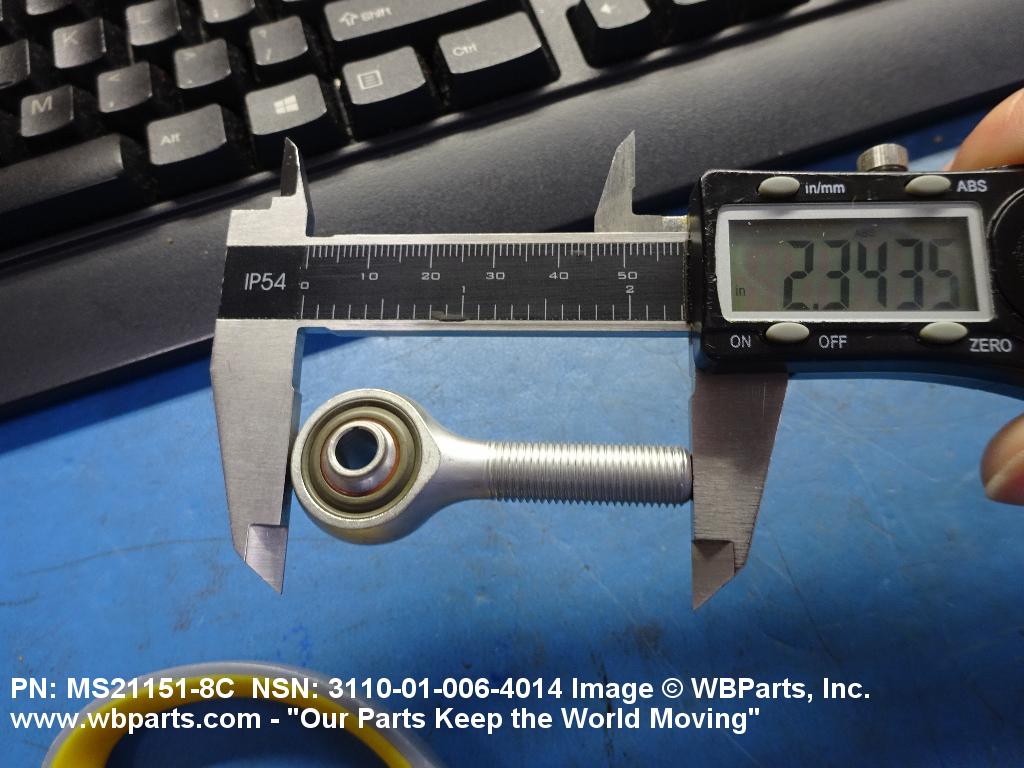

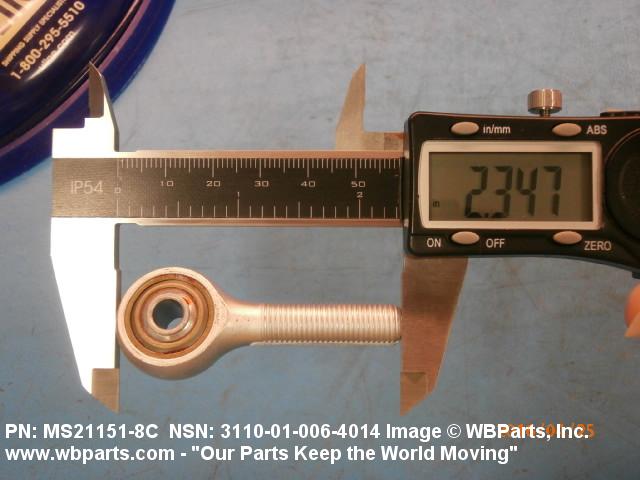

| OVERALL LENGTH | 2.3440 INCHES NOMINAL |
| BORE DIAMETER | 0.2497 INCHES MINIMUM AND 0.2500 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 0.9280 INCHES MINIMUM AND 0.9480 INCHES MAXIMUM |
| OUTER RING WIDTH | 0.4280 INCHES MINIMUM AND 0.4480 INCHES MAXIMUM |
| INNER RING WIDTH | 0.5880 INCHES MINIMUM AND 0.5930 INCHES MAXIMUM |

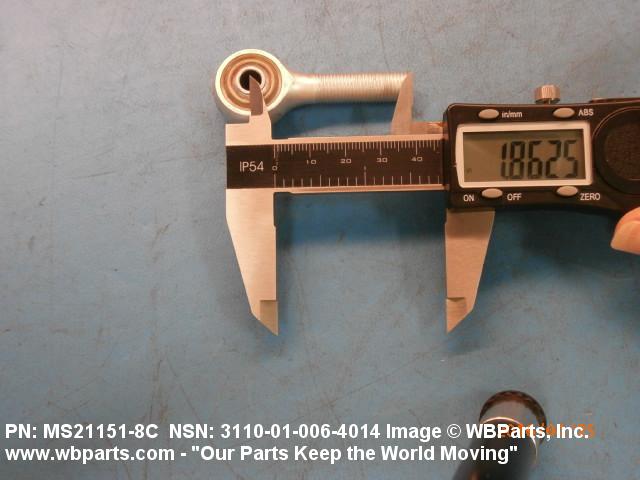

| LENGTH FROM BORE CENTER TO SHANK END | 1.8650 INCHES MINIMUM AND 1.8850 INCHES MAXIMUM |
| SHANK STYLE | 651 EXTERNALLY THREADED |
| SHANK DIAMETER | 0.4280 INCHES MINIMUM AND 0.4480 INCHES MAXIMUM |

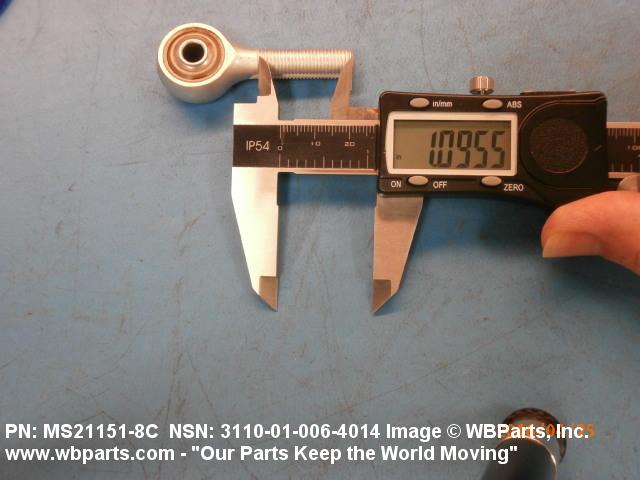

| SHANK THREAD LENGTH | 1.0940 INCHES MINIMUM AND 1.1560 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNJF |

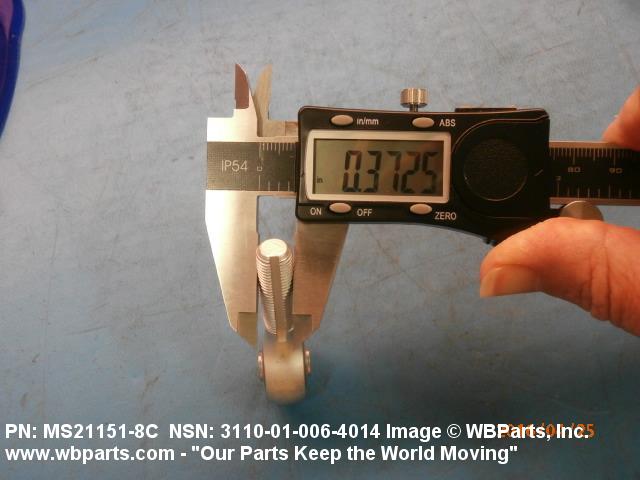

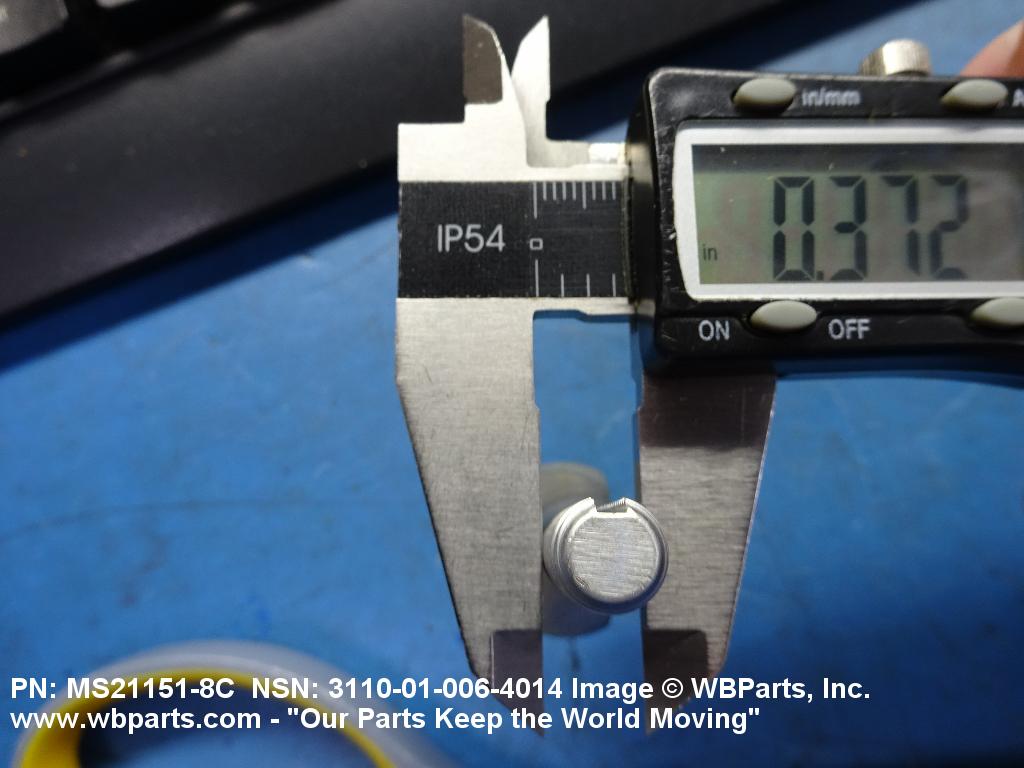

| NOMINAL THREAD SIZE | 0.375 INCHES |

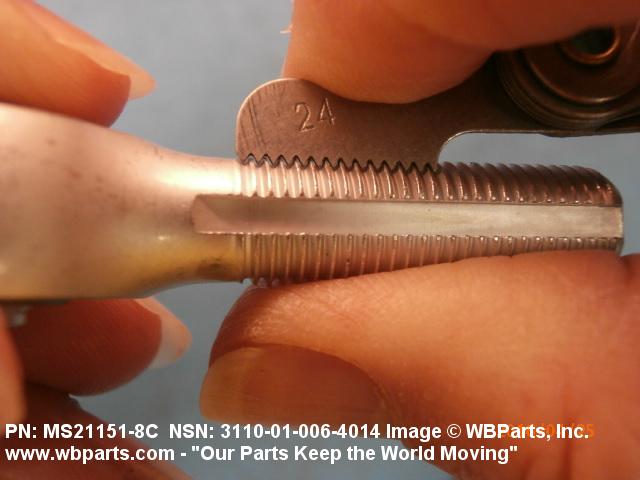

| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-81322 MIL SPEC SINGLE MATERIAL RESPONSE |
| SEAL QUANTITY | 2 |
| BEARING SEAL TYPE | CONTACT |
| ALIGNMENT TYPE | SELF-ALIGNING |
| SELF-ALIGNMENT LOCATION | INTERNAL |
| SPECIAL FEATURES | NAS513 KEYWAY,FILLED WITH 80 PCT OF SPECIFIED LUBRICANT |
Restrictions/Controls & Freight Information | NSN 3110-01-006-4014
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-01-006-4014
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | B | Rotary Wing Aircraft |
| Weapons Systems/End Item or Homogeneous Group | BJ | AH-64 Airframe |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
