NSN 3110-00-974-4141 MS289134C, MS28913-4C, BACB10C134H

Product Details | AIRFRAME ROLLER BEARING

3110-00-974-4141 A cylindrical item in which the inner or outer ring turns upon row(s) of hardened ROLLER, BEARING which roll on a raceway, thus minimizing friction. These items are characterized by their noncorrosive qualities, lightness of weight, inch dimensions rather than metric, inner rings generally projecting beyond the faces of the outer ring, or a very narrow width inner ring having an outside diameter slightly larger than the bore diameter. Designed primarily for use in aircraft assemblies, such as control systems and surfaces of aircraft. Excludes BEARING, ROLLER, CYLINDRICAL.

Part Alternates: MS289134C, MS28913-4C, BACB10C134H, BR4MILG3278, DAS414A, DAS4-14A, DAS414AU41, EAB1030, BR4, BR4H, 3110-00-974-4141, 00-974-4141, 3110009744141, 009744141

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	01 JAN 1962	00-974-4141	00046 ( BEARING, ROLLER, AIRFRAME )

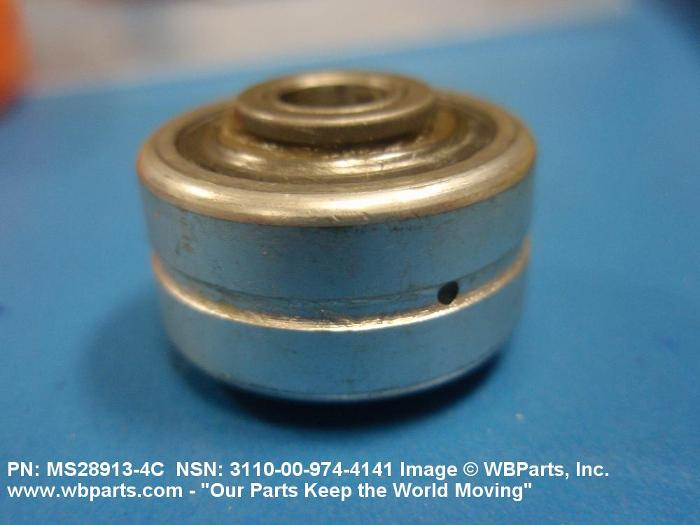

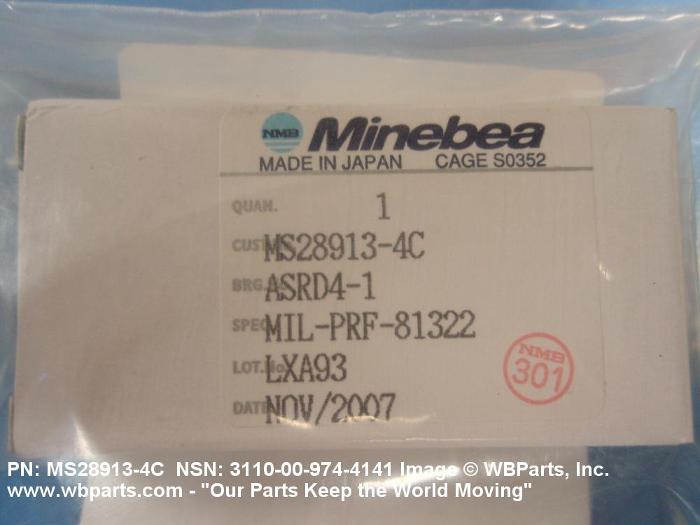

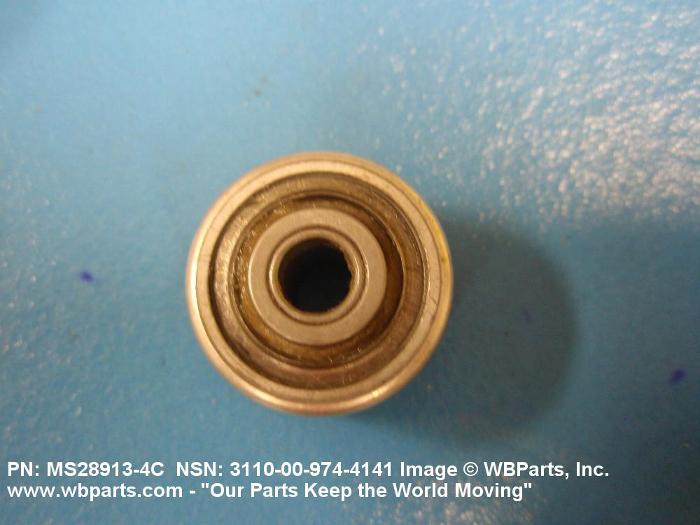

Drawings & Photos | NSN 3110-00-974-4141

Part Number	Request Date	QTY	Origin
3110-00-974-4141	2024-08-240	46	US
MS289134C	2021-09-266	103	US
3110-00-974-4141	2021-05-125	30	US
3110-00-974-4141	2021-05-125	150	US
DAS414A	2021-05-125	30	US
DAS414A	2021-05-125	150	US
3110-00-974-4141	2021-02-33	13	US
3110-00-974-4141	2020-08-217	10	United Kingdom
3110-00-974-4141	2019-08-241	20	AR
MS289134C	2018-08-241	1	United States
MS289134C	2018-08-241	2	United States
MS289134C	2018-08-241	6	United States
MS289134C	2018-08-241	10	United States
MS289134C	2018-08-241	20	United States
MS289134C	2018-08-241	40	United States
MS289134C	2018-08-241	75	United States
MS289134C	2018-08-241	120	United States
MS289134C	2018-08-241	300	United States
MS289134C	2018-06-170	32	KR
3110-00-974-4141	2018-02-45	5	South Korea
3110-00-974-4141	2018-02-45	5	South Korea
3110-00-974-4141	2016-11-307	8	US
BACB10C134H	2016-10-294	8	United States
DAS414A	2015-10-301	10	United States
DAS414A	2015-10-301	20	United States
DAS414A	2014-01-27	4	US
3110-00-974-4141	2012-04-95	99	DIBBS
MS289134C	2012-02-45	18	US
MS289134C	2011-12-356	206	us
DAS4-14A	2011-11-315	15
MS289134C	2011-06-171	2	France
3110-00-974-4141	2011-05-144	10	United States
MS289134C	2011-05-143	1	Italy
3110-00-974-4141	2011-04-101	1150	DIBBS
3110-00-974-4141	2011-03-68	26	United States
3110-00-974-4141	2011-03-61	15	US
3110-00-974-4141	2011-02-53	467	DIBBS
MS289134C	2010-10-300	10	US
3110-00-974-4141	2010-10-292	327	DIBBS
3110-00-974-4141	2010-10-277	4	MX
BACB10C134H	2010-06-181	85	United States
3110-00-974-4141	2009-06-154	30	US
MS289134C	2009-05-126	2	United States
MS289134C	2008-12-352	55	US
MS289134C	2008-11-322	24	United States
BACB10C134H	2008-08-215	1	US
MS289134C	2008-06-157	1	New Zealand
MS289134C	2008-04-95	300	United Kingdom
3110-00-974-4141	2008-01-29	20	United Kingdom
MS289134C	2007-12-354	100	us
3110-00-974-4141	2007-11-326	10	United Kingdom

Cross Reference | NSN 3110-00-974-4141

Part Number	Cage Code	Manufacturer
BACB10C134H	17765	BOEING COMPANY, THE DBA BOEING
BACB10C134H	81205	THE BOEING COMPANY DBA BOEING
BR4	77896	REXNORD INDUSTRIES, LLC DIV BEARING OPERATION
BR4H	77896	REXNORD INDUSTRIES, LLC DIV BEARING OPERATION
BR4MILG3278	77896	REXNORD INDUSTRIES, LLC DIV BEARING OPERATION
DAS4-14A	77896	REXNORD INDUSTRIES, LLC DIV BEARING OPERATION
DAS4-14A(U)-41	77896	REXNORD INDUSTRIES, LLC DIV BEARING OPERATION
EAB1030	81996	U S ARMY AVIATION AND MISSILE COMMAND
MS28913-4C	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS28913-4C	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3110-00-974-4141

Compare

Related Products | NSN 3110-00-974-4141

3110-00-974-5353, 3110-00-974-5354, 3110-00-974-6307, 3110-00-974-6592, 3110-00-974-6593

Technical Data | NSN 3110-00-974-4141

Characteristic	Specifications
MATERIAL	STEEL INNER RING STEEL OUTER RING STEEL RETAINER STEEL ROLLER RUBBER SYNTHETIC SEAL
SURFACE TREATMENT	CADMIUM ALL EXTERNAL/EXPOSED METAL SURFACES
STYLE DESIGNATOR	276 CONCAVE ROLLERS, DOUBLE CLOSURE, SELF ALIGNING
BORE DIAMETER	0.2495 INCHES MINIMUM AND 0.2500 INCHES MAXIMUM
OVERALL OUTSIDE DIAMETER	0.9009 INCHES MINIMUM AND 0.9014 INCHES MAXIMUM
OUTER RING WIDTH	0.4640 INCHES NOMINAL
INNER RING WIDTH	0.6200 INCHES MINIMUM AND 0.6250 INCHES MAXIMUM
LUBRICATION MATERIAL	GREASE
LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION	MIL-G-23827 MIL SPEC SINGLE MATERIAL RESPONSE
SEAL QUANTITY	2
BEARING SEAL TYPE	CONTACT
SPECIAL FEATURES	LUBRICANT HOLES AND GROOVE IN OUTER RING,TWO HEAT TREATED SLEEVES AND COLLARS ON INNER RING,RADIAL CLEARANCE 0.0002 IN. TO 0.0017 IN.

Restrictions/Controls & Freight Information | NSN 3110-00-974-4141

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	114820	BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	742	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3110-00-974-4141

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
