NSN 3110-00-918-9366 29680B29620B00, 00-918-9366, 009189366
Product Details | TAPERED ROLLER BEARING
3110-00-918-9366 A cylindrical device in which the inner cone or outer cup turns upon a single or double row of tapered hardened rollers which roll easily in a race, thus minimizing friction and designed to carry a radial load and capable of sustaining axial thrust. Excludes BEARING, ROLLER, THRUST.
Part Alternates: 29680B29620B00, 3110-00-918-9366, 00-918-9366, 3110009189366, 009189366
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1960 | 00-918-9366 | 00021 ( BEARING, ROLLER, TAPERED ) |

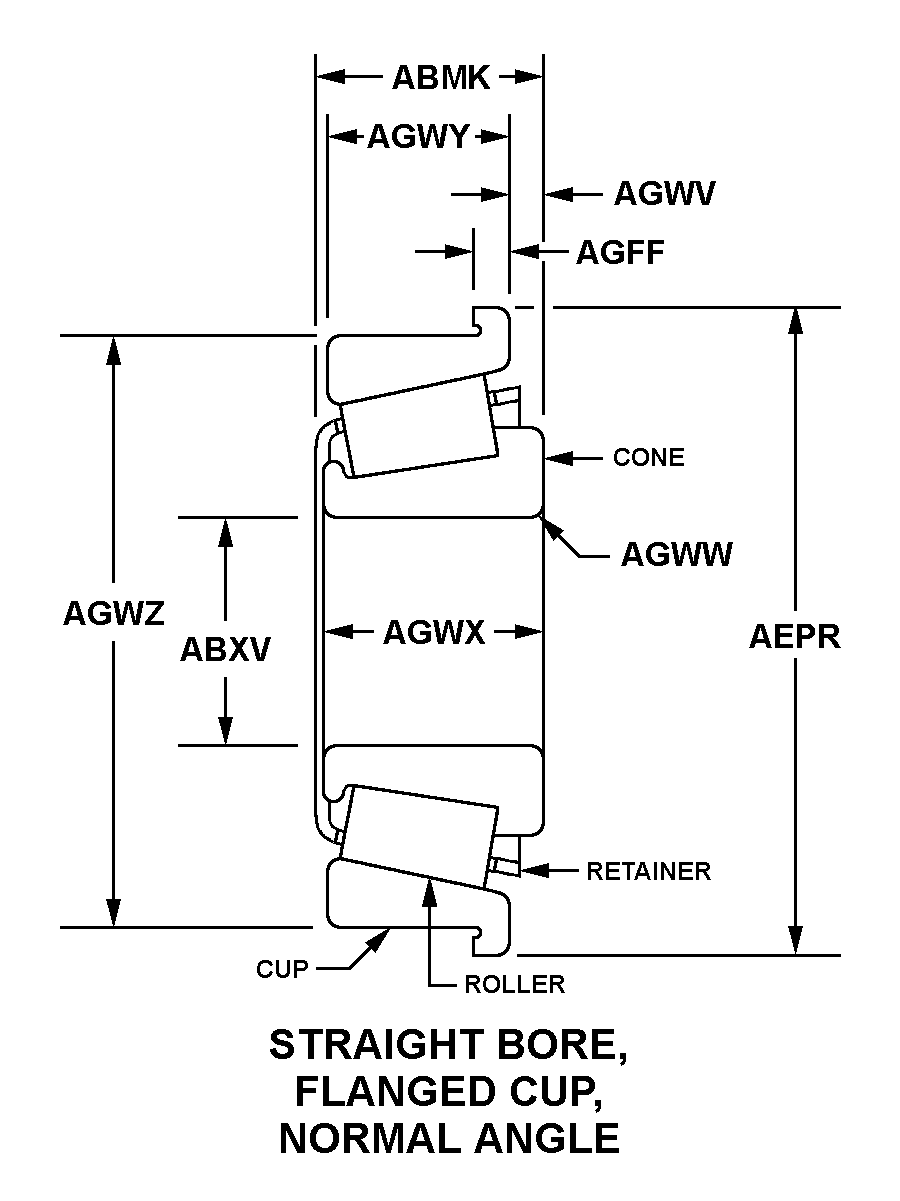

Drawings & Photos | NSN 3110-00-918-9366
Cross Reference | NSN 3110-00-918-9366
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 29680B29620B00 | 60038 | TIMKEN CORPORATION, THE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3110-00-918-9366
Technical Data | NSN 3110-00-918-9366
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CONE STEEL CUP COPPER ALLOY RETAINER STEEL ROLLER |
| STYLE DESIGNATOR | 358 STRAIGHT BORE, FLANGED CUP, NORMAL ANGLE |
| OVERALL WIDTH | 1.0000 INCHES NOMINAL |
| BORE DIAMETER | 2.7810 INCHES NOMINAL |
| FLANGE OUTSIDE DIAMETER | 4.5900 INCHES NOMINAL |
| FLANGE WIDTH | 0.1563 INCHES NOMINAL |
| BACKFACE CORNER RADIUS | 0.1300 INCHES NOMINAL |
| STANDOUT WIDTH | 0.4063 INCHES NOMINAL |
| CONE CORNER RADIUS | 0.5000 INCHES NOMINAL |
| CONE WIDTH | 1.0000 INCHES NOMINAL |
| CUP WIDTH | 0.7500 INCHES NOMINAL |
| CUP OUTSIDE DIAMETER | 4.4375 INCHES NOMINAL |
| STANDARD TOLERANCE DESIGNATION | AFBMA CLASS 00 |
Restrictions/Controls & Freight Information | NSN 3110-00-918-9366
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
