NSN 3110-00-801-7718 PZ308ZAX41 0-28 , PZ308ZAX41028, Z308
Product Details | ANNULAR BALL BEARING

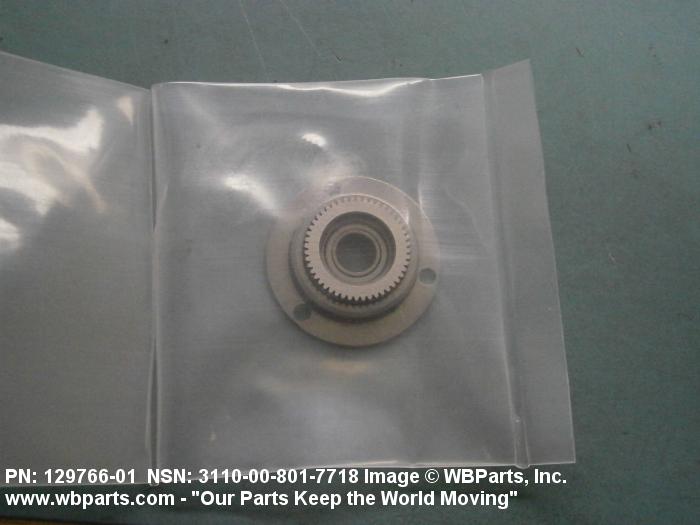

3110-00-801-7718 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Part Alternates: PZ308ZAX41 0-28 , PZ308ZAX41028, Z308, 12976601, 129766-01, 2930518, 4191W, 3110-00-801-7718, 00-801-7718, 3110008017718, 008017718
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-801-7718 | 00014 ( BEARING, BALL, ANNULAR ) |
Drawings & Photos | NSN 3110-00-801-7718
Demand History | NSN 3110-00-801-7718
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-00-801-7718 | 2019-07-25 | 50 | US |
| 3110-00-801-7718 | 2014-09-17 | 12 | United States |
| 12976601 | 2013-06-28 | 8 | Italy |
| 3110-00-801-7718 | 2012-07-27 | 40 | Turkey |
| 3110-00-801-7718 | 2009-06-15 | 337 | DIBBS |
| 3110-00-801-7718 | 2009-04-15 | 100 | DIBBS |
| 3110-00-801-7718 | 2007-02-15 | 331 | DIBBS |
Cross Reference | NSN 3110-00-801-7718
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 129766-01 | 35351 | GE AVIATION SYSTEMS LLC |
| 129766-01 | 40920 | MPB CORPORATION DBA TIMKEN SUPER PRECISION |
| 129766-01 | 83086 | NEW HAMPSHIRE BALL BEARINGS, INC. DIV HITECH DIVISION |
| 2930518 | 24617 | GENERAL MOTORS CORP |
| 2930518 | 43334 | GENERAL MOTORS CORP DELCO MORAINE NDH DIV |
| 4191W | 83086 | NEW HAMPSHIRE BALL BEARINGS, INC. DIV HITECH DIVISION |
| PZ308ZAX41 0-28 | 70854 | BARDEN CORPORATION, THE DIV BARDEN PRECISION BEARINGS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-801-7718
Related Products | NSN 3110-00-801-7718
Technical Data | NSN 3110-00-801-7718
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E52100 BALL STEEL COMP E52100 INNER RACE STEEL COMP E52100 INNER RING STEEL COMP E52100 OUTER RING STEEL CORROSION RESISTING RETAINER PLASTIC POLYTETRAFLUOROETHYLENE SEPARATOR SLUG STEEL SHIELD |
| SURFACE TREATMENT | PHOSPHATE BALL PHOSPHATE INNER RACE PHOSPHATE INNER RING PHOSPHATE OUTER RING |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | SB1504,FSCM 35351 MFR REF SINGLE TREATMENT RESPONSE BALL SB1504,FSCM 35351 MFR REF SINGLE TREATMENT RESPONSE INNER RACE SB1504,FSCM 35351 MFR REF SINGLE TREATMENT RESPONSE INNER RING SB1504,FSCM 35351 MFR REF SINGLE TREATMENT RESPONSE OUTER RING |
| BORE DIAMETER | 0.1875 INCHES NOMINAL |

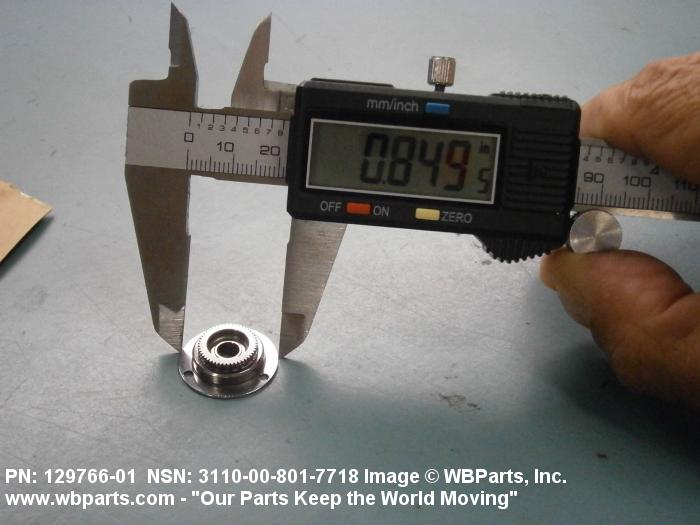

| FLANGE OUTSIDE DIAMETER | 0.8700 INCHES NOMINAL |

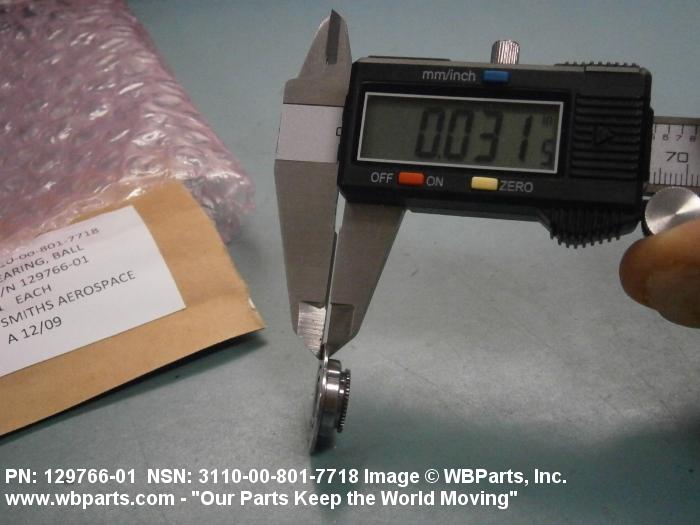

| FLANGE WIDTH | 0.0320 INCHES NOMINAL |

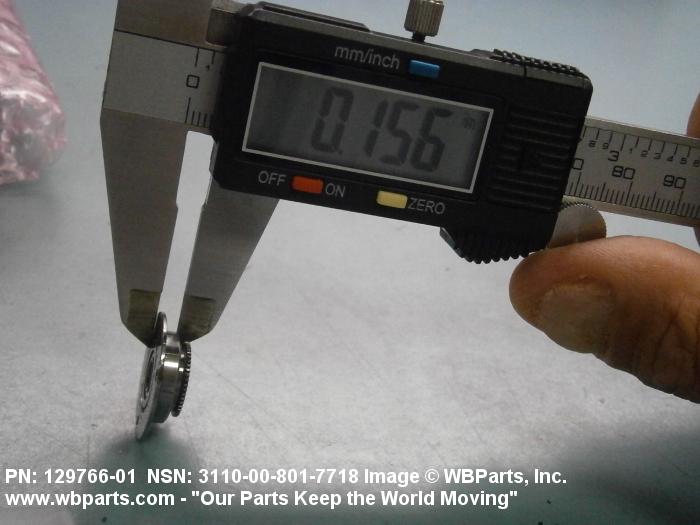

| OUTER RING WIDTH | 0.1562 INCHES NOMINAL |
| INNER RING WIDTH | 0.1562 INCHES NOMINAL |

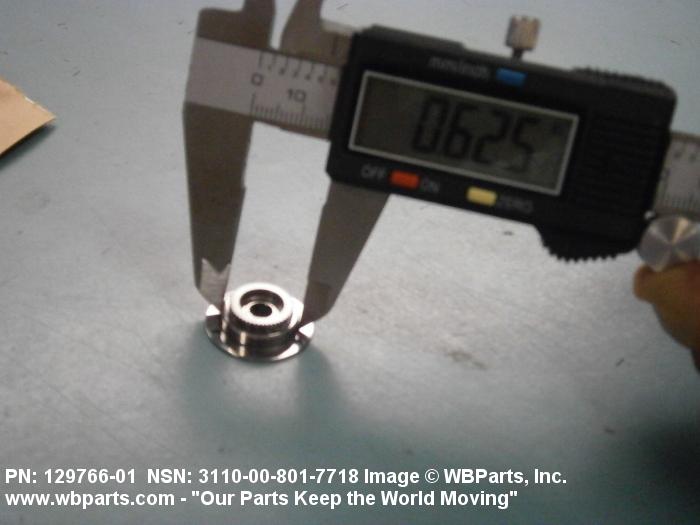

| OUTER RING OUTSIDE DIAMETER | 0.6250 INCHES NOMINAL |
| LUBRICATION MATERIAL | OIL |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | SM2049-01,FSCM 35351 MFR REF SINGLE MATERIAL RESPONSE |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.7 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | PRESSED |
| SHIELD QUANTITY | 2 |
| ALIGNMENT TYPE | RIGID |
| LOAD DIRECTION | ANGULAR |
| INTERNAL CLEARANCE | 0.0003 INCHES MINIMUM RADIAL AND 0.0005 INCHES MAXIMUM RADIAL |
| CONTACT ANGLE | 7.7 DEGREES MINIMUM AND 13.7 DEGREES MAXIMUM |
| SPECIAL FEATURES | THREE RING ASSEMBLY CONSISTING OF SINGLE ROW BEARING WITHIN DOUBLE ROW BEARING; THREE EQUALLY SPACED HOLES THROUGH FLANGE ON 0.750 IN. NOM BOLT CIRCLE,0.083 IN. DIA MIN TO 0.085 IN. DIA MAX |
| MANUFACTURERS CODE | 70854 |
| DESIGN CONTROL REFERENCE | Z308 |
Restrictions/Controls & Freight Information | NSN 3110-00-801-7718
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
