NSN 3110-00-801-9900 PWA818033, PWA8180-33, 00-801-9900
Product Details | ANNULAR BALL BEARING
3110-00-801-9900 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Part Alternates: PWA818033, PWA8180-33, 3110-00-801-9900, 00-801-9900, 3110008019900, 008019900
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1962 | 00-801-9900 | 00014 ( BEARING, BALL, ANNULAR ) |

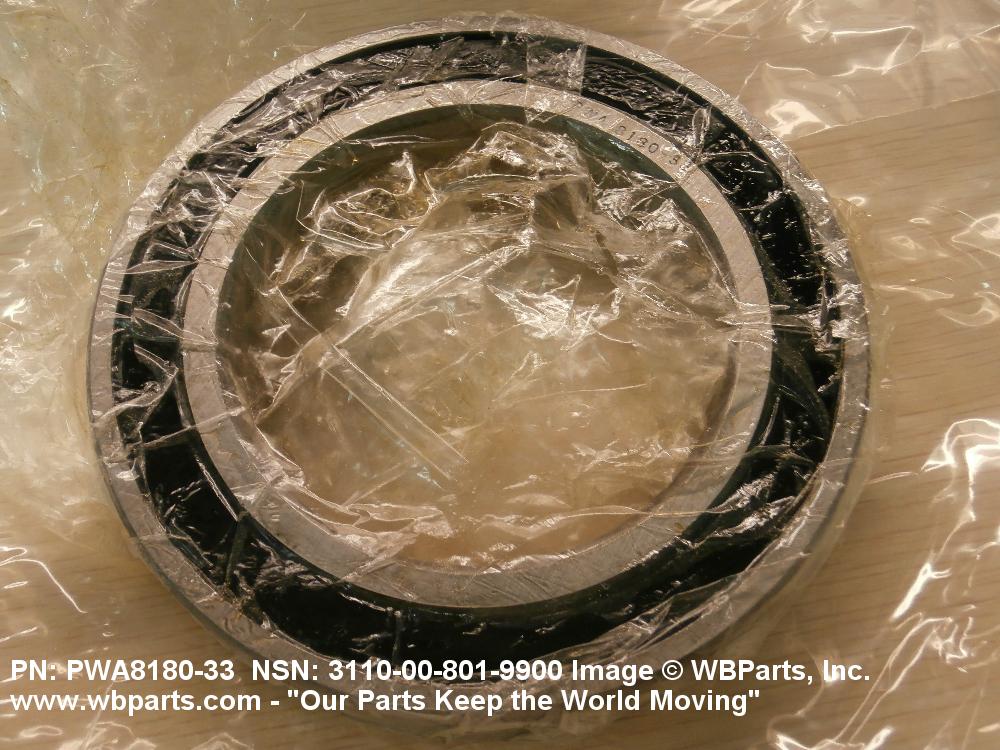

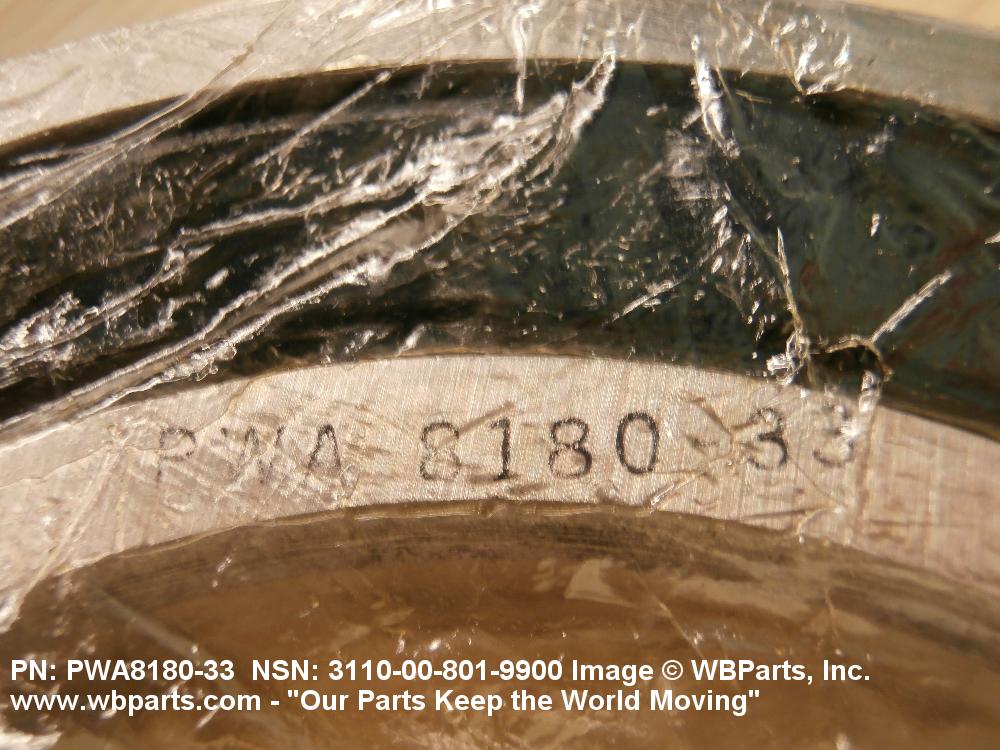

Drawings & Photos | NSN 3110-00-801-9900
Demand History | NSN 3110-00-801-9900
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-00-801-9900 | 2018-09-273 | 1 | Iran |
| 3110-00-801-9900 | 2018-07-212 | 1 | Iran |
| 3110-00-801-9900 | 2017-11-312 | 1 | Greece |
| 3110-00-801-9900 | 2016-10-277 | 1 | US |
| 3110-00-801-9900 | 2014-05-133 | 1 | United Kingdom |
| 3110-00-801-9900 | 2013-11-316 | 2 | US |
| 3110-00-801-9900 | 2012-08-223 | 2 | United States |
| 3110-00-801-9900 | 2012-07-193 | 4 | US |
| 3110-00-801-9900 | 2009-11-313 | 7 | DIBBS |
| 3110-00-801-9900 | 2009-06-162 | 4 | DIBBS |
| 3110-00-801-9900 | 2009-05-151 | 6 | DIBBS |
| 3110-00-801-9900 | 2009-04-105 | 4 | DIBBS |
| 3110-00-801-9900 | 2008-11-333 | 4 | DIBBS |
| 3110-00-801-9900 | 2008-07-206 | 6 | DIBBS |
| 3110-00-801-9900 | 2008-04-94 | 10 | DIBBS |
| 3110-00-801-9900 | 2008-03-79 | 10 | DIBBS |
| 3110-00-801-9900 | 2007-08-227 | 6 | DIBBS |
| 3110-00-801-9900 | 2007-08-227 | 21 | DIBBS |
| 3110-00-801-9900 | 2007-05-134 | 21 | DIBBS |
| PWA818033 | 2006-01-16 | 50 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-801-9900
Related Products | NSN 3110-00-801-9900
Technical Data | NSN 3110-00-801-9900
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E52100 BALL STEEL COMP E52100 INNER RING STEEL COMP E52100 OUTER RING PLASTIC PHENOLIC RETAINER |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE BALL 66 FED STD SINGLE MATERIAL RESPONSE INNER RING 66 FED STD SINGLE MATERIAL RESPONSE OUTER RING |
| STYLE DESIGNATOR | 10D COUNTERBORED OUTER RING, NON-SEPARABLE |
| OVERALL WIDTH | 0.8656 INCHES MINIMUM AND 0.8661 INCHES MAXIMUM |
| BORE DIAMETER | 3.1494 INCHES MINIMUM AND 3.1496 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 4.9209 INCHES MINIMUM AND 4.9213 INCHES MAXIMUM |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | MACHINED |
| LOAD DIRECTION | RADIAL |
| INTERNAL CLEARANCE | 0.0014 INCHES MINIMUM RADIAL AND 0.0019 INCHES MAXIMUM RADIAL |
| MANUFACTURERS CODE | 77445 |
| DESIGN CONTROL REFERENCE | PWA8180-33 |
Restrictions/Controls & Freight Information | NSN 3110-00-801-9900
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-801-9900
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
