NSN 3110-00-799-9145 GB525J4BF, REP4H6FS243, REP4H6FS570
Product Details | ROD END BALL BEARING
3110-00-799-9145 A special single or multiple-row ball bearing, rigid or self-aligning, and constructed with either a solid or hollow shank, internally or externally threaded.
Part Alternates: GB525J4BF, REP4H6FS243, REP4H6FS570, 3110-00-799-9145, 00-799-9145, 3110007999145, 007999145
Bearings | Bearings, Antifriction, Unmounted
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
31 | 01 JAN 1962 | 00-799-9145 | 00049 ( BEARING, BALL, ROD END ) |
Cross Reference | NSN 3110-00-799-9145
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-799-9145
Related Products | NSN 3110-00-799-9145
Technical Data | NSN 3110-00-799-9145
Characteristic | Specifications |
---|---|
MATERIAL | STEEL BALL STEEL INNER RING STEEL OUTER RING RUBBER SYNTHETIC SEAL STEEL SHAFT |
SURFACE TREATMENT | CADMIUM ALL EXTERNAL/EXPOSED METAL SURFACES |

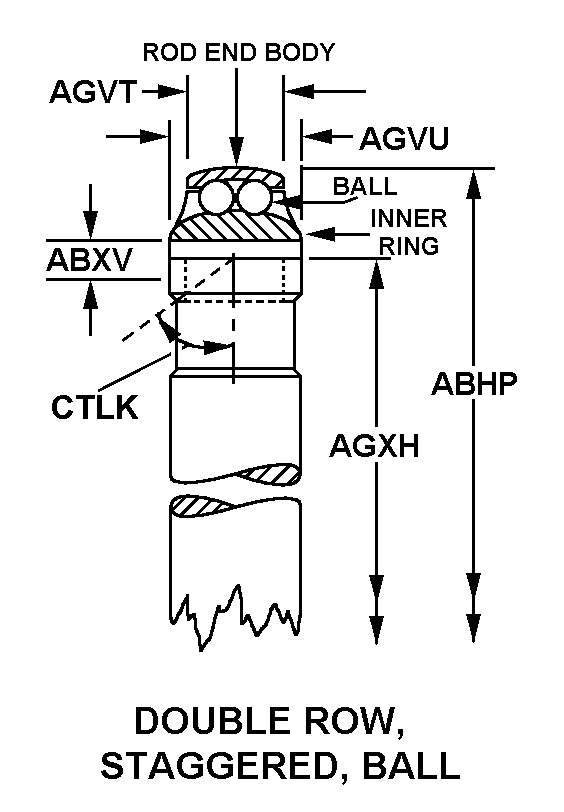

STYLE DESIGNATOR | 466 DOUBLE ROW, STAGGERED, BALL |
SELF-ALIGNMENT ANGLE | 10.00 DEGREES NOMINAL |
OVERALL LENGTH | 2.3340 INCHES MINIMUM AND 2.3540 INCHES MAXIMUM |
BORE DIAMETER | 0.2497 INCHES MINIMUM AND 0.2500 INCHES MAXIMUM |
OVERALL OUTSIDE DIAMETER | 0.9280 INCHES MINIMUM AND 0.9480 INCHES MAXIMUM |
OUTER RING WIDTH | 0.4280 INCHES MINIMUM AND 0.4480 INCHES MAXIMUM |
INNER RING WIDTH | 0.5880 INCHES MINIMUM AND 0.5930 INCHES MAXIMUM |
LENGTH FROM BORE CENTER TO SHANK END | 1.8650 INCHES MINIMUM AND 1.8850 INCHES MAXIMUM |

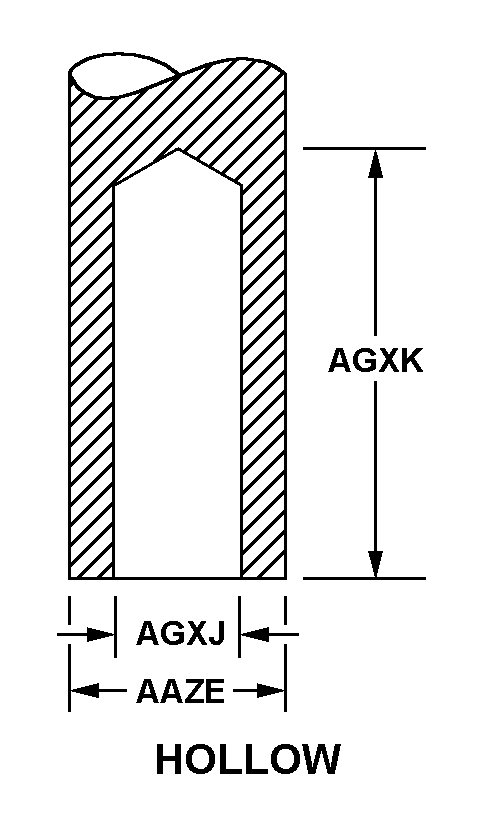

SHANK STYLE | 659 HOLLOW |
SHANK DIAMETER | 0.6230 INCHES MINIMUM AND 0.6250 INCHES MAXIMUM |
SHANK BORE DIAMETER | 0.3860 INCHES NOMINAL |
SHANK BORE DEPTH | 1.2190 INCHES NOMINAL |
LUBRICATION MATERIAL | GREASE |
LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-23827 MIL SPEC SINGLE MATERIAL RESPONSE |
SEAL QUANTITY | 2 |
BEARING SEAL TYPE | CONTACT |
ALIGNMENT TYPE | SELF-ALIGNING |
SELF-ALIGNMENT LOCATION | INTERNAL |
SPECIAL FEATURES | SHANK FILLED WITH NARCO NO. 3119 PUTTY |
