NSN 3110-00-766-6924 MS211514, MS21151-4, AN946RE3M62N

Product Details | ROD END BALL BEARING

3110-00-766-6924 A special single or multiple-row ball bearing, rigid or self-aligning, and constructed with either a solid or hollow shank, internally or externally threaded.

Part Alternates: MS211514, MS21151-4, AN946RE3M62N, AN946RE3M6-2N, AS21151 , AS6039, BACB10A435, BACB10A72, REP3M62N1, REP-3-M-6-2-N-1, REP3M62NF3210, REP3M6-2NF3210, REP3M62NFS464, REP3M6-2NFS464, REP3M64F, REP3M6-4F, REPEM62N, REPEM6-2N, 10126830 , 273884, 2-73884, 2738841, 2-73884-1, 3110-00-766-6924, 00-766-6924, 3110007666924, 007666924

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	15 OCT 1972	00-766-6924	00049 ( BEARING, BALL, ROD END )

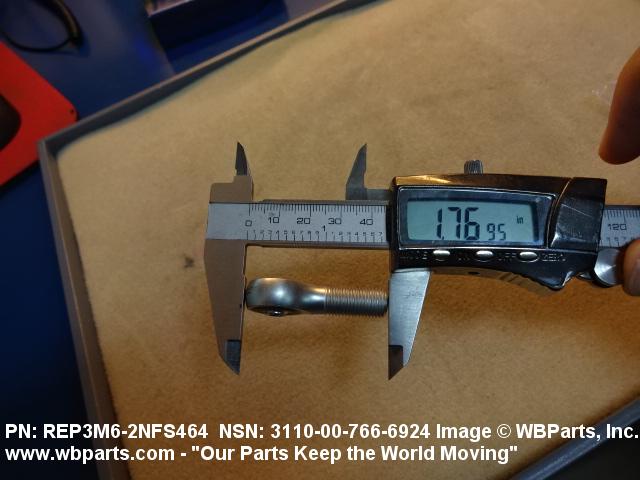

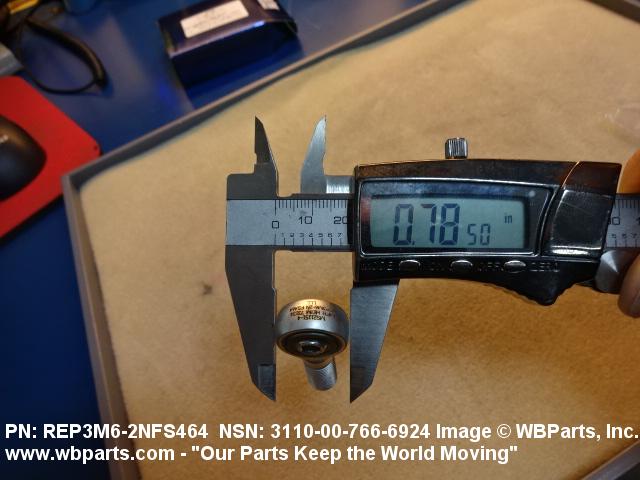

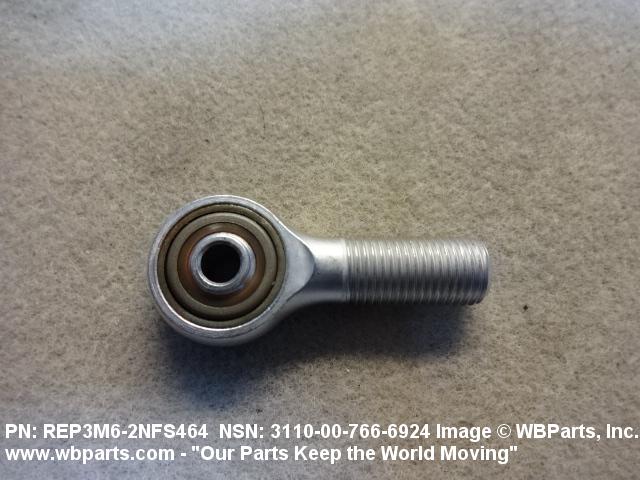

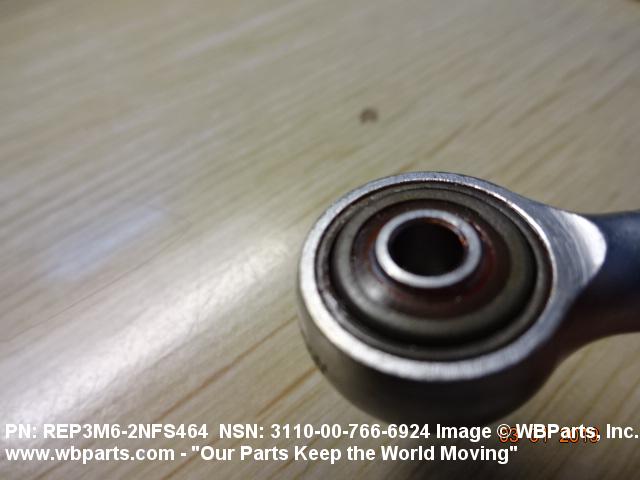

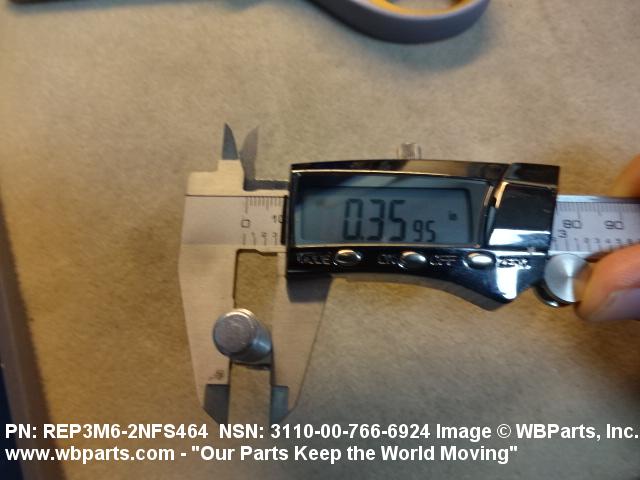

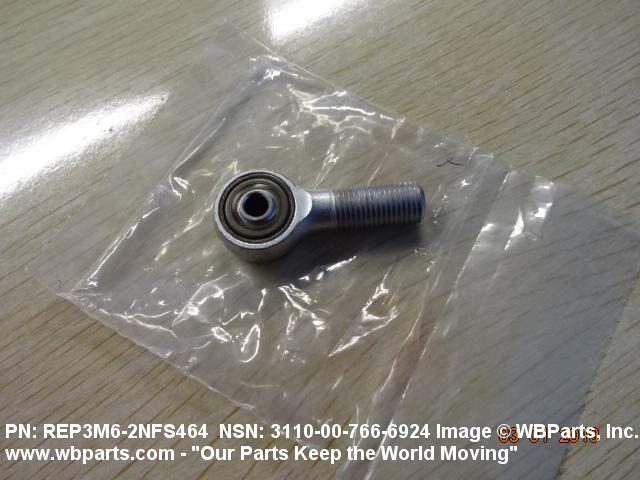

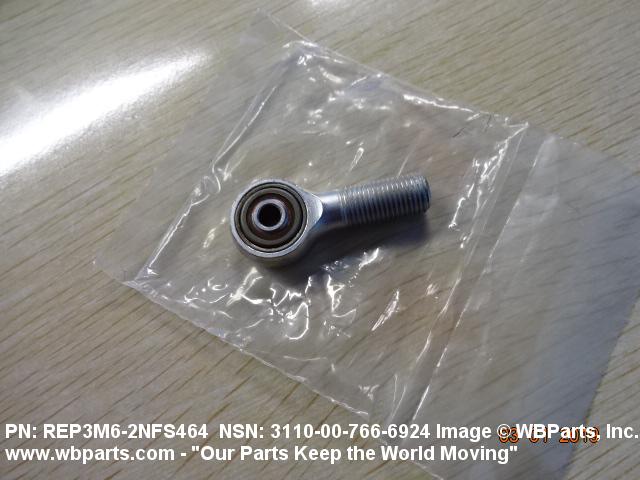

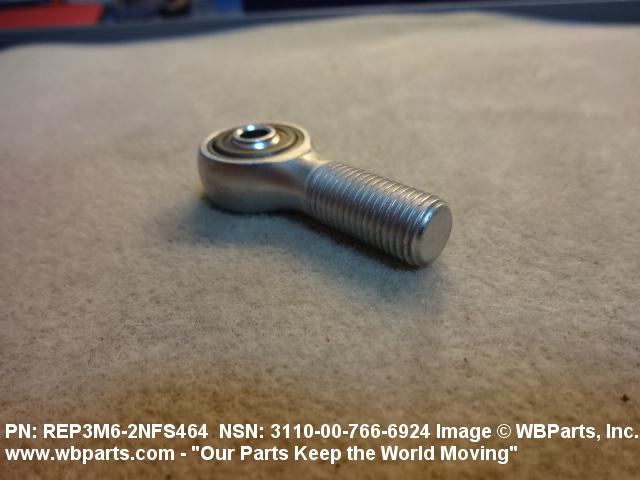

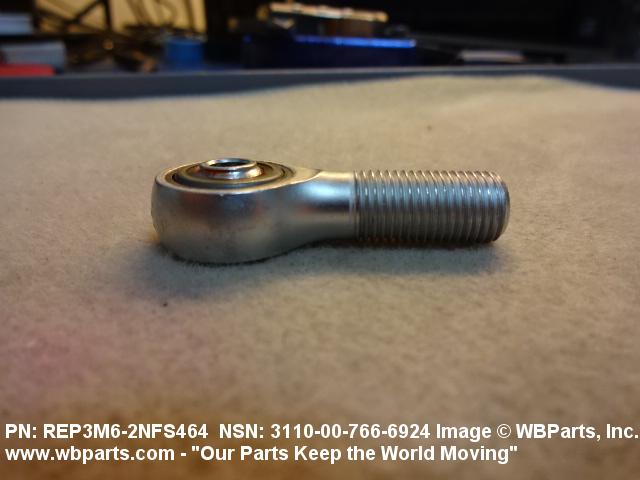

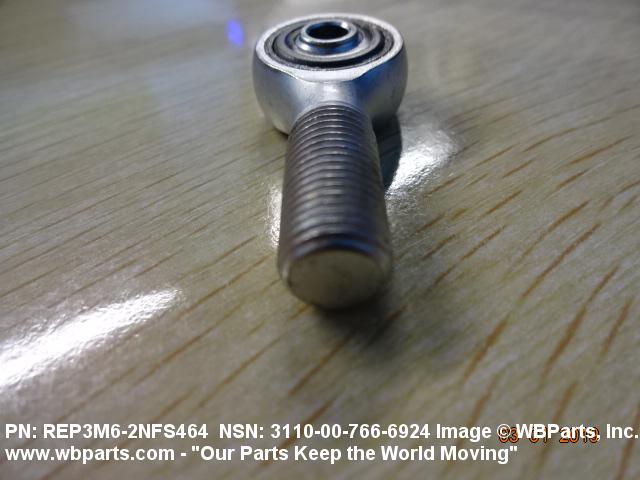

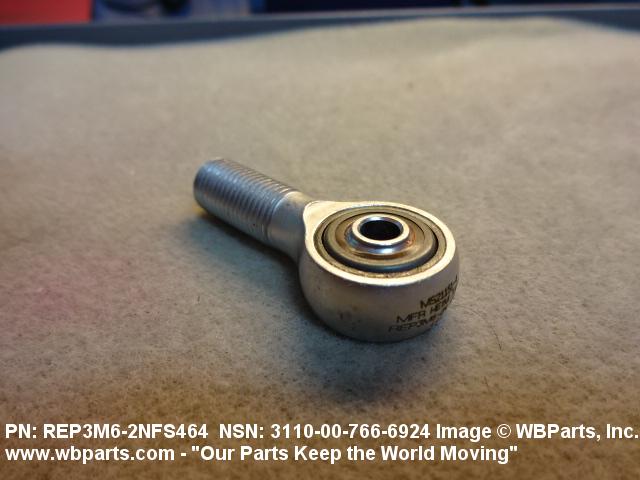

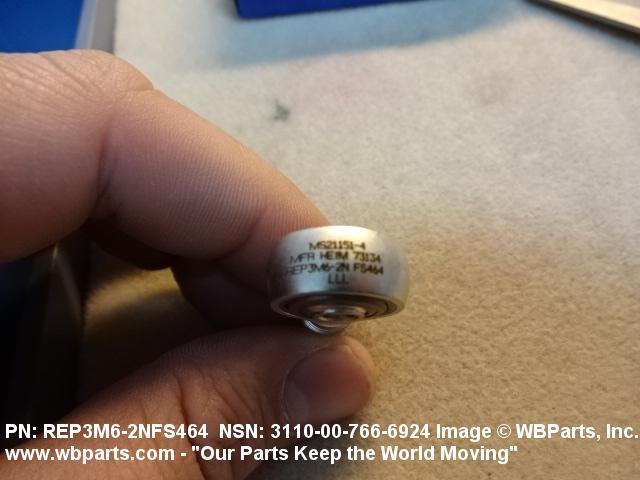

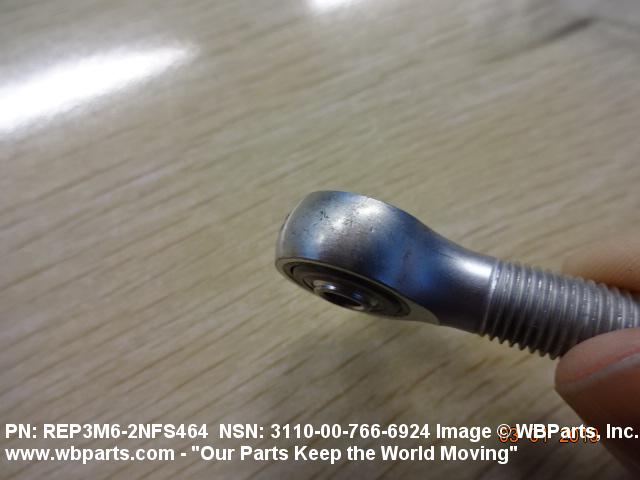

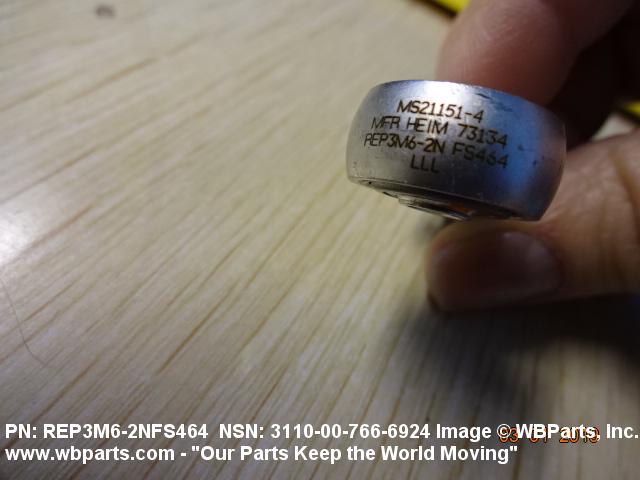

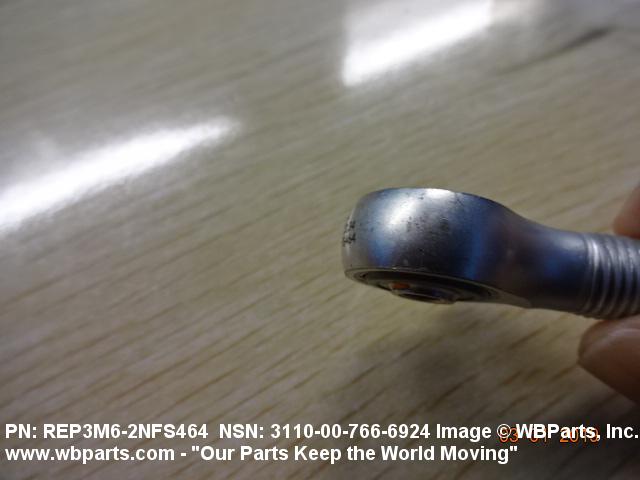

Drawings & Photos | NSN 3110-00-766-6924

Part Number	Request Date	QTY	Origin
3110-00-766-6924	2023-02-45	25	US
3110-00-766-6924	2020-02-50	25	US
REP3M62NFS464	2018-02-45	25	United States
MS211514	2018-02-45	25	United States
3110-00-766-6924	2016-01-21	1	DIBBS-RFPs
3110-00-766-6924	2015-06-166	2	Canada
3110-00-766-6924	2013-08-241	203	DIBBS
3110-00-766-6924	2012-03-73	4	US
3110-00-766-6924	2010-08-223	240	US
MS211514	2010-04-104	6	IL
3110-00-766-6924	2009-07-196	76	DIBBS
3110-00-766-6924	2009-06-166	182	DIBBS
3110-00-766-6924	2008-11-318	57	DIBBS
3110-00-766-6924	2008-10-294	65	DIBBS
3110-00-766-6924	2008-07-212	4	United States
3110-00-766-6924	2008-05-124	5	DIBBS
3110-00-766-6924	2008-05-122	238	DIBBS
3110-00-766-6924	2008-02-59	324	DIBBS
3110-00-766-6924	2007-08-229	148	DIBBS

Cross Reference | NSN 3110-00-766-6924

Part Number	Cage Code	Manufacturer
2-73884	76823	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE
2-73884-1	76823	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE
AN946RE3M6-2N	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AS21151	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS6039	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
BACB10A435	81205	THE BOEING COMPANY DBA BOEING
BACB10A72	81205	THE BOEING COMPANY DBA BOEING
MS21151-4	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS21151-4	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
REP-3-M-6-2-N-1	39443	MCWILLIAMS FORGE COMPANY
REP3M6-2NF3210	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
REP3M6-2NFS464	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
REP3M6-2NFS464	73134	ROLLER BEARING COMPANY OF AMERICA, INC.
REP3M6-4F	73134	ROLLER BEARING COMPANY OF AMERICA, INC.
REPEM6-2N	38443	SKF USA INC DBA SKF AEROENGINE NORTH AMERICA

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3110-00-766-6924

Compare

Related Products | NSN 3110-00-766-6924

3110-00-766-8015, 3110-00-766-8016, 3110-00-766-9471, 3110-00-767-0439, 3110-00-767-0440

Technical Data | NSN 3110-00-766-6924

Characteristic	Specifications
MATERIAL	STEEL COMP E52100 BALL STEEL COMP E52100 INNER RING STEEL COMP 4130 OUTER RING PLASTIC POLYTETRAFLUOROETHYLENE SEAL STEEL COMP 4130 SHAFT
MATERIAL DOCUMENT AND CLASSIFICATION	MIL-S-7420 MIL SPEC SINGLE MATERIAL RESPONSE BALL MIL-S-7420 MIL SPEC SINGLE MATERIAL RESPONSE INNER RING MIL-S-6758 MIL SPEC SINGLE MATERIAL RESPONSE OUTER RING AMS 3652 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 3666 ASSN STD SINGLE MATERIAL RESPONSE SEAL MIL-S-6758 MIL SPEC SINGLE MATERIAL RESPONSE SHAFT
SURFACE TREATMENT	CADMIUM OUTER RING CADMIUM ROD END BODY
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 1,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OUTER RING QQ-P-416,TY 1,CL 2 FED SPEC SINGLE TREATMENT RESPONSE ROD END BODY
STYLE DESIGNATOR	466 DOUBLE ROW, STAGGERED, BALL
SELF-ALIGNMENT ANGLE	10.00 DEGREES NOMINAL
OVERALL LENGTH	1.7505 INCHES MINIMUM AND 1.7805 INCHES MAXIMUM

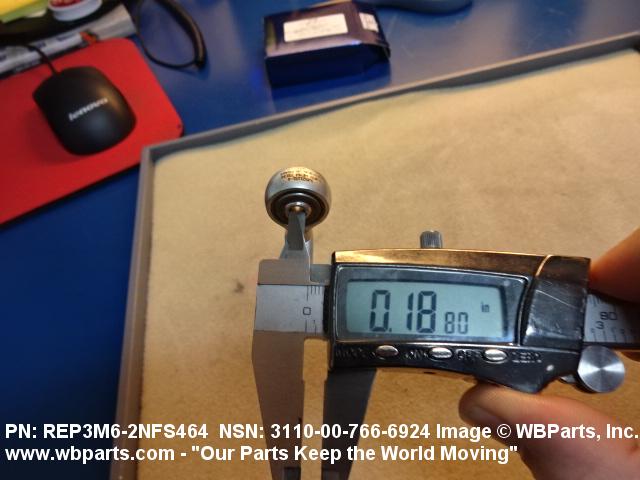

BORE DIAMETER	0.1897 INCHES MINIMUM AND 0.1900 INCHES MAXIMUM

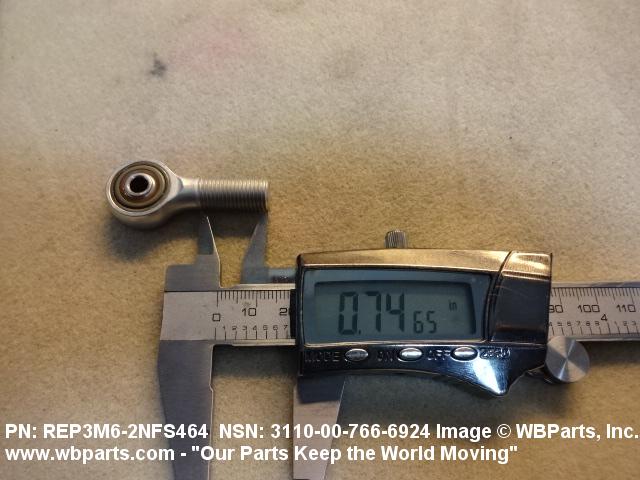

OVERALL OUTSIDE DIAMETER	0.7710 INCHES MINIMUM AND 0.7910 INCHES MAXIMUM
OUTER RING WIDTH	0.3180 INCHES MINIMUM AND 0.3380 INCHES MAXIMUM
INNER RING WIDTH	0.4320 INCHES MINIMUM AND 0.4370 INCHES MAXIMUM

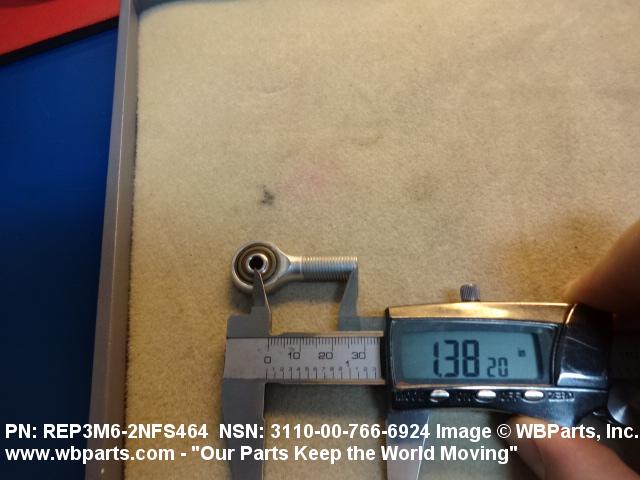

LENGTH FROM BORE CENTER TO SHANK END	1.3650 INCHES MINIMUM AND 1.3850 INCHES MAXIMUM
SHANK STYLE	651 EXTERNALLY THREADED

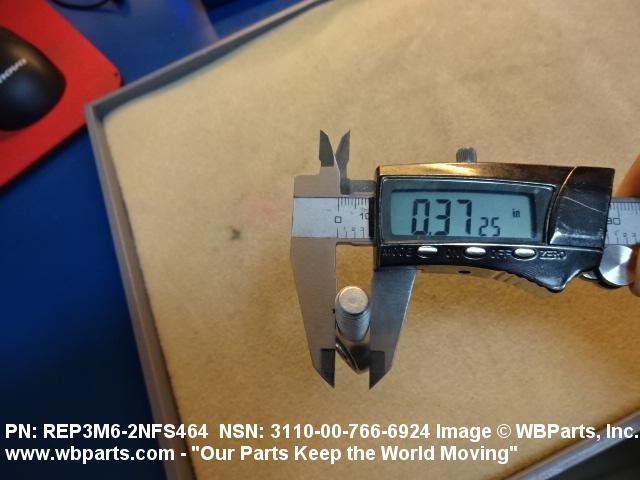

SHANK DIAMETER	0.3750 INCHES NOMINAL
SHANK THREAD LENGTH	0.7190 INCHES MINIMUM AND 0.7810 INCHES MAXIMUM
THREAD SERIES DESIGNATOR	UNJF
NOMINAL THREAD SIZE	0.375 INCHES

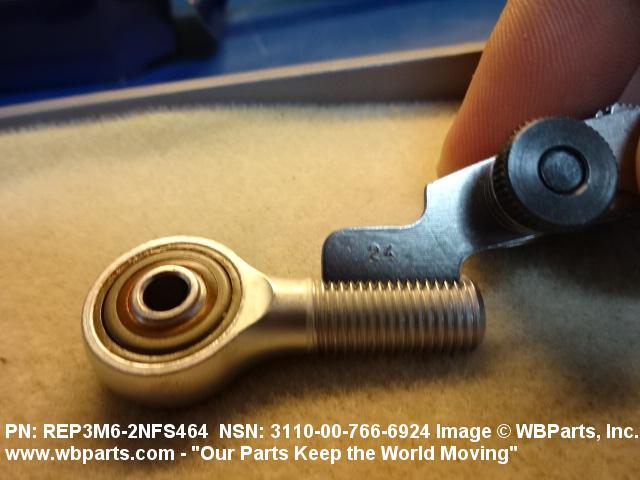

THREAD QUANTITY PER INCH	24
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND
LUBRICATION MATERIAL	GREASE
LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION	MIL-G-81322 MIL SPEC SINGLE MATERIAL RESPONSE
SEAL QUANTITY	2
BEARING SEAL TYPE	CONTACT
ALIGNMENT TYPE	SELF-ALIGNING
SELF-ALIGNMENT LOCATION	INTERNAL
SPECIAL FEATURES	THIS ITEM HAS BEEN DETERMINED TO BE A CRITICAL APPLICATION ITEM. IN-FLIGHT FAILURE OF THIS ITEM WOULD CREATE A HAZARDOUS CONDITION
CRITICALITY CODE JUSTIFICATION	FEAT

Restrictions/Controls & Freight Information | NSN 3110-00-766-6924

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).

Category	Code	Description
NMF Description	114820	BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	742	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3110-00-766-6924

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
