NSN 3110-00-726-6244 NAS65935, NAS659-3-5, RA3M5
Product Details | ROD END BALL BEARING

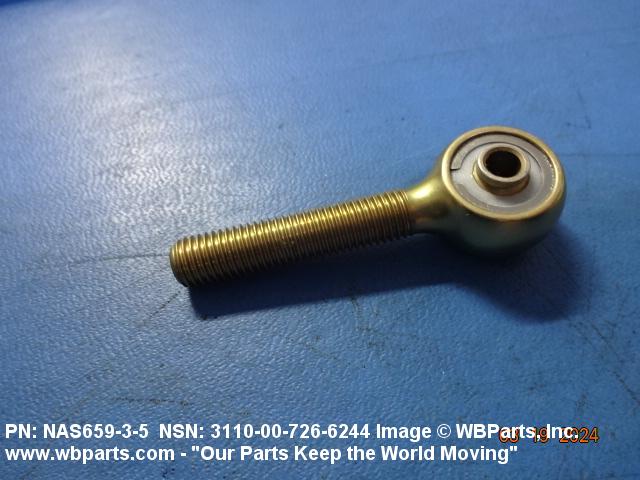

3110-00-726-6244 A special single or multiple-row ball bearing, rigid or self-aligning, and constructed with either a solid or hollow shank, internally or externally threaded.
Part Alternates: NAS65935, NAS659-3-5, RA3M5, RA3M5FS237, 3110-00-726-6244, 00-726-6244, 3110007266244, 007266244
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-726-6244 | 00049 ( BEARING, BALL, ROD END ) |

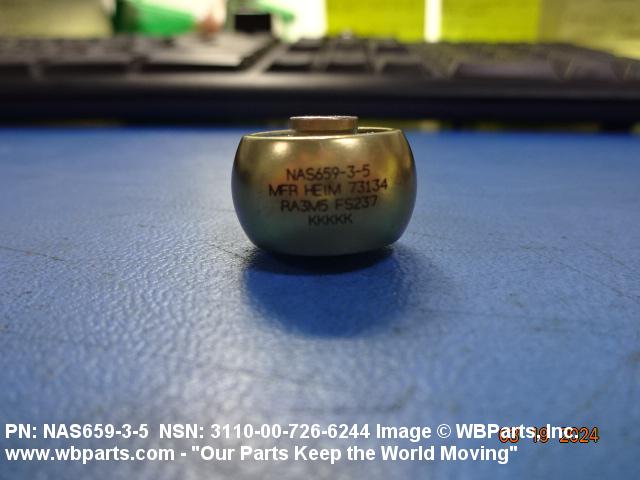

Drawings & Photos | NSN 3110-00-726-6244
Demand History | NSN 3110-00-726-6244
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS65935 | 2024-10-304 | 3 | France |
| RA3M5FS237 | 2024-06-164 | 18 | United States |
| 3110-00-726-6244 | 2024-02-33 | 4 | France |
| 3110-00-726-6244 | 2024-01-03 | 11 | US |
| RA3M5FS237 | 2023-07-209 | 18 | United States |
| 3110-00-726-6244 | 2022-02-55 | 211 | DIBBS |
| 3110-00-726-6244 | 2022-02-55 | 25 | DIBBS |
| NAS65935 | 2021-04-97 | 10 | US |
| 3110-00-726-6244 | 2021-02-47 | 64 | DIBBS |
| 3110-00-726-6244 | 2021-01-25 | 147 | DIBBS |
| NAS65935 | 2020-10-293 | 1 | United States |
| 3110-00-726-6244 | 2020-09-261 | 30 | DIBBS |
| 3110-00-726-6244 | 2020-07-203 | 30 | DIBBS |
| 3110-00-726-6244 | 2020-05-131 | 44 | DIBBS |
| 3110-00-726-6244 | 2020-02-37 | 2 | US |
| 3110-00-726-6244 | 2020-01-31 | 33 | United States |
| 3110-00-726-6244 | 2020-01-17 | 6 | UA |
| 3110-00-726-6244 | 2020-01-16 | 62 | DIBBS |
| 3110-00-726-6244 | 2020-01-08 | 62 | DIBBS |
| NAS65935 | 2019-09-255 | 14 | United States |
| 3110-00-726-6244 | 2019-08-241 | 69 | DIBBS |
| 3110-00-726-6244 | 2019-06-177 | 112 | DIBBS |
| 3110-00-726-6244 | 2019-06-169 | 112 | DIBBS |
| 3110-00-726-6244 | 2019-05-142 | 8 | United States |
| 3110-00-726-6244 | 2019-04-91 | 105 | DIBBS |
| 3110-00-726-6244 | 2019-03-77 | 105 | DIBBS |
| NAS659-3-5 | 2019-02-58 | 69 | DIBBS |
| 3110-00-726-6244 | 2018-12-338 | 58 | DIBBS |
| 3110-00-726-6244 | 2018-10-283 | 51 | DIBBS |
| 3110-00-726-6244 | 2018-07-200 | 104 | DIBBS |
| 3110-00-726-6244 | 2018-03-81 | 62 | DIBBS |
| 3110-00-726-6244 | 2018-02-53 | 1 | DIBBS-RFPs |
| 3110-00-726-6244 | 2017-09-269 | 33 | DIBBS |
| 3110-00-726-6244 | 2017-05-142 | 62 | DIBBS |
| 3110-00-726-6244 | 2016-05-131 | 155 | DIBBS |
| 3110-00-726-6244 | 2016-04-108 | 31 | DIBBS |
| 3110-00-726-6244 | 2015-04-105 | 151 | DIBBS |
| 3110-00-726-6244 | 2013-10-301 | 14 | Iran |
| 3110-00-726-6244 | 2013-06-181 | 369 | DIBBS |
| NAS659-3-5 | 2012-10-297 | 4 | US |
| 3110-00-726-6244 | 2012-07-206 | 40 | US |
| 3110-00-726-6244 | 2012-06-174 | 1 | US |
| 3110-00-726-6244 | 2012-04-101 | 385 | DIBBS |
| 3110-00-726-6244 | 2011-06-169 | 2 | IT |
| NAS65935 | 2010-12-344 | 2 | US |
| 3110-00-726-6244 | 2010-10-274 | 212 | DIBBS |
| 3110-00-726-6244 | 2010-09-271 | 2 | US |
| NAS65935 | 2010-07-186 | 275 | US |
| 3110-00-726-6244 | 2009-06-163 | 63 | DIBBS |
| 3110-00-726-6244 | 2009-05-126 | 51 | DIBBS |
| 3110-00-726-6244 | 2009-04-105 | 11 | DIBBS |
| RA3M5 | 2008-07-196 | 8 | IS |
| RA3M5FS237 | 2008-05-135 | 2 | US |
| 3110-00-726-6244 | 2008-04-93 | 54 | US |
| NAS65935 | 2008-03-83 | 2 | US |
| NAS65935 | 2008-02-46 | 80 | US |
| NAS65935 | 2007-09-248 | 15 | US |
| NAS65935 | 2007-06-180 | 1 | US |
| 3110-00-726-6244 | 2007-02-44 | 458 | DIBBS |
| RA3M5FS237 | 2007-02-38 | 26 | US |
| NAS65935 | 2006-01-12 | 1 | US |
Cross Reference | NSN 3110-00-726-6244
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-726-6244
Related Products | NSN 3110-00-726-6244
Technical Data | NSN 3110-00-726-6244
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL BALL STEEL INNER RING STEEL OUTER RING RUBBER SYNTHETIC SEAL STEEL SHAFT |
| SURFACE TREATMENT | CADMIUM EXPOSED SURFACES AS MOUNTED |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE EXPOSED SURFACES AS MOUNTED |
| STYLE DESIGNATOR | 466 DOUBLE ROW, STAGGERED, BALL |
| SELF-ALIGNMENT ANGLE | 10.00 DEGREES NOMINAL |

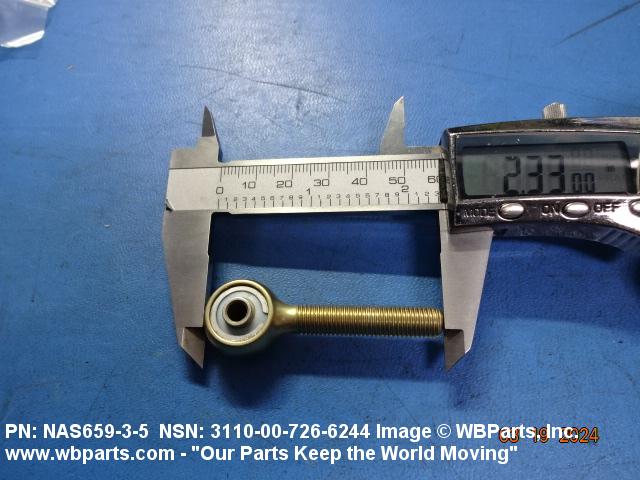

| OVERALL LENGTH | 2.3435 INCHES MAXIMUM |

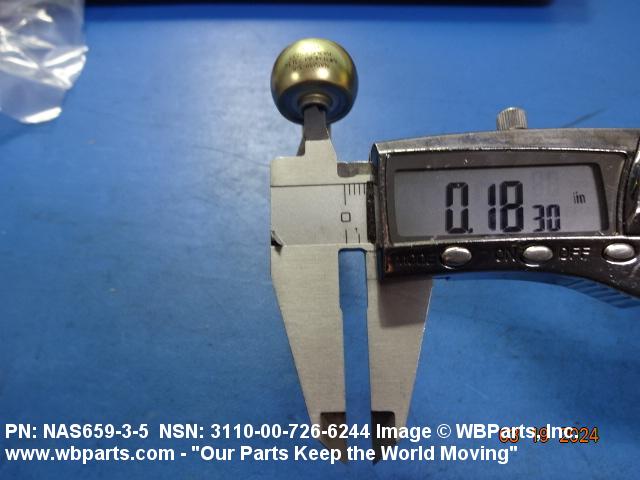

| BORE DIAMETER | 0.1895 INCHES MINIMUM AND 0.1900 INCHES MAXIMUM |

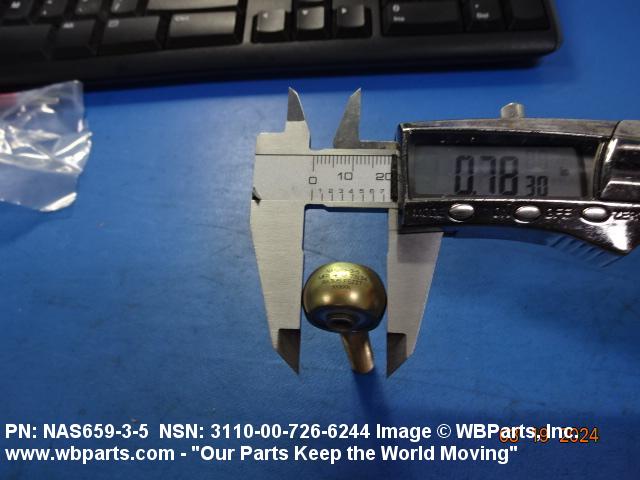

| OVERALL OUTSIDE DIAMETER | 0.7810 INCHES NOMINAL |
| OUTER RING WIDTH | 0.4360 INCHES NOMINAL |

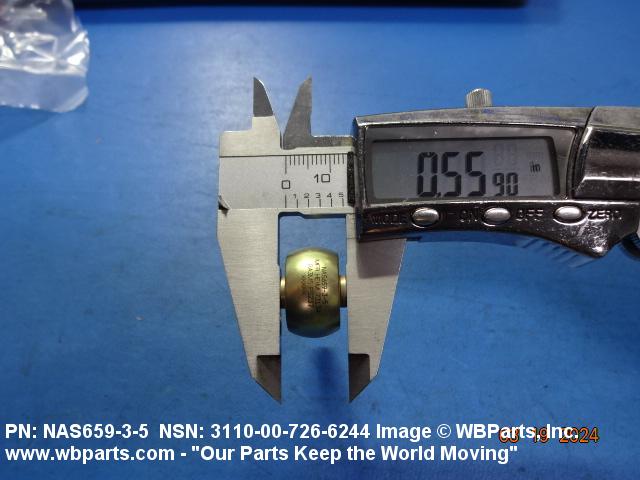

| INNER RING WIDTH | 0.5570 INCHES MINIMUM AND 0.5620 INCHES MAXIMUM |
| LENGTH FROM BORE CENTER TO SHANK END | 1.9280 INCHES MINIMUM AND 1.9480 INCHES MAXIMUM |
| SHANK STYLE | 651 EXTERNALLY THREADED |

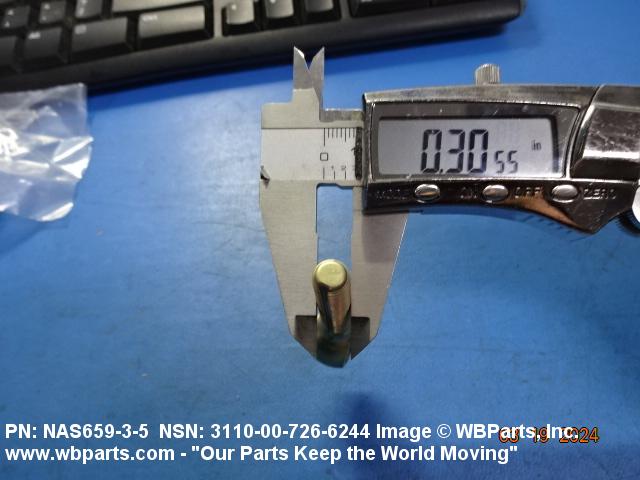

| SHANK DIAMETER | 0.3125 INCHES NOMINAL |

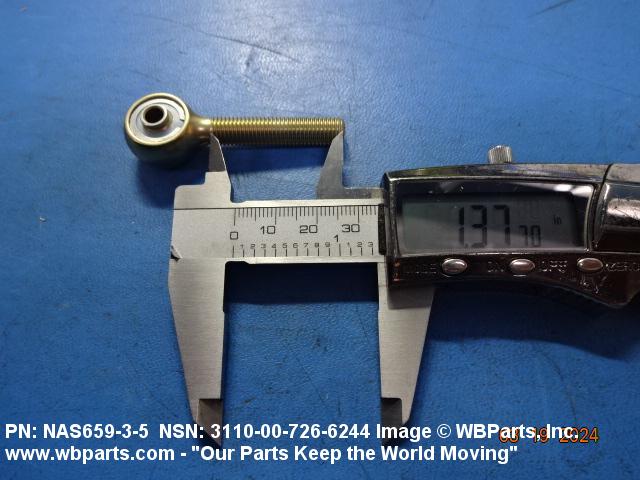

| SHANK THREAD LENGTH | 1.3650 INCHES MINIMUM AND 1.3850 INCHES MAXIMUM |

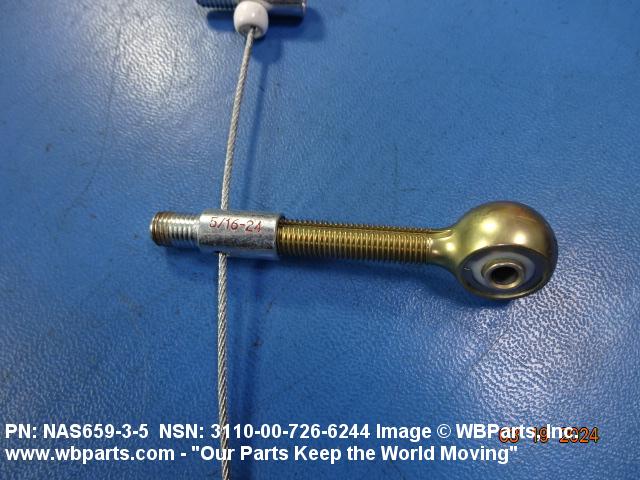

| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.312 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-23827 MIL SPEC SINGLE MATERIAL RESPONSE |
| SEAL QUANTITY | 2 |
| BEARING SEAL TYPE | CONTACT |
| ALIGNMENT TYPE | SELF-ALIGNING |
| SELF-ALIGNMENT LOCATION | INTERNAL |
| SPECIAL FEATURES | 0.0620 IN. W BY 0.0500 IN. DEEP BY 1.3750 IN. LG SLOT IN SHANK |
| TEST DATA DOCUMENT | 81349-MIL-I-6868 SPECIFICATION |
Restrictions/Controls & Freight Information | NSN 3110-00-726-6244
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-726-6244
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
