NSN 3110-00-625-9295 MS211517C, MS21151-7C, AS21151
Product Details | ROD END BALL BEARING
3110-00-625-9295 A special single or multiple-row ball bearing, rigid or self-aligning, and constructed with either a solid or hollow shank, internally or externally threaded.

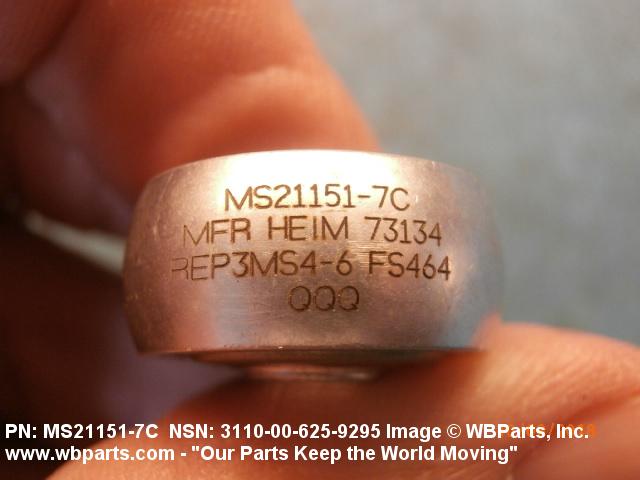

Part Alternates: MS211517C, MS21151-7C, AS21151, REP3MK47F, REP3MK4-7F, REP3MS46FS428, REP3MS4-6FS428, REP3MS46FS464, REP3MS4-6FS464, 3110-00-625-9295, 00-625-9295, 3110006259295, 006259295
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 05 MAR 1975 | 00-625-9295 | 00049 ( BEARING, BALL, ROD END ) |

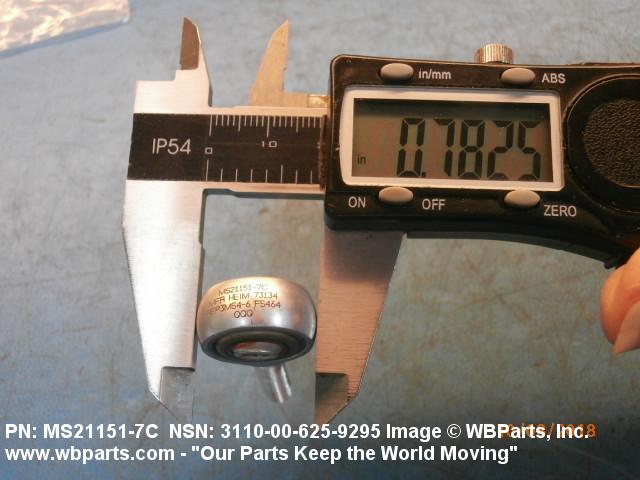

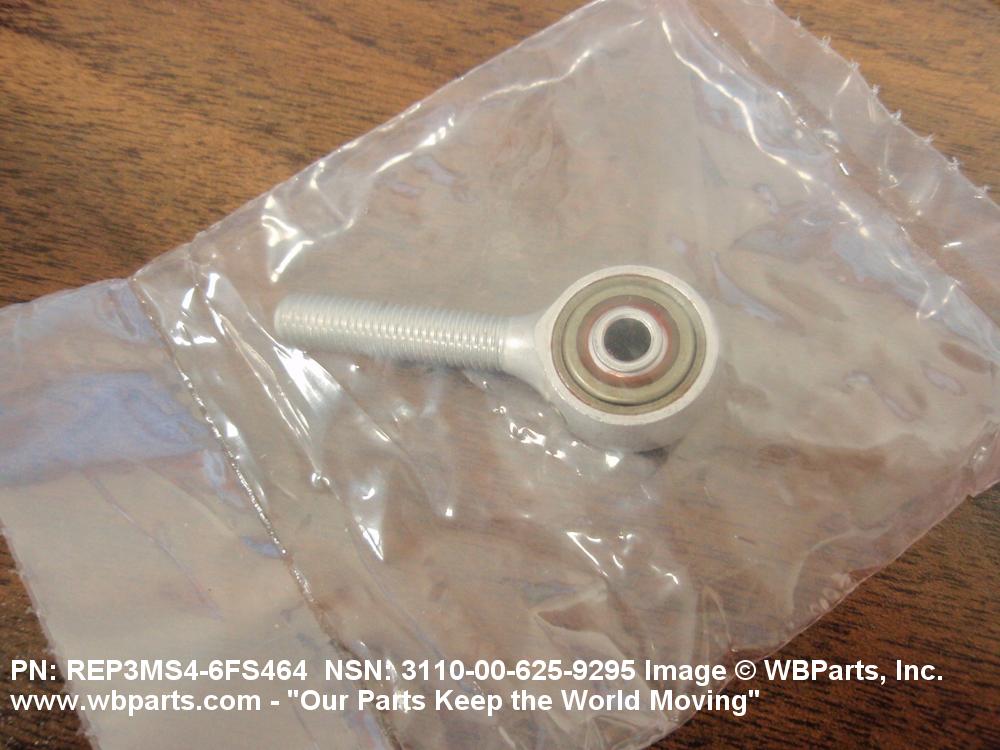

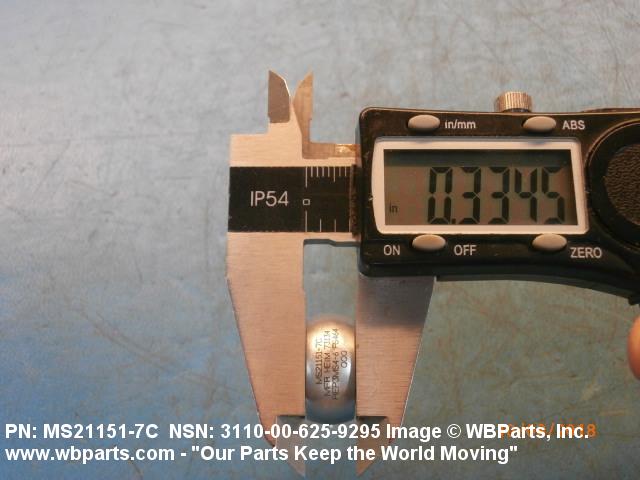

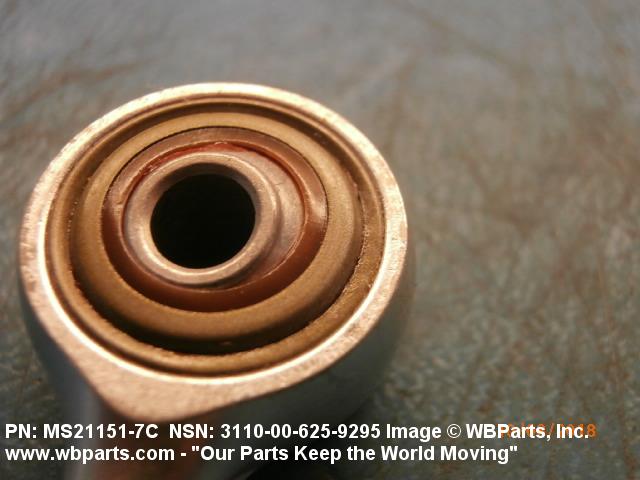

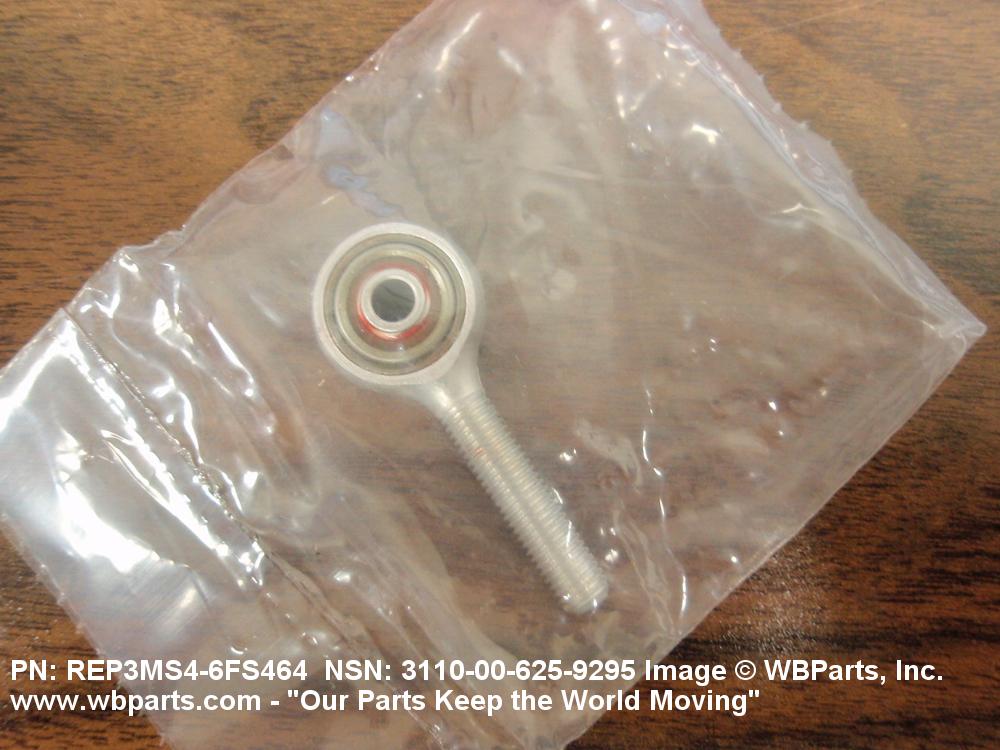

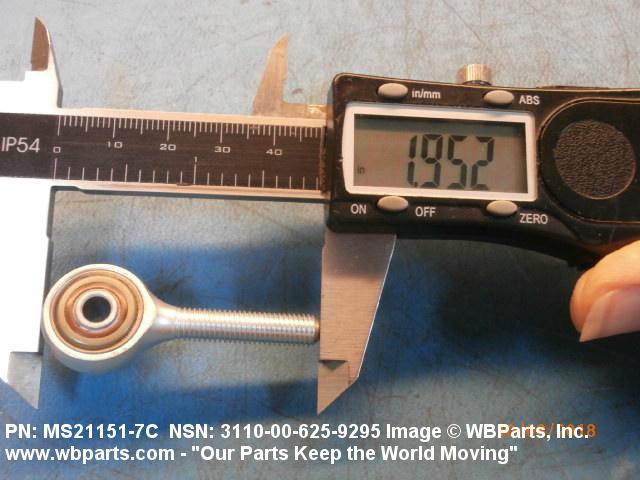

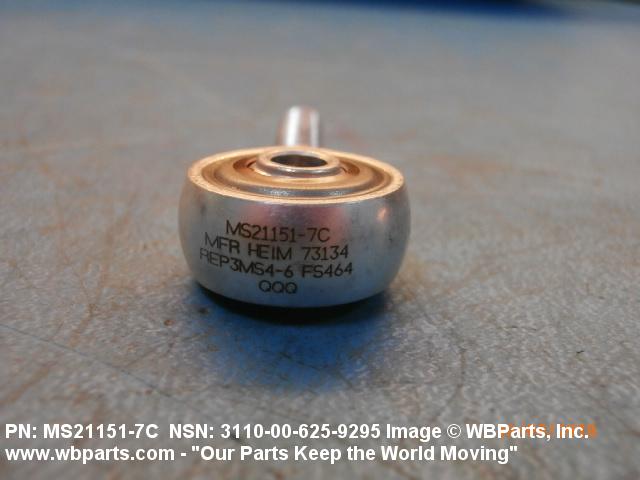

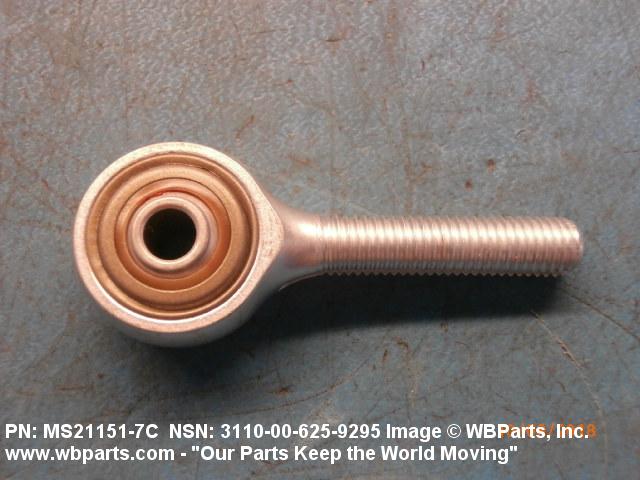

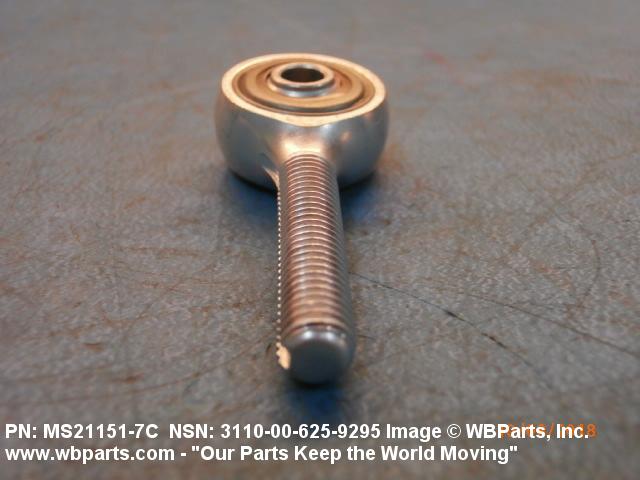

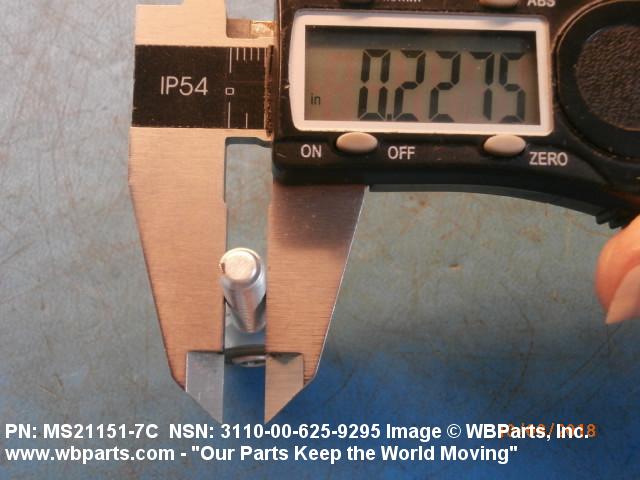

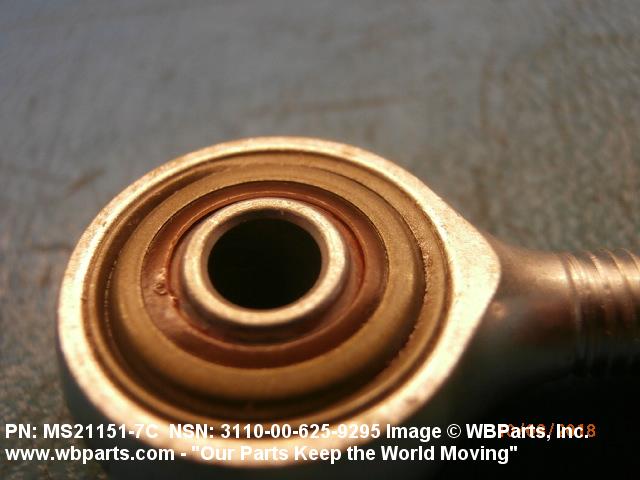

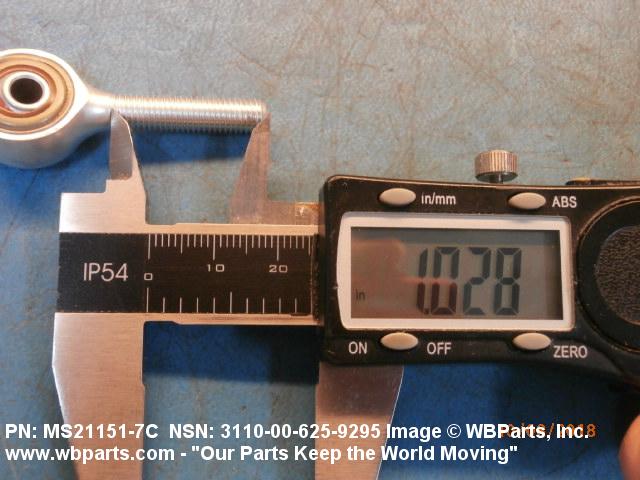

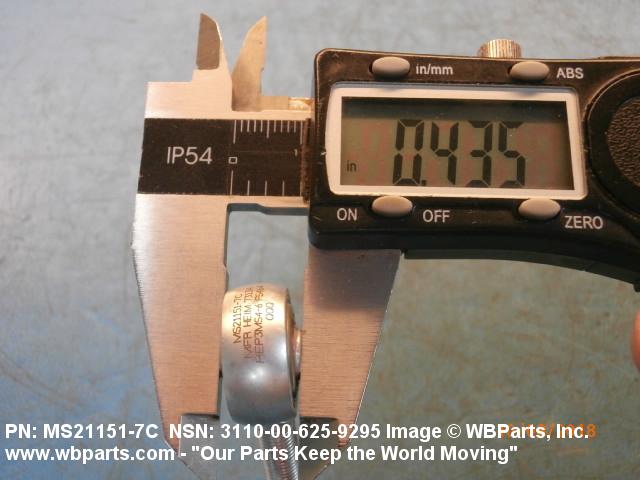

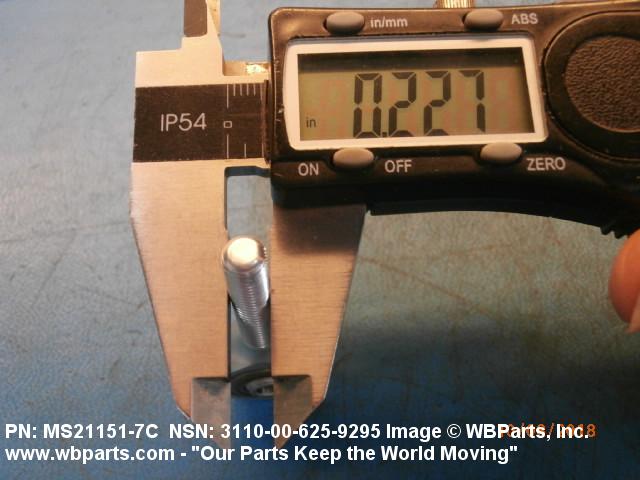

Drawings & Photos | NSN 3110-00-625-9295
Demand History | NSN 3110-00-625-9295
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-00-625-9295 | 2019-02-36 | 37 | DIBBS |
| 3110-00-625-9295 | 2018-09-269 | 138 | DIBBS |
| MS211517C | 2018-09-262 | 6 | United States |
| 3110-00-625-9295 | 2017-09-268 | 85 | DIBBS |
| MS211517C | 2016-04-103 | 6 | Colombia |
| 3110-00-625-9295 | 2015-12-342 | 214 | DIBBS |
| MS211517C | 2014-07-200 | 2 | US |
| MS211517C | 2013-12-345 | 24 | Israel |
| 3110-00-625-9295 | 2013-08-231 | 500 | Canada |
| 3110-00-625-9295 | 2011-05-122 | 336 | DIBBS |
| 3110-00-625-9295 | 2011-04-97 | 2 | United States |
| REP3MS46FS428 | 2008-07-189 | 50 | US |
| MS211517C | 2008-02-46 | 880 | US |
| 3110-00-625-9295 | 2007-11-305 | 10 | Australia |
| 3110-00-625-9295 | 2007-02-37 | 90 | DIBBS |
Cross Reference | NSN 3110-00-625-9295
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AS21151 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS21151-7C | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS21151-7C | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| REP3MK4-7F | 73134 | ROLLER BEARING COMPANY OF AMERICA, INC. |
| REP3MS4-6FS428 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| REP3MS4-6FS464 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| REP3MS4-6FS464 | 73134 | ROLLER BEARING COMPANY OF AMERICA, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-625-9295
Related Products | NSN 3110-00-625-9295
Technical Data | NSN 3110-00-625-9295
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E52100 BALL STEEL COMP E52100 INNER RING STEEL COMP E52100 OUTER RING STEEL COMP 4130 ROD END BODY PLASTIC POLYTETRAFLUOROETHYLENE SEAL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-7420 MIL SPEC SINGLE MATERIAL RESPONSE BALL MIL-S-7420 MIL SPEC SINGLE MATERIAL RESPONSE INNER RING MIL-S-7420 MIL SPEC SINGLE MATERIAL RESPONSE OUTER RING MIL-S-6758 MIL SPEC SINGLE MATERIAL RESPONSE ROD END BODY AMS 3652 ASSN STD SINGLE MATERIAL RESPONSE SEAL |
| SURFACE TREATMENT | CADMIUM ALL EXTERNAL/EXPOSED METAL SURFACES |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 1,CL 2 FED SPEC SINGLE TREATMENT RESPONSE ALL EXTERNAL/EXPOSED METAL SURFACES |
| STYLE DESIGNATOR | 466 DOUBLE ROW, STAGGERED, BALL |
| SELF-ALIGNMENT ANGLE | 10.00 DEGREES NOMINAL |
| OVERALL LENGTH | 2.3540 INCHES MINIMUM AND 2.3640 INCHES MAXIMUM |

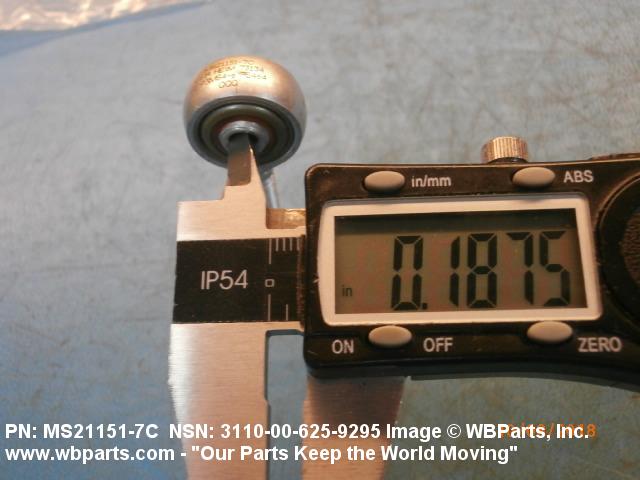

| BORE DIAMETER | 0.1897 INCHES MINIMUM AND 0.1900 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 0.7710 INCHES MINIMUM AND 0.7910 INCHES MAXIMUM |
| OUTER RING WIDTH | 0.3180 INCHES MINIMUM AND 0.3380 INCHES MAXIMUM |
| INNER RING WIDTH | 0.4320 INCHES MINIMUM AND 0.4370 INCHES MAXIMUM |

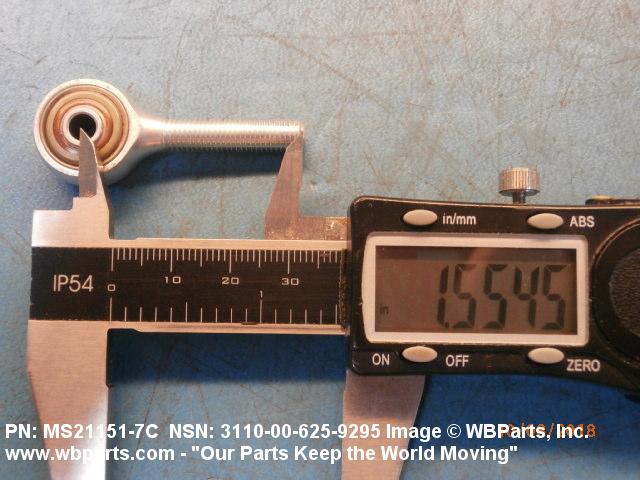

| LENGTH FROM BORE CENTER TO SHANK END | 1.5530 INCHES MINIMUM AND 1.5730 INCHES MAXIMUM |
| SHANK STYLE | 651 EXTERNALLY THREADED |
| SHANK DIAMETER | 0.2500 INCHES MAXIMUM |
| SHANK THREAD LENGTH | 0.9690 INCHES MINIMUM AND 1.0310 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD SIZE | 0.250 INCHES |

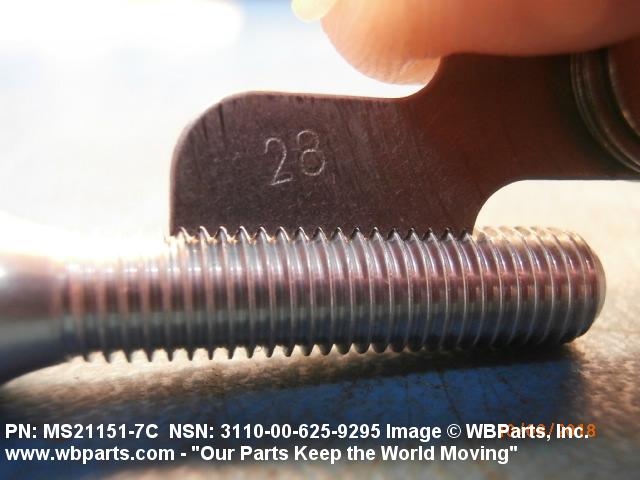

| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-81322 MIL SPEC SINGLE MATERIAL RESPONSE |
| SEAL QUANTITY | 2 |
| BEARING SEAL TYPE | CONTACT |
| ALIGNMENT TYPE | SELF-ALIGNING |
| SELF-ALIGNMENT LOCATION | EXTERNAL |
| SPECIAL FEATURES | FILLED WITH 80 PCT OF SPECIFIED LUBRICANT,NAS513 KEYWAY SLOT |
Restrictions/Controls & Freight Information | NSN 3110-00-625-9295
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-625-9295
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | B | Rotary Wing Aircraft |
| Weapons Systems/End Item or Homogeneous Group | BJ | AH-64 Airframe |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
