NSN 3110-00-591-7223 CV154108511, CV15-410851-1, 00-591-7223
Product Details | ROD END ROLLER BEARING
3110-00-591-7223 A special single or multiple-row roller bearing, rigid or self-aligning, and constructed with either inside threaded, plain hollow, maile threaded, or solid shank.
Part Alternates: CV154108511, CV15-410851-1, 3110-00-591-7223, 00-591-7223, 3110005917223, 005917223
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-591-7223 | 00050 ( BEARING, ROLLER, ROD END ) |
Drawings & Photos | NSN 3110-00-591-7223
Cross Reference | NSN 3110-00-591-7223
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CV15-410851-1 | 80378 | TRIUMPH AEROSTRUCTURES, LLC DBA TRIUMPH AEROSTRUCTURES - VOUGHT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-591-7223
Related Products | NSN 3110-00-591-7223
Technical Data | NSN 3110-00-591-7223
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E52100 INNER RING STEEL COMP E52100 OUTER RING STEEL COMP 4140 ROD END BODY STEEL COMP E52100 ROLLER |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE INNER RING 66 FED STD SINGLE MATERIAL RESPONSE OUTER RING MIL-S-5626 COND C4 FED SPEC SINGLE MATERIAL RESPONSE ROD END BODY 66 FED STD SINGLE MATERIAL RESPONSE ROLLER |
| SURFACE TREATMENT | CADMIUM OVERALL |

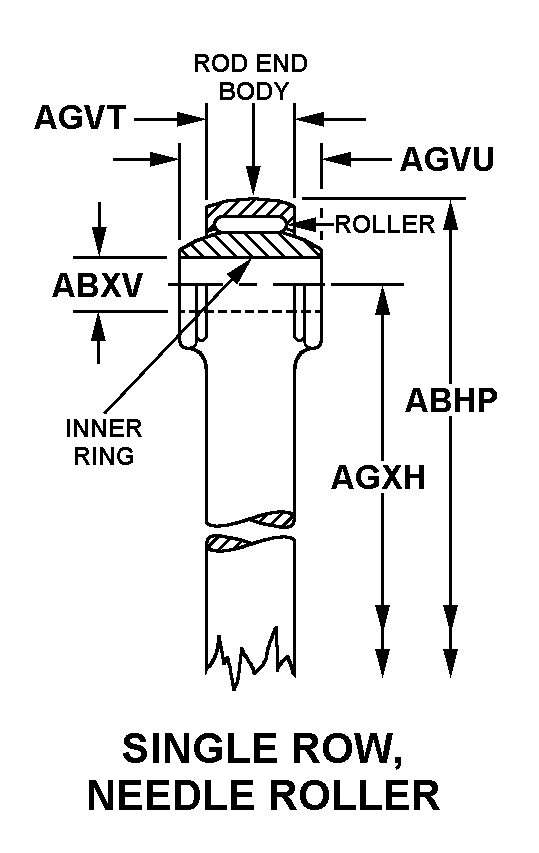

| STYLE DESIGNATOR | 476 SINGLE ROW, NEEDLE ROLLER |
| OVERALL LENGTH | 1.1900 INCHES NOMINAL |
| BORE DIAMETER | 0.2500 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 0.6600 INCHES NOMINAL |
| OUTER RING WIDTH | 0.4400 INCHES NOMINAL |
| INNER RING WIDTH | 0.4400 INCHES NOMINAL |
| LENGTH FROM BORE CENTER TO SHANK END | 0.8600 INCHES NOMINAL |
| SHANK STYLE | 651 EXTERNALLY THREADED |
| SHANK DIAMETER | 0.1840 INCHES MINIMUM AND 0.1900 INCHES MAXIMUM |
| SHANK THREAD LENGTH | 0.4800 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-23827 MIL SPEC SINGLE MATERIAL RESPONSE |
| ALIGNMENT TYPE | RIGID |
| SPECIAL FEATURES | CADMIUM PLATED PIN 0.2500 IN. DIA BY 0.9200 IN. LG THROUGH BORE |
Restrictions/Controls & Freight Information | NSN 3110-00-591-7223
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-591-7223
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
