NSN 3110-00-409-9848 MS211511, MS21151-1, MS211513ML3
Product Details | ROD END BALL BEARING

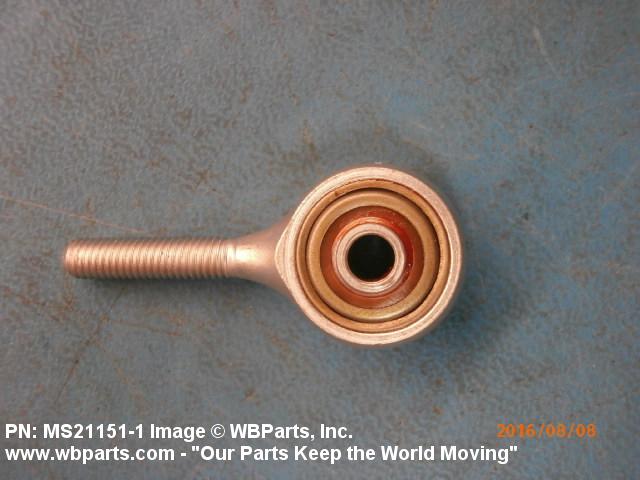

3110-00-409-9848 A special single or multiple-row ball bearing, rigid or self-aligning, and constructed with either a solid or hollow shank, internally or externally threaded.

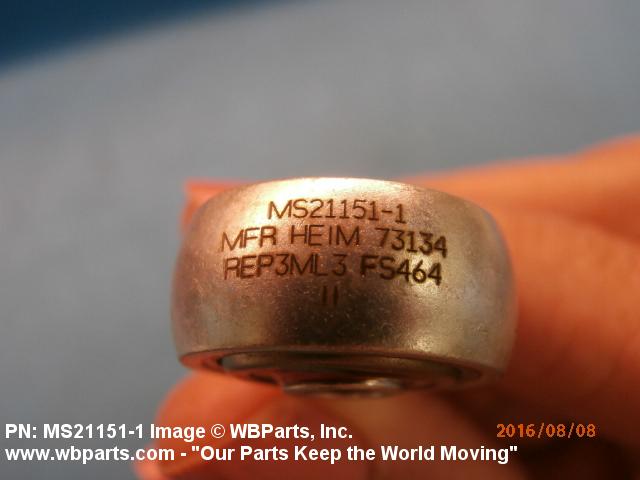

Part Alternates: MS211511, MS21151-1, MS211513ML3, MS21151-3ML3, AN946RE3ML3, REP3ML31F, REP3ML3-1F, REP3ML3FS464, 3110-00-409-9848, 00-409-9848, 3110004099848, 004099848
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 13 NOV 1970 | 00-409-9848 | 00049 ( BEARING, BALL, ROD END ) |

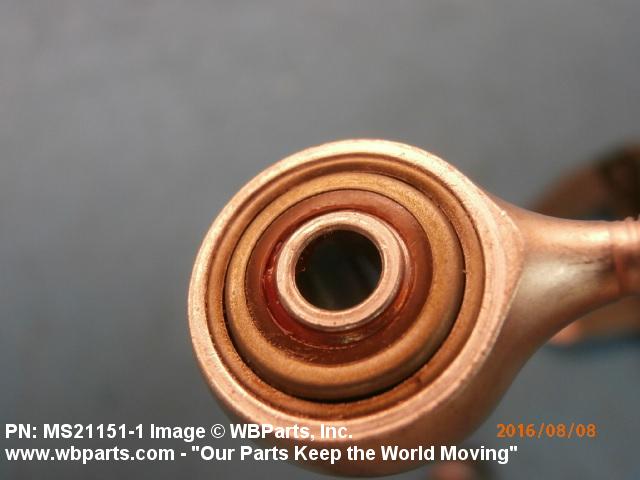

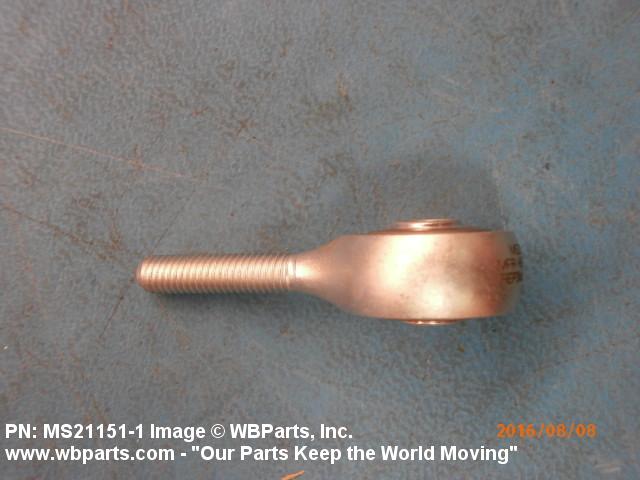

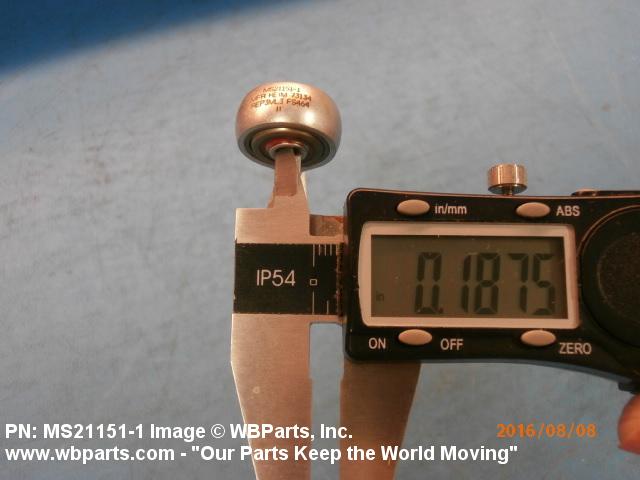

Drawings & Photos | NSN 3110-00-409-9848
Demand History | NSN 3110-00-409-9848
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-00-409-9848 | 2021-03-80 | 21 | DIBBS |
| MS211511 | 2016-07-194 | 2 | United Kingdom |
| MS211511 | 2015-09-244 | 35 | Israel |
| 3110-00-409-9848 | 2013-04-107 | 161 | DIBBS |
| 3110-00-409-9848 | 2012-08-234 | 16 | DIBBS |
| 3110-00-409-9848 | 2011-10-292 | 15 | US |
| MS211511 | 2011-07-195 | 10 | United States |
| 3110-00-409-9848 | 2010-08-239 | 1 | US |
| 3110-00-409-9848 | 2009-12-344 | 10 | US |
| 3110-00-409-9848 | 2008-02-36 | 80 | DIBBS |
| 3110-00-409-9848 | 2007-06-157 | 45 | DIBBS |
| 3110-00-409-9848 | 2007-02-37 | 53 | DIBBS |
| MS211511 | 2006-05-144 | 4 | AR |
Cross Reference | NSN 3110-00-409-9848
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN946RE3ML3 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| MS21151-1 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS21151-1 | K2861 | BAE SYSTEMS OPERATIONS LTD |
| MS21151-3ML3 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| REP3ML3-1F | 73134 | ROLLER BEARING COMPANY OF AMERICA, INC. |
| REP3ML3FS464 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| REP3ML3FS464 | 73134 | ROLLER BEARING COMPANY OF AMERICA, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-409-9848
Related Products | NSN 3110-00-409-9848
Technical Data | NSN 3110-00-409-9848
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E52100 BALL STEEL COMP E52100 INNER RING STEEL COMP 4130 OUTER RING STEEL COMP 4130 ROD END BODY PLASTIC POLYTETRAFLUOROETHYLENE SEAL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-7420 MIL SPEC SINGLE MATERIAL RESPONSE BALL MIL-S-7420 MIL SPEC SINGLE MATERIAL RESPONSE INNER RING MIL-S-6758 MIL SPEC SINGLE MATERIAL RESPONSE OUTER RING MIL-S-6758 MIL SPEC SINGLE MATERIAL RESPONSE ROD END BODY AMS3652 ASSN STD SINGLE MATERIAL RESPONSE OR AMS3666 ASSN STD SINGLE MATERIAL RESPONSE SEAL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 1,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 466 DOUBLE ROW, STAGGERED, BALL |
| SELF-ALIGNMENT ANGLE | 10.00 DEGREES NOMINAL |

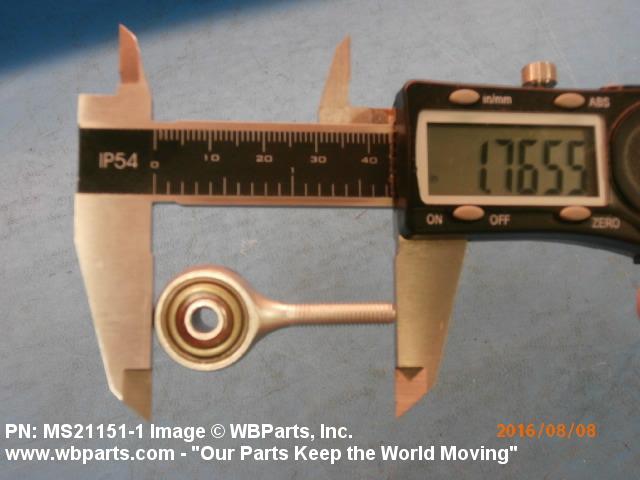

| OVERALL LENGTH | 1.7655 INCHES NOMINAL |

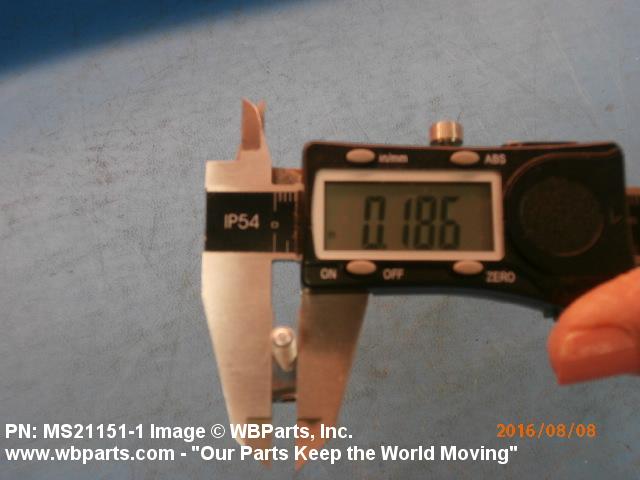

| BORE DIAMETER | 0.1897 INCHES MINIMUM AND 0.1900 INCHES MAXIMUM |

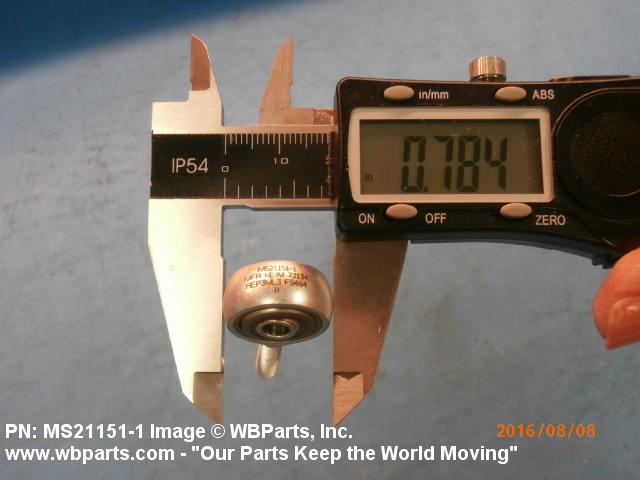

| OVERALL OUTSIDE DIAMETER | 0.7710 INCHES MINIMUM AND 0.7910 INCHES MAXIMUM |

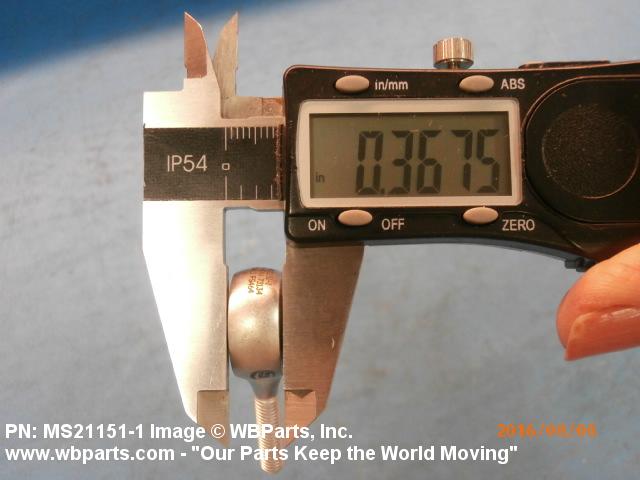

| OUTER RING WIDTH | 0.3180 INCHES MINIMUM AND 0.3380 INCHES MAXIMUM |

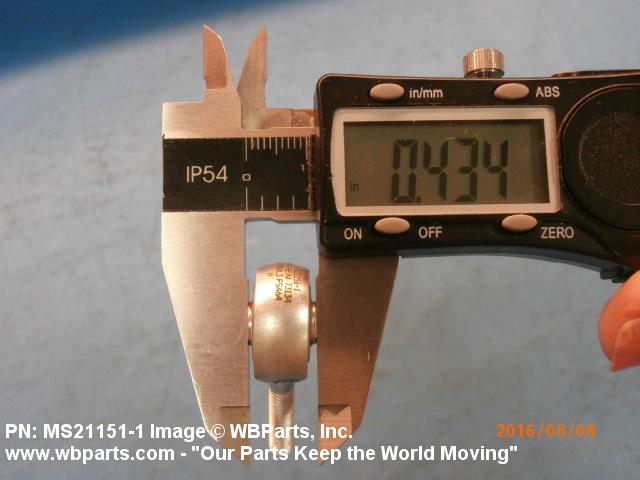

| INNER RING WIDTH | 0.4320 INCHES MINIMUM AND 0.4370 INCHES MAXIMUM |

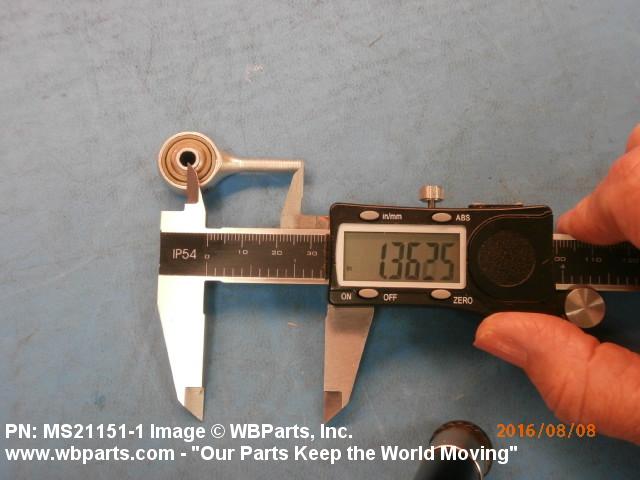

| LENGTH FROM BORE CENTER TO SHANK END | 1.3650 INCHES MINIMUM AND 1.3850 INCHES MAXIMUM |
| SHANK STYLE | 651 EXTERNALLY THREADED |
| SHANK DIAMETER | 0.1900 INCHES NOMINAL |
| SHANK THREAD LENGTH | 0.7190 INCHES MINIMUM AND 0.7810 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD SIZE | 0.190 INCHES |

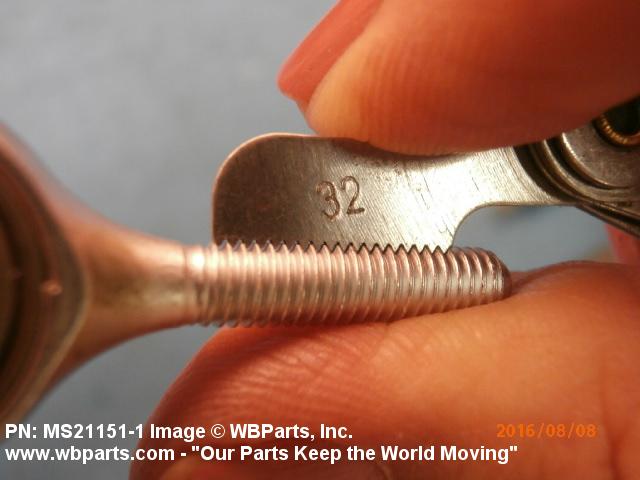

| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | LEFT-HAND |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-81322 MIL SPEC SINGLE MATERIAL RESPONSE |
| SEAL QUANTITY | 2 |
| BEARING SEAL TYPE | CONTACT |
| ALIGNMENT TYPE | SELF-ALIGNING |
| SELF-ALIGNMENT LOCATION | INTERNAL |
| SPECIAL FEATURES | STABILIZED FOR OPERATION AT 250 DEG FAHRENHEIT; ROCKWELL HARDNESS C SCALE 60 TO 66 RINGS AND BALLS; MAX SURFACE FINISH RACEWAYS AN BALLS 8 MICROINCHES AA,SHANK 63 MICROINCHES AA; VOIDS FILLED 80 PCT MIN WITH SPECIFIED LUBRICANT |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21151-1 |
Restrictions/Controls & Freight Information | NSN 3110-00-409-9848
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
