NSN 3110-00-409-9824 SR262PPC7, SR2-62PPC7, 14100236
Product Details | FAIRLEAD BALL BEARING
3110-00-409-9824 A special single or multiple-row ball bearing, rigid or self-aligning, and constructed with a fairlead at one end.
Part Alternates: SR262PPC7, SR2-62PPC7, 14100236, 1410-0236, 3110-00-409-9824, 00-409-9824, 3110004099824, 004099824
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 06 NOV 1970 | 00-409-9824 | 00043 ( BEARING, BALL, FAIRLEAD ) |
Drawings & Photos | NSN 3110-00-409-9824
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-409-9824
Related Products | NSN 3110-00-409-9824
Technical Data | NSN 3110-00-409-9824
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 440C OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE OVERALL |

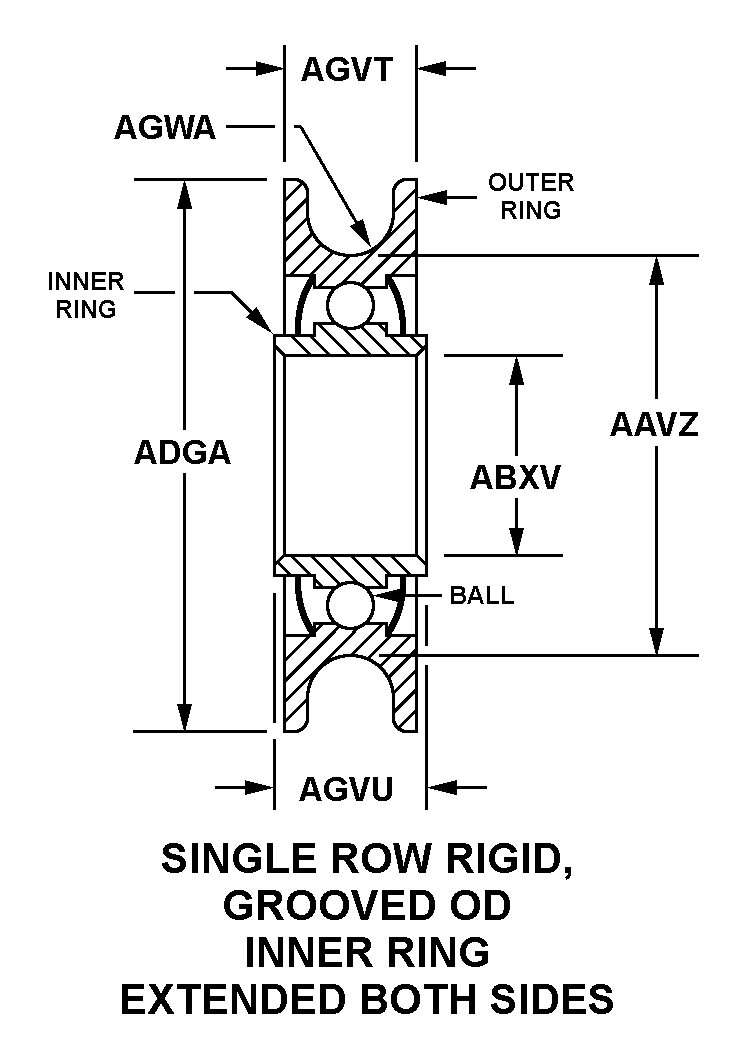

| STYLE DESIGNATOR | 214 SINGLE ROW RIGID, GROOVED OD INNER RING EXTENDED BOTH SIDES |
| GROOVE DIAMETER | ANY ACCEPTABLE |
| BORE DIAMETER | 0.1248 INCHES MINIMUM AND 0.1250 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 0.4498 INCHES MINIMUM AND 0.4500 INCHES MAXIMUM |
| OUTER RING WIDTH | 0.2490 INCHES MINIMUM AND 0.2500 INCHES MAXIMUM |
| INNER RING WIDTH | 0.2490 INCHES MINIMUM AND 0.2500 INCHES MAXIMUM |
| GROOVE RADIUS | 0.0310 INCHES NOMINAL |
| LUBRICATION MATERIAL | LUBRICANT |
| RETAINER FABRICATION METHOD | STAMPED |
| SHIELD QUANTITY | 2 |
| SPECIAL FEATURES | CONSTRUCTION CONSISTS OF DOUBLE ROW BALL BEARINGS |
Restrictions/Controls & Freight Information | NSN 3110-00-409-9824
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-409-9824
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
